Boosteven R281 (OpenWrt Build)

[indraaguslesmana]

so i do uart.
boot option 1 with initramfs
run command, fw_printenv:
fw_printenv
bootcmd=tftp
baudrate=57600
ethaddr="00:AA:BB:CCD:10"
BootType=3
bootdelay=1
uboot_ver=V1.1
rootfs_data_fail=0
PCB_SN=P28X21050901xxx
SN=P28X2105xxx
IMEI=35021407xxx
bootargs=console=ttyS1,57600n8 root=/dev/mtdblock6
wifi_ate=on
dropbear_mode=1
dropbear_key_type=99
dropbear_password=root123
rootfs_data_ofs=0x3260000
stdin=serial
stdout=serial
stderr=serial
filesize=9ac7b7
fileaddr=84000000
ipaddr=10.10.10.123
serverip=10.10.10.3
autostart=no
bootfile=fw.bin
root@R281:~#

with that result of fw_printenv. so proceed to next command? "fw_setenv bootargs console=ttyS1,57600n8 root=/dev/mtdblock4"

its worked fw_setenv bootargs..., thank you Lenar.
the CP version is different from my first device. will it compatible with "P28M26HAPLDT_CP_R281_V002.3-Mod". ?



[L E N A R]

so i do uart.
boot option 1 with initramfs
run command, fw_printenv:
fw_printenv
bootcmd=tftp
baudrate=57600
ethaddr="00:AA:BB:CCD:10"
BootType=3
bootdelay=1
uboot_ver=V1.1
rootfs_data_fail=0
PCB_SN=P28X21050901xxx
SN=P28X2105xxx
IMEI=35021407xxx
bootargs=console=ttyS1,57600n8 root=/dev/mtdblock6
wifi_ate=on
dropbear_mode=1
dropbear_key_type=99
dropbear_password=root123
rootfs_data_ofs=0x3260000
stdin=serial
stdout=serial
stderr=serial
filesize=9ac7b7
fileaddr=84000000
ipaddr=10.10.10.123
serverip=10.10.10.3
autostart=no
bootfile=fw.bin
root@R281:~#

with that result of fw_printenv. so proceed to next command? "fw_setenv bootargs console=ttyS1,57600n8 root=/dev/mtdblock4"

its worked fw_setenv bootargs..., thank you Lenar.
the CP version is different from my first device. will it compatible with "P28M26HAPLDT_CP_R281_V002.3-Mod". ?

you should used the HKM not the PLDT.



[indraaguslesmana]

ok, try with same CP.
1. flash: P28M26ITelkomsel_HKM281_CP_V003-Mod.bin
2. disable Pipe d success. a minute
3. reboot.
4. access 192.168.8.1 write mtd11. P28M26ITelkomsel_HKM281_CP_V003-Mod.sqf, firstboot, reboot.
5. do system reboot.
6. Pipe e success. wait for a minute do reboot.

APN is Already set, with same SIM card like first device.

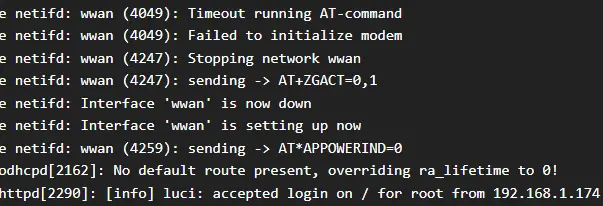

but i see 3ginfo sometime randomly got wrong provider. intermittent connect disconnect.
and when it connect i got same issue, like got local dns and ip 192.168.8.1

after many testing, so i think "P28M26ITelkomsel_HKM281_CP_V003-Mod" not working properly on P28M26ITelkomsel_HKM281_CP_V002

you should used the HKM not the PLDT.

could you help to support that baseband version, sorry bother you again. L E N A R



[indraaguslesmana]

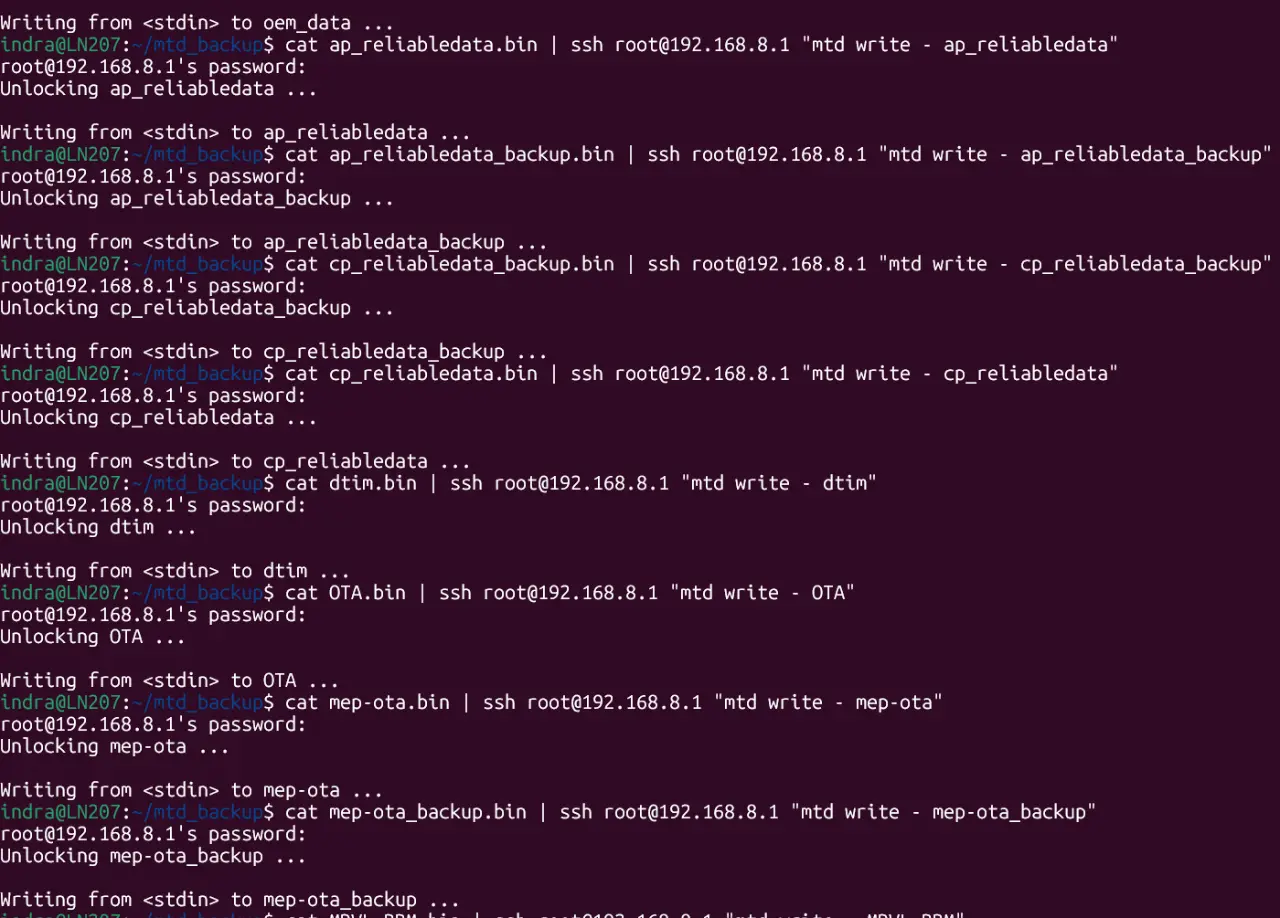

issue fix, with restoring all partition from working LTE module.
thank you all.



[recrumptor899]

issue fix, with restoring all partition from working LTE module.
thank you all.



View attachment 3886882

Hi, where do you get this backup? Can i have it? I need this for restore my megafon



[L E N A R]

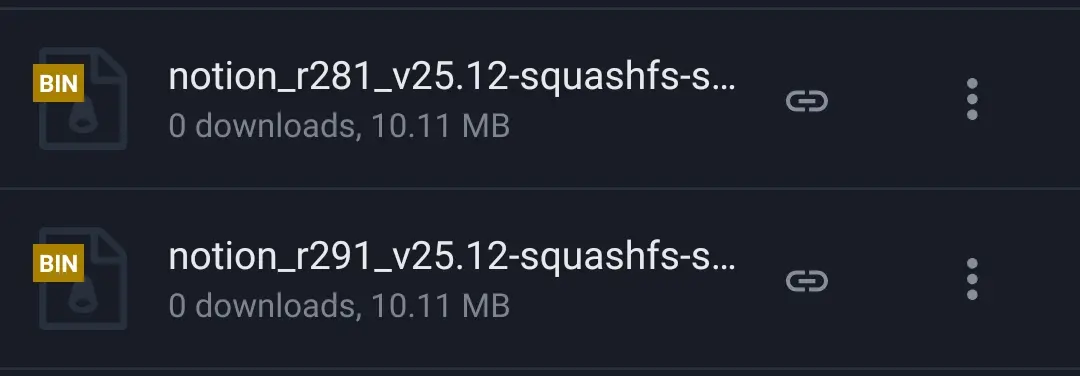

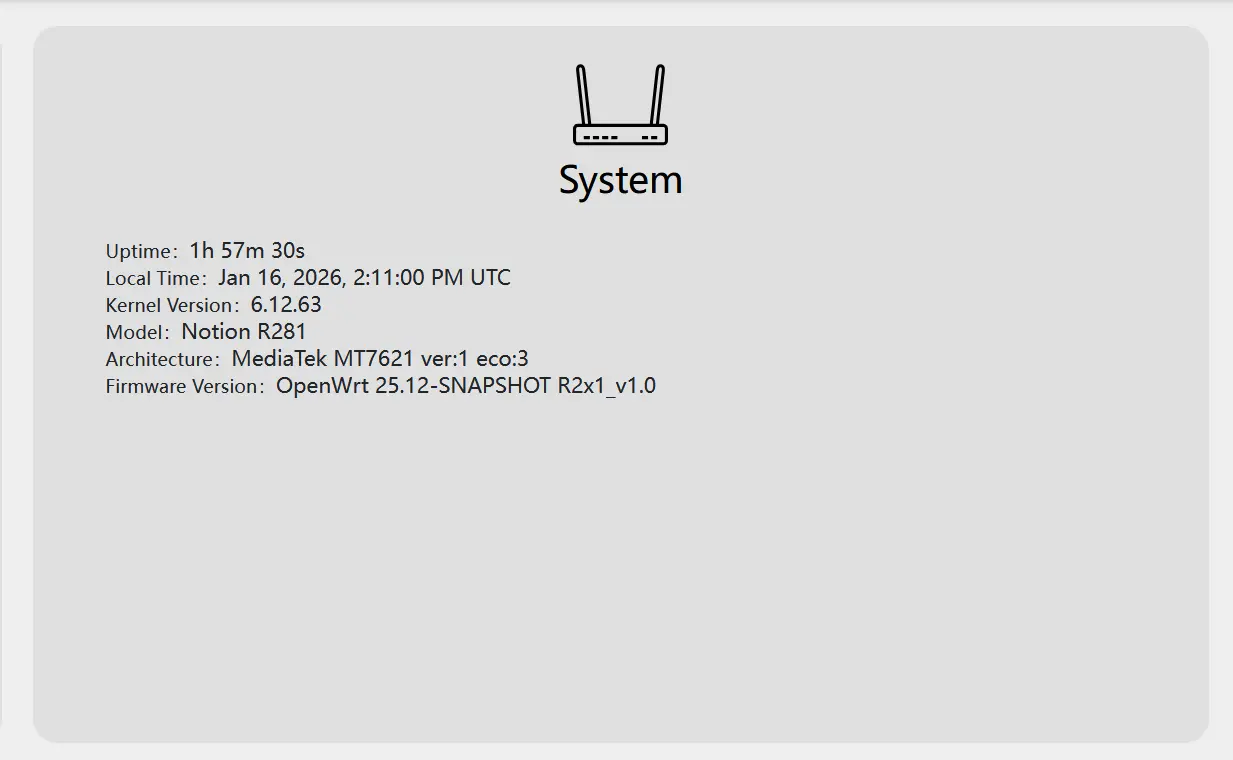

update lang ako ng build sa latest openwrt.



[malows08]

update lang ako ng build sa latest openwrt.
View attachment 4010119

Paano po i apply sa modem yn?



[burhercate]

any chance of official support soon?



[L E N A R]

any chance of official support soon?

That won't happen, I'm too lazy to send a pull request to the official mainline.



[EggShirt]

Boss Maraming Salamat Po hahaha



[Emorhak143]

Pwede ba gawing router ang r281 bale dalawang converge ilalagay



[Emorhak143]

View attachment 4021548
Boss Maraming Salamat Po hahaha

Paano yan idol ng masubukan naman



[Hazel-]

boss lenar

pano po to

yung pong r291 ko po ginawa ko pong ap router ng globe fiber ko po, ang problema ay naka r281 firmware po nyong openwrt,

gusto ko po sana install yung r291 openwrt kaya lang, yung router ay gamit ng kabilang bahay po

pwede gapo na flash ko gamit yung sa flash image dun mismo sa router, na walang mawawala, walang masisira po pala sa ginawa ko pong settings doon sa router



[L E N A R]

boss lenar

pano po to

yung pong r291 ko po ginawa ko pong ap router ng globe fiber ko po, ang problema ay naka r281 firmware po nyong openwrt,

gusto ko po sana install yung r291 openwrt kaya lang, yung router ay gamit ng kabilang bahay po

pwede gapo na flash ko gamit yung sa flash image dun mismo sa router, na walang mawawala, walang masisira po pala sa ginawa ko pong settings doon sa router

i-reconfigure mo na lang yung settings na ginawa mo.
hindi ko recommended i-retain yung settings pag mag-switch ka ng firmware uncheck mo lang yung "Keep settings"

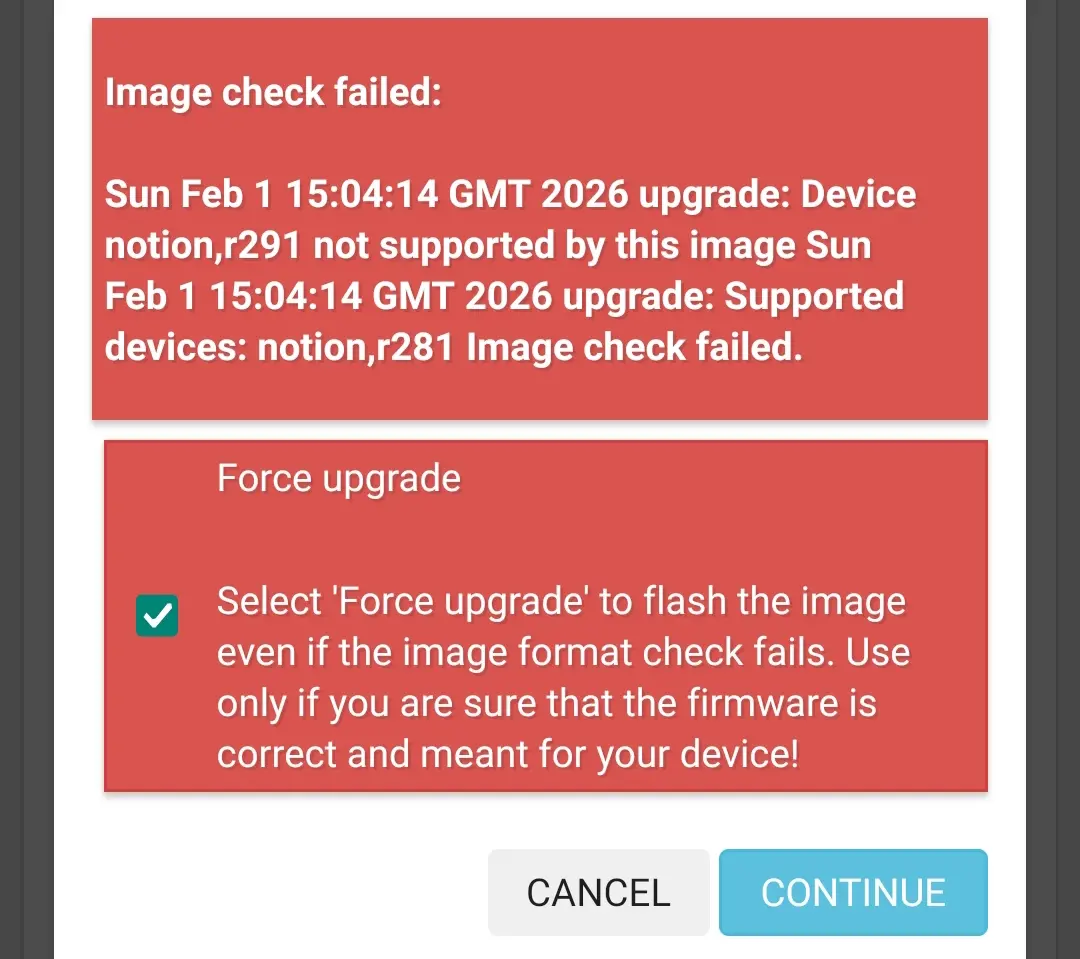

pag may warning na ganito ignore mo lang parehas lang naman device tree nyan hindi naman yan masisira.



[Am-Am]

mga sir ,possible bang pwedeng gawing wifi repeater/extender ang r281 sa zte converge wifi router? ... hindi ko na kase nagagamit r281 ko ,nakatambak nalang ...itry ko sana para ilagay ko sa 2nd floor namin as wifi repeater/extender...sana may makapansin po



[DummyTanong]

mga sir ,possible bang pwedeng gawing wifi repeater/extender ang r281 sa zte converge wifi router? ... hindi ko na kase nagagamit r281 ko ,nakatambak nalang ...itry ko sana para ilagay ko sa 2nd floor namin as wifi repeater/extender...sana may makapansin po

Pwede po yan gawing repeater



[Am-Am]

Pwede po yan gawing repeater

nagawa ko na po sir...kaso nabitaw sya sa 2.4ghz



[juzjus10]

Appreciate the share boss!



[Hazel-]

kalako nagana na yung modem nya para sa sim kaya ako nag upgrade from r281 openwrt to r291 openwrt, wala parin pala, di nagana ehh



[L E N A R]

kalako nagana na yung modem nya para sa sim

ay hahaha.
nagana naman talaga yung modem nyan.
need mo nga lang yung number sa "AT+CHECKATVALID=" or gamitin yung modified CP firmware.

r281 openwrt to r291 openwrt

dalawang version kasi yan ang pag kakaiba lang eh yung LEDS nya.
