👨‍🏫 Tutorial Notion R281 OpenWrt Test Builds

[DummyTanong]

patingin yung output nito
baka iba yung firmware location

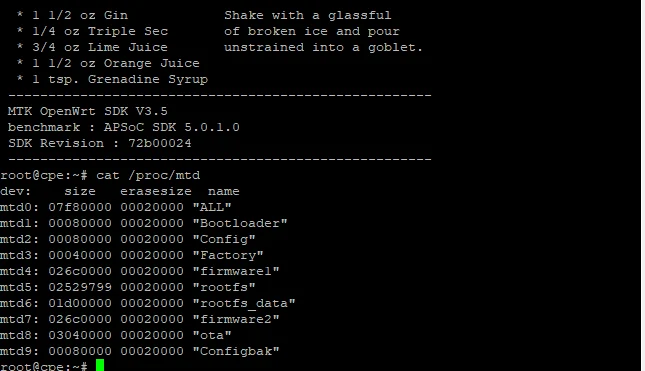

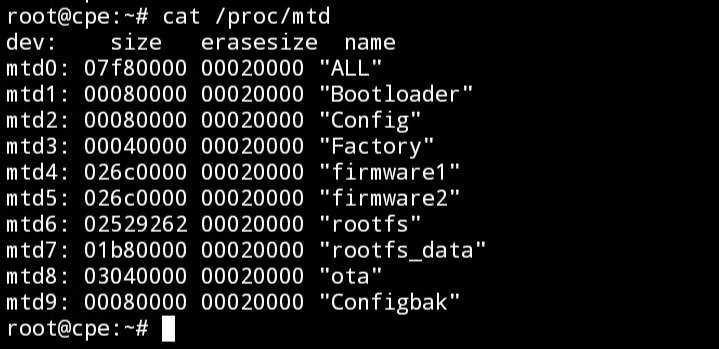

cat /proc/mtd

eto po



[1MPACT2]

eto poView attachment 2524339

iba pala yung sayo kaya pala
ito yung sakin



[DummyTanong]

iba pala yung sayo kaya pala
ito yung sakin
View attachment 2524343

ano kaya pwde gawin pra ma flash sir?



[1MPACT2]

ano kaya pwde gawin pra ma flash sir?

kaylangan iremap yung flash ng dts



[DummyTanong]

kaylangan iremap yung flash ng dts

Pano yun iremap ndi ko na alam

v4.2 2.2 pa po etong akin pldt



[1MPACT2]

Pano yun iremap ndi ko na alam

v4.2 2.2 pa po etong akin pldt

You do not have permission to view the full content of this post. Log in or register now.



[DummyTanong]

[Hidden content]

yung sa first page ba?na try ko na din yun ganon pa din.



[1MPACT2]

yung sa first page ba?na try ko na din yun ganon pa din.

You do not have permission to view the full content of this post. Log in or register now.



[DummyTanong]

[Hidden content]
then try mo iboot yung kernel

ok po try po thanks

[Hidden content]

enter ko lng yang cmd sa putty tass flash ko na ulit yung kernel nyo po?



[1MPACT2]

ok po try po thanks


enter ko lng yang cmd sa putty tass flash ko na ulit yung kernel nyo po?

You do not have permission to view the full content of this post. Log in or register now.



[DummyTanong]

[Hidden content]

ok po try ko ulit



[renzkiedaren]

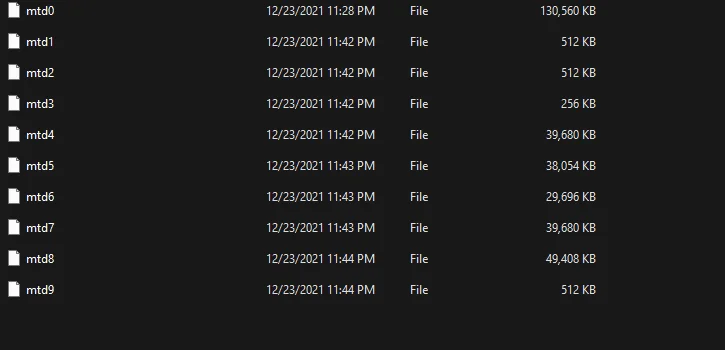

Nsa mtd4 ata yung syo sir kaya pldt parin



[DummyTanong]

Nsa mtd4 ata yung syo sir kaya pldt parin

sinubukan ko ulit iflash yung ky ts ganon pa din pldt pa din...pano kaya gawin pra maging openwrt?



[renzkiedaren]

Kung ayaw sa tftpd bka pwde tru mtd write command...



[DummyTanong]

Kung ayaw sa tftpd bka pwde tru mtd write command...

hindi ko pa nasubukan thru mtd write baka masira



[renzkiedaren]

hindi ko pa nasubukan thru mtd write baka masira

Antayin ntin si sir 1mpact2 bka may ibng way pa...



[1MPACT2]

hindi ko rin alam bakit nag kakaganyan

hindi ko pa nasubukan thru mtd write baka masira

sure na masisira yan pag nag mtd write



[DummyTanong]

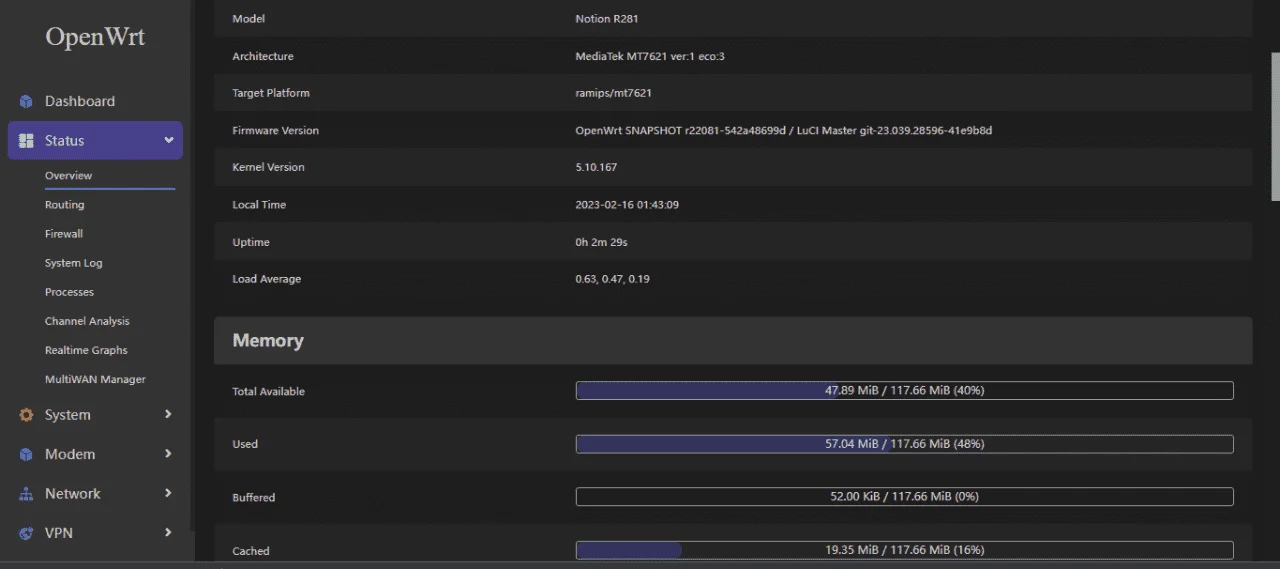

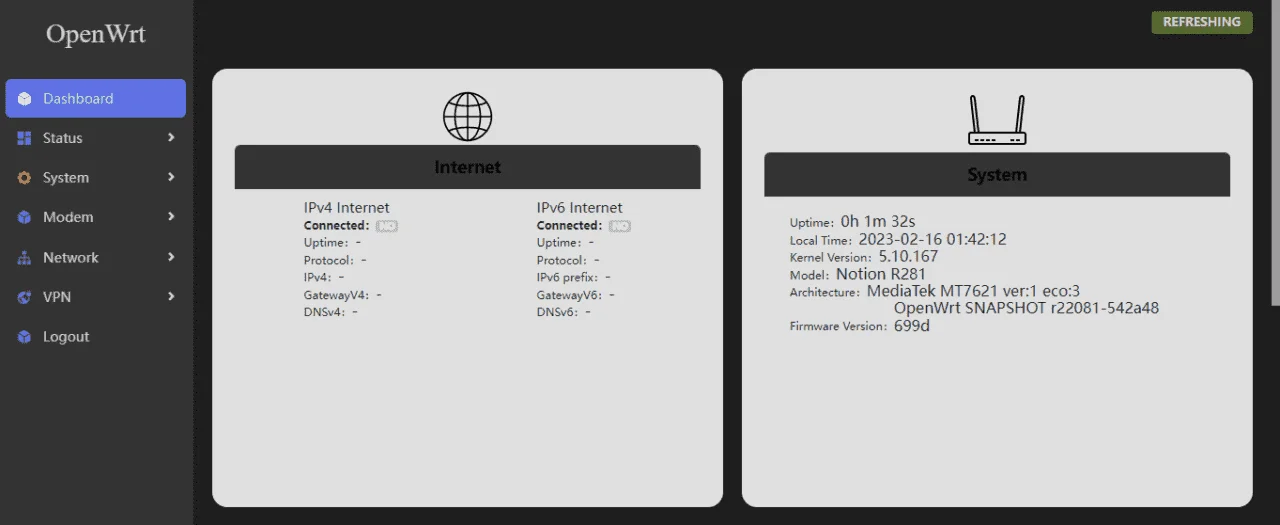

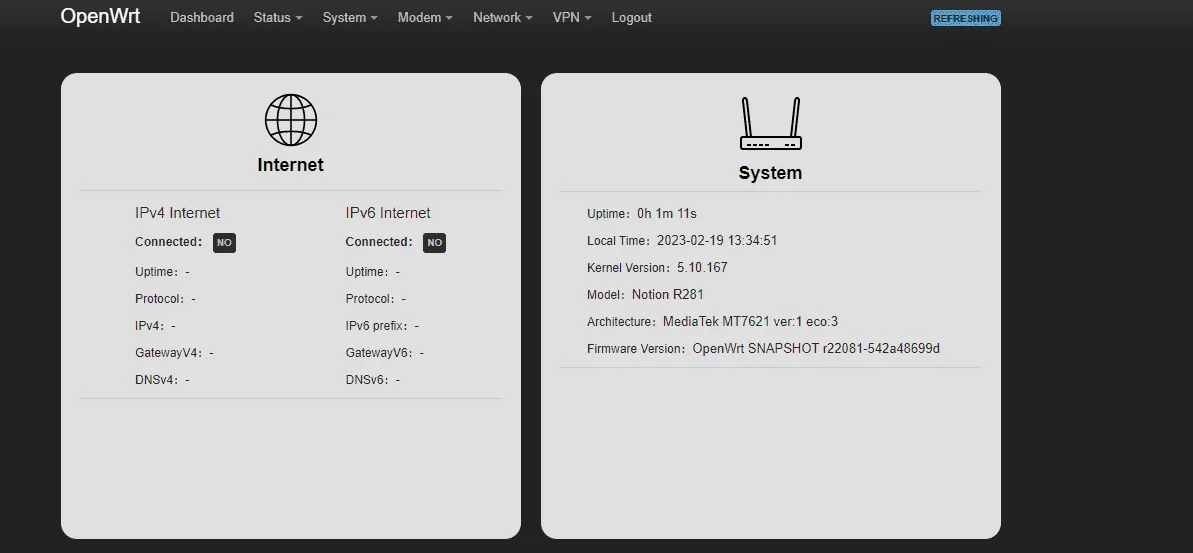

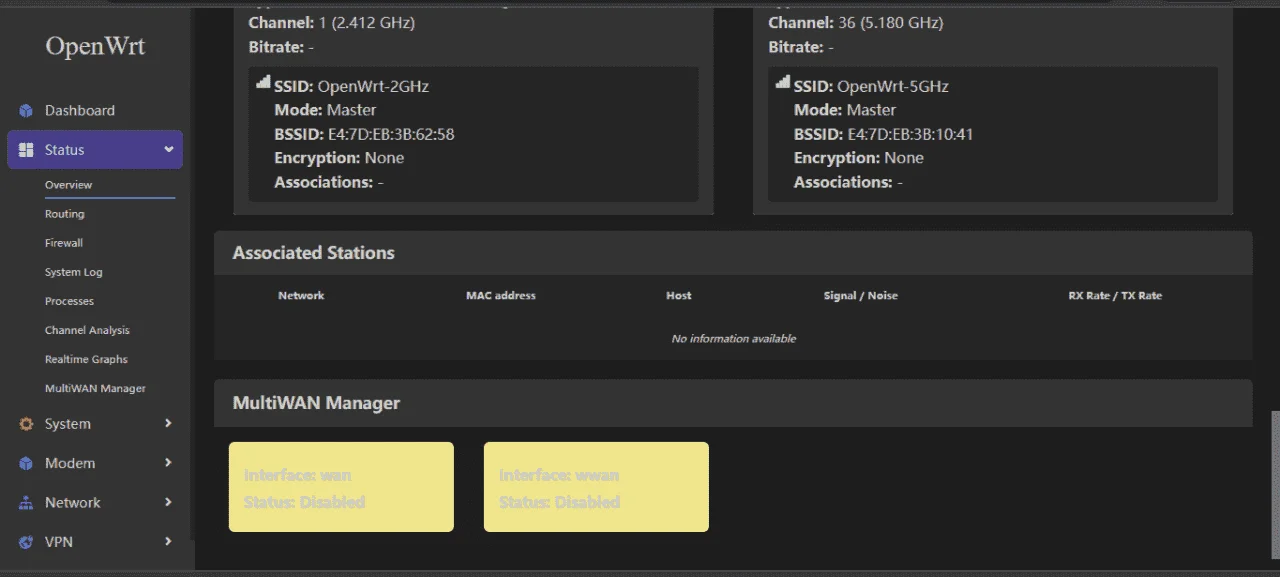

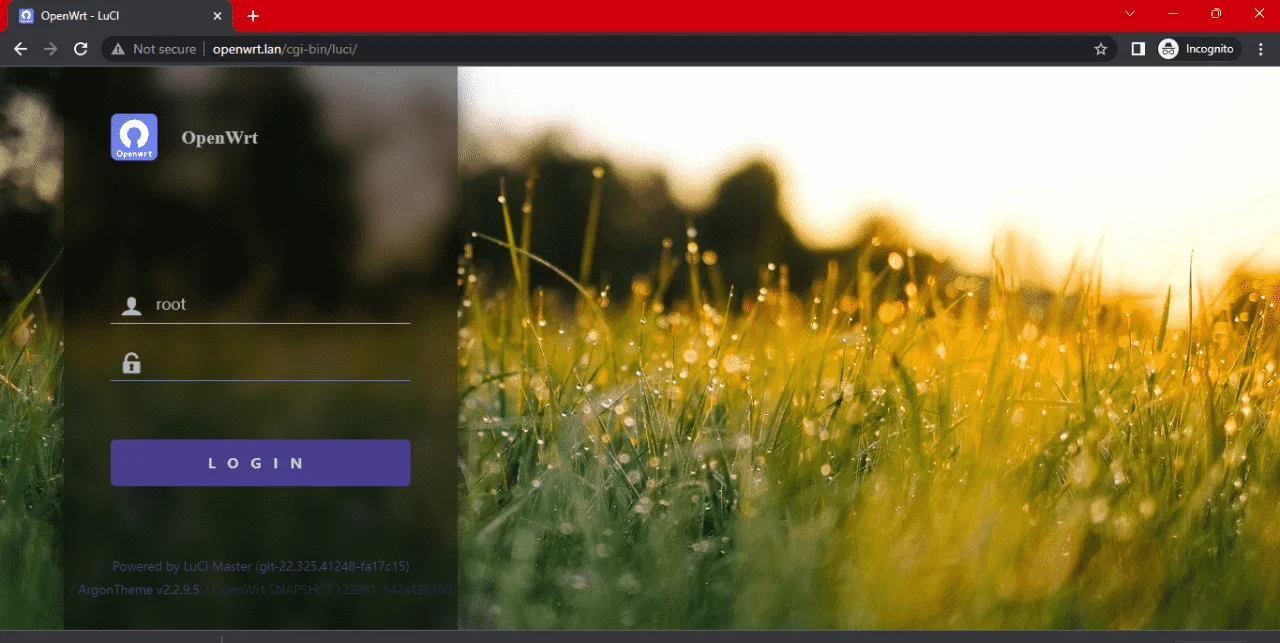

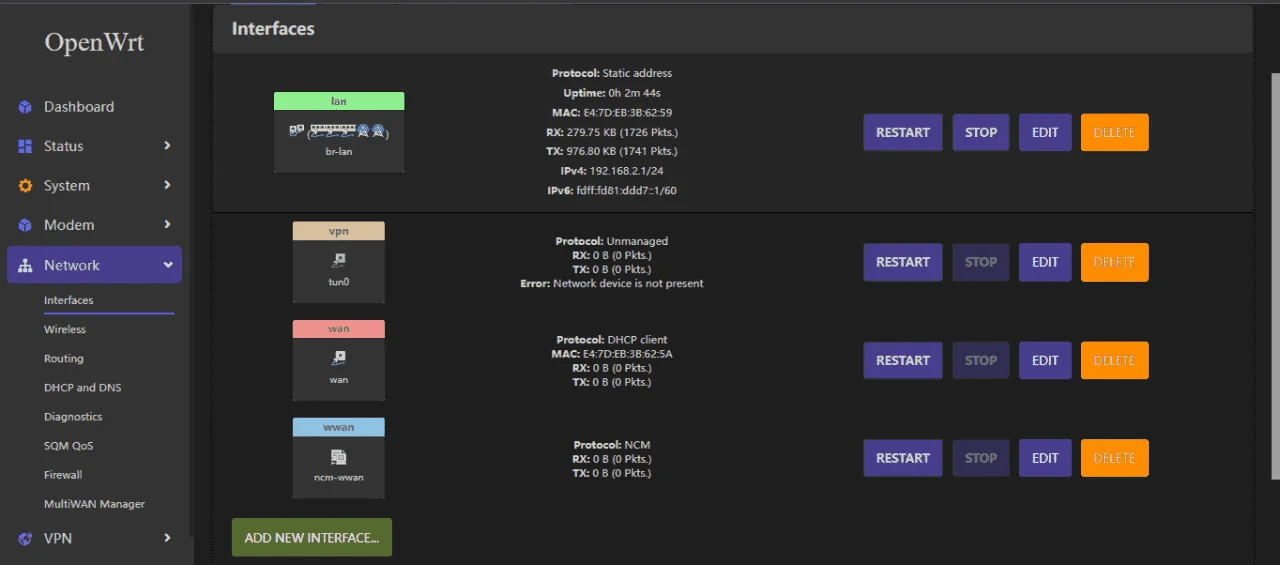

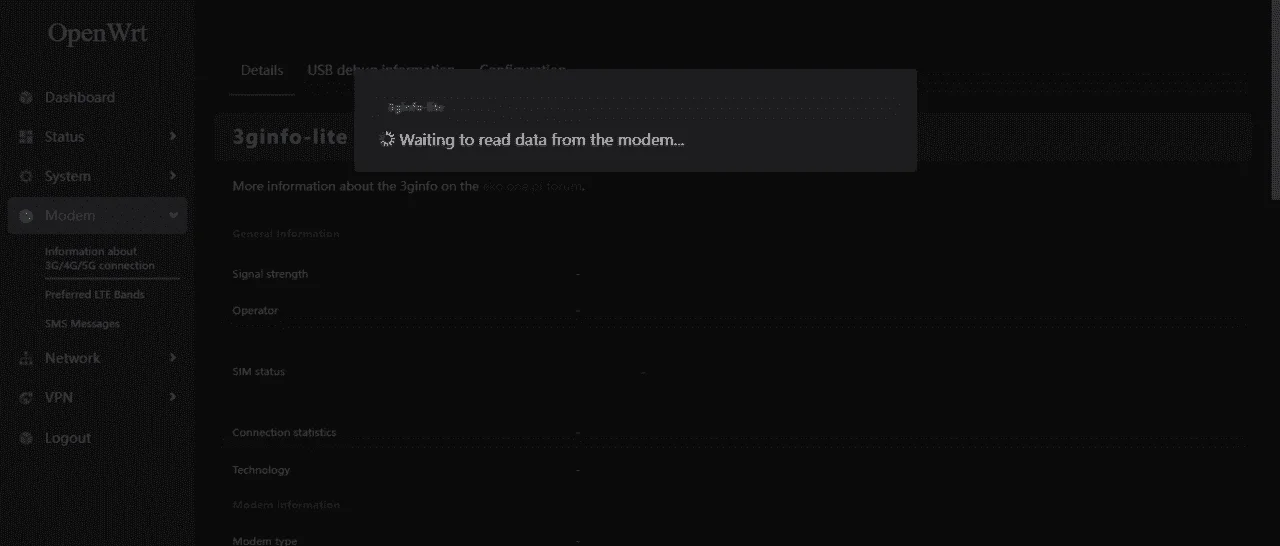

1MPACT2 Sir na install ko na openwrt sa R281 ko kaso walang internet di din maaccess yung modem info loading lang lagi gamit ko pala firmware nyo po.






yang sa modem na tab loading lang lagi pano po kaya ma fix to?

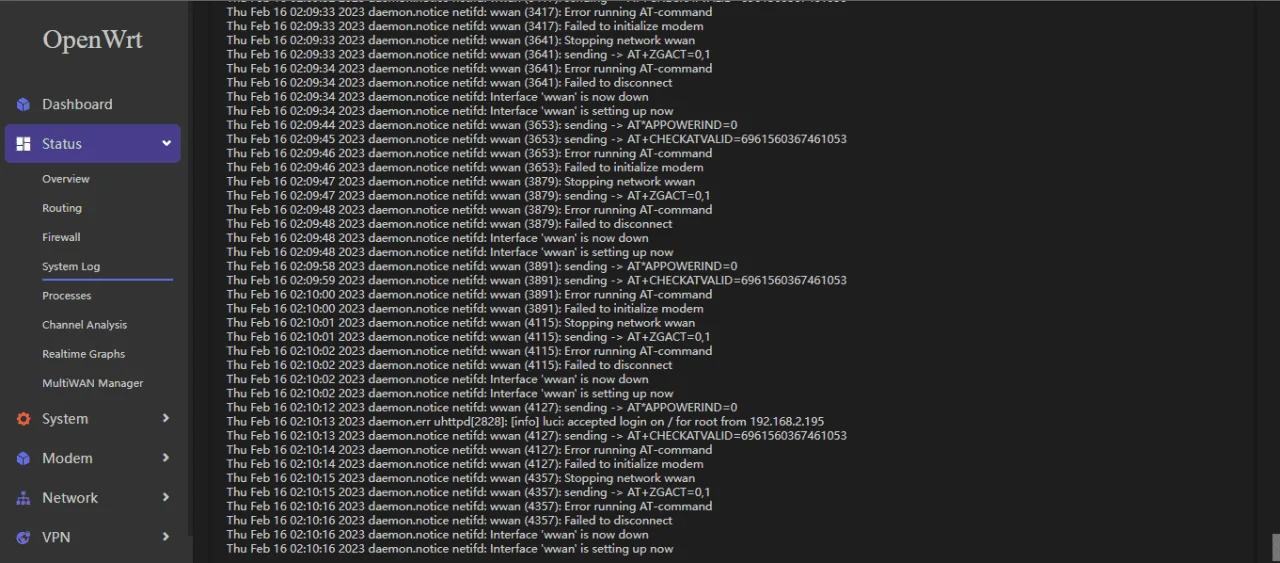

eto pala lsystem log nya lagi may error lumalabas AT CMD pano kaya ma fix yung internet neto?



[1MPACT2]

1MPACT2 Sir na install ko na openwrt sa R281 ko kaso walang internet di din maaccess yung modem info loading lang lagi gamit ko pala firmware nyo po.
View attachment 2525178
View attachment 2525180
View attachment 2525181
View attachment 2525183
View attachment 2525185
View attachment 2525186
yang sa modem na tab loading lang lagi pano po kaya ma fix to?

eto pala lsystem log nya lagi may error lumalabas AT CMD pano kaya ma fix yung internet neto?
View attachment 2525243
View attachment 2525245

kunin mo muna yung log ng /dev/log_radio na galing sa stock firmware

balik mo muna sa stock firmware yan
login ka sa ssh
tapos mag lagay ka ng ganitong command sa /etc/rc.local

cat /dev/log_radio|grep "\[RIL1\|\[rild\|AT cmd">/tmp/rild

View attachment 2510215
after niyan power off then power on
eh unplug dapat hindi reboot ha
login ka ulit sa ssh
eh run mo naman itong command

cat /tmp/rild|head -n 150

hanapin mo yung AT+CHECKATVALID=*
at kunin mo yan.
View attachment 2510217

flash ka ulit nung openwrt na firmware
at edit mo naman yung /etc/gcom/ncm.json
hanaping mo yung part na notion
replace mo yung number nung sa CHECKATVALID=*
View attachment 2510220
lagay mo yung nakuha mo kanina
after nyan reboot mo yung wifi



[DummyTanong]

kunin mo muna yung log ng /dev/log_radio na galing sa stock firmware

binalik ko sa stock ffirmware kaso ndi ko na maacces 192.168.1.1 yung lumalabas na ip 169.254.259.237 na pano kaya to?

May idea po ba kayo kung alin yug iflash ko back to stock firmware? sinubukan ko mtd4 169 ip lumalabas di ko maacess gui ng pldt.
