👨‍🏫 Tutorial Boost even mifi openline guide

That Binary file is the same content in those firmwares :
L02C_Modified
NOTION_L02C_V002_2.95.000_20141121_1830
Airtel_M023_Chiva_L02C_v001_2.95.000_20141127_1630
Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141208_1700
Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_1300
Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_2000
MY2108_V005 +M028T(SkyLark,L0DE_LED,ntim_ddr) for L02D
, so dont worry it does not work !
True. I tried mixing it with a few firmwares but I still can't get any signal.

OK first of all try erasing all the modem by using xof method. Try flashing vodafone ouganda firmware with "erase all" checked. after the erasing is at 100% disconnect your modem. Now use this firmware. it's based on "M022T Signal Issue Beta" firmware. The RFBN is from "Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_1300" firmware. the Web gui is from vodafone.
NOTE: It's for Hardware version: L02C_1_30
I think that the FBF error is due to some checking against hardware and firmware version.
Download it here You do not have permission to view the full content of this post. Log in or register now.
web user and password: smartbro , smartbro
Thanks to Sir kamputs, xof, zedicus, aldrin224

OK... The RFBN is from "Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_1300" firmware. the Web gui is from vodafone.
NOTE: It's for Hardware version: L02C_1_30
I... the FBF error is due to some checking against hardware and firmware version.
Download it here You do not have permission to view the full content of this post. Log in or register now.
web user and password: smartbro , smartbro
Thanks to Sir kamputs, xof, zedicus, aldrin224

Log Time:2017-4-6 15:19:34

SWDownloader Path:C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\SWDownloader.exe
SWDownloader Version:4.8.5.2

OS Name:Microsoft Windows 7
CPU Architecture:x86

Getting type of Device

Get Device Type
---
Platform ready status: 0

Getting Version...
---
Platform ready status: 0

Version: 3301
Date: 6172011
Processor: WKN47

Version: 3301
Date: 06172011
Processor: WKNG
Open an BootLoader Device

Get type of device successfully

Enter BootLoader Thread
Enter WTPTPDownload
Erase all flag is set FBF file

Begin ParseTim

ParseTim opened TIM file: C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\temp\FBF_Ntimheader.bin, 54494D48
Number of Images listed in TIM: 2

Begin OpenUsbPort

Original Preamble Mode

Begin DownloadImage:
---
Platform ready status: 0


DownLoading file: C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\temp\FBF_Ntimheader.bin

---
Platform ready status: 0

*******NOTE:: Fast Download is NOW activated!
Fast download PackageSize: 0x2e8

uiRemainingBytes is 0....
Last Data

ReadDownloadFileThread return....

Read USB in data command
Download data finished
---
Platform ready status: 0

Begin DownloadImage:

Sending Preamble...
---
Platform ready status: 0

Getting Version...
---
Platform ready status: 0

Version: 3301
Date: 6172011
Processor: WKN47
---
Platform ready status: 0


DownLoading file: C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\temp\FBF_h.bin


*******NOTE:: Fast Download is NOW activated!
Fast download PackageSize: 0x4000

uiRemainingBytes is 7901184....

ReadDownloadFileThread return....
Last Data

Read USB in data command
Download data finished
---
Platform ready status: 0

Enter Burning flash....
Erase all flag is set FBF file

WTPTP Notification: Platform is busy 0x1

WTPTP Notification: Platform is busy ,Notification code is :0x1

Flash_Size: 0x2000000 bytes

WTPTP Error: FBF_VersionNotMatch : Errorcode is 0x10

GetWtpMessage failed

Abnormal Termination in BootLoader

close BootLoader USB handle

BootLoader Thread Completed
!

Log Time:2017-4-6 15:19:34 SWDownloader Path:C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\SWDownloader.exe SWDownloader Version:4.8.5.2 OS Name:Microsoft Windows 7 CPU Architecture:x86 Getting type of Device Get Device Type --- Platform ready status: 0 Getting Version... --- Platform ready status: 0 Version: 3301 Date: 6172011 Processor: WKN47 Version: 3301 Date: 06172011 Processor: WKNG Open an BootLoader Device Get type of device successfully Enter BootLoader Thread Enter WTPTPDownload Erase all flag is set FBF file Begin ParseTim ParseTim opened TIM file: C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\temp\FBF_Ntimheader.bin, 54494D48 Number of Images listed in TIM: 2 Begin OpenUsbPort Original Preamble Mode Begin DownloadImage: --- Platform ready status: 0 DownLoading file: C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\temp\FBF_Ntimheader.bin --- Platform ready status: 0 *******NOTE:: Fast Download is NOW activated! Fast download PackageSize: 0x2e8 uiRemainingBytes is 0.... Last Data ReadDownloadFileThread return.... Read USB in data command Download data finished --- Platform ready status: 0 Begin DownloadImage: Sending Preamble... --- Platform ready status: 0 Getting Version... --- Platform ready status: 0 Version: 3301 Date: 6172011 Processor: WKN47 --- Platform ready status: 0 DownLoading file: C:\xxxxx\xxxxxxxx\Desktop\L02Cvodaf\L02C_M028T_VodafoneCameroon\temp\FBF_h.bin *******NOTE:: Fast Download is NOW activated! Fast download PackageSize: 0x4000 uiRemainingBytes is 7901184.... ReadDownloadFileThread return.... Last Data Read USB in data command Download data finished --- Platform ready status: 0 Enter Burning flash.... Erase all flag is set FBF file WTPTP Notification: Platform is busy 0x1 WTPTP Notification: Platform is busy ,Notification code is :0x1 Flash_Size: 0x2000000 bytes WTPTP Error: FBF_VersionNotMatch : Errorcode is 0x10 GetWtpMessage failed Abnormal Termination in BootLoader close BootLoader USB handle BootLoader Thread Completed!
Is for what hardware?? have you tried the erase all method and disconnect??

OK first of all try erasing all the modem by using xof method. Try flashing vodafone ouganda firmware with "erase all" checked. after the erasing is at 100% disconnect your modem. Now use this firmware. it's based on "M022T Signal Issue Beta" firmware. The RFBN is from "Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_1300" firmware. the Web gui is from vodafone.
NOTE: It's for Hardware version: L02C_1_30
I think that the FBF error is due to some checking against hardware and firmware version.
Download it here You do not have permission to view the full content of this post. Log in or register now.
web user and password: smartbro , smartbro
Thanks to Sir kamputs, xof, zedicus, aldrin224
Take this one. I have tested again on another modem. It works You do not have permission to view the full content of this post. Log in or register now.

That Binary file is the same content in those firmwares :
L02C_Modified
NOTION_L02C_V002_2.95.000_20141121_1830
Airtel_M023_Chiva_L02C_v001_2.95.000_20141127_1630
Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141208_1700
Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_1300
Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_2000
MY2108_V005 +M028T(SkyLark,L0DE_LED,ntim_ddr) for L02D
, so dont worry it does not work !
True. I tried mixing it with a few firmwares but I still can't get any signal.
OK first of all try erasing all the modem by using xof method. Try flashing vodafone ouganda firmware with "erase all" checked. after the erasing is at 100% disconnect your modem. Now use this firmware. it's based on "M022T Signal Issue Beta" firmware. The RFBN is from "Airtel_MY2108CL_Chiva_L02C_v002_2.97.000_20141209_1300" firmware. the Web gui is from vodafone.
NOTE: It's for Hardware version: L02C_1_30
I think that the FBF error is due to some checking against hardware and firmware version.
Download it here You do not have permission to view the full content of this post. Log in or register now.
web user and password: smartbro , smartbro
Thanks to Sir kamputs, xof, zedicus, aldrin224
Let me test and see how it goes.

Just tried it.. no signal.


Using the Uganda Vodafone firmware to erase my L02C works every time.
I have 3 Ugandan Vodafone firmware, it's the same error,
The only thing i wish to know is how to copy the WebData.bin File from the modem to bypass that error !

I have 3 Ugandan Vodafone firmware, it's the same error,
The only thing i wish to know is how to copy the WebData.bin File from the modem to bypass that error !
What other options are you using under the "Options" menu? I use "L02BUganda1_M023_LCD_V003_8801_2.144.000_20161117_1030_SIGN" firmware to erase my L02C.

Erase All Flash Only and Erase All Flash No one to work !
I hope you haven't mixed the files.. it results in a FBF error. SWDownloader has a way of "remembering" the way you alter the files. A safer bet would be to delete the whole folder, extract the Uganda Vodafone firmware again from the rar archive and flash without altering anything. Only select the first option.. "Erase all flash"

We're talking about the hardware below right?

View attachment 157375

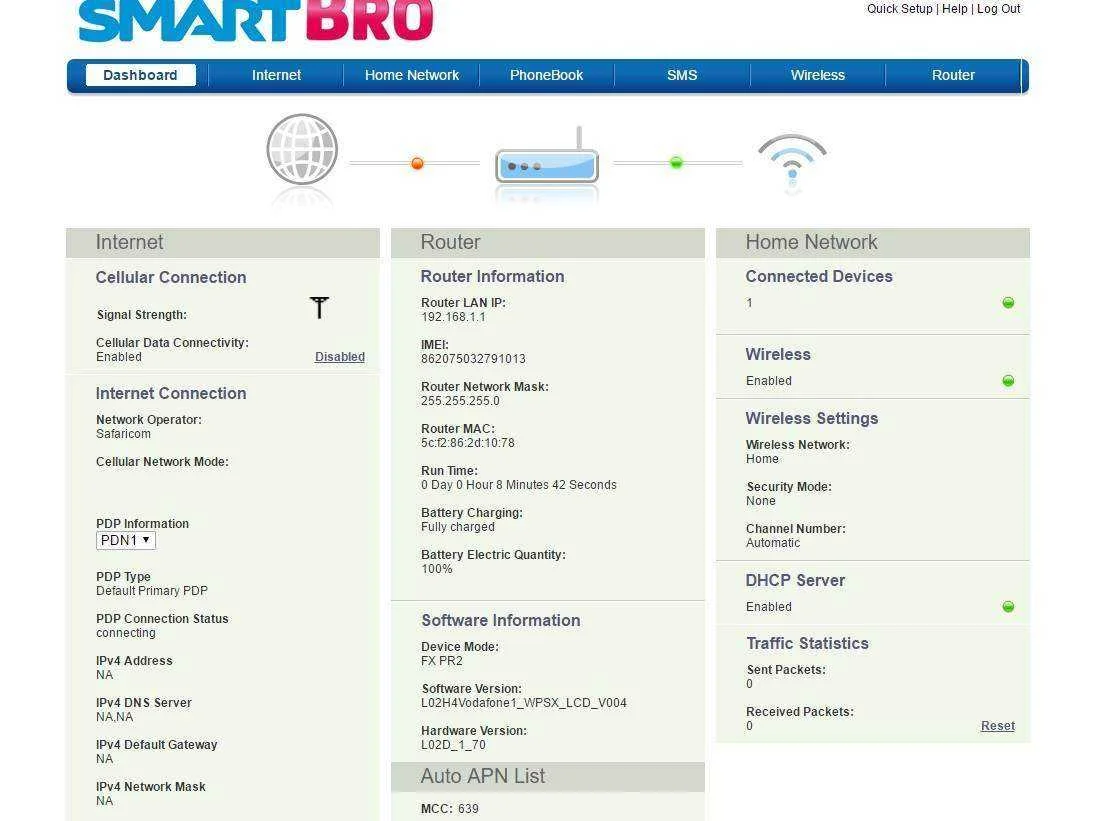

Mine refuses to find a signal and is stuck at "Searching.." after burning the firmware you shared.
Thanks for working on it though.
Post a screenshot of the SWDownloader. Yes it is that hardware. i have already flashed two of this.

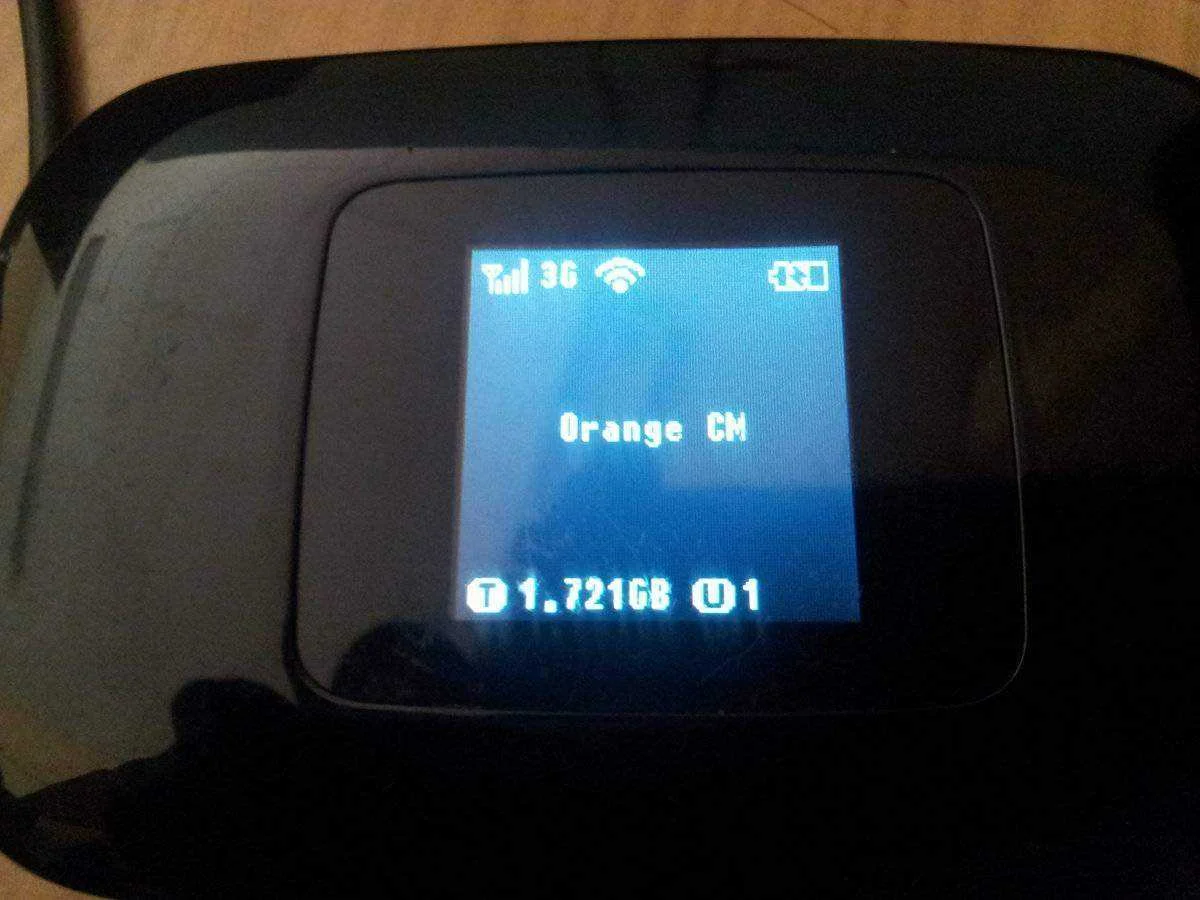

Proof


Attachments

  • 20170406_142215.webp
    106.9 KB · Views: 90
Post a screenshot of the SWDownloader. Yes it is that hardware. i have already flashed two of this.
Proof

hi
can someone help me flash my device ( hardware 1_30 with L02C ). I tried all those firmware but when i try to flash with windows 7 i get this ( SendPreamble failed in GetDeviceBoot Type ). When i do it with windows XP i get this ( Device ... error; WTPTP Error: FBF version NotMatch error code is 0x10 ).
Please i need help

hi
can someone help me flash my device ( hardware 1_30 with L02C ). I tried all those firmware but when i try to flash with windows 7 i get this ( SendPreamble failed in GetDeviceBoot Type ). When i do it with windows XP i get this ( Device ... error; WTPTP Error: FBF version NotMatch error code is 0x10 ).
Please i need help
What firmware are you currently using on that modem?
