👨‍🏫 Tutorial Smart bro evoluzn fx pr2l unlocking/reviving (update 12/01/16)

[Nonstop24]

Pahelp po sa prob ko sa taas



[Nonstop24]

Ok na po pala ang prob ko ngaun iba name ng wifi ko elx2v di ako maka connect kahit palitan ko sa dashboard ng name at pass need help



[dicey]

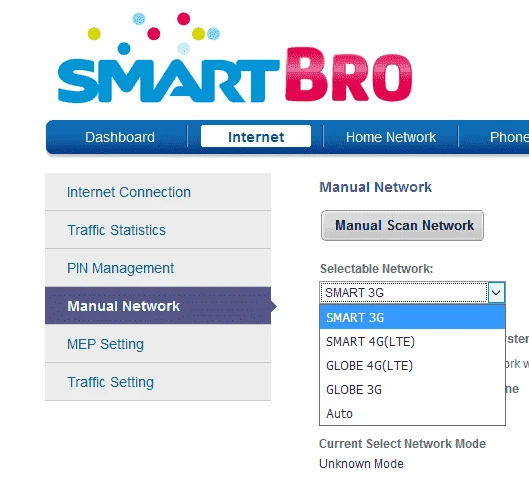

sign of hope for PR2L (LCD), as a desperate move, so rather than having display with only 3G signal, i just flashed using the files for PRD (LED) using this one "SmartBro_EVOLUZN_FXPR2_LTE_POCKET_WIFI_OPENLINE_FIRMWARE_12.22.16.zip". para lang magkadisplay kahit papano just to make it sure its ON or OFF without going to the browser, i exchanged the OBMI with the one coming from the PR2L files and paste to the PR2 (LED) swd, just rename para di mag error. yung display lang na nakikita is boot logo upon switching on and logo for turning off and the charging status while off. somehow sort of relief

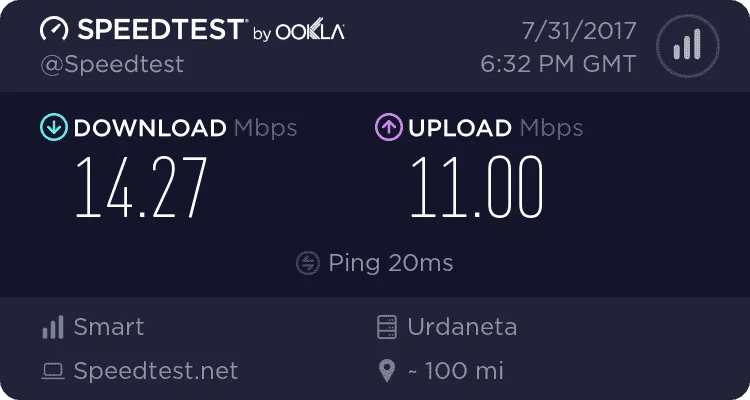

ill post pics if you need so. LTE only just work out fine, and now im receiving 10mbps onwards rather than the crappy 1mbps 3g or HSPA signal .

i believe baka makuha pa sa mixout ng files for the full display support.



[Yhochii]

boss bakit diko ma extract ung lte mifi generic driver? may error pag ineextract



[dicey]

Ryan acosta

redownload mo na lang baka corrupted.

by the way, finally my FX PR2L (LCD) is now working even on LTE only mode, with display na and open line na rin sa globe LTE. after mixing out the OS files, now i realize na nasa OS yung mag papagana sa display ng LCD. after series of expirement finally im done, eto experiment na ginawa ko,

from the stockfirmware, kinuha ko yung OS na galing sa FW ni sir Argotron (yung apat na Arbel), then hinalo ko sa stock PR2, after that dipako nakuntento since i want openline also. so instead na sa stock firmware ko minix, dun ko sya nilagay sa FW na openline na ng PR2 just rename the file na ililipat same dun sa papalitan, really happy now, salamat pa rin sa mga dating contributors from Argotron, totoy_mola, kamputs, aldrin224 kala ko ma stuck na ko sa no display na mifi hehe. feel free to ask , just let me know if i can help. thanks.



[jerico226485]

salamat po sir



[momond1992]

I'm having issue with step 14, mali yung IMEI, S/N at MAC ko upon flashing my M022 Mifi. Ni-run ko ung MIFI Tool pero walang lumalabas na selection sa com port ng Marvell ""AT Interface", I mean lang lumalabas na option at all.



[lalakingbigo]

Pa reup naman file hinde ko magamit fx pr2l ko wala signal o kaya wala display sa mga firmware baka may bago firmware pls.



[dicey]

^ill reup for you, im still having issues on wifi di makita ng other device, but LTE wise naibalik ko na with display. ill reup after complete fix, i used the uganda OS uploaded by kamputs with reliable.bin mixed with stock smart pr2 LED.

momond

have you installed the marvell driver?



[lalakingbigo]

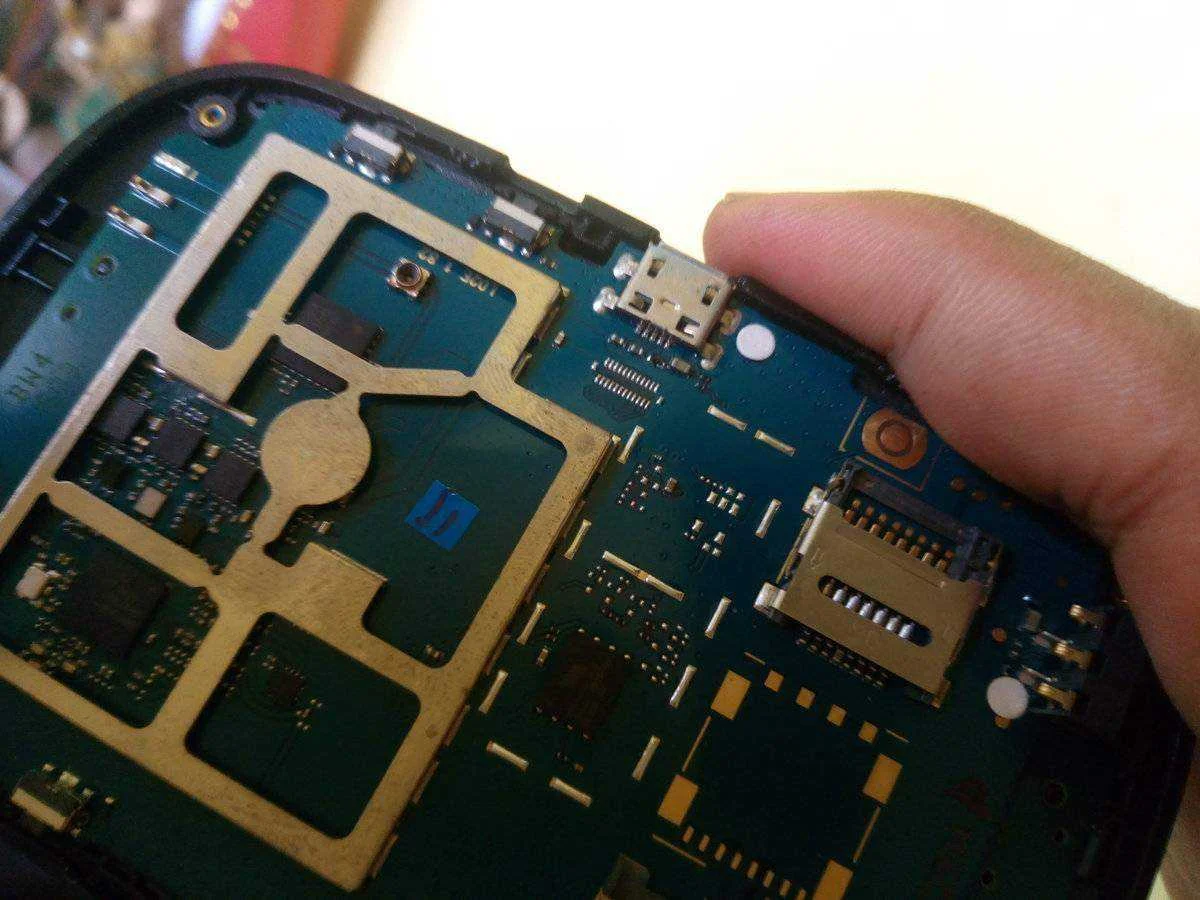

Eto board ko lo2e 1 82 natry ko na yata lahat ng firmware walang signal signal tapos minsan walang lcd parehas walang mga signal puro searching lang nalabas sa displAy hinde ko tuloy magamit pocket wifi



[kamputs]

Ryan acosta

redownload mo na lang baka corrupted.

by the way, finally my FX PR2L (LCD) is now working even on LTE only mode, with display na and open line na rin sa globe LTE. after mixing out the OS files, now i realize na nasa OS yung mag papagana sa display ng LCD. after series of expirement finally im done, eto experiment na ginawa ko,

from the stockfirmware, kinuha ko yung OS na galing sa FW ni sir Argotron (yung apat na Arbel), then hinalo ko sa stock PR2, after that dipako nakuntento since i want openline also. so instead na sa stock firmware ko minix, dun ko sya nilagay sa FW na openline na ng PR2 just rename the file na ililipat same dun sa papalitan, really happy now, salamat pa rin sa mga dating contributors from Argotron, totoy_mola, kamputs, aldrin224 kala ko ma stuck na ko sa no display na mifi hehe. feel free to ask , just let me know if i can help. thanks.

Pde mo din i-share yung ginamit mong firmware pang flash para maayos na din ng iba mga PR2L nila. Dami din kasi nag tatanong sa akin paano maayos yung LCD at signal kaso hinde ko 100% ma guarantee sa kanila yung sagot kasi wala naman ako PR2L. Ang meron lang ako ay PR2 at M022T.



[dicey]

nakakalungkot sa di maipaliwanag na kamalasan when everything was almost perfect, ewan ko ba, eto nangyari, nung gabi ok na, lumakas signal, wifi, and then kinabukasan yung wifi di na gumana, hanggang sa may nagamit akong firmware yung Uganda 2016, wala na suko na ko, ayaw na nya tanggapin ibang FW na older wtptp error na, fbm something . . . and sa inis ko, umorder na lang ako sa smart ng PR3L 1.3k na lang ngaun unlike dati 4k, moral lesson learned dapat talaga naka backup old firmware just in case, mejo busy pa kasi, ill try to reup for you some other time. but quite challenging and nakaka enjoy din naman



[jack0lantern]

may nka pag success na dito ng FX PR2L paturo naman



[dogstyle007]

Help... how can I unlock the new model of M028t 2017 version



[gaffer101]

Im stuck people, how do i know which files in the extracted folder are the mobile AT interface and mobile diag files?? please help thank you



[dogstyle007]

all you have to do is select the whole folder... it will install the driver for you



[gaffer101]

Thank you i've understood.. Thank you very much



[dogstyle007]

don't mention



[fatboysnet21]

Good pm po maam/sir youwin m022 user po kaso gusto ko sana ma openline pa help nmn po ako.



[RY_zen]

Paano mabago interface at firmware nito?
