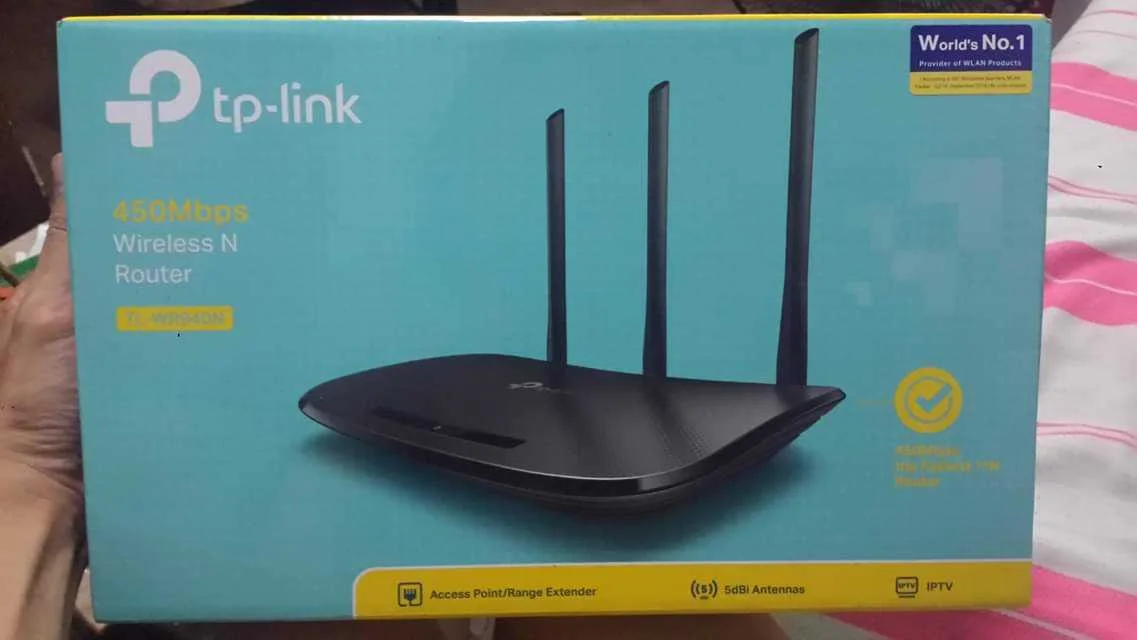

🛠️ Tools TP LINK WR940N - Set UP Vpn router

[Nontikweed]

to all TP TL-WR940n eto na pag kakataon hinahanap nyo

walang basagan ng trip

trip ko mag share maski diko napagana
( hehe ang gulo )

install OPENWRT to tour TP-WR940n

You do not have permission to view the full content of this post. Log in or register now.

flashing firmware to your TL-WR940n OPENWRT

go to 192.168.0.1
search update firmware then chose ( first_openwrt-18.06.1-ar71xx-tiny-tl-wr940n-v6-squashfs-factory-eu )
click update

wait until restart it self

after that finish
go now to 192.168.1.1
user: root
pass: root

then system tab see firmware upgrade / restore
drag down to firmware sysupgarde apply ( tl-wr940n-v6-squashfs-sysupgrade )
then proceed now

wait until restart it self

and thats it FINISH

over all diko na alam i set ovpn .

kasi nung ma set ko config ..
parang me kulang ,, diko sure need i apply yung CA certificate ng vpn

SHARE nyo nalang sakin kung panu paganahin iyun hehe
___
Nakupo nasira hindi maka log in sa WEB INTERFACE
unbrick trick

You do not have permission to view the full content of this post. Log in or register now.

TP TL-WR940N unbricked trick

power on router
set ipv4 192.168.0.6
255.255.255.0
save

run admin TFTP
Current directory of your file ( wr940nv6_tp_recovery )
server interface chose 192.168.0.66

off router / then hold reset then on router ,, wait until TFTP respond to fash

it will restart it self

then back to tcp/ip4 ,, choose obtain an ip ,, save

then there you Go ,, your TPlink tl-wr940 is back

Credit : Ronnie Valdez

/nontiquid



[Mrkgln]

Thanks sa share



[cris121171]

thanks for sharing master...



[liwba]

salamat po



[d2ucbody]

Thanks



[AkosiHeart01]

Ma-try para kahit papaano may connection XD



[paeng1992]

salamat



[jhosena]

nah nah nah nah nah



[jakemadz]

thanks ts



[JHO113]

gawa ka nman ng tut bossing for Xiaomi Mi 3 router



[Nontikweed]

Hanapin natin yan paps



[JHO113]

Hanapin natin yan paps

thanks bossing



[easley61]

salamat sa pag share.. sige pag napagana ko to. láρág ko din ..



[linux_noob]

the file uploaded on google drive is part of my cfw project. i already asked the author who upload my cfw without permission to delete it. if you want a cfw, visit my thread instrad. thanks



[onephc]

Thanks



[Sadjooker]

newbie here i want to learn po



[tedmagall123]

sir ayaw naman gumana



[1Nathaniel]

Thanks for sharing ts. Sana mapagana ko



[exlaust008]

katakot...thanks sa pag share...



[mareu101]

Lods. Pwede ba yan dito?
