Cfw openwrt request_releases:(openvpn for 4mb routers)

Status
Not open for further replies.
parasa mga binigyan ko ng cfw, please please please read this

default username: root
default password: root

Basic Procedure on Installing Openvpn:

1. download your firmware. naka-zipped yan, i-extract nyo muna. flash firmware image on your firmware upgrade webgui. kapag nag-reboot na yung ssh to your router

2. Use Putty. ssh to your router (default ip address is 192.168.1.1 port 22)

3. Once naka-pasok ka na sa ssh ng router mo type this command

openvpn_setup

4. wait nyo lang matapos ginawa kong full script for openvpn setup.

5. openvpn setup DONE!!!

HOW TO USE OPENVPN:

to start using vpn:

type vpn (press enter)

dun sa menu

type 6 (press enter)

you need to input first your monthlyssh account

kapag ok na account nyo

go back to vpn menu ( type vpn )

type 1 to connect on on server 1 (enter)
type 2 to connect on on server 2
type 3 to connect on on server 3

Sample command format for connecting to custom ovpn file
(assuming ovpn files is on /root directory)

openvpn --daemon --cd /root/ --config singapore.ovpn


SHORTCUT COMMANDS:

vpn - show vpn menu
accounts - input login credential
status - check system log
autoconnect -set server's autoconnect settings

want to use/edit other ovpn file?

use winscp to upload your ovpn files

address: 192.168.1.1
username: root
password: root
protocol : sftp or scp (choose which one is working for your router)

connect using winscp

go to folder /root/openvpn_default_servers

may makikita kayong 3 ovpn files jan named 1.ovpn 2.ovpn 3.ovpn
yan po yung default monthlyssh sg servers.
palitan nyo na lang.

LoveTacome said:
instructions ba? hahaha
napakdami kasi ng router models at type. Yun lang talaga magagawa nyo para matuto kayo. Punta kayo sa site ng openwrt. At sundin ang mga procedures.
at syempre ang tip para sa minimal flash e ang pag strip ng unnecessary packages, para maisingit nyo si openvpn
View attachment 541783
Click to expand...

kahit ano pang gawin pag-strip ng unnecessary files or package sa image builder hinding hindi talaga kakasya sa 4mb routers yung openvpn package. no other solution but to install it on RAM storage. yun lang pwede. they can mod their routers to expand their flash storage pero madugong task yun kasi ang hirap mag-solder at mahirap hanapin mga parts.

aldrin18 said:
boss pwede din po ba ako magpagawa nang custom firmware WR940N v6.0 po na tplink router ko. saka pwede po ba magupload nang custom openvpn congif ?salamat po
Click to expand...

may nabuild na akong cfw para dito. kung us region din router mo. download mo na lang ung link na binigay ko. nasa post ko siya na may release date na January 24 :-)

linux_noob said:
kahit ano pang gawin pag-strip ng unnecessary files or package sa image builder hinding hindi talaga kakasya sa 4mb routers yung openvpn package. no other solution but to install it on RAM storage. yun lang pwede. they can mod their routers to expand their flash storage pero madugong task yun kasi ang hirap mag-solder at mahirap hanapin mga parts.
Click to expand...
Info lang sir. Mali ka po. Sensya na. Ano pala.gamit mong router? Model at version?

LoveTacome said:
Info lang sir. Mali ka po. Sensya na. Ano pala.gamit mong router? Model at version?
Click to expand...

sure ka? alam mo ba kung gaano kalaki filesize ng openvpn app at ng mga dependencies nito?
sa 4mb router kaya ko mag-install ng vpn (pptp/l2tp) on flash storage pwede yun pero yung mismong openvpn i doubt it. please correct me if im wrong. i just want to be clear that we are talking on 4mb flash routers here para malinaw.

im using mr3420 v2, may usb port to.

naka -extroot ako. i can install any package i want kasi yung usb disk ko ay nag-aact as expandable flash storage

linux_noob said:
sure ka? alam mo ba kung gaano kalaki filesize ng openvpn app at ng mga dependencies nito?
sa 4mb router kaya ko mag-install ng vpn (pptp/l2tp) on flash storage pwede yun pero yung mismong openvpn i doubt it. please correct me if im wrong. i just want to be clear that we are talking on 4mb flash routers here para malinaw.
Click to expand...

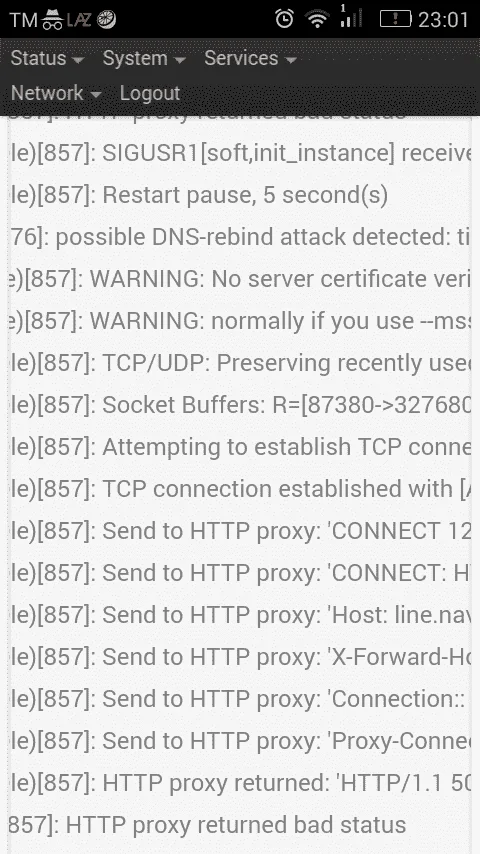

Yes sir. Clearly na mali ka. Screenshot_2019-01-24-23-06-11.png

linux_noob said:
sure ka? alam mo ba kung gaano kalaki filesize ng openvpn app at ng mga dependencies nito?
sa 4mb router kaya ko mag-install ng vpn (pptp/l2tp) on flash storage pwede yun pero yung mismong openvpn i doubt it. please correct me if im wrong. i just want to be clear that we are talking on 4mb flash routers here para malinaw.
Click to expand...
sir okay na po ba sa DLINK-600 b version 1?

Im not making any images for them. Andito ako para bigyan sila, pati na rin ikaw TS na info, kasi alam kong nagmamabuting loob ka lang

linux_noob said:
pwede nyong gawin source of internet yung 936 modem nyo pero kakailanganin nyo pa rin ng another ng router na openwrt supported kasi indi po supported yang 936. :-)
Click to expand...
yup sir matagal ko nang gamit pero im using openvpn app sa android then nakakonek lang sa modem ko.. I mean basic lang.. kala ko kasi puwede.. hehe.. thanks sa info..

LoveTacome said:
4mb/64mb. Yes sir may openvpn.
Click to expand...

i dont know how do you manage to squeze this 4mb flash storage to have openvpn installed in it. sa official firmware ng iba kong router like wr741nd 300-500kb na lang free space on newly fresh installed firmware. i will do further research on it perhaps i can use your method to installed permanently openvpn on flash storage.

may usb port ba yang router mo? di ka gumamit ng extroot dyan?
