👨‍🏫 Tutorial Personal Solar Setup (DIY)

[sollivor]

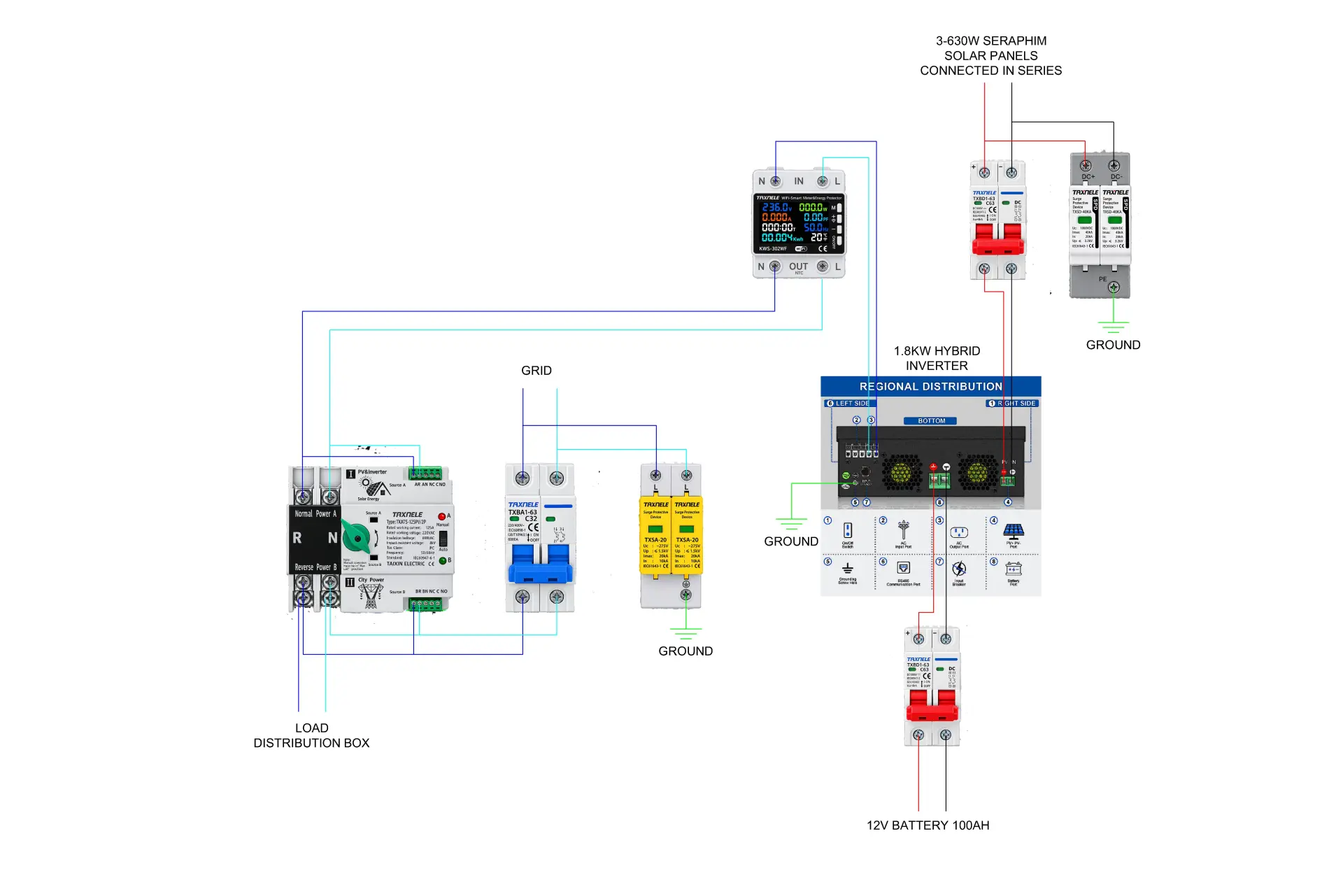

Share ko lang po ung Solar Setup ko sa bahay.,
Sana makatulong and Do at your own risk.
Much better kung walang masyado alam sa electrical mas okay na aralin muna bago mag DIY.

Material list and Links

1.8KW INVERTER - You do not have permission to view the full content of this post. Log in or register now.

MC4 CONNECTORS - You do not have permission to view the full content of this post. Log in or register now.

DISTRIBUTION BOX - You do not have permission to view the full content of this post. Log in or register now.

RAIL - You do not have permission to view the full content of this post. Log in or register now.

BATTERY WIRE CONNECTOR - You do not have permission to view the full content of this post. Log in or register now.

CABLE LUG - You do not have permission to view the full content of this post. Log in or register now.

AUTOMATIC AEROSOL FIRE EXTINGUISHER - You do not have permission to view the full content of this post. Log in or register now.

AC SPD - You do not have permission to view the full content of this post. Log in or register now.

DC SPD - You do not have permission to view the full content of this post. Log in or register now.

BATTERY BREAKER - You do not have permission to view the full content of this post. Log in or register now.

ATS - You do not have permission to view the full content of this post. Log in or register now.

DIGITAL METER BREAKER - You do not have permission to view the full content of this post. Log in or register now.

PV WIRE - You do not have permission to view the full content of this post. Log in or register now.

Battery - You do not have permission to view the full content of this post. Log in or register now.



[RyukSenpai]

magkano inabot ng ganyang setup mo lods?



[sollivor]

magkano inabot ng ganyang setup mo lods?

actually lods unti unti ko binuo yan nung una mga 200w na tatlo lang at 30ah 12v battery lang kaso d sulit kaya nung nagkapera talagang bumili na ako ng malalaki na panel nung sabado lang almost 20k gastos ko nung sabado tyaka ung maga nauna mga 30k din kaya cguro mga 50k, sulit naman na ngaun.



[RyukSenpai]

actually lods unti unti ko binuo yan nung una mga 200w na tatlo lang at 30ah 12v battery lang kaso d sulit kaya nung nagkapera talagang bumili na ako ng malalaki na panel nung sabado lang almost 20k gastos ko nung sabado tyaka ung maga nauna mga 30k din kaya cguro mga 50k, sulit naman na ngaun.

anu ano kaya jan lods na mapagana?



[sollivor]

anu ano kaya jan lods na mapagana?

1.5hp aircon basta wag muna sabayan ng ibang appliance hanggang bumaba ng 900w tyaka mo pwedi sabayan ng ibang appliances, napagsasabay namin mga ilaw, electric fan na dalawa, tv, wifi, rice cooker at washing machine, pag umaga.



[RyukSenpai]

1.5hp aircon basta wag muna sabayan ng ibang appliance hanggang bumaba ng 900w tyaka mo pwedi sabayan ng ibang appliances, napagsasabay namin mga ilaw, electric fan na dalawa, tv, wifi, rice cooker at washing machine, pag umaga.

ayos din pala. salamat lods sa idea. balak ko palang kasi mag solar, kaso wala pa ako alam sa mga electrical haha



[sollivor]

ayos din pala. salamat lods sa idea. balak ko palang kasi mag solar, kaso wala pa ako alam sa mga electrical haha

sulit cya boss, pinag iipunan ko ngaun is ung battery para kahit magdamag na ung solar setup ko.



[nivram_189]

boss mgkano gastos boss kasi 1.5hp din aircon taz may ref pa na 1.5 kwh/day



[sollivor]

boss mgkano gastos boss kasi 1.5hp din aircon taz may ref pa na 1.5 kwh/day

abot din 50k sir ngaun mai ina assembly ulit ako para sa ground floor ng bahay 5kw naman



[kenzz00]

Bm lods thank you dito



[ryansun63]

Bm muna solid ng gnito n thread sana maguide mu aq pg nkaipon balak ko din mgsetup. Salamat TS



[espraket]

Thanks for sharing lods. Yan yung need ko din eh matuto gumawa ng solar setup for the future.



[StevenRogers]

Thank you for shring this bossing!



[sollivor]

Bm lods thank you dito

Welcome sir, sa ngaun mai modification ulit ako update ako ulit pag natapos ko na gawin sa bahay namin



[sollivor]

Bm muna solid ng gnito n thread sana maguide mu aq pg nkaipon balak ko din mgsetup. Salamat TS

welcome sir, next update ung modification ko na additonal 5kw sa ground floor namin



[sollivor]

Thank you for shring this bossing!

Welcome boss. update ako pag natapos ko na ung additional setup ko sa bahay.



[kenzz00]

Lods ask ko lang pala, hybrid setup mo? Wala talaga AC IN sa inverter?



[sollivor]

Lods ask ko lang pala, hybrid setup mo? Wala talaga AC IN sa inverter?

mai AC in yan inverter ko boss, kaso d ko na nilagyan kc once na nagkaproblema ung hybrid inverter natin lke nagka error mawawalan tayo ng kuryente kaya mai preffered ko parin ung mai xternal na ATS, para once nagka error yung hybrid inverter nation back up agad ung grid., pero pwedi din naman po magtop sa AC in ng HYBRID inverter.



[kenzz00]

mai AC in yan inverter ko boss, kaso d ko na nilagyan kc once na nagkaproblema ung hybrid inverter natin lke nagka error mawawalan tayo ng kuryente kaya mai preffered ko parin ung mai xternal na ATS, para once nagka error yung hybrid inverter nation back up agad ung grid., pero pwedi din naman po magtop sa AC in ng HYBRID inverter.

Ah okii po boss. Bale pede din kung may AC IN sa inverter tas may ATS din?



[CodeCraftsman]

Bm neto koya plano ko din to salamat soport
