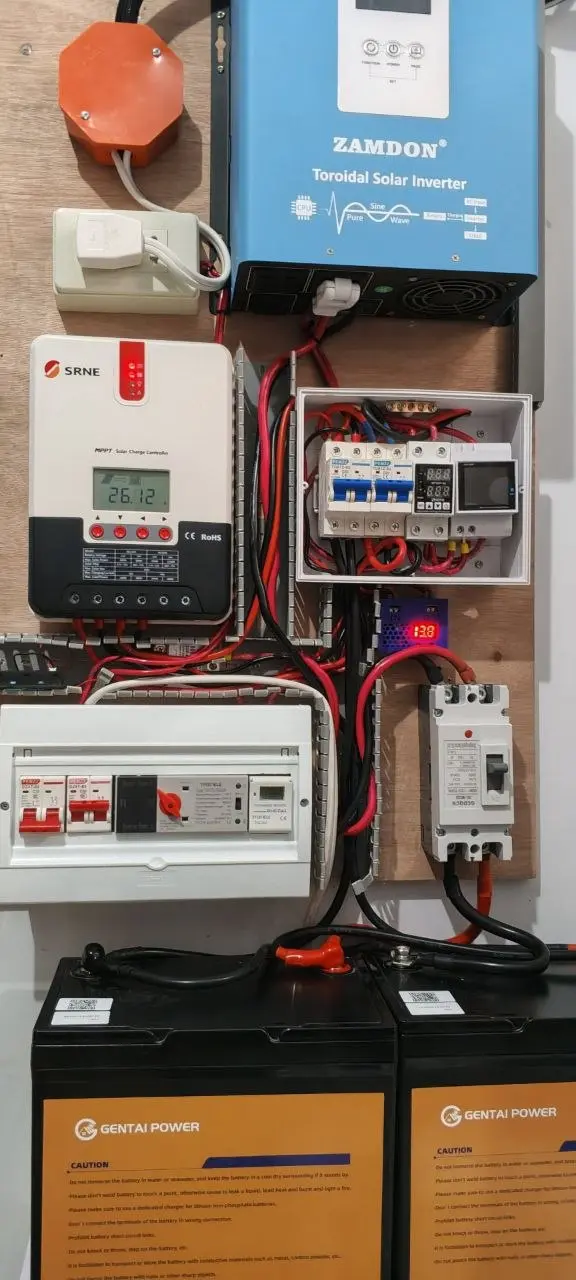

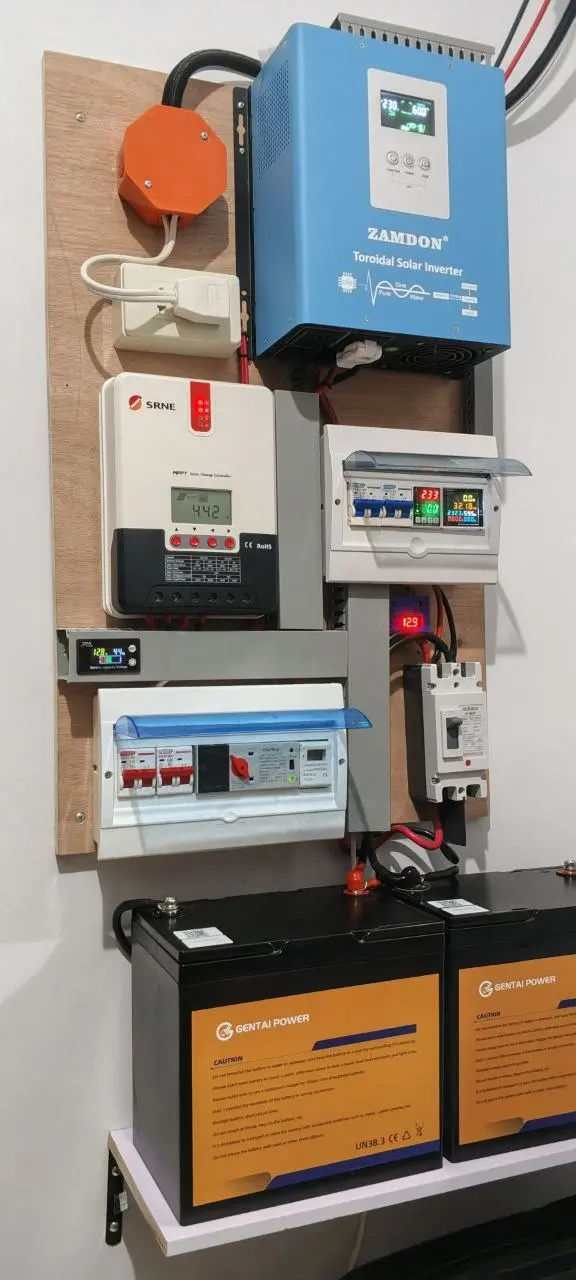

PHGuys share ko lang itong small solar setup na ginawa ko.
Features:
1. With voltage protection para iwas sira ng appliances at inverter incase sumobrang baba or sobrang taas ng kuryente.
2. With low voltage disconnect - disconnected agad ang battery if bumaba na sa 20% ang battery at reconnect agad kapag may enough charge na.
3. With watt meter - para mamonitor mo ang wattage consumption ng system mo.
4. With programmable timer - para maschedule mo kung kelan kusang mamamatay at mabubuhay ang solar power mo. Sa akin naka set on ng 9am at off ng 4pm tapos on uli ng 8:30pm then off ng 6am.
5. With Automatic transfer switch - auto lipat sa meralco incase maubos ang solar power mo.
6. With MCCB para protected ang buong setup mo.
7. To be installed - SPD AC at DC para maabsorb ang kuryente incase magka kidlat.

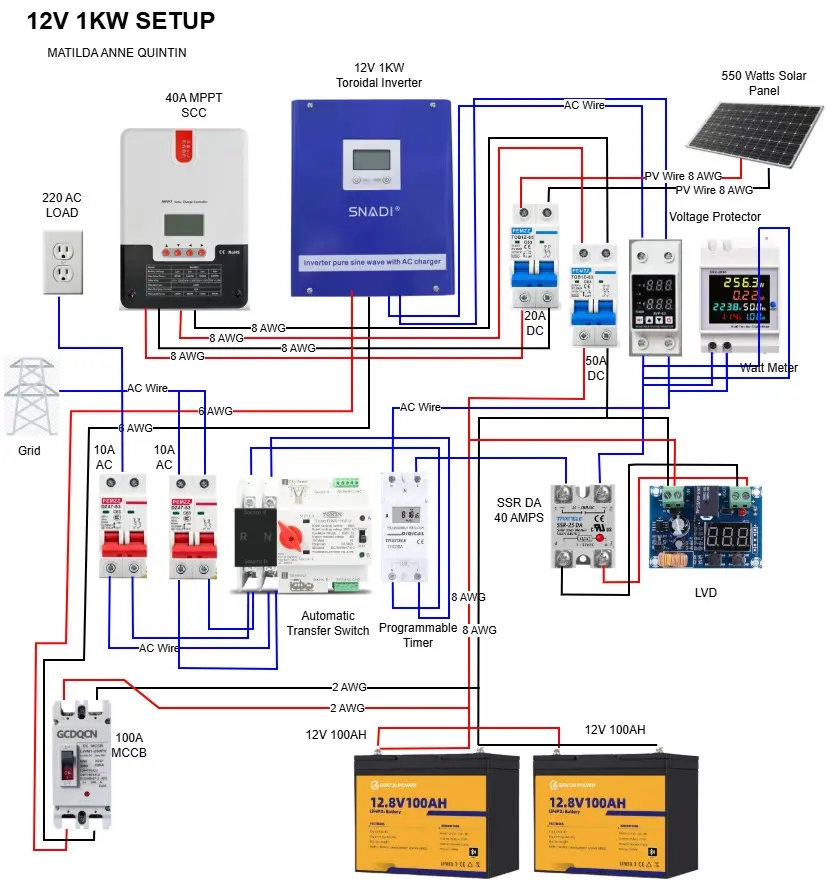

Materials: 12V 1KW Setup
You do not have permission to view the full content of this post. Log in or register now. 50cm x 80cm plyboard
You do not have permission to view the full content of this post. Log in or register now. SNAT 12v 1kw Inverter
You do not have permission to view the full content of this post. Log in or register now. SRNE 40A
You do not have permission to view the full content of this post. Log in or register now. DC MCCB 100A
You do not have permission to view the full content of this post. Log in or register now. Watt Meter
You do not have permission to view the full content of this post. Log in or register now. Voltage protector 40A
You do not have permission to view the full content of this post. Log in or register now. Cable Tray 50mm x 50mm
You do not have permission to view the full content of this post. Log in or register now. 8AWG Black and Red
You do not have permission to view the full content of this post. Log in or register now. 2AWG Black and Red
You do not have permission to view the full content of this post. Log in or register now. PV Wire to Solar Panel
You do not have permission to view the full content of this post. Log in or register now. Automatic Transfer Switch 2P 100A
You do not have permission to view the full content of this post. Log in or register now. Battery percentage meter
You do not have permission to view the full content of this post. Log in or register now. Low Voltage Disconnect
You do not have permission to view the full content of this post. Log in or register now. Low Voltage Disconnect Box
You do not have permission to view the full content of this post. Log in or register now. SSR 40DA
You do not have permission to view the full content of this post. Log in or register now. SC16-8 Copper Lug
You do not have permission to view the full content of this post. Log in or register now. 50A DC, 20A DC, 10A AC x2 Breakers
You do not have permission to view the full content of this post. Log in or register now. Programmable Timer Switch
You do not have permission to view the full content of this post. Log in or register now. Gentai lifepo4 100AH Battery
