Pa help naman po kahit pa unlock lang po Maraming salamat po

https://www.Çℎḙḡḡ.com/homework-help...ing-stationary-massive-concrete-ped-q63381350

https://www.Çℎḙḡḡ.com/homework-help...21?trackid=24cdb0f94a8e&strackid=3219792bf523



[ravenf]

https://www.Çℎḙḡḡ.com/homework-help...22?trackid=41c5ae23c535&strackid=6f3f461318f6



[Unkown User]

I.

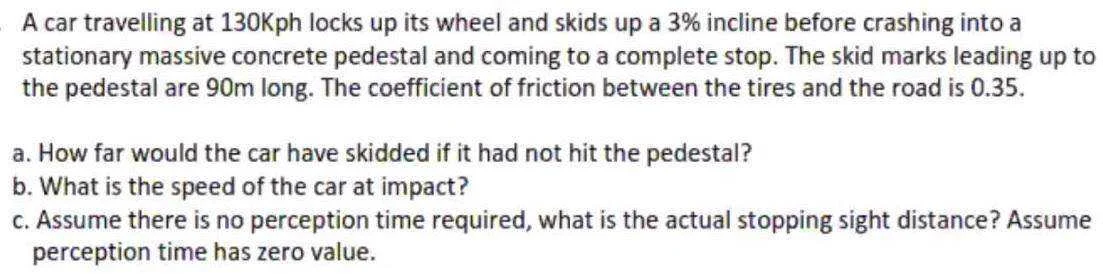

Question: A car travelling at 130kph locks up its wheel and skids up a 3% incline before crashing into a st...​

---

Show transcribed image text

Expert Answer​

•

  Ankur Malikanswered this
  Was this answer helpful?



  0



  0
  716 answers
  Answer)
  Velocity of car = 130 km/hr = (5/18)×130 mts/sec
  = 36.11 m/s
  Upgradient n = 3% = 0.03
  Skid Marks leading to pedestal = 90 mts
  Coefficient of friction f = 0.35
  (a)
  If the car had not hit the pedestal
  Distance of skid = (V^2)/(2g(f-n)) = ((36.11)^2)/(2*9.81(0.35-0.03)) = 207.7 metres
  total distance of skid = 207.7 mts
  It would have further skidded a distance of 207.7 - 90 = 117.7 mts
  (b)
  speed at impact
  from the equation V^2 - U^2 = 2g(f-n)S
  Initial velocity = 36.11 m/s
  Distance S = 90 meters
  f= 0.35 n= 0.03
  (36.11)^2 - U^2 = 2×9.81×(0.35-0.03)×90
  U^2 = 1304 - 565= 739
  U = 27.2 m/s
  Hence velocity of car at impact = 27.2 m/s = 97.9 km/hr
  (c)
  Actual stopping sight distance = braking distance =
  207.7 mts
  Comment

II.

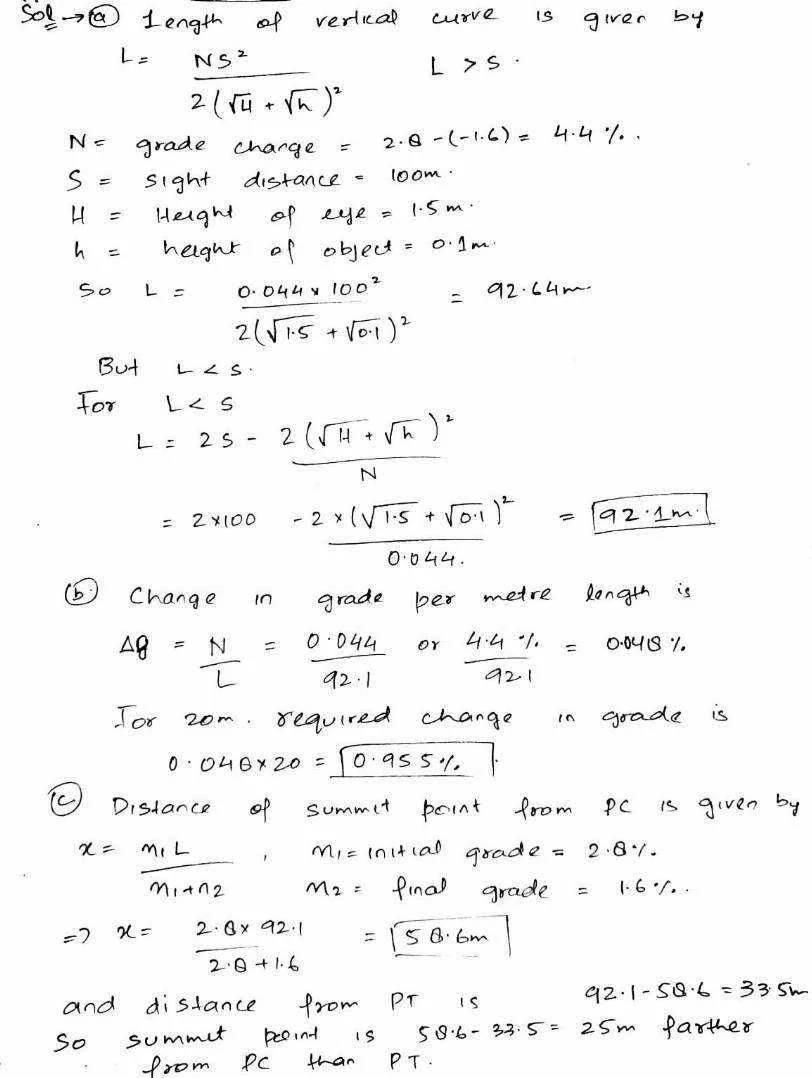

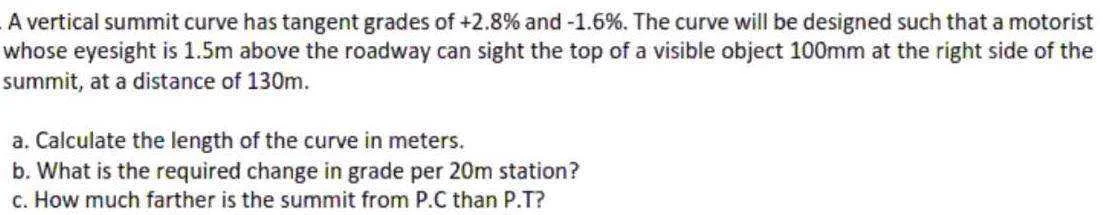

Question: A vertical summit curve has tangent grades of +2.8% and -1.6%. The curve will be designed such th...​

---

Show transcribed image text

Expert Answer​

•

  Anonymousanswered this
  Was this answer helpful?



  0



  0
  229 answers

  Comment

III.

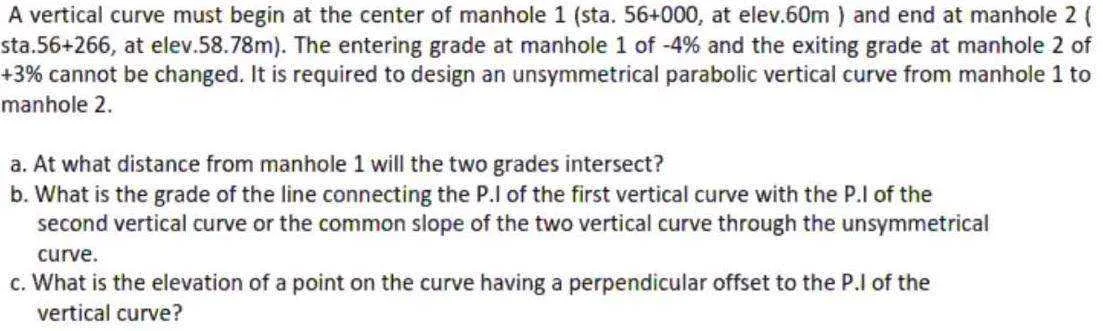

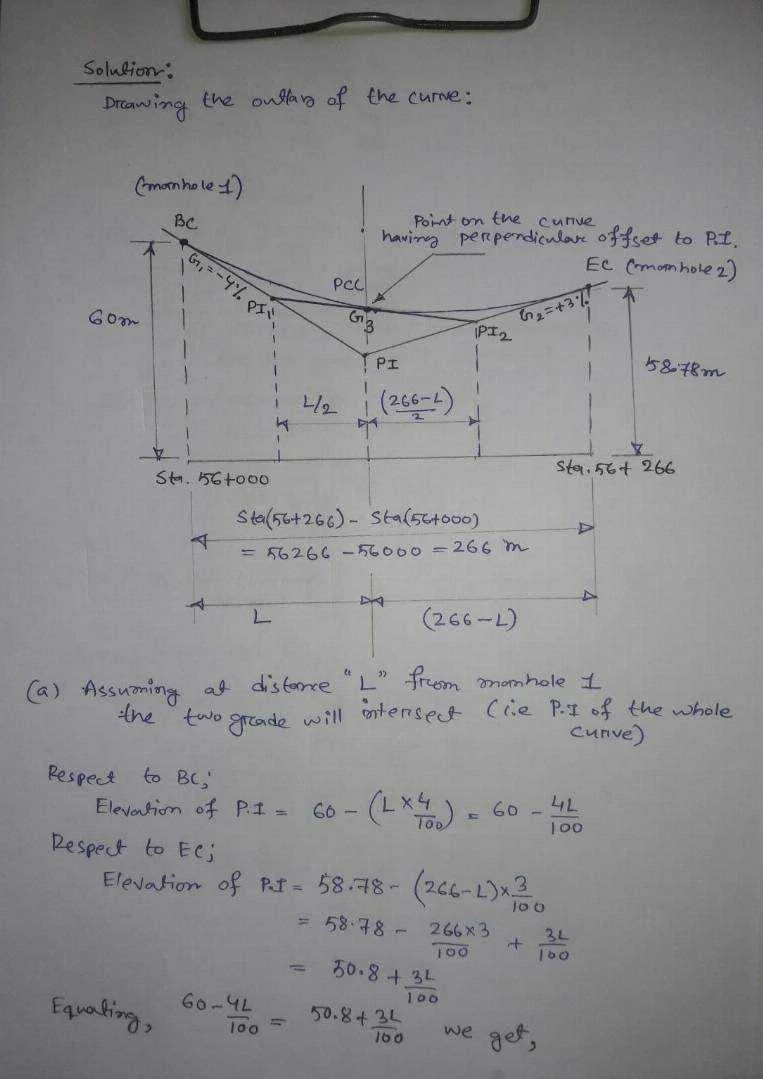

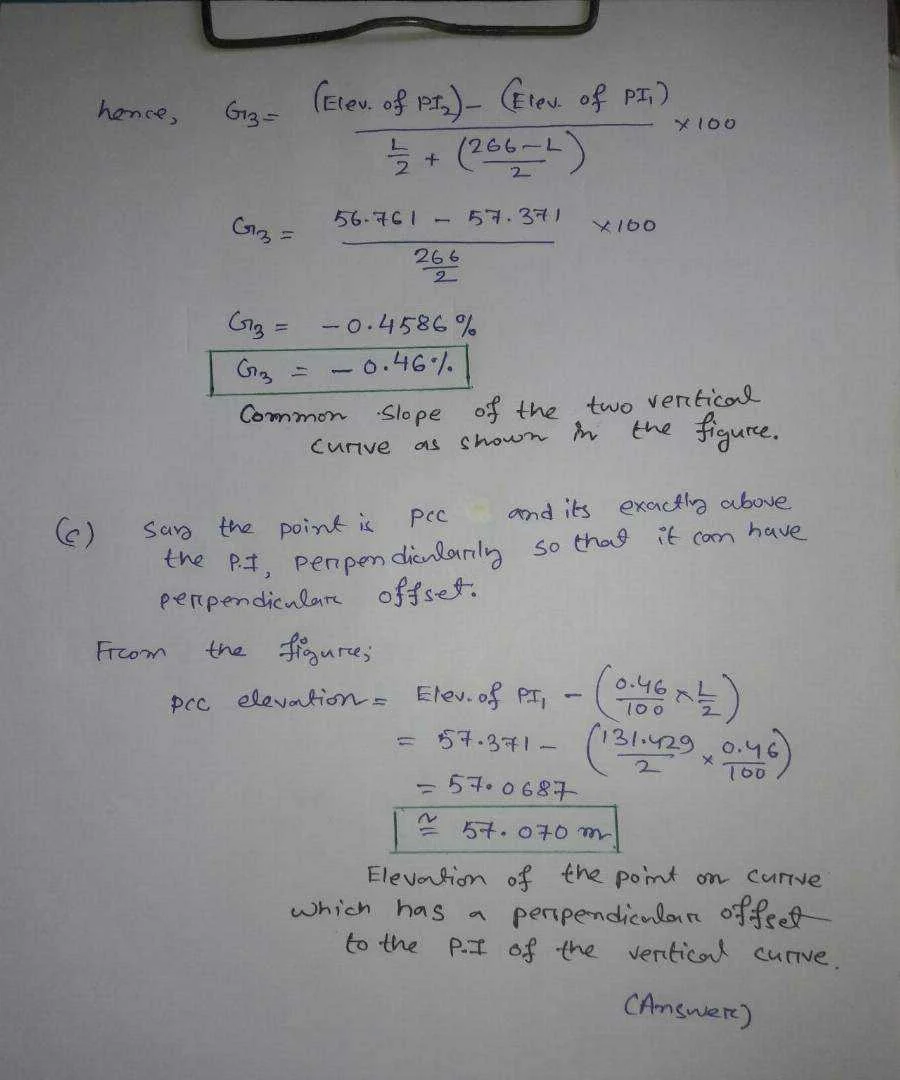

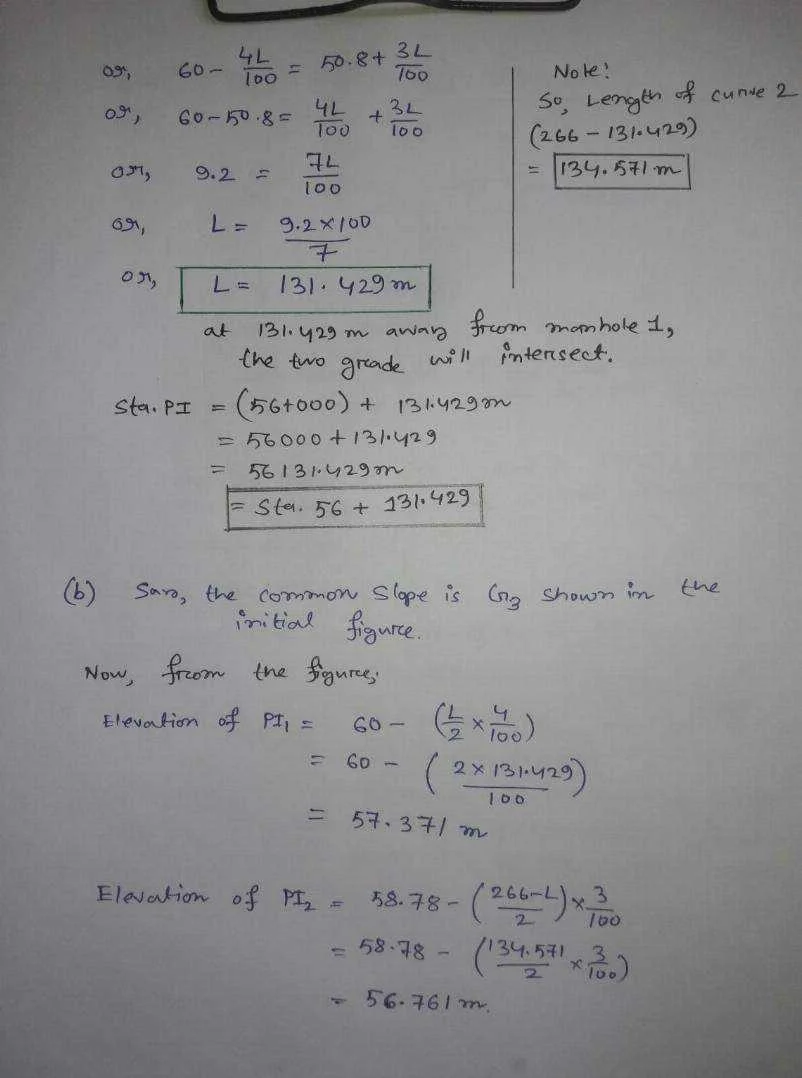

Question: A vertical curve must begin at the center of manhole 1 (sta. 56+000, at elev.60m ) and end at man...​

---

Show transcribed image text

Expert Answer​

•

  Anonymousanswered this
  Was this answer helpful?



  0



  0
  2,466 answers

  Comment



[ravenf]

Salamap po ng sobra lubusin ko na po
https://www.Çℎḙḡḡ.com/homework-help...59?trackid=08705feea5b7&strackid=fab3b830afeb

https://www.Çℎḙḡḡ.com/homework-help...49?trackid=f63d7d86c306&strackid=fab3b830afeb

Last na po yan sobra sobrang thank you po i bless po kayo ni Lord.



[Unkown User]

I.

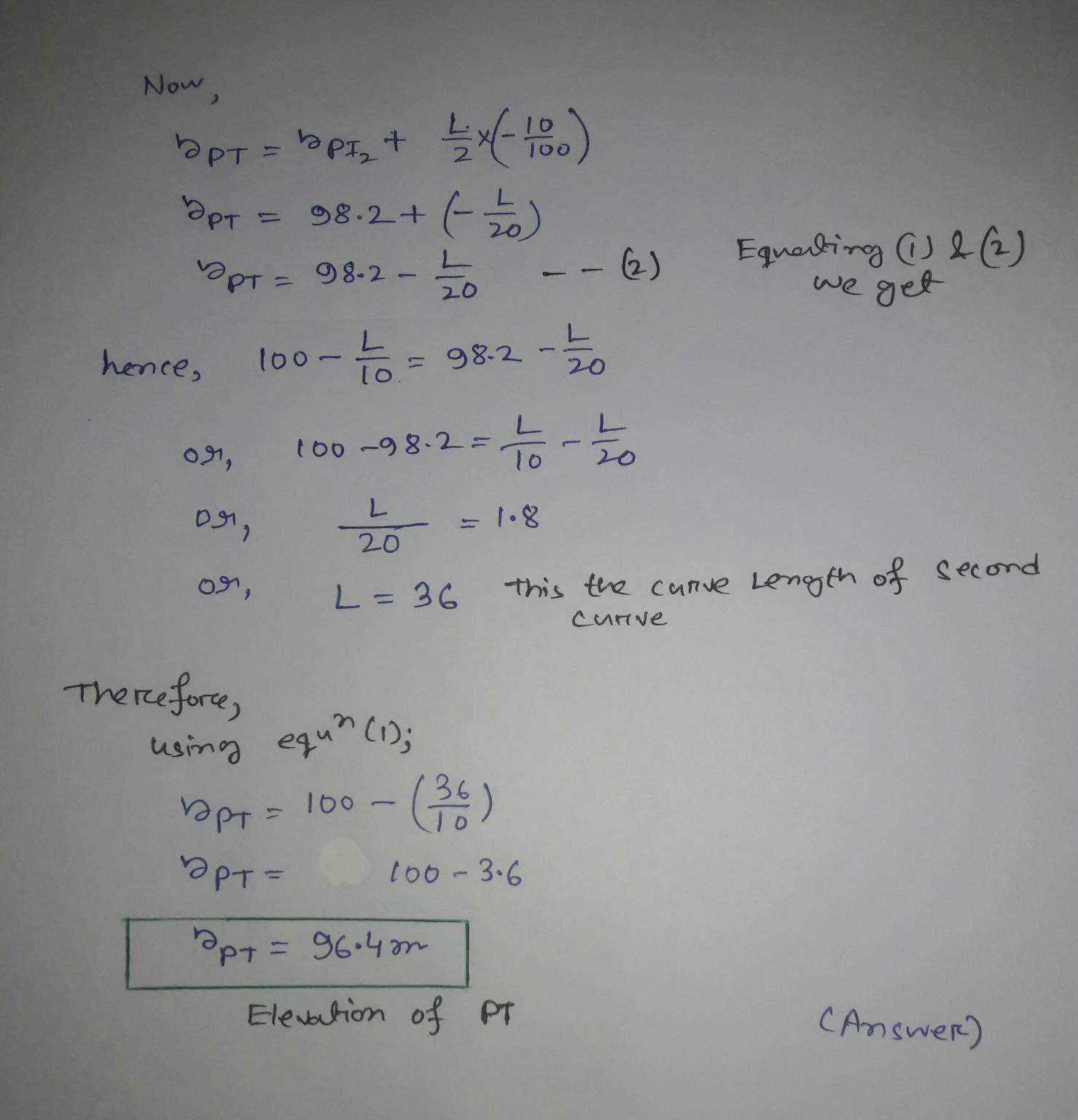

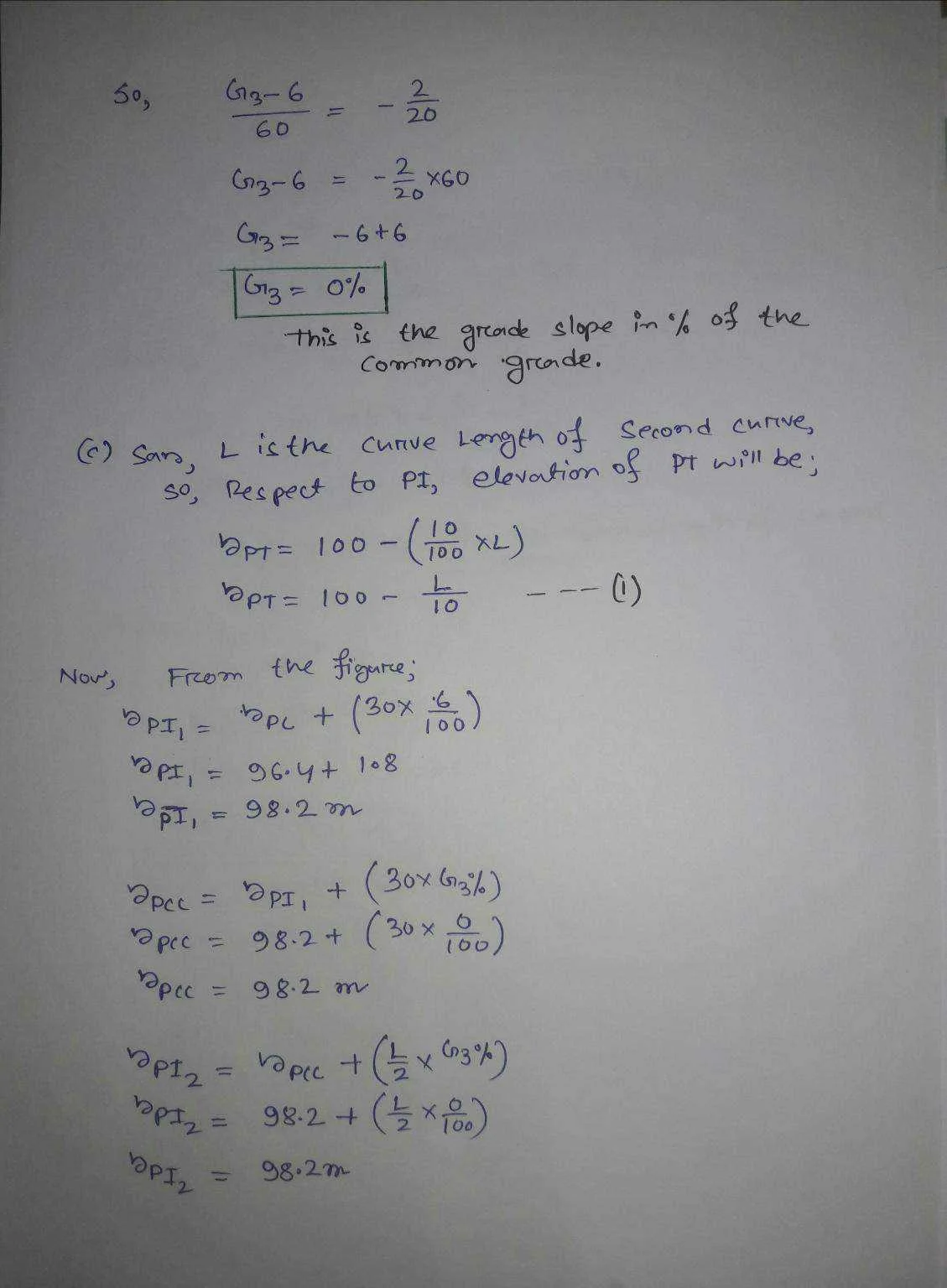

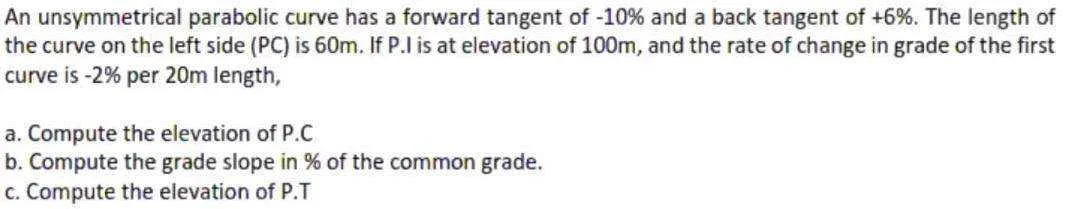

Question: An unsymmetrical parabolic curve has a forward tangent of -10% and a back tangent of +6%. The len...​

---

Show transcribed image text

Expert Answer​

•

  Anonymousanswered this
  Was this answer helpful?



  0



  0
  2,466 answers

  Comment

II.

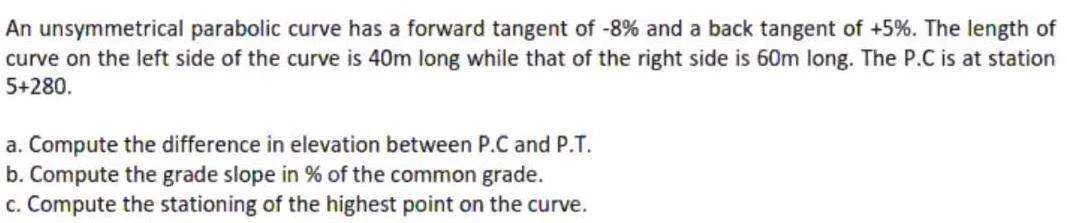

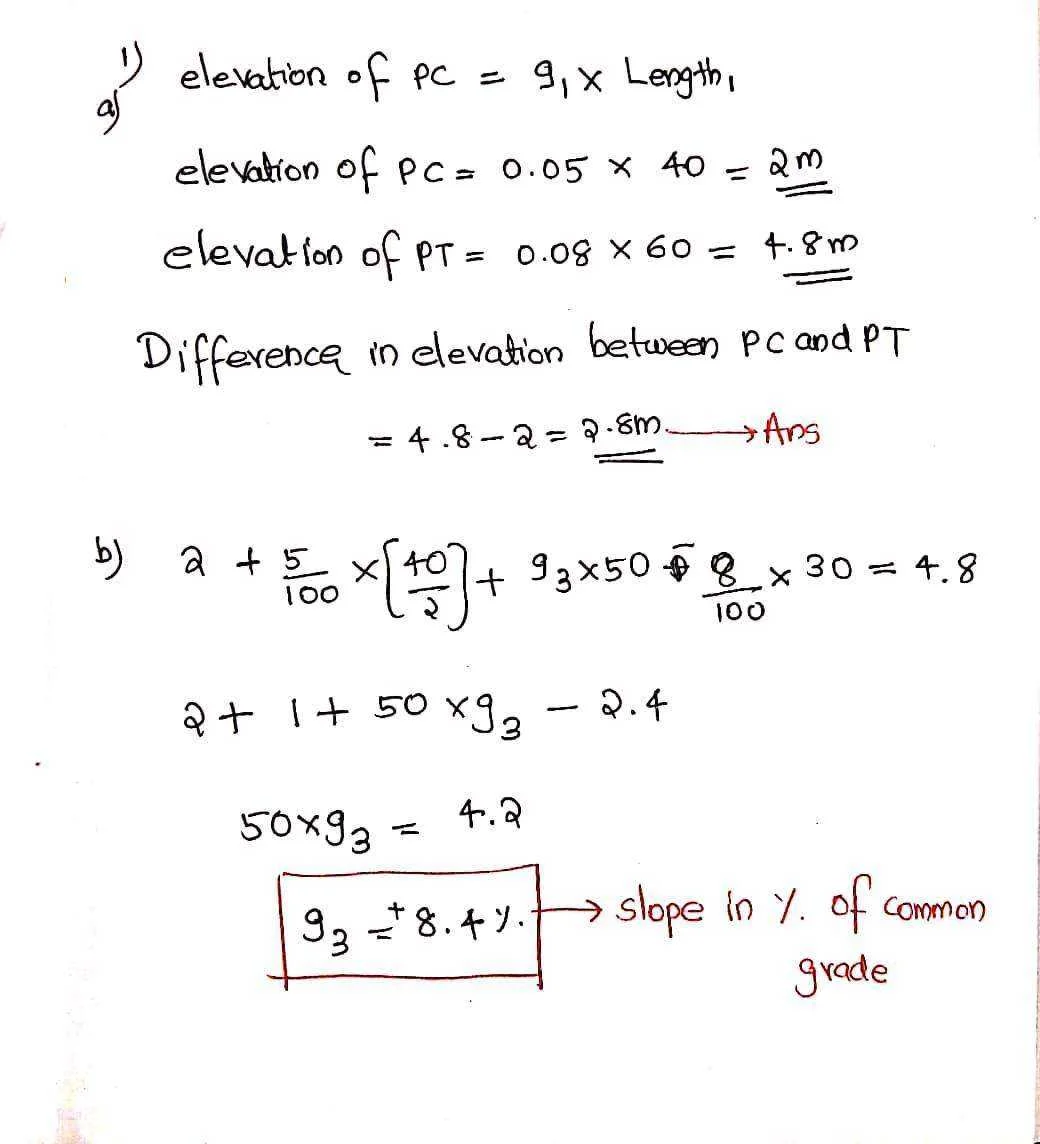

Question: An unsymmetrical parabolic curve has a forward tangent of -8% and a back tangent of +5%. The leng...​

---

Show transcribed image text

Expert Answer​

•

  Anonymousanswered this
  Was this answer helpful?



  0



  0
  1,653 answers

  Comment



[ravenf]

Salamat po ng marami



[yotopasad]

pa help din ako paps, salamaat

https://www.Çℎḙḡḡ.com/homework-help...r-2-alternator-direct-current-separ-q76633227



[Unkown User]

[XX='yotopasad, c: 1223649, m: 880327'][/XX]

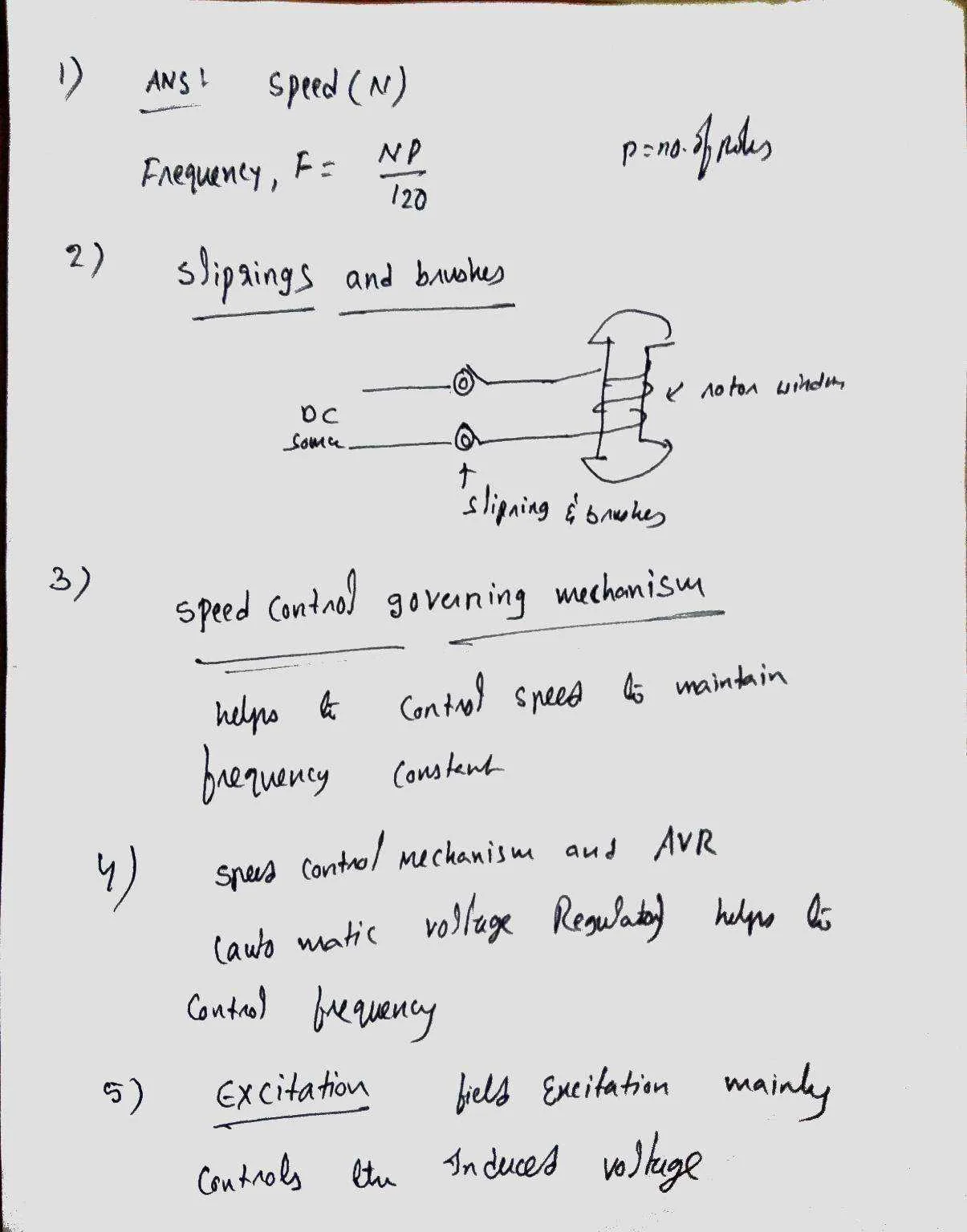

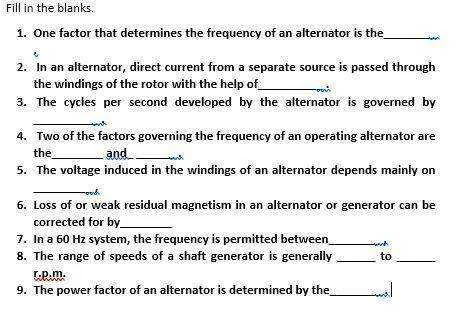

Question: Fill in the blanks. 1. One factor that determines the frequency of an alternator is the 2. In an ...​

---

help me with marine electrical

Show transcribed image text

Expert Answer

•

  Anonymousanswered this
  Was this answer helpful?



  1



  0
  818 answers



  Comment



[Unkown User]

Puntahan nyo thread ko duon kayo mag post nang link, I'll unlock it ASAP​

​
