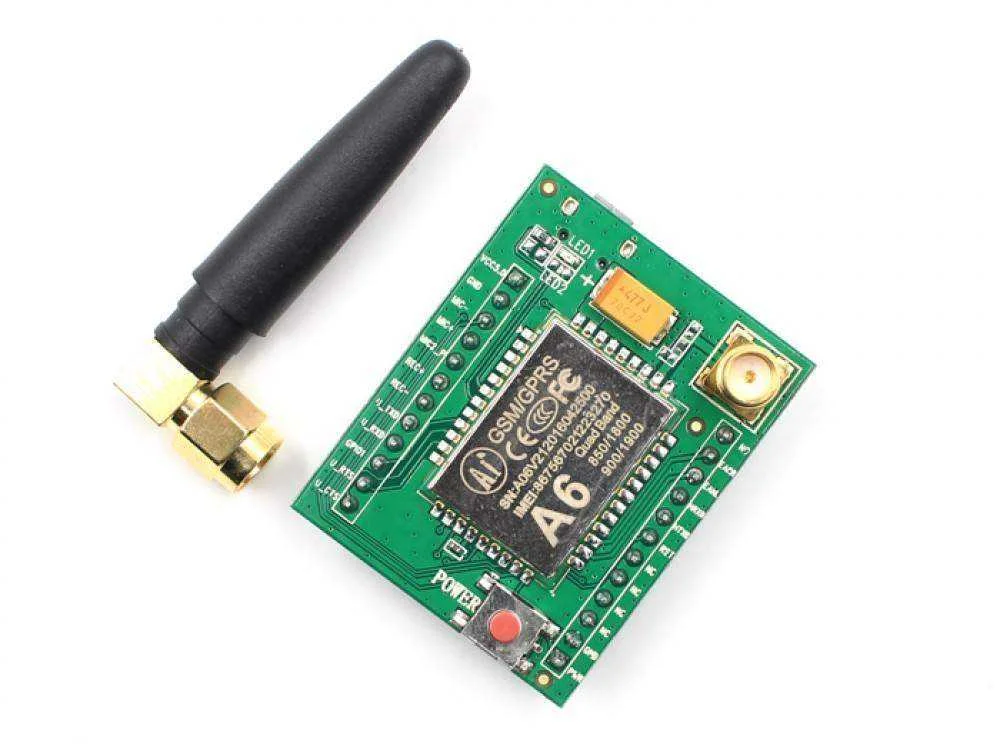

PHthis is the best combination of PIR motion Sensor and A6 gsm Module
int lamp = 8; // choose the pin for the RELAY
int inputPin = 9; // choose the input pin (for PIR sensor)
int val = 0; // variable for reading the pin status
char phone_no[]="your mobile number here";
void setup() {
pinMode(lamp, OUTPUT); // declare lamp as output
pinMode(inputPin, INPUT); // declare sensor as input
Serial.begin(9600);
delay(300);
Serial.println("AT+CMGF=1");
delay(2000);
Serial.print("AT+CMGS=\"");
Serial.print(phone_no);
Serial.write(0x22);
Serial.write(0x0D); // hex equivalent of Carraige return
Serial.write(0x0A); // hex equivalent of newline
delay(2000);
Serial.print("Master may humihipo saakin");
delay(500);
Serial.println (char(26));//the ASCII code of the ctrl+z is 26
}
void loop(){
val = digitalRead(inputPin); // read input value
Serial.println(val);
if( val== 1) {
digitalWrite(lamp,HIGH); // turn ON the lamp
} else {
digitalWrite(lamp,LOW); // turn OFF the lamp
}
}
