🔒 Closed Baranggay Hotspot

[DECENNIUM]

Guys ano kayang magandang itayo para sa baranggay hotspot ano mga gagamitin at mga AP ang pwede yung malawak sana range sakop buong baranggay



[L A Z A]

mahirap ata yan



[Dattebayo]

Hmm, mesh network nalang gawin mo paps. Tp link deco mesh wifi recommend ko, lagay mo sa mga poste ng kuryente at make sure nakalagay sa waterproof container. Add more units lang to cover your entire barangay. Drawback lang nito is sobrang mahal, like, sobrang mahal talaga hahahahha. Yung tp link m4 costs 3.5k per unit, and if solution mo is 1 long range wifi lang you may run into congestion since isa lang siya. Para sa 1 long range wifi recommend ko yung tp link parin, yung cpe line nila pwede kasing gawing Point to Point or Wifi AP. Also may I ask if ano purpose? Project ba ng barangay or piso wifi lang? If piso wifi lang gamitin mo yung 1 long range wifi solution, if barangay funded na project then maybe mas mataas fund then go with the first solution na sa taas.



[DECENNIUM]

Hmm, mesh network nalang gawin mo paps. Tp link deco mesh wifi recommend ko, lagay mo sa mga poste ng kuryente at make sure nakalagay sa waterproof container. Add more units lang to cover your entire barangay. Drawback lang nito is sobrang mahal, like, sobrang mahal talaga hahahahha. Yung tp link m4 costs 3.5k per unit, and if solution mo is 1 long range wifi lang you may run into congestion since isa lang siya. Para sa 1 long range wifi recommend ko yung tp link parin, yung cpe line nila pwede kasing gawing Point to Point or Wifi AP. Also may I ask if ano purpose? Project ba ng barangay or piso wifi lang? If piso wifi lang gamitin mo yung 1 long range wifi solution, if barangay funded na project then maybe mas mataas fund then go with the first solution na sa taas.

Boss project ito ng baranggay ano and funded na siya ano mga kaylangan boss patulong naman



[Dattebayo]

Pakilagay ng budget paps, gawan kita ng recommendations. Kahit estimated lang po.

Edit: Pakilagay nalang rin po if gaano kalawak yung barangay, yung road measurement lang. From the road where nag start yung land ng barangay up to the last ρá†ch ng road.



[DECENNIUM]

Budget is 1 m.
Then yung admin na pagtatayuan paligid niya is mga 600meters boss



[DECENNIUM]

Pakilagay ng budget paps, gawan kita ng recommendations. Kahit estimated lang po.

Edit: Pakilagay nalang rin po if gaano kalawak yung barangay, yung road measurement lang. From the road where nag start yung land ng barangay up to the last pâtch ng road.

1m po yung badget boss tapos mula sa server hanggang sa dulo ng house is 600meters



[DECENNIUM]

Gusto pa nila yung may sariling account parang voucher ilalagay yung code para maka connect ganun



[Dattebayo]

[XX='Mark Nogueras, c: 281575, m: 869824'][/XX] Pwede kayo magpakabit ng wifi device sa mga electric posts paps or hindi?



[Dattebayo]

1m po yung badget boss tapos mula sa server hanggang sa dulo ng house is 600meters

600 meters lang yung kalawakan ng barangay paps? At pala, need talaga ba yung voucher code? Hirap kasi if need pa paps eh, need pa ng computer / device i-host yung captive portal. Meron captive portal yung tp link kaso 1 fixed password lang, click this You do not have permission to view the full content of this post. Log in or register now.. Mas maganda if lagyan nalang ng password yung wifi paps, mesh network kasi recommend ko sana sa'yo. Yung mesh network kasi maganda sa itong situation eh, seamless roaming between access points. Di mo na kailangan magswitch ng wifi if naglalakad ka.

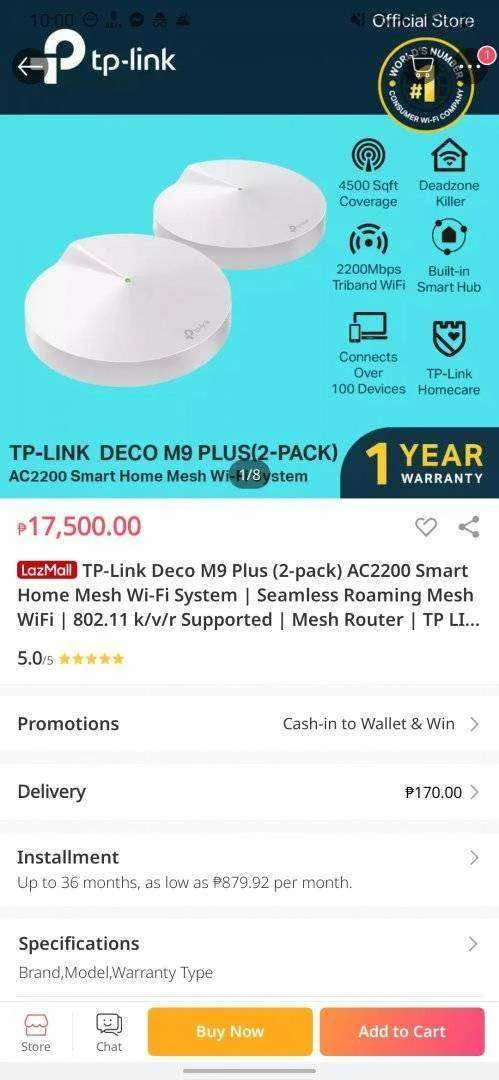

Tp Link M9 Plus na mesh network recommend ko paps. P8,750 per unit (Lazada Price for 2 Units). Bili ka ng mahaba na ethernet cable, yung swak lang para maconnect together yung mga tp link deco. You can only connect up to 32 tp link deco to expand coverage. Maximum connected devices ng tp link deco is 100+, no need to worry jan. Make sure gumagamit ka ng ethernet to connect together yung mga tp link units paps ha, don't use wifi only since bottleneck yan if ganyan setup mo.



[Dattebayo]

Just to clarify pala, up to 32 units ng tp link deco pwede mo macombine to expand wifi coverage.

As for capacity, kaya ng tp link mesh network 100+ phones, laptops, etc. nakaconnect sa wifi at the same time. Since you are covering an entire barangay paps tanong ko lang, what internet plan gamit nyo?



[DECENNIUM]

Just to clarify pala, up to 32 units ng tp link deco pwede mo macombine to expand wifi coverage.

As for capacity, kaya ng tp link mesh network 100+ phones, laptops, etc. nakaconnect sa wifi at the same time. Since you are covering an entire barangay paps tanong ko lang, what internet plan gamit nyo?

Smart corpo sim paps sa black mamba, tested naman na namin siya no capping



[DECENNIUM]

Eh yung tp link eap 225 paps alam mo mag set up ng mesh nun?



[Dattebayo]

Ah okay, wag ka magsetup ng 1 or 2 long range AP's lang ha. Baka macongested yung wifi network. Mas maganda talaga if mesh wifi paps.



[MyN88]

pfsense firewall naka install sa pc server > captive portal setup >>> isang mataas na tower with radio p2p device at isang point to device na radio naka install sa gitna ng tower. Sa network na eto pde mo na din isabay yong mga cctv.
