🔒 Closed bm622i 2011 modified with cooling pan inside

[-=maxie=-]

well i just want to share my modified BM622i 2011 sa mga gustong gawin din sa mga 22i 2011 nyo iwas sira yong RF IC ;D

Tools needed

1. Philip screw
2. soldering iron
3. LED
4. bulldog or mighty band
5. cutter blade
6. pan galing sa sirang lan card

ibang picture is for BM622m pero magka pariho lang yan sila

step 1
open your bm622i 2011 by unscrew the 3 screw
step 2

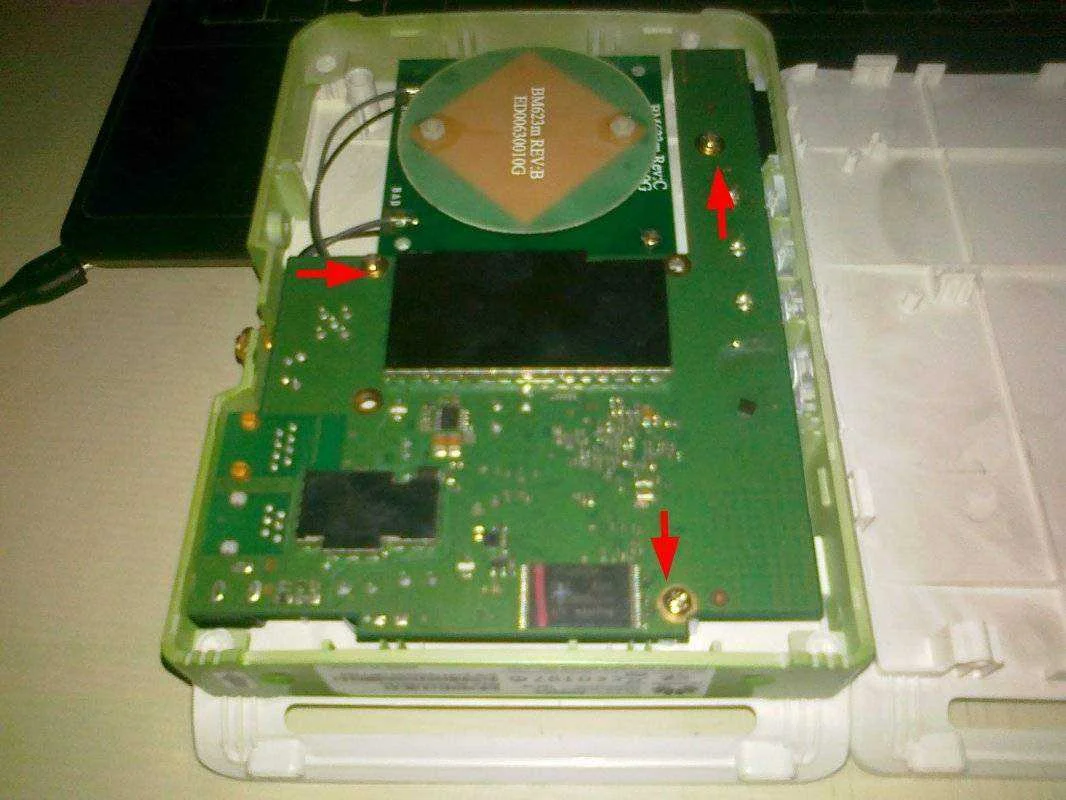

disassemble board from housing refer to picture below ()


step 3

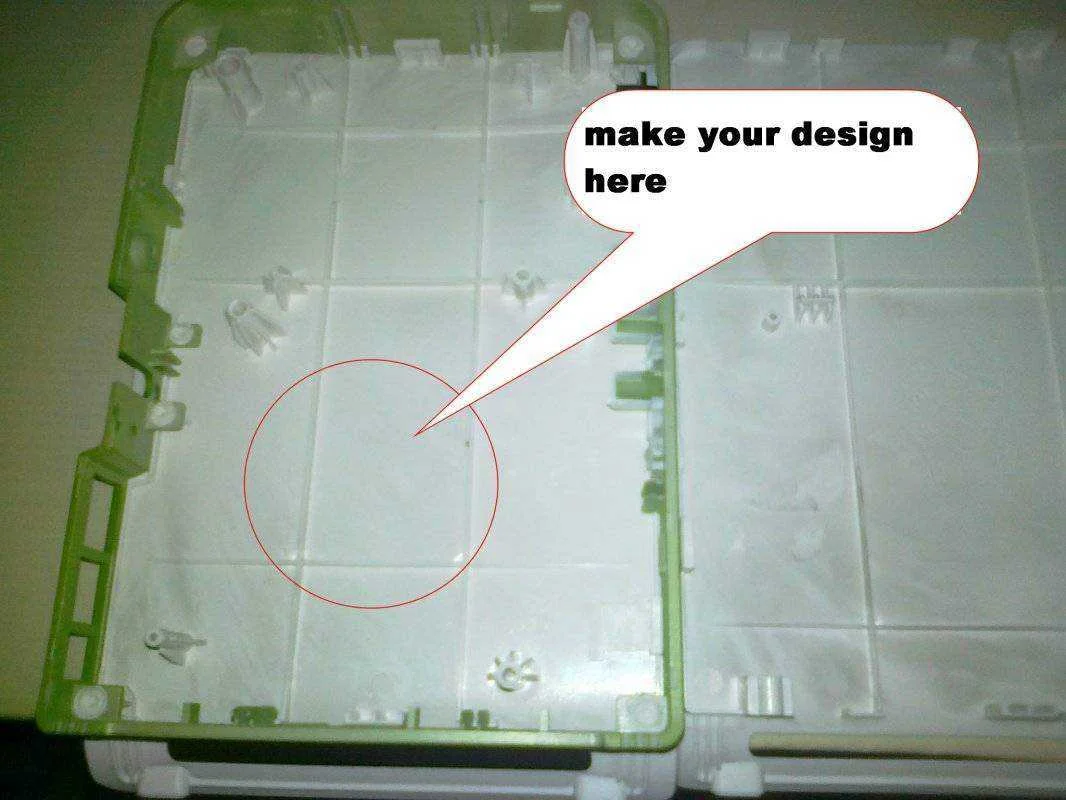

make your own design here para butasan at may labasan ang hangin

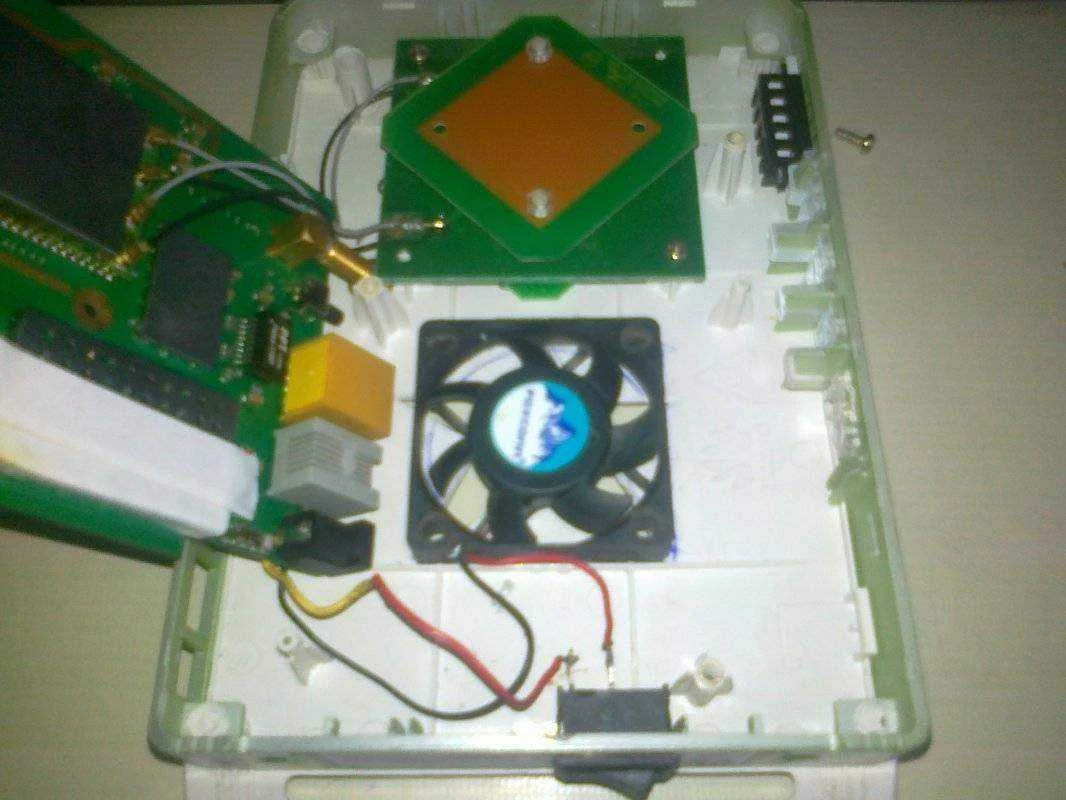

step 4 assemble



step 5

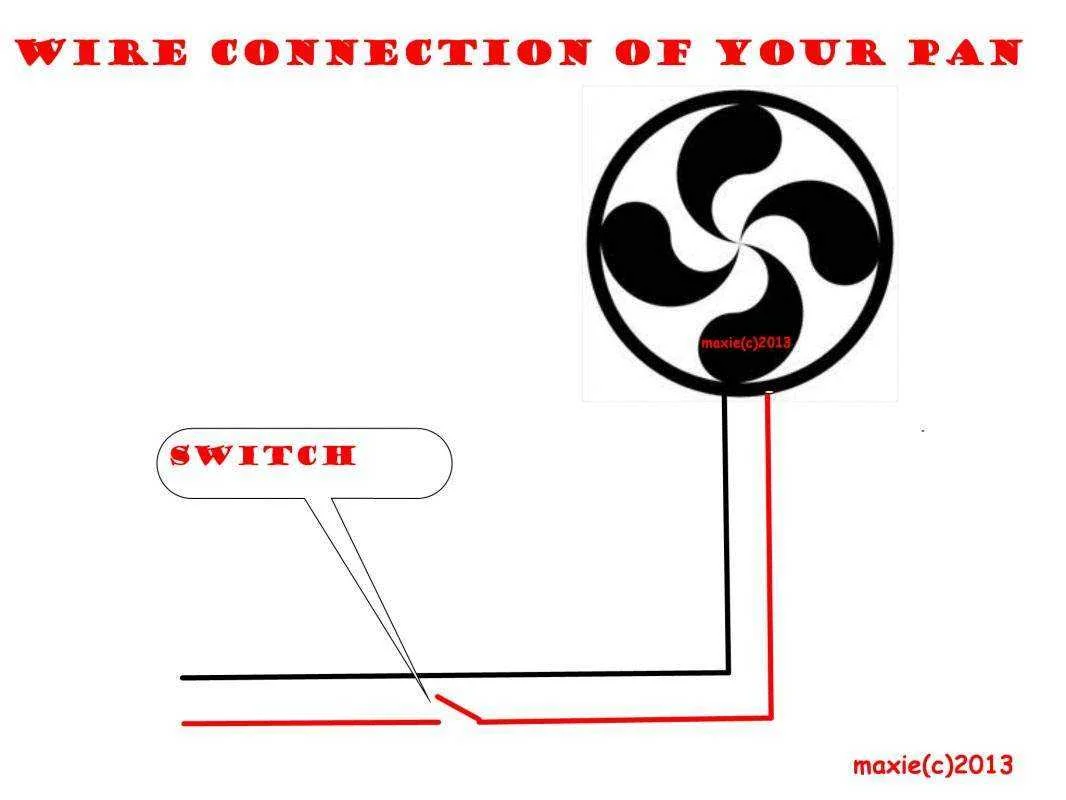

solder yong pan at ang switch

step 6

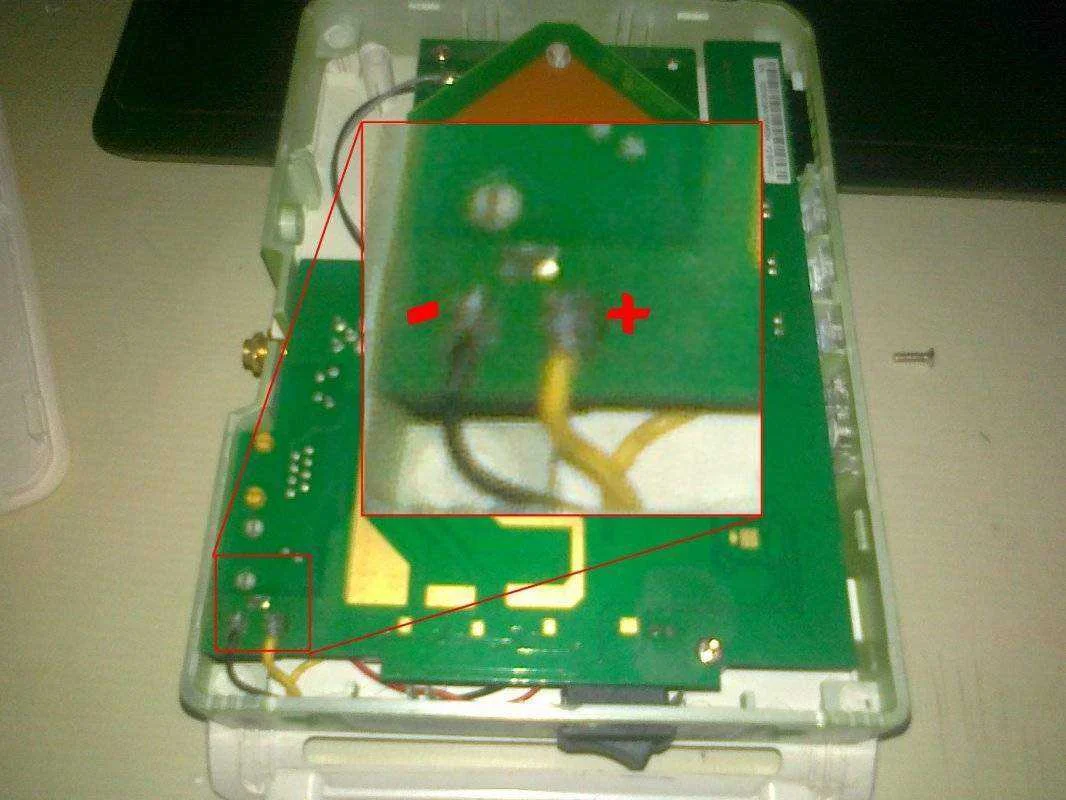

solder yong wire ng pan doon sa power adaptor ng wimax see the picture below

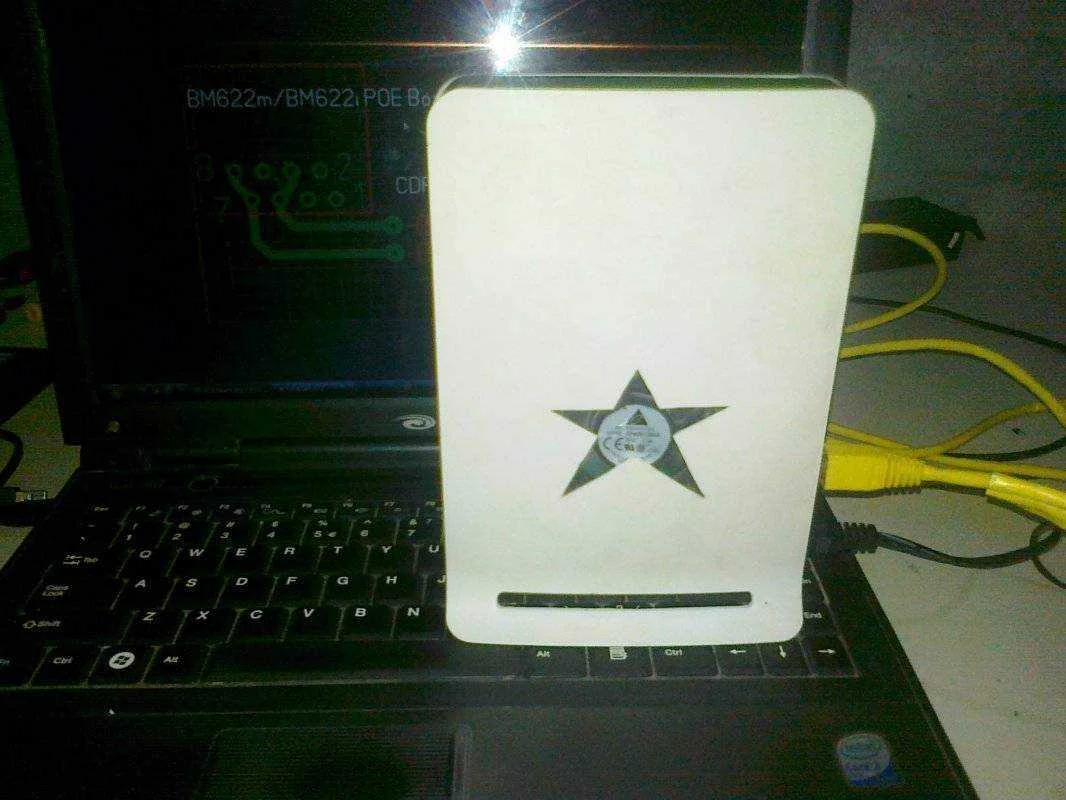

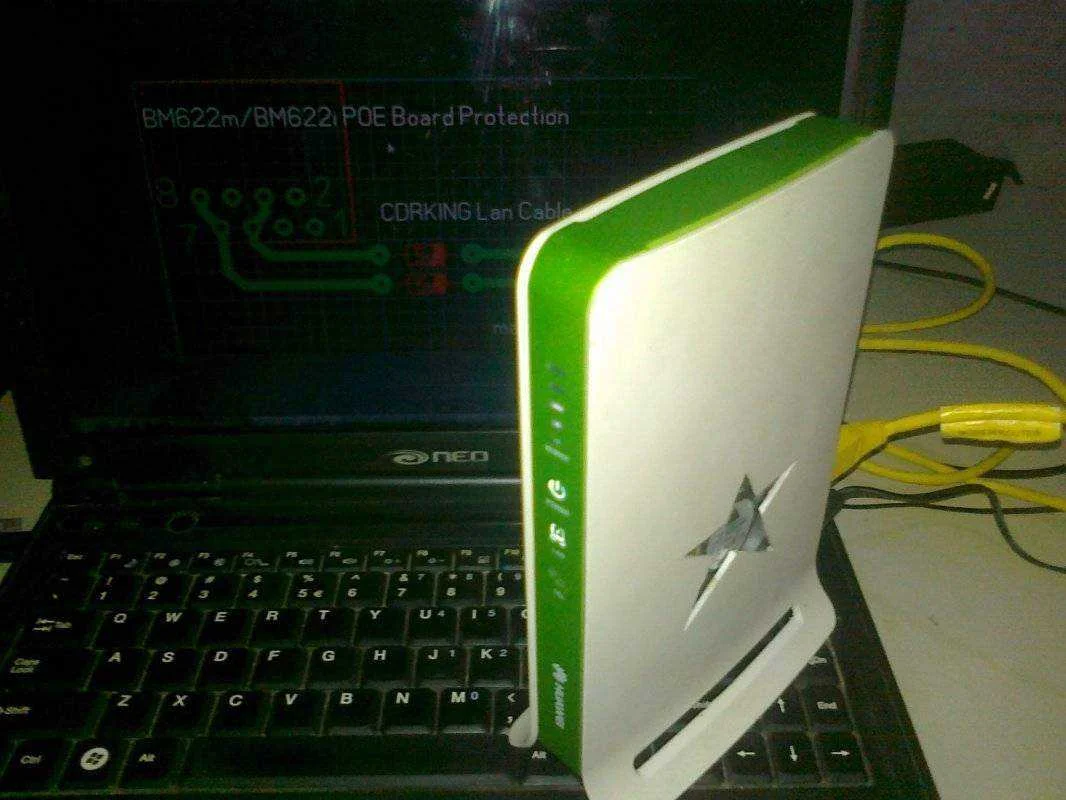

finish product





sa mga copier please give credit lang ok na sakin yon



[marlonshake556]

anung cutter gamit mo kaganda kasi ng pag kaka butas



[marcelo76]

OK yan sir



[judas12]

ayos to papz ahh!!
