🔒 Closed Sony xperia m4 aqua (e2353) single sim hang logo solution via flashing w/ tutorial + firmware

[PHC-GSM]

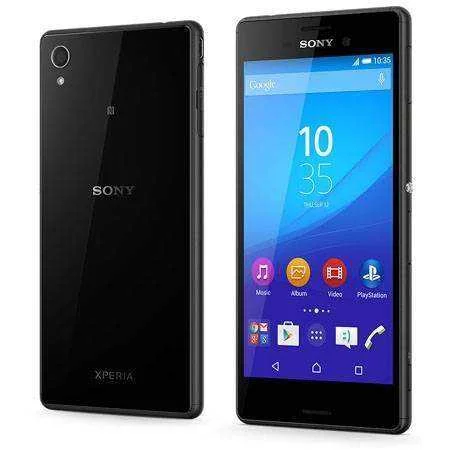

Sony Xperia M4 Aqua



Problem: Hang Logo
Solution: Flashing Via Sony Mobile Flasher By Androxyde


Download & install
Sony Mobile Flasher Tool By Androxyde Here
You do not have permission to view the full content of this post. Log in or register now.

Driver Here
You do not have permission to view the full content of this post. Log in or register now.

Sony Xperia M4 Aqua Firmware Here
You do not have permission to view the full content of this post. Log in or register now.






Pag ok na ang setup open niyo Sony Mobile Flasher.

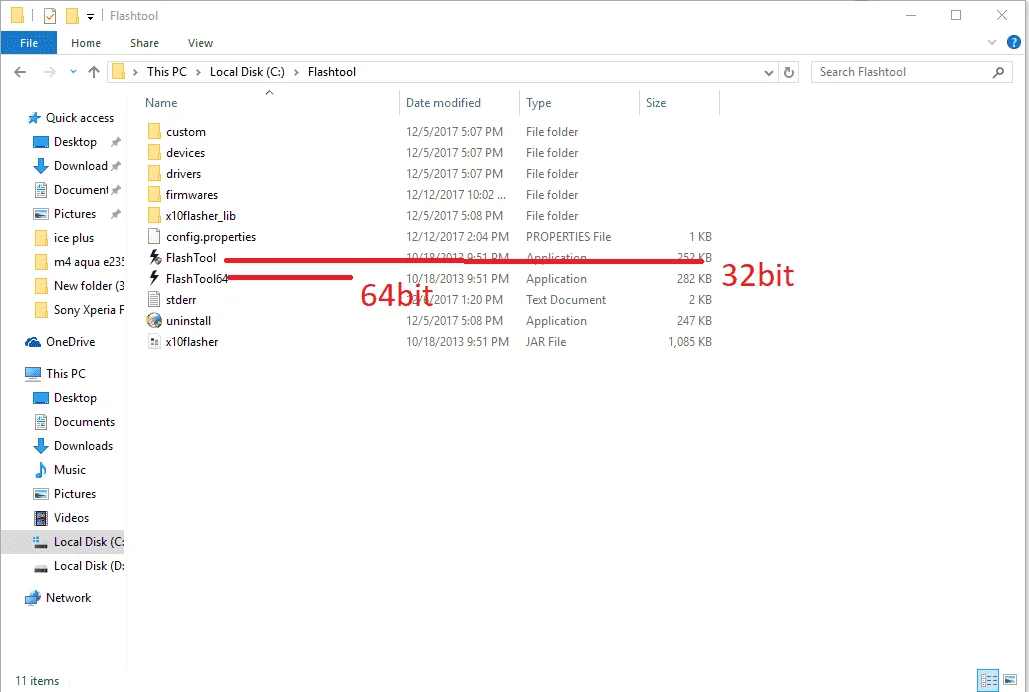

punta sa Drive C Local Disk (C > Flashtool




Setup para sa Flashing

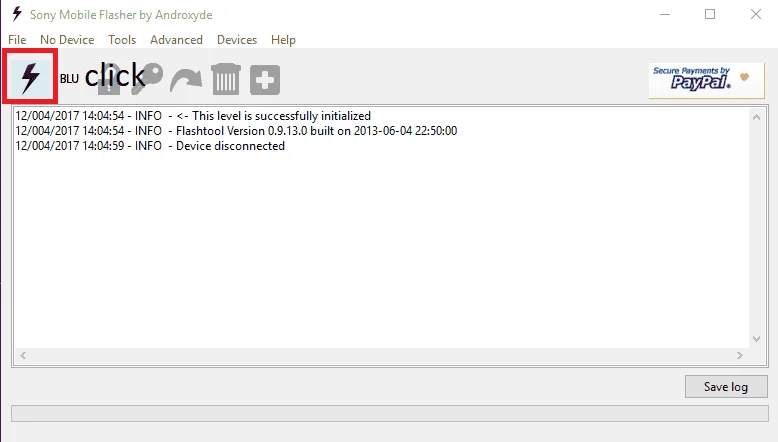

1. Click yung may kidlat na icon

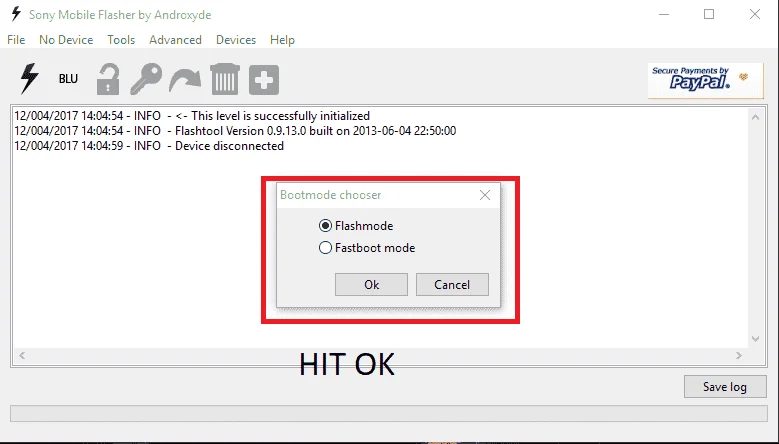

2. Flashmode at Click mo yung ok

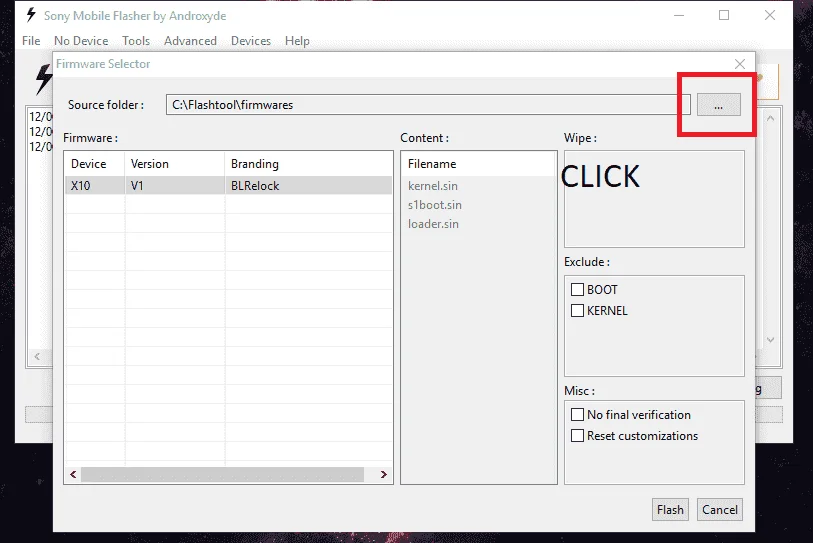

3. Dito ilalagay ang na download na firmware at navigate mo kung saan mo nilagay yung firmware.mas mainam kung sa desktop at gawan mo ng sariling folder.

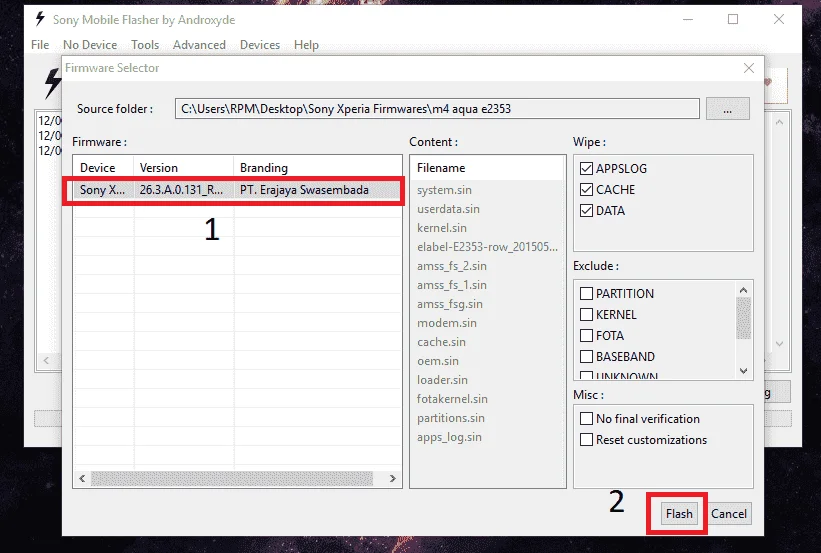

4. Ganito na siya pag na load ang firmware.

1. Click Firmware
2. Hit Flash

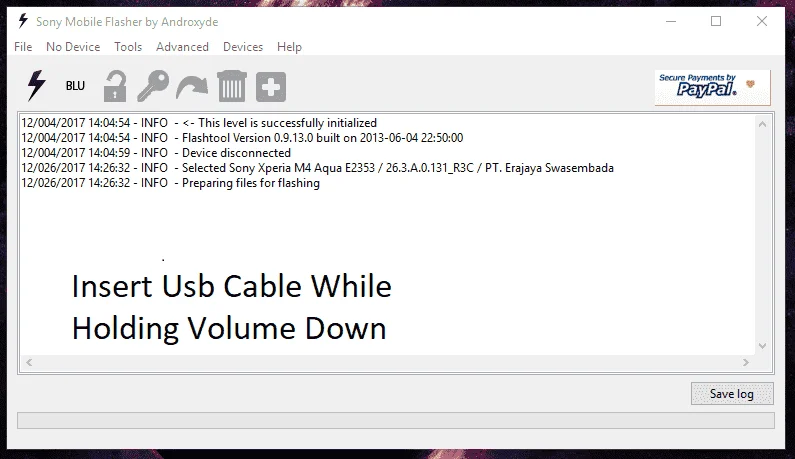

5. Ready for flashing: Power Off Phone Insert Usb Cable While Holding Volume Down

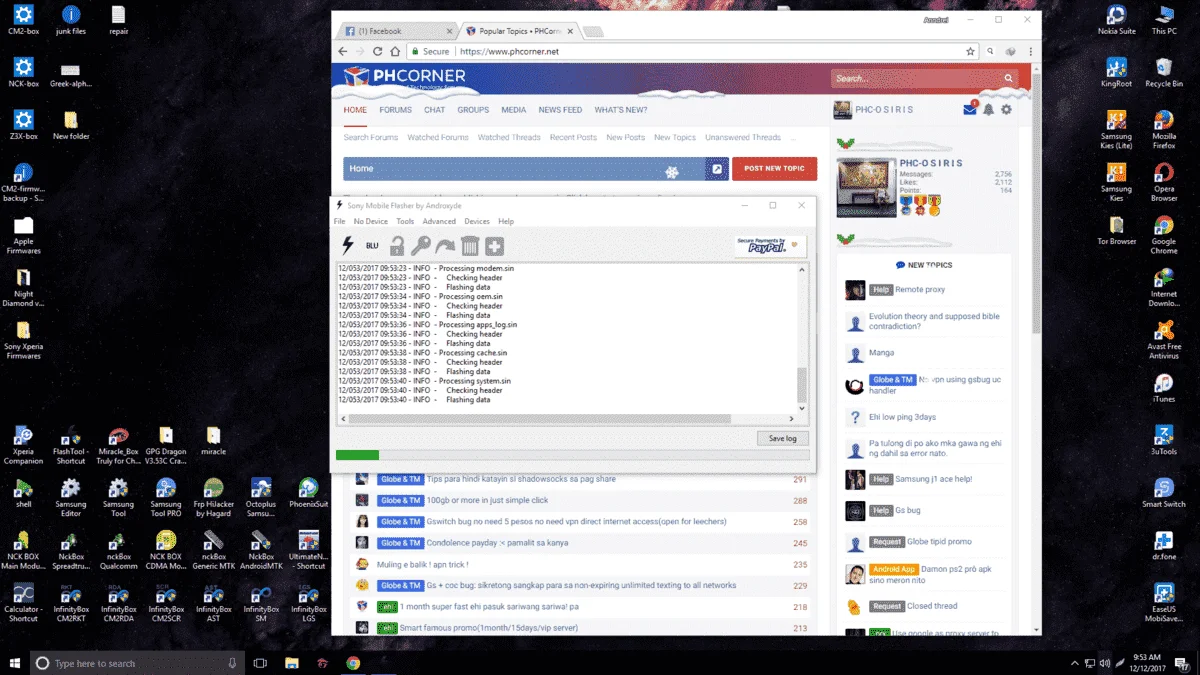

Ganito na siya pag kumunek sa flashing at hintayin lang matapos

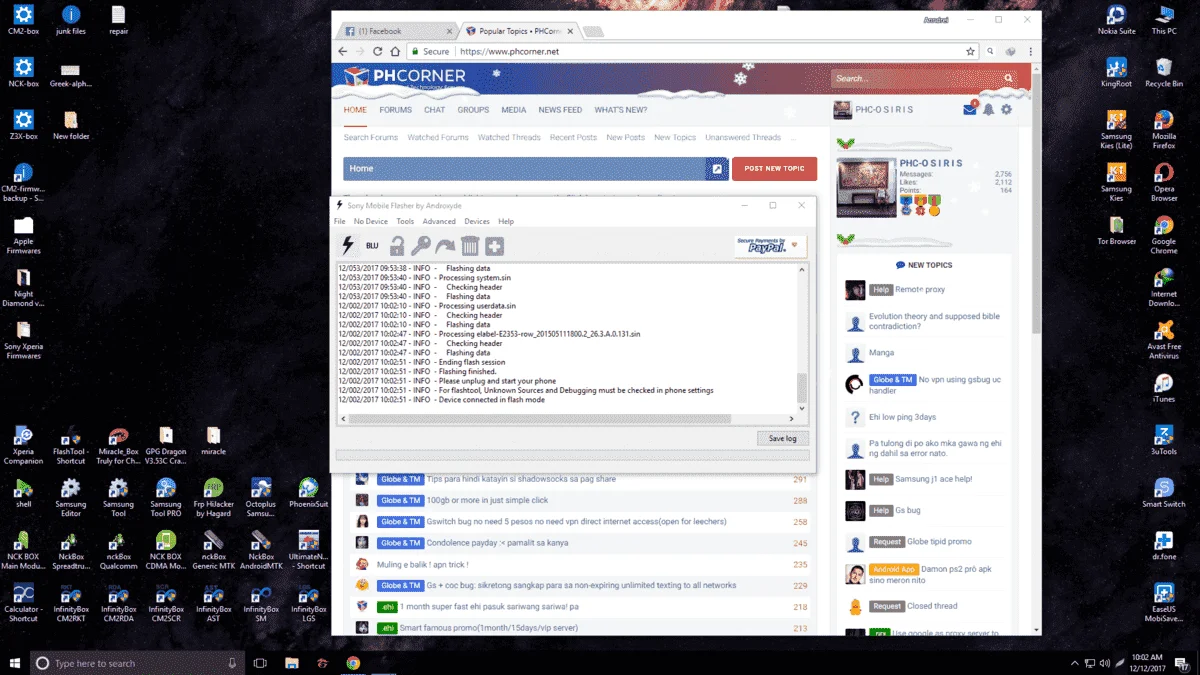

Done


Flashing Info:

12/047/2017 09:47:36 - INFO  - <- This level is successfully initialized
12/047/2017 09:47:36 - INFO  - Flashtool Version 0.9.13.0 built on 2013-06-04 22:50:00
12/047/2017 09:47:41 - INFO  - Device disconnected
12/049/2017 09:49:06 - INFO  - Selected Sony Xperia M4 Aqua E2353 / 26.3.A.0.131_R3C / PT. Erajaya Swasembada
12/049/2017 09:49:06 - INFO  - Preparing files for flashing
12/049/2017 09:49:31 - INFO  - Device connected in flash mode
12/050/2017 09:50:32 - INFO  - Device disconnected
12/050/2017 09:50:47 - ERROR - Drivers need to be installed for connected device.
12/050/2017 09:50:47 - ERROR - You can find them in the drivers folder of Flashtool.
12/050/2017 09:50:47 - INFO  - Device disconnected
12/051/2017 09:51:23 - INFO  - Please connect your device into flashmode.
12/051/2017 09:51:26 - INFO  - Flash canceled
12/052/2017 09:52:01 - INFO  - Selected Sony Xperia M4 Aqua E2353 / 26.3.A.0.131_R3C / PT. Erajaya Swasembada
12/052/2017 09:52:01 - INFO  - Preparing files for flashing
12/052/2017 09:52:13 - INFO  - Device connected in flash mode
12/053/2017 09:53:10 - INFO  - Please connect your device into flashmode.
12/053/2017 09:53:11 - INFO  - Opening device for R/W
12/053/2017 09:53:12 - INFO  - Reading device information
12/053/2017 09:53:12 - INFO  - Phone ready for flashmode operations.
12/053/2017 09:53:12 - INFO  - Current device : E2353 - YT9115YZCG - 1296-8805_R1A - 1296-0230_26.1.A.2.167 - GENERIC_26.1.A.2.167
12/053/2017 09:53:12 - INFO  - Start Flashing
12/053/2017 09:53:12 - INFO  - Processing loader.sin
12/053/2017 09:53:12 - INFO  -     Checking header
12/053/2017 09:53:12 - INFO  -     Flashing data
12/053/2017 09:53:12 - INFO  - Loader : S1_Root_54c8 - Version : MSM8936_17 / Boot version : S1_Boot_MSM8939_LA2.0_36 / Bootloader status : NOT_ROOTABLE
12/053/2017 09:53:12 - INFO  - Processing partitions.sin
12/053/2017 09:53:12 - INFO  -     Checking header
12/053/2017 09:53:12 - INFO  -     Flashing data
12/053/2017 09:53:13 - INFO  - Processing kernel.sin
12/053/2017 09:53:13 - INFO  -     Checking header
12/053/2017 09:53:13 - INFO  -     Flashing data
12/053/2017 09:53:17 - INFO  - Processing fotakernel.sin
12/053/2017 09:53:17 - INFO  -     Checking header
12/053/2017 09:53:17 - INFO  -     Flashing data
12/053/2017 09:53:22 - INFO  - Processing amss_fs_2.sin
12/053/2017 09:53:22 - INFO  -     Checking header
12/053/2017 09:53:22 - INFO  -     Flashing data
12/053/2017 09:53:22 - INFO  - Processing amss_fs_1.sin
12/053/2017 09:53:22 - INFO  -     Checking header
12/053/2017 09:53:22 - INFO  -     Flashing data
12/053/2017 09:53:23 - INFO  - Processing amss_fsg.sin
12/053/2017 09:53:23 - INFO  -     Checking header
12/053/2017 09:53:23 - INFO  -     Flashing data
12/053/2017 09:53:23 - INFO  - Processing modem.sin
12/053/2017 09:53:23 - INFO  -     Checking header
12/053/2017 09:53:23 - INFO  -     Flashing data
12/053/2017 09:53:34 - INFO  - Processing oem.sin
12/053/2017 09:53:34 - INFO  -     Checking header
12/053/2017 09:53:34 - INFO  -     Flashing data
12/053/2017 09:53:36 - INFO  - Processing apps_log.sin
12/053/2017 09:53:36 - INFO  -     Checking header
12/053/2017 09:53:36 - INFO  -     Flashing data
12/053/2017 09:53:38 - INFO  - Processing cache.sin
12/053/2017 09:53:38 - INFO  -     Checking header
12/053/2017 09:53:38 - INFO  -     Flashing data
12/053/2017 09:53:40 - INFO  - Processing system.sin
12/053/2017 09:53:40 - INFO  -     Checking header
12/053/2017 09:53:40 - INFO  -     Flashing data
12/002/2017 10:02:10 - INFO  - Processing userdata.sin
12/002/2017 10:02:10 - INFO  -     Checking header
12/002/2017 10:02:10 - INFO  -     Flashing data
12/002/2017 10:02:47 - INFO  - Processing elabel-E2353-row_201505111800.2_26.3.A.0.131.sin
12/002/2017 10:02:47 - INFO  -     Checking header
12/002/2017 10:02:47 - INFO  -     Flashing data
12/002/2017 10:02:51 - INFO  - Ending flash session
12/002/2017 10:02:51 - INFO  - Flashing finished.
12/002/2017 10:02:51 - INFO  - Please unplug and start your phone
12/002/2017 10:02:51 - INFO  - For flashtool, Unknown Sources and Debugging must be checked in phone settings
12/002/2017 10:02:51 - INFO  - Device connected in flash mode
12/003/2017 10:03:26 - INFO  - Device disconnected

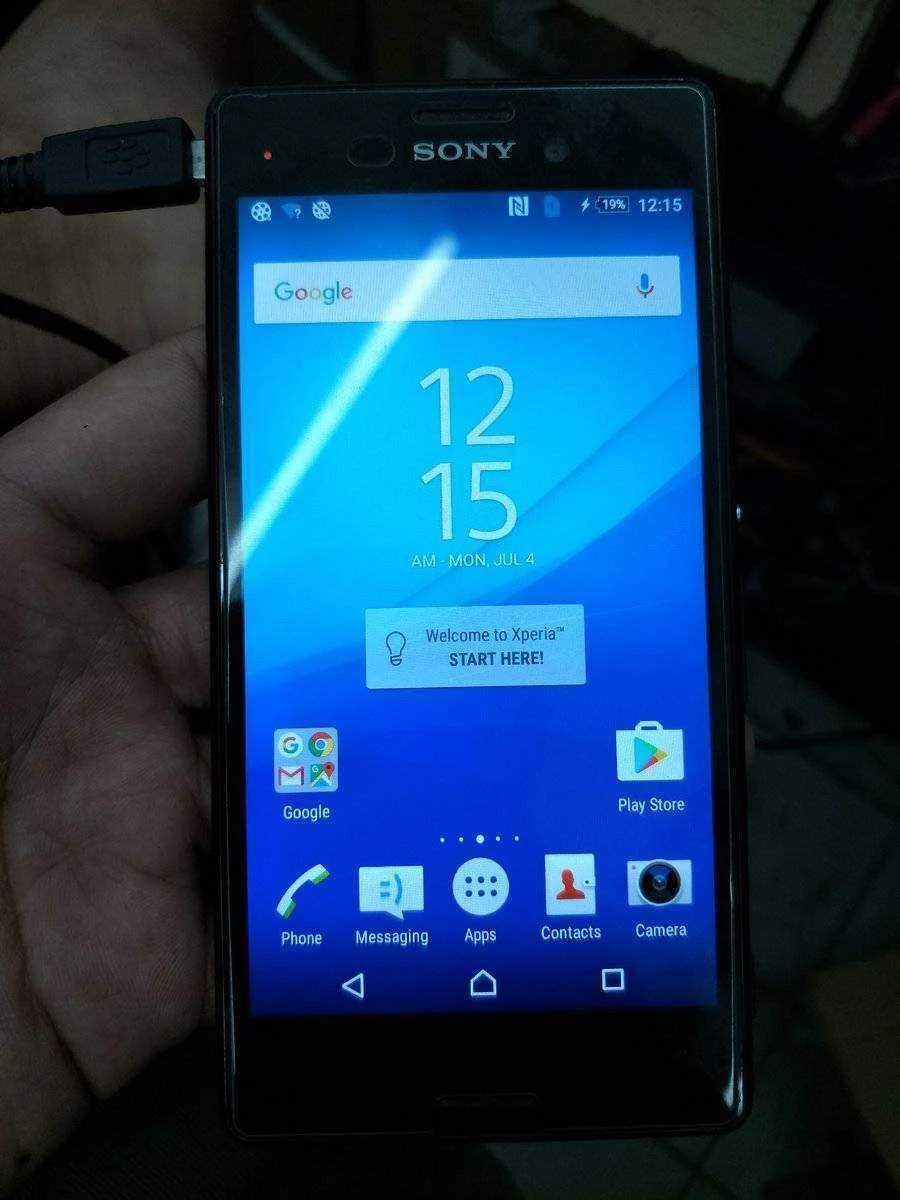

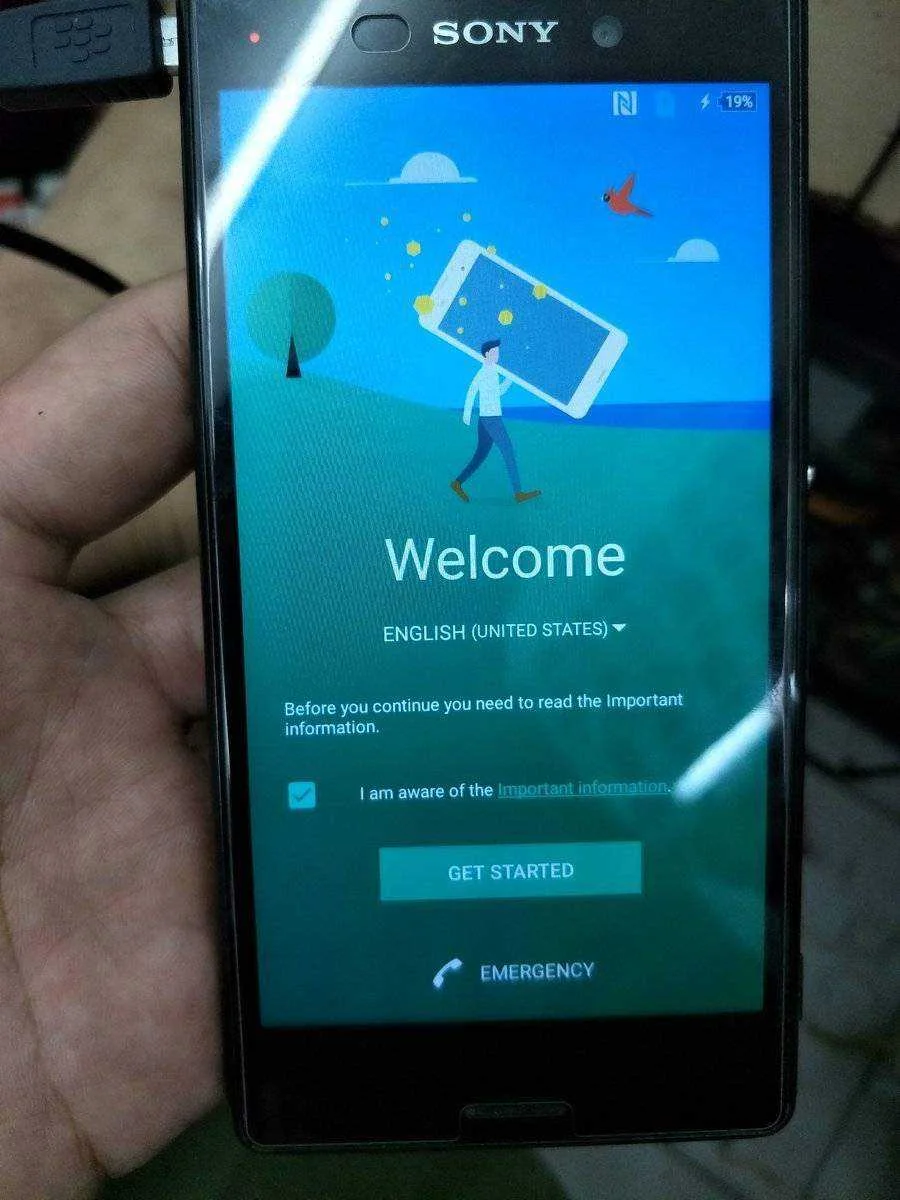

Power On na ang unit at isetup na

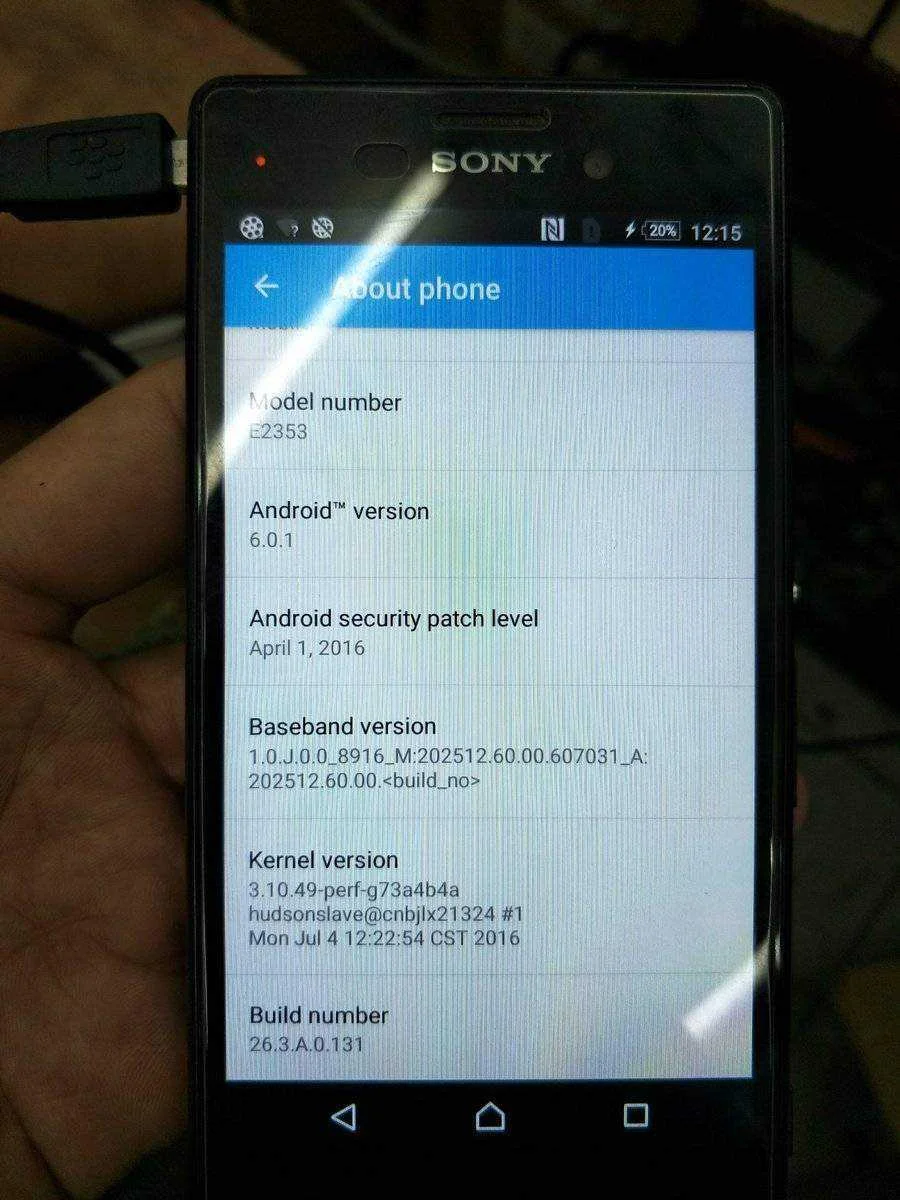

Phone SS











Maraming salamat sa pag view



[H Y B R i D 21]

Very nice one sir keep it up



[PHC-GSM]

Very nice one sir keep it up

Thanks sir H Y B R i D 21



[antotitot]

Boss baka magamit rin You do not have permission to view the full content of this post. Log in or register now. check bossPHC-OSIRIS



[menin]

I release naba ang button paps katapos mag connect?



[gabgab31]

paps pwede rin po ba ito sa xperia aqua m4 e2333?



[DALOWKEY]

nice tut



[Pun_Ops]

PHC-O S I R I S
ano po rooting status?
unlockable po ba bootloader?
tia
