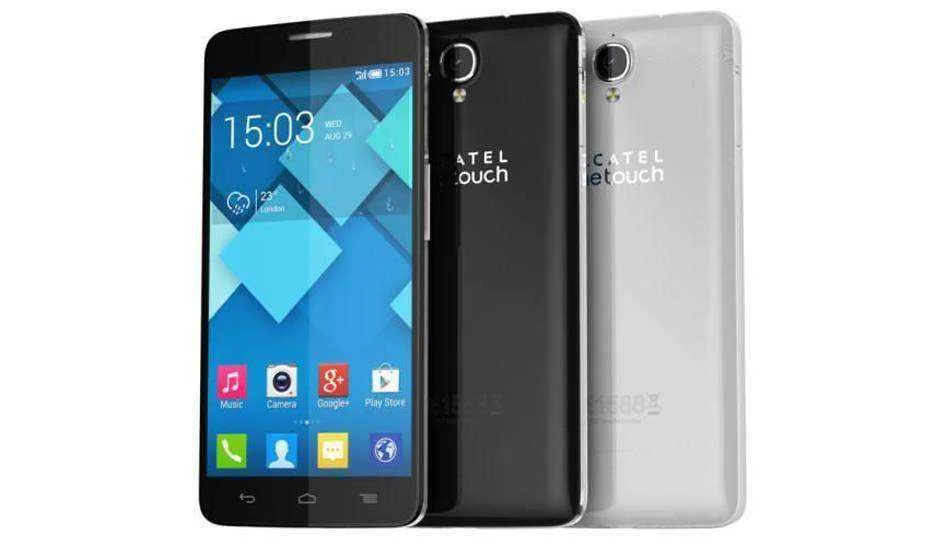

PHALCATEL ONETOUCH IDOL X+

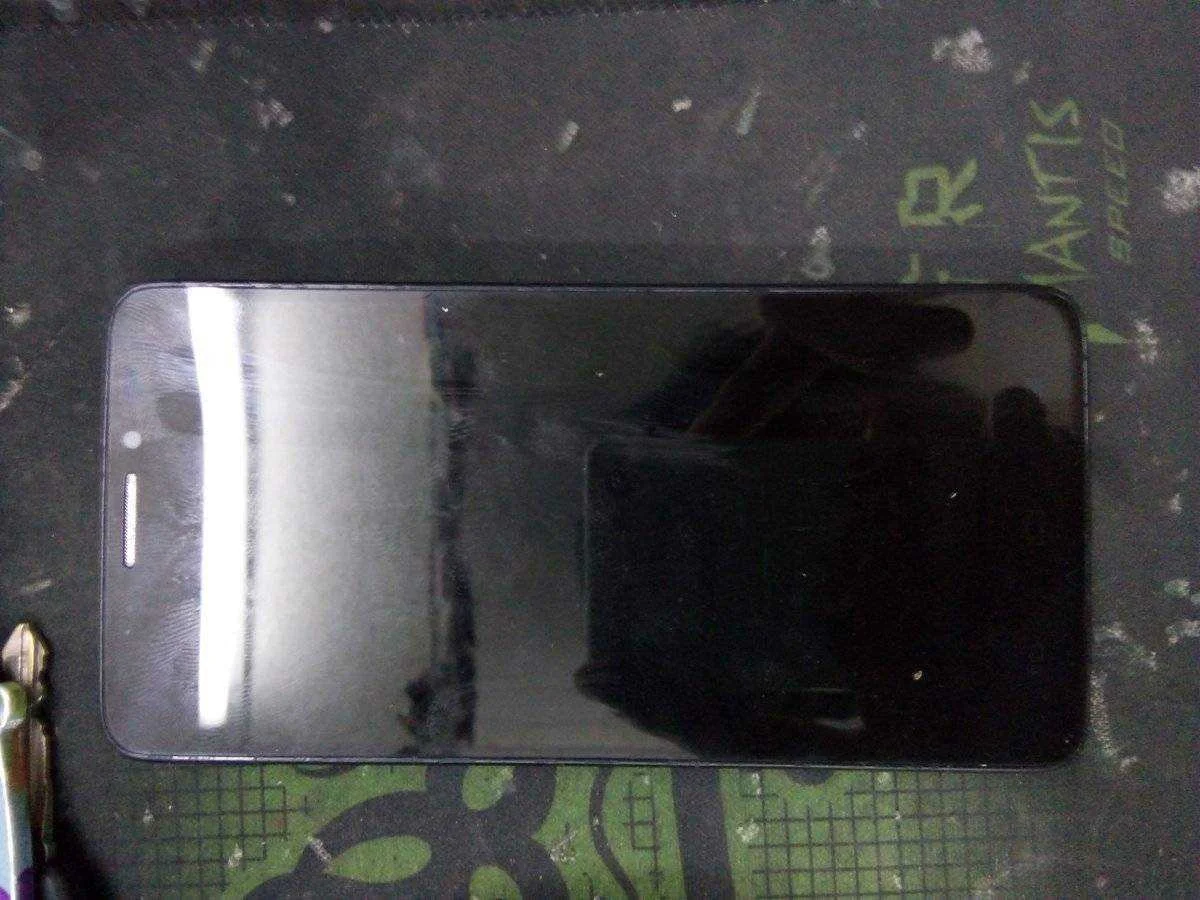

Problem: Deadboot
Solution: Flashing
Try ko ibackup yung stock firmware kahit deadboot.
CM2

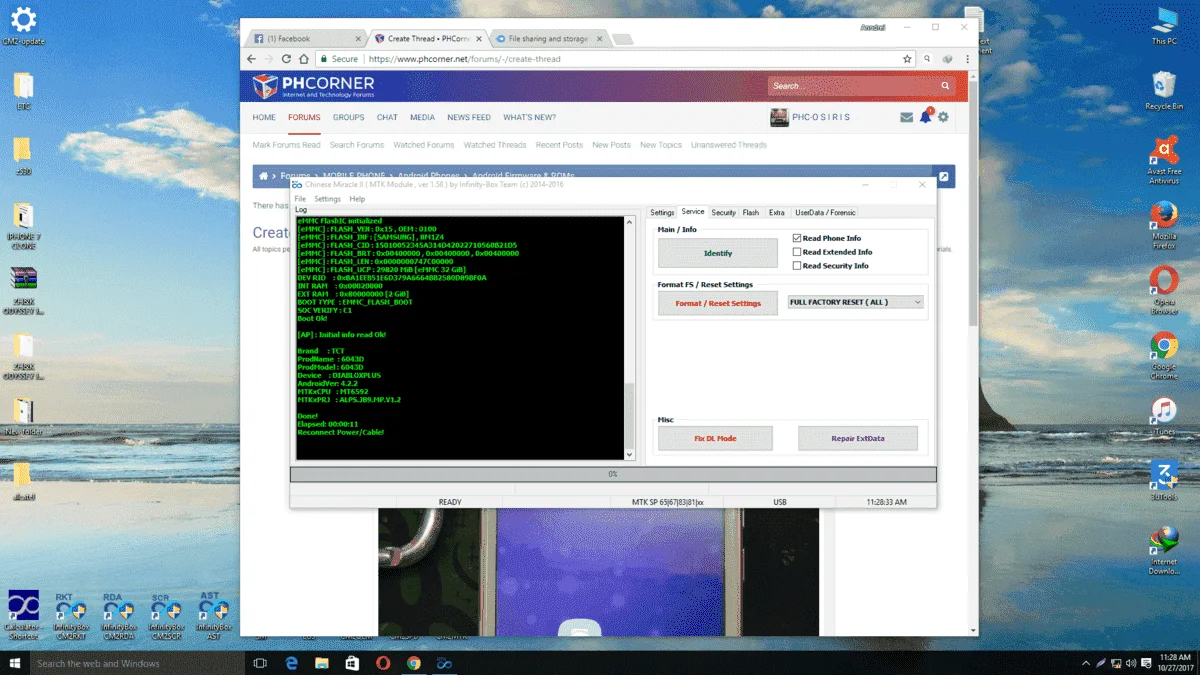

Info:

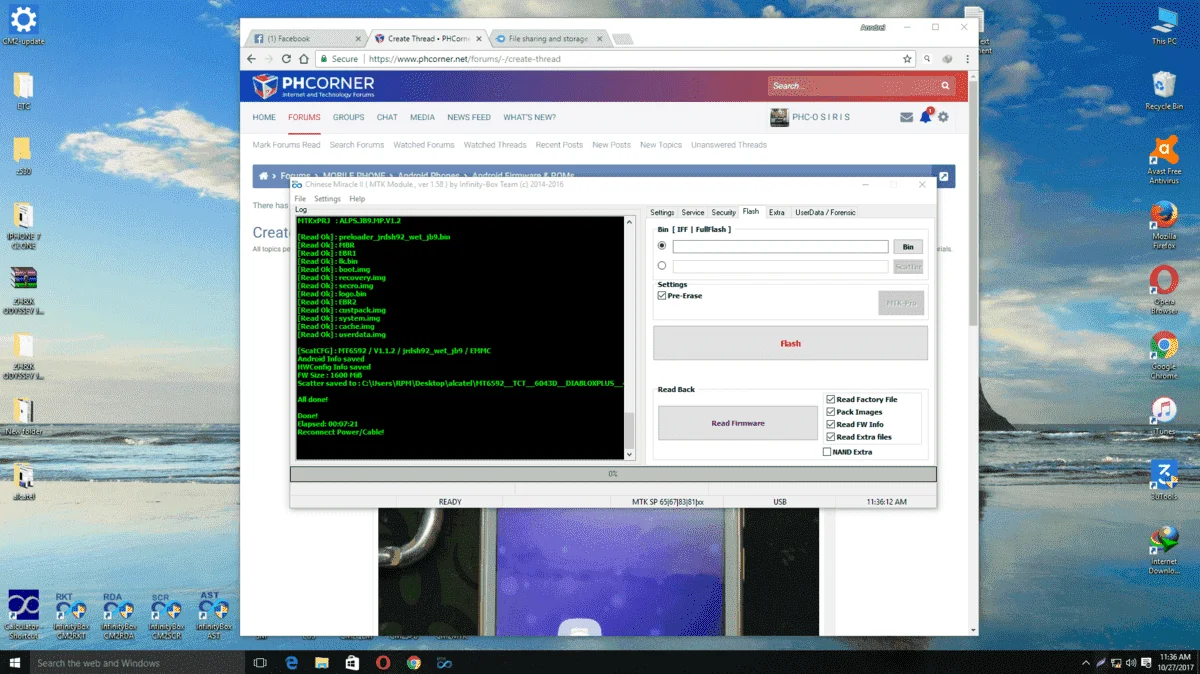

Read Firmware:

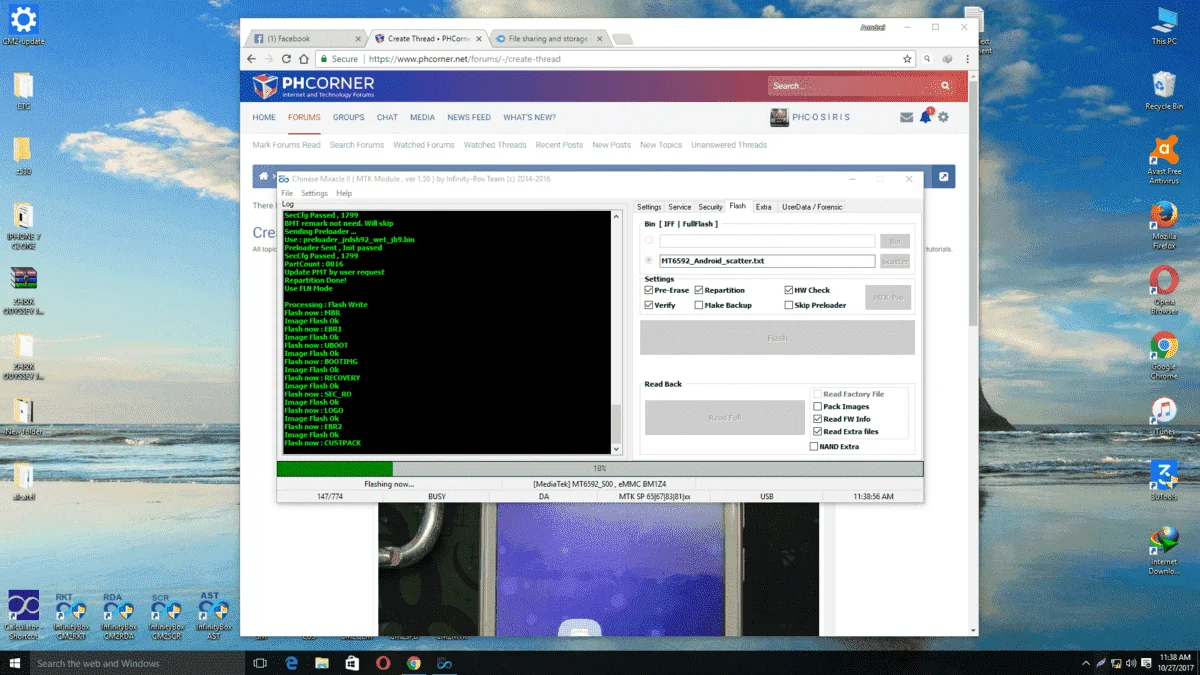

Reflash Stock Firmware:
Done

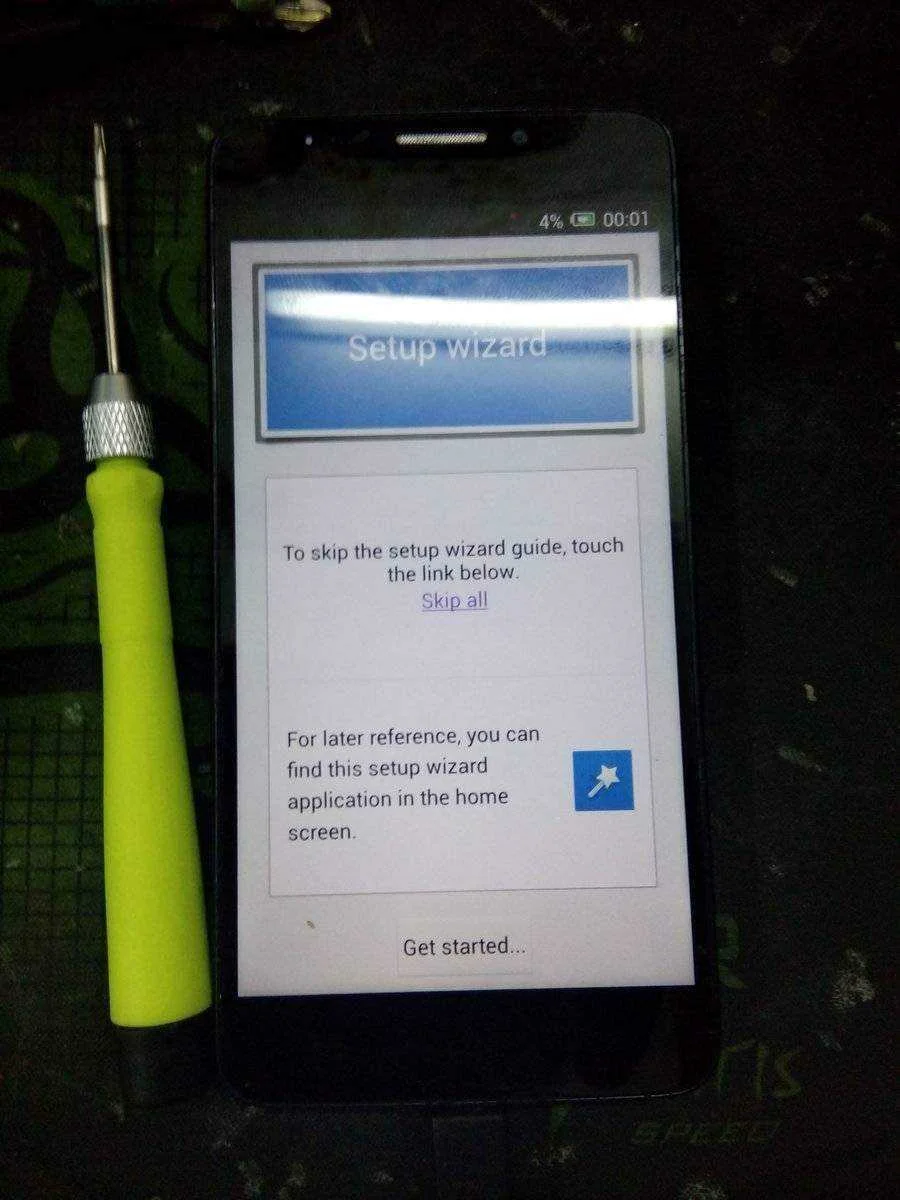

Phone SS after Flash:
Alcatel Onetouch Idol X+ You do not have permission to view the full content of this post. Log in or register now.
Flasher tool You do not have permission to view the full content of this post. Log in or register now.
Usb Driver You do not have permission to view the full content of this post. Log in or register now.
Maraming salamat sa pag view
Problem: Deadboot
Solution: Flashing
Try ko ibackup yung stock firmware kahit deadboot.
CM2
Info:
Code:
[AP] : Initial info read Ok!
Brand : TCT
ProdName : 6043D
ProdModel : 6043D
Device : DIABLOXPLUS
AndroidVer: 4.2.2
MTKxCPU : MT6592
MTKxPRJ : ALPS.JB9.MP.V1.2Read Firmware:
Code:
Reading Flash Content now ...
Brand : TCT
ProdName : 6043D
ProdModel : 6043D
Device : DIABLOXPLUS
AndroidVer: 4.2.2
MTKxCPU : MT6592
MTKxPRJ : ALPS.JB9.MP.V1.2
[Read Ok] : preloader_jrdsh92_wet_jb9.bin
[Read Ok] : MBR
[Read Ok] : EBR1
[Read Ok] : lk.bin
[Read Ok] : boot.img
[Read Ok] : recovery.img
[Read Ok] : secro.img
[Read Ok] : logo.bin
[Read Ok] : EBR2
[Read Ok] : custpack.img
[Read Ok] : system.img
[Read Ok] : cache.img
[Read Ok] : userdata.img
[ScatCFG] : MT6592 / V1.1.2 / jrdsh92_wet_jb9 / EMMC
Android Info saved
HWConfig Info saved
FW Size : 1600 MiB
Scatter saved to : C:\Users\RPM\Desktop\alcatel\MT6592__TCT__6043D__DIABLOXPLUS__4.2.2__ALPS.JB9.MP.V1.2\
All done!
Done!
Elapsed: 00:07:21
Reconnect Power/Cable!Reflash Stock Firmware:
Code:
Operation : Flash [ v1.58 ]
======= Flash
1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey
Wait for phone...
Phone found! [ 6 ]
Sync...
Inital Boot Ok!
BB_CPU_PID : 6592
BB_CPU_NME : [MediaTek] MT6592_S00
BB_CPU_EXT : 0xCA00 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with PRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1624.16.07
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x8A
NAND Flash : NOT INSTALLED
eMMC Flash : 15010052345A314D42022710560B21D5
Initialize Memory ...
DRAM already initialized by Preloader
DAgent sent , init HW now
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x15 , OEM : 0100
[eMMC] : FLASH_INF : [SAMSUNG] , BM1Z4
[eMMC] : FLASH_CID : 15010052345A314D42022710560B21D5
[eMMC] : FLASH_BRT : 0x00400000 , 0x00400000 , 0x00400000
[eMMC] : FLASH_LEN : 0x0000000747C00000
[eMMC] : FLASH_UCP : 29820 MiB [eMMC 32 GiB]
DEV RID : 0xBA1EEB51E6D379A6664BB2580D89BF0A
INT RAM : 0x00020000
EXT RAM : 0x80000000 [2 GiB]
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
ScatCFG : BaseBand : MT6592 , Project : jrdsh92_wet_jb9 , Storage : EMMC
Setting : Flash Pre-Erase (Safe) : Enabled
Setting : AFF verify : Enabled
Setting : HW verify : Enabled
BL : Check HW compatibility
BL : BBID supported by BootLoader!
BL : Check eMMC compatibility
BL : eMMC supported by BootLoader!
BL : BatteryLevel : 3614 mV
BL : BatteryLevel Ok
BL : Flash Pre-Erase
Total blocks to Erase : 3
Erase : 0x0000000000000000-0x0000000000100000
Erase : 0x0000000001D00000-0x00000000357A0000
Erase : 0x0000000037CA0000-0x000000070BF60000
Flash Pre-Erase Done, time used : 00:00:10
SecCfg Passed , 1799
BMT remark not need. Will skip
Sending Preloader ...
Use : preloader_jrdsh92_wet_jb9.bin
Preloader Sent , Init passed
SecCfg Passed , 1799
PartCount : 0016
Update PMT by user request
Repartition Done!
Use FLN Mode
Processing : Flash Write
Flash now : MBR
Image Flash Ok
Flash now : EBR1
Image Flash Ok
Flash now : UBOOT
Image Flash Ok
Flash now : BOOTIMG
Image Flash Ok
Flash now : RECOVERY
Image Flash Ok
Flash now : SEC_RO
Image Flash Ok
Flash now : LOGO
Image Flash Ok
Flash now : EBR2
Image Flash Ok
Flash now : CUSTPACK
Image Flash Ok
Flash now : ANDROID
Image Flash Ok
Flash now : CACHE
Image Flash Ok
Flash now : USRDATA
Image Flash Ok
Flash Write Done, time used : 00:04:13
Processing : Verify
Verify Passed : MBR
Verify Passed : EBR1
Verify Passed : UBOOT
Verify Passed : BOOTIMG
Verify Passed : RECOVERY
Verify Passed : SEC_RO
Verify Passed : LOGO
Verify Passed : EBR2
Verify Passed : CUSTPACK
Verify Passed : ANDROID
Verify Passed : CACHE
Verify Passed : USRDATA
Data Verify Done, time used : 00:00:28
Update Mirror PMT
Update Done!
Update RomInfo done
Done!
Elapsed: 00:05:08
Reconnect Power/Cable!Done

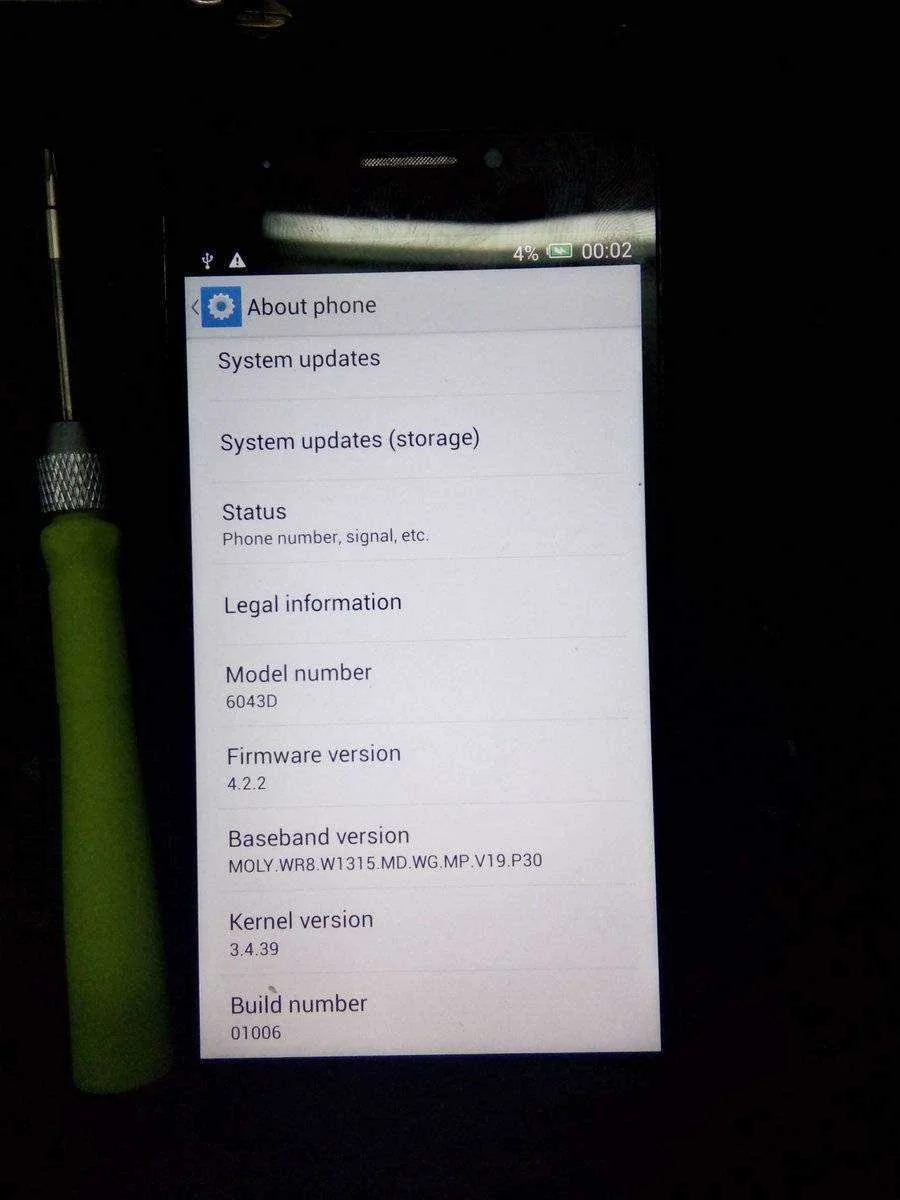

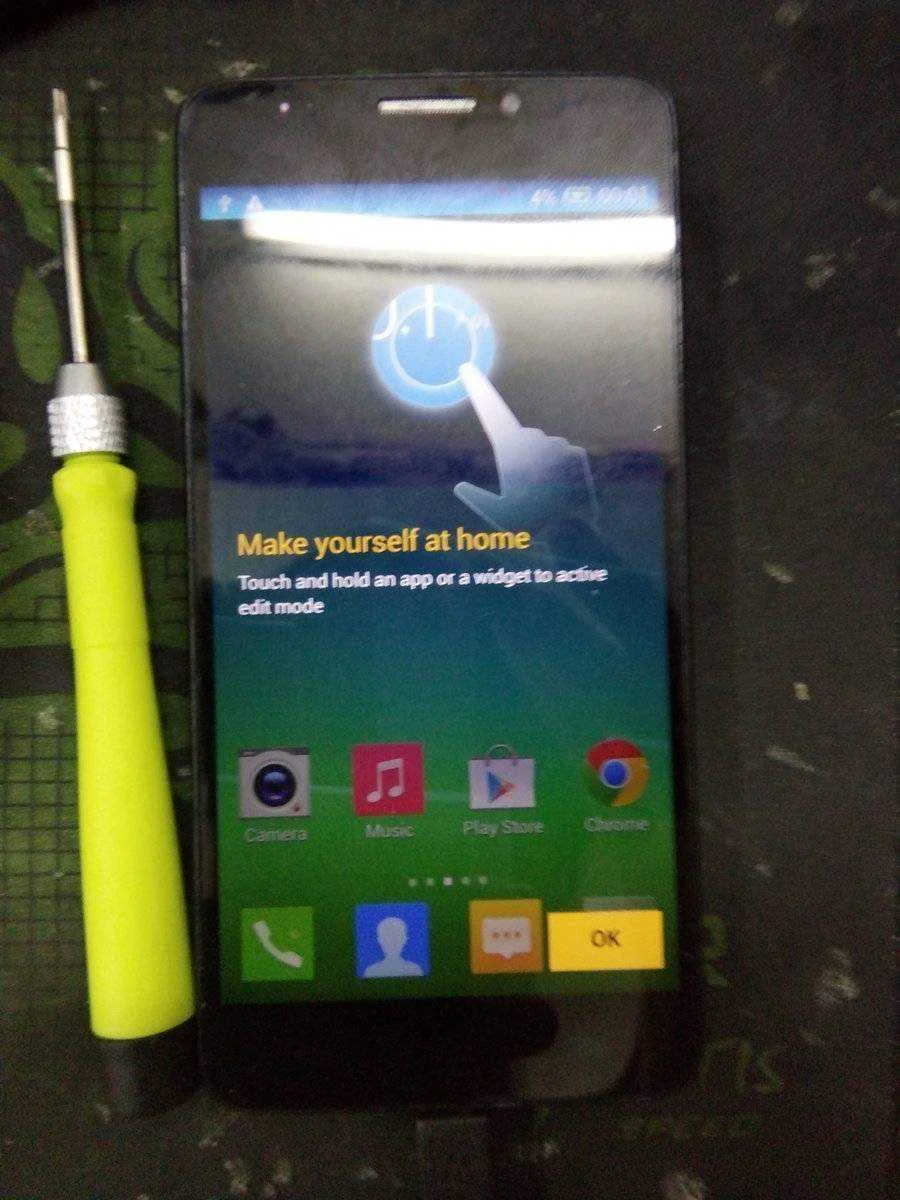

Phone SS after Flash:
Alcatel Onetouch Idol X+ You do not have permission to view the full content of this post. Log in or register now.
Flasher tool You do not have permission to view the full content of this post. Log in or register now.
Usb Driver You do not have permission to view the full content of this post. Log in or register now.
Maraming salamat sa pag view
