🔒 Closed Cherry mobile flare s5 max (no power/shorted) done w/ firmware backup by me

[PHC-GSM]

UNIT: Cherry Mobile Flare S5 Max





PROBLEM: No power/Shorted

ISSUE: Over Charge

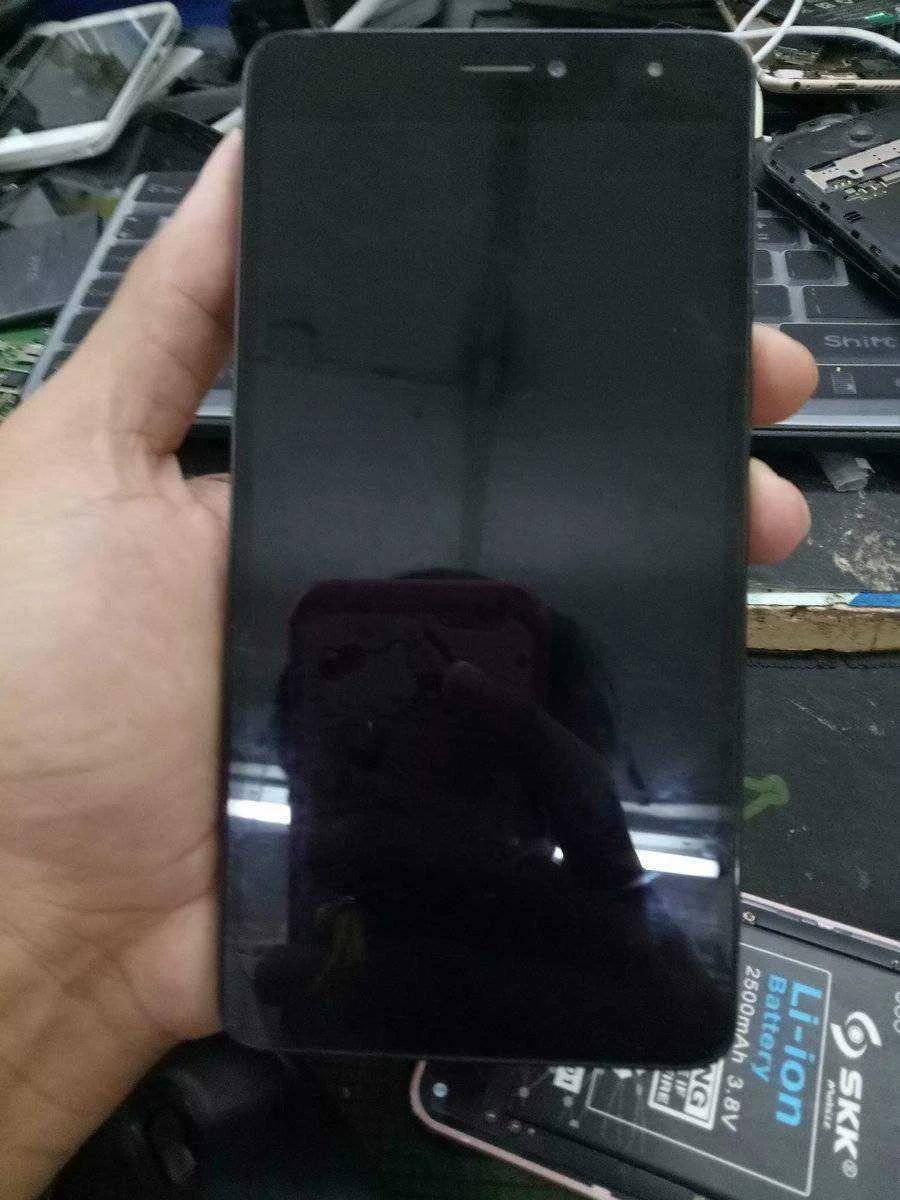

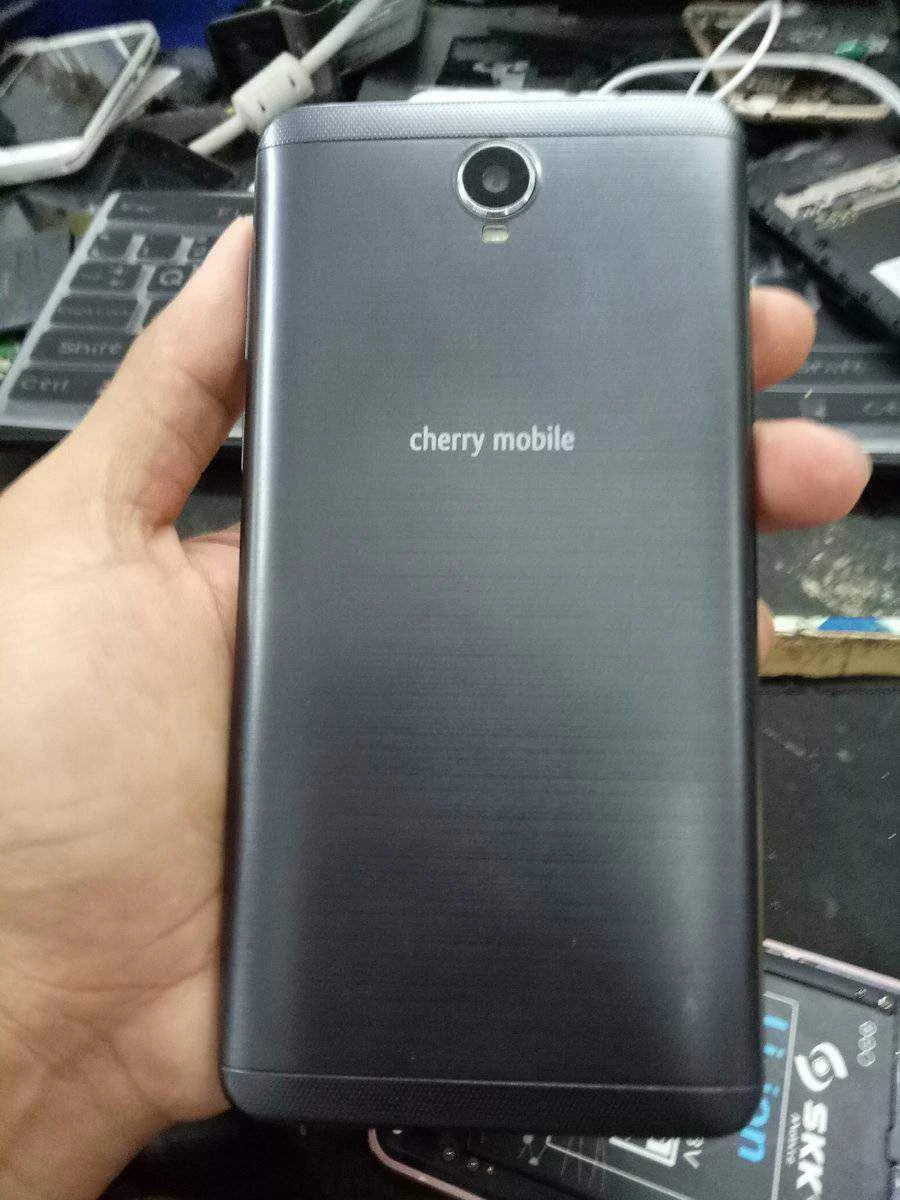

Dinala sakin di nag o-on ang unit kaya try ko muna kung detected ba ba ng pc pero ayaw ma detect. kaya try ko sa tester shorted pag binaliktad mo ang polarity ng (+) (-) halos parehas ang palo sa normal na polarity.

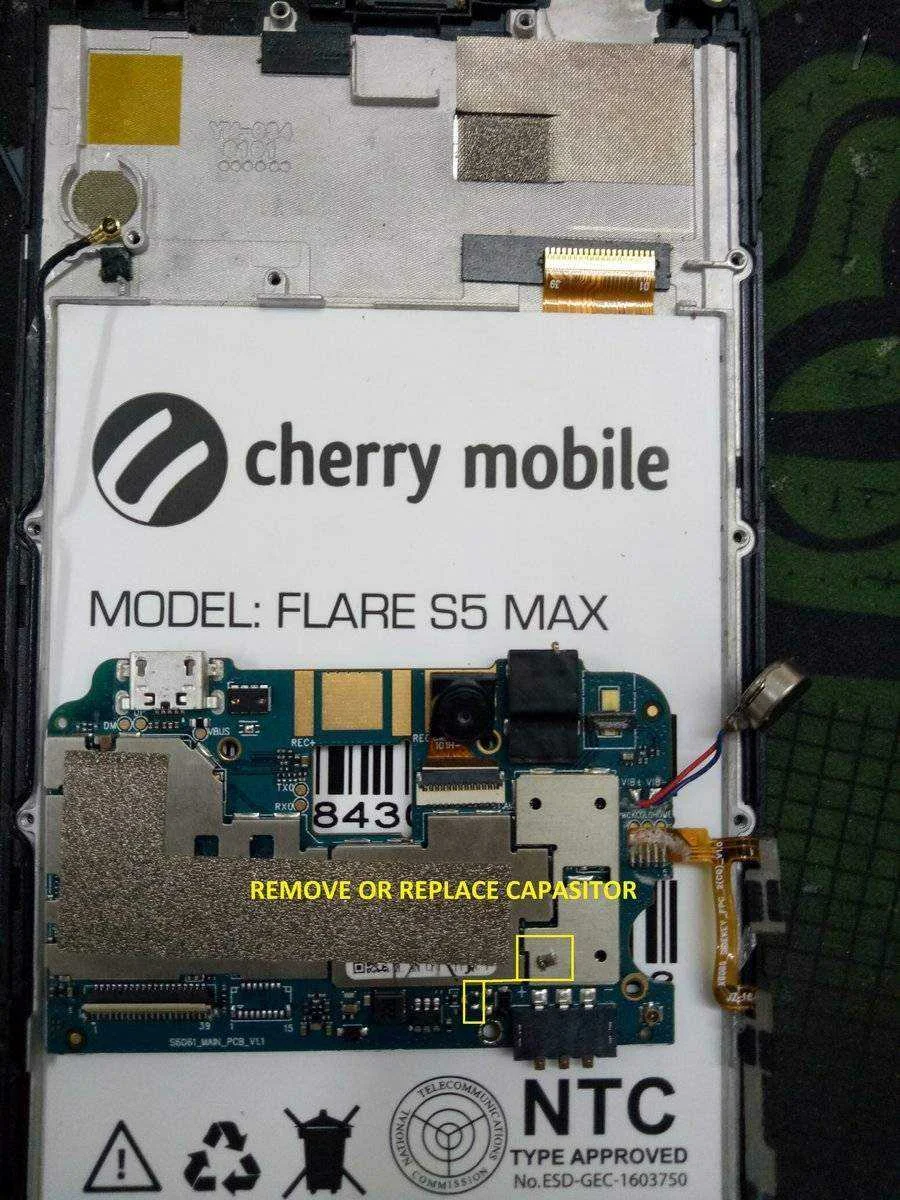

kaya hinanap ko ang pasaway na piyesa at dito ko siya natagpuan


Puwede din alisin at palitan. pero ang ginawa ko pinalitan ko ng bagong capasitor

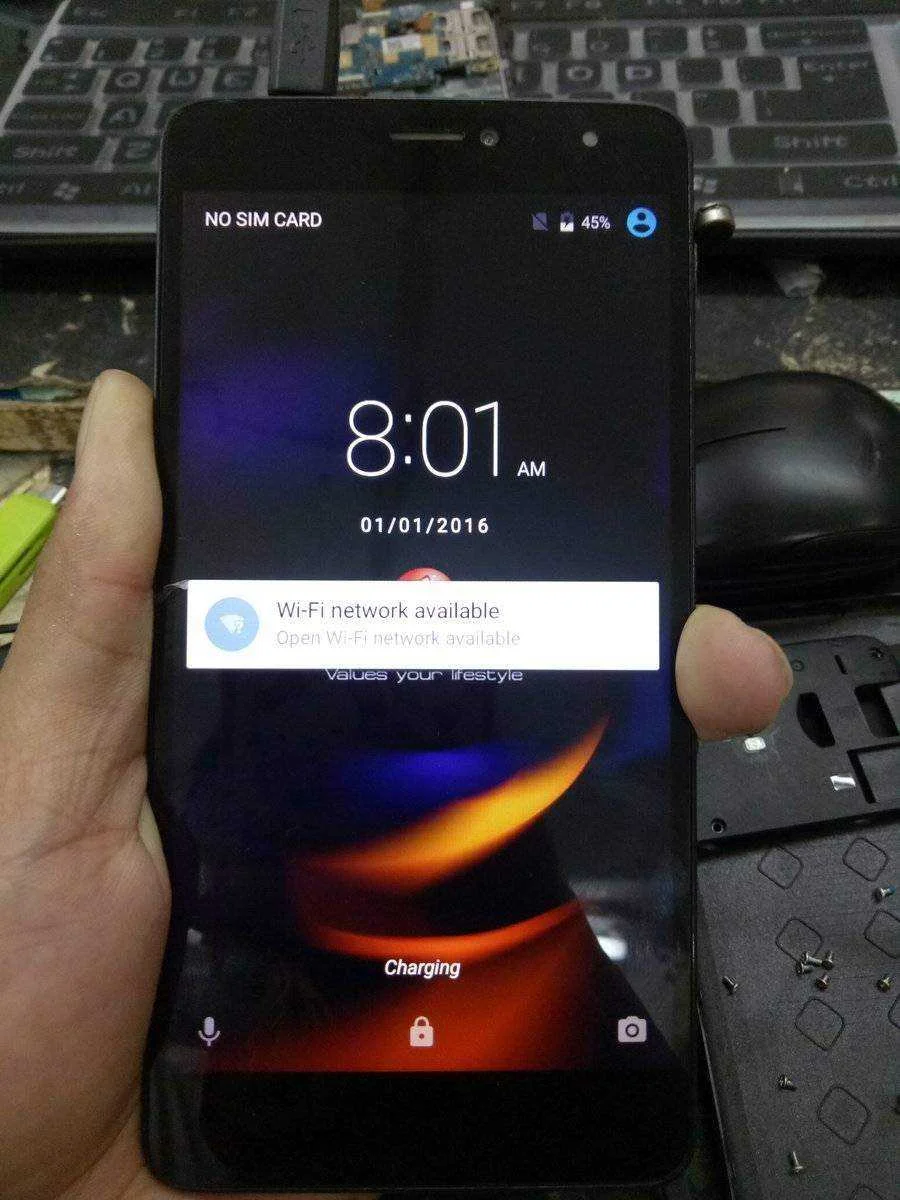

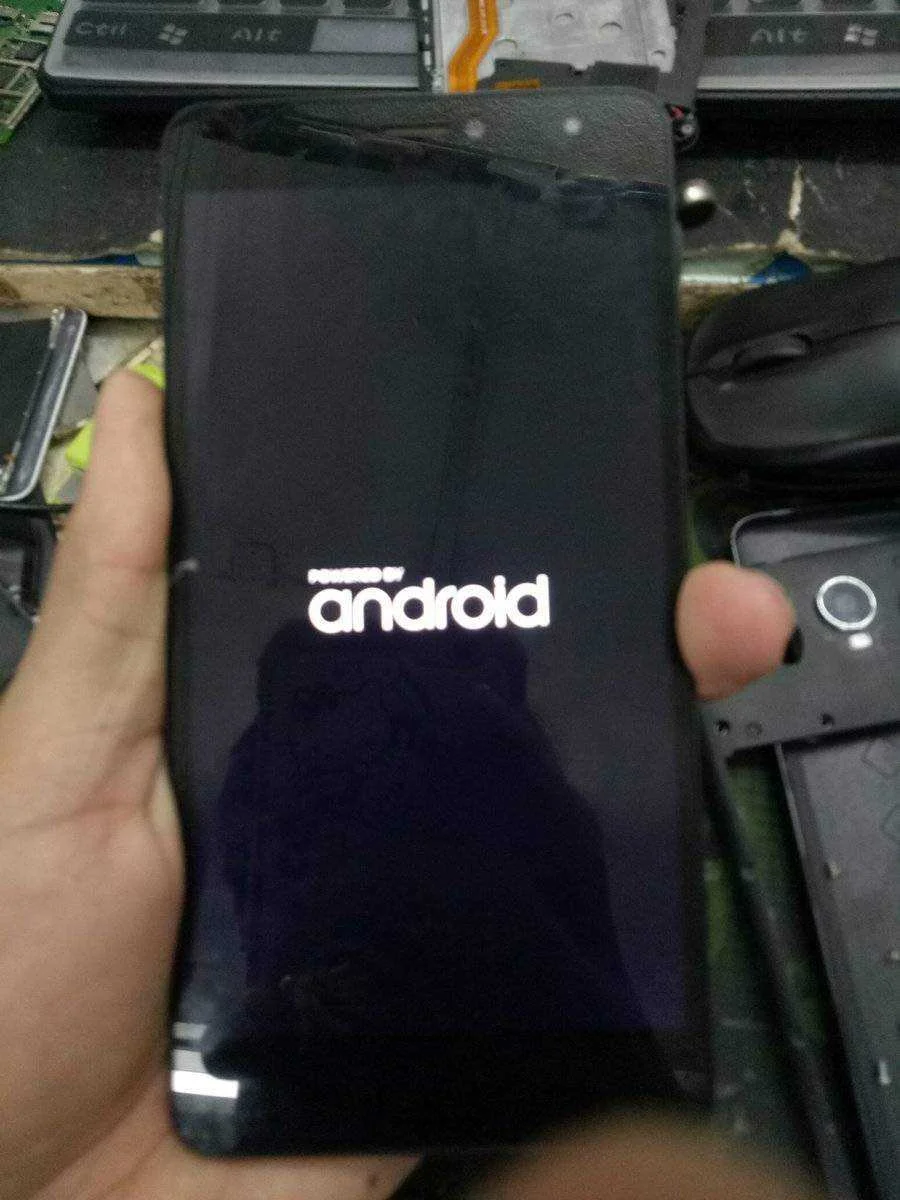

Ito na po siya




Done

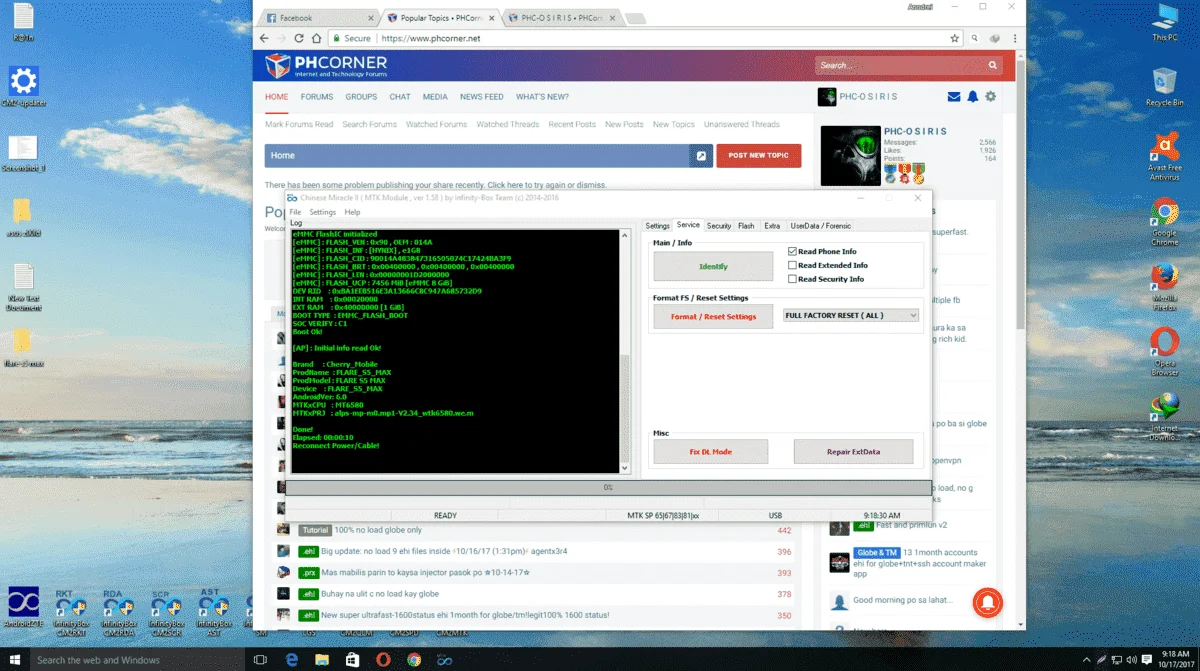

Ito naman po para sa backup.

[AP] : Initial info read Ok!

Brand : Cherry_Mobile
ProdName : FLARE_S5_MAX
ProdModel : FLARE S5 MAX
Device : FLARE_S5_MAX
AndroidVer: 6.0
MTKxCPU : MT6580
MTKxPRJ : alps-mp-m0.mp1-V2.34_wtk6580.we.m

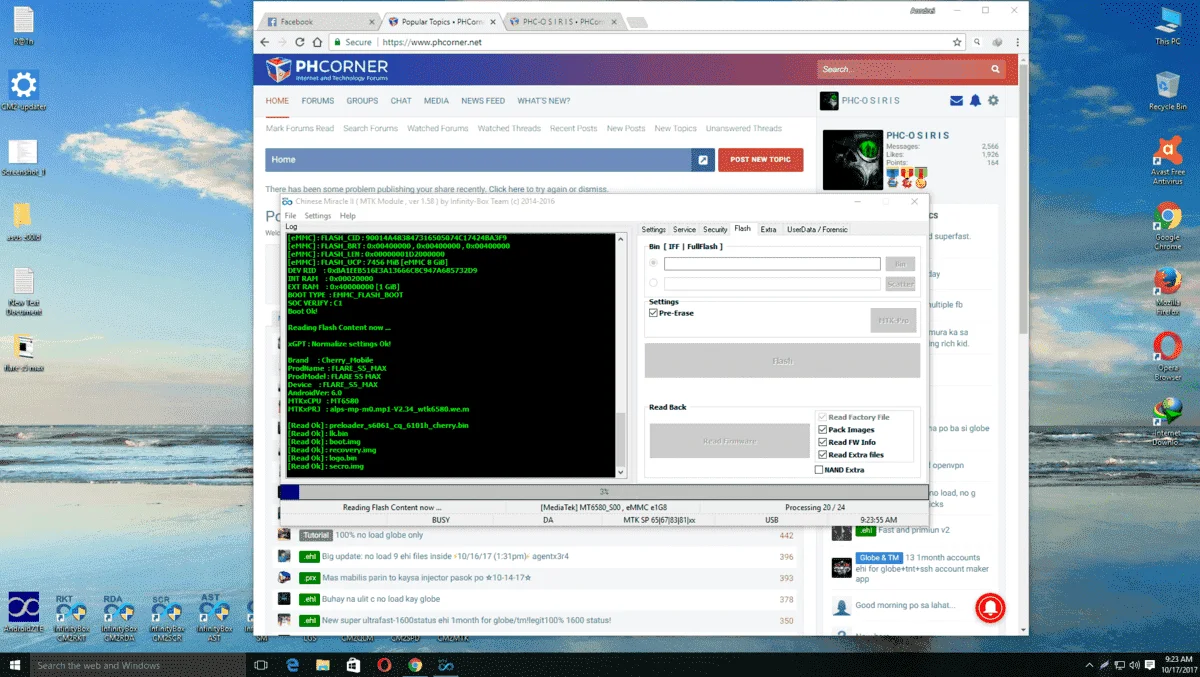

Reading Flash Content now ...

xGPT : Normalize settings Ok!

Brand : Cherry_Mobile
ProdName : FLARE_S5_MAX
ProdModel : FLARE S5 MAX
Device : FLARE_S5_MAX
AndroidVer: 6.0
MTKxCPU : MT6580
MTKxPRJ : alps-mp-m0.mp1-V2.34_wtk6580.we.m

[Read Ok] : preloader_s6061_cq_6101h_cherry.bin
[Read Ok] : lk.bin
[Read Ok] : boot.img
[Read Ok] : recovery.img
[Read Ok] : logo.bin
[Read Ok] : secro.img
[Read Ok] : system.img
[Read Ok] : cache.img
[Read Ok] : userdata.img

[ScatCFG] : MT6580 / V1.1.2 / s6061_cq_6101h_cherry / EMMC
Android Info saved
MAUI Meta DB saved
HWConfig Info saved
FW Size : 2154 MiB
Scatter saved to : C:\Users\RPM\Desktop\flare s5 max\MT6580__Cherry_Mobile__FLARE_S5_MAX__FLARE_S5_MAX__6.0__alps-mp-m0.mp1-V2.34_wtk6580.we.m\

All done!










Sana makatulong po ito sainyo.



Cherry Mobile Flare S5 Max Stock Firmware You do not have permission to view the full content of this post. Log in or register now.

Flash Tool You do not have permission to view the full content of this post. Log in or register now.

Mtk Usb Driver You do not have permission to view the full content of this post. Log in or register now.



Thank you sa pag view



[mikeomer]

bossing my password yung firmware pa bulong naman ng password



[rukia14]

ts maraming salamat dito



[rukia14]

anu po password ng firmware mu boss



[joseed]

anu po password ng firmware mu boss

pingi naman po ng password



[ninpunk1]

unti unti mo sinira kabuhayan ng mga technician hays... isa ka sa maging kawawa kung technician ka.



[PHC - Kirito]

PHC-O S I R I S sir pano root Flare-S6-Max 7.0 please help para mabura ko na un mga app na hindi kailagan sa phoneko naka install dito
