🔒 Closed (need help please)power led only fix gone wrong

[Tao Bako Tay]

Hi mga sir Need po ng tulong tungkol sa modem ko Nag popower led lang po kasi sya pag binuksan Tas ayun Walaa na kaya ginawa ko yung tut na Nan dito sa phcorner Tapos Tapos ko ma sya i flash yung power button and wps button nako Sa una ok pa naman sya Nasa flow pa ng Tut pero expected ko mag blue blue sya Pero ito yung Lumabas hanagan dyan lang sya Please any one na Maaring makatulong Need po kasi talaga tong modem ko Super big thanks sa tutulong salamat po talaga



[delloCM_]

youtube mo dello carpio power light only



[Tao Bako Tay]

Sir dello Same din Stock parin ako sa red pag tapos ko mag Wps +power botton Tapon modem naba ituu wag namam sana Bte thanks po sa Mga shadowsocks nyo Hataw samin Maraming salamat po



[delloCM_]

skip kna sa proces na wps + power botton ganito lang yan wait



[Tao Bako Tay]

Salamat sirr wait ko pooo



[delloCM_]

Salamat sirr wait ko pooo

tools need:
1.balong usb downloader
You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.
2.B315 service software(galing sa huawei website)
You do not have permission to view the full content of this post. Log in or register now.
3.huawei firmware v21.311
You do not have permission to view the full content of this post. Log in or register now. or You do not have permission to view the full content of this post. Log in or register now.
POLKO FIRMWARE V21.311.03.00.69
You do not have permission to view the full content of this post. Log in or register now.
trick no. 1
1.testpoint/jumper(wag open si balong).
2.isaksak male to male usb connector.
3.install driver galing sa *B315 service software* galing sa huawei website(dapat pangalan ng sa port is *HUAWEI Mobile Connect - DownLoad port*).
4.open si E3256sBootRomDownloadTool-2s then check BootRom select mo yung kay balong na *usblsafe-b315.bin*.
check firmware select kahit anong v21.311 then click next.
5.click Scan and Upgrade, hintayin nyo lang wag mainip
6.observe, tignan sa Note sa taas kung alin ang behavior ng application / device, pag namatay ang blue light.
7.alisin ang male to male usb connector at power adaptor.
8.saksak power adaptor, pag nag blink lang yung power led light punta ka sa trick no.2

trick no. 2
1.testpoint/jumper.
2.isaksak male to male usb connector.
3.install driver galing sa *B315 service software* galing sa huawei website(dapat pangalan ng sa port is *HUAWEI Mobile Connect - DownLoad port*)
4.open balong usb downloader load mo yung *usbloader.bin* kasama ng E3256sBootRomDownloadTool-2s(mapapansin nyo nag load pero di na detect sa PC)
5.alisin ang male to male usb connector pati power then testpoint/jumper ulit
6.open si E3256sBootRomDownloadTool-2s then check BootRom select mo yung kay balong na *usblsafe-b315.bin*.
check firmware select kahit anong v21.311 then click next.
7.click Scan and Upgrade, hintayin nyo lang wag mainip
8.observe, tignan sa Note sa taas kung alin ang behavior ng application / device, pag namatay ang blue light.
9.alisin ang male to male usb connector at power adaptor.
10.saksak power adaptor


see screenshots nasa baba download mo



[delloCM_]

dowload mo tong screen shots para mkatulong din



[Tao Bako Tay]

Try ko pooo itoo sana mag work Mag fefeedback nalang po ako Asap Salamat sir dello Hahahha more shadowsocks to come Hahahha Namiiss ko na yun Salamat ulit



[Tao Bako Tay]

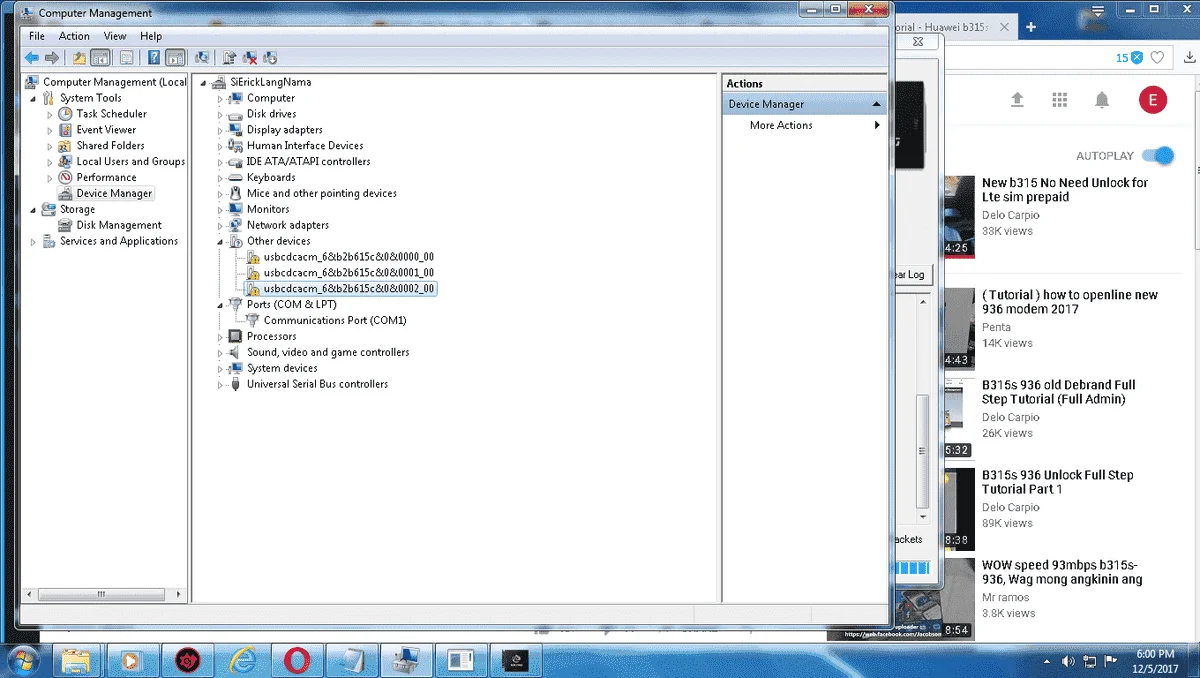

Sir dello may ganto sya ano gagawin ko po?



[apo2a6queh7]

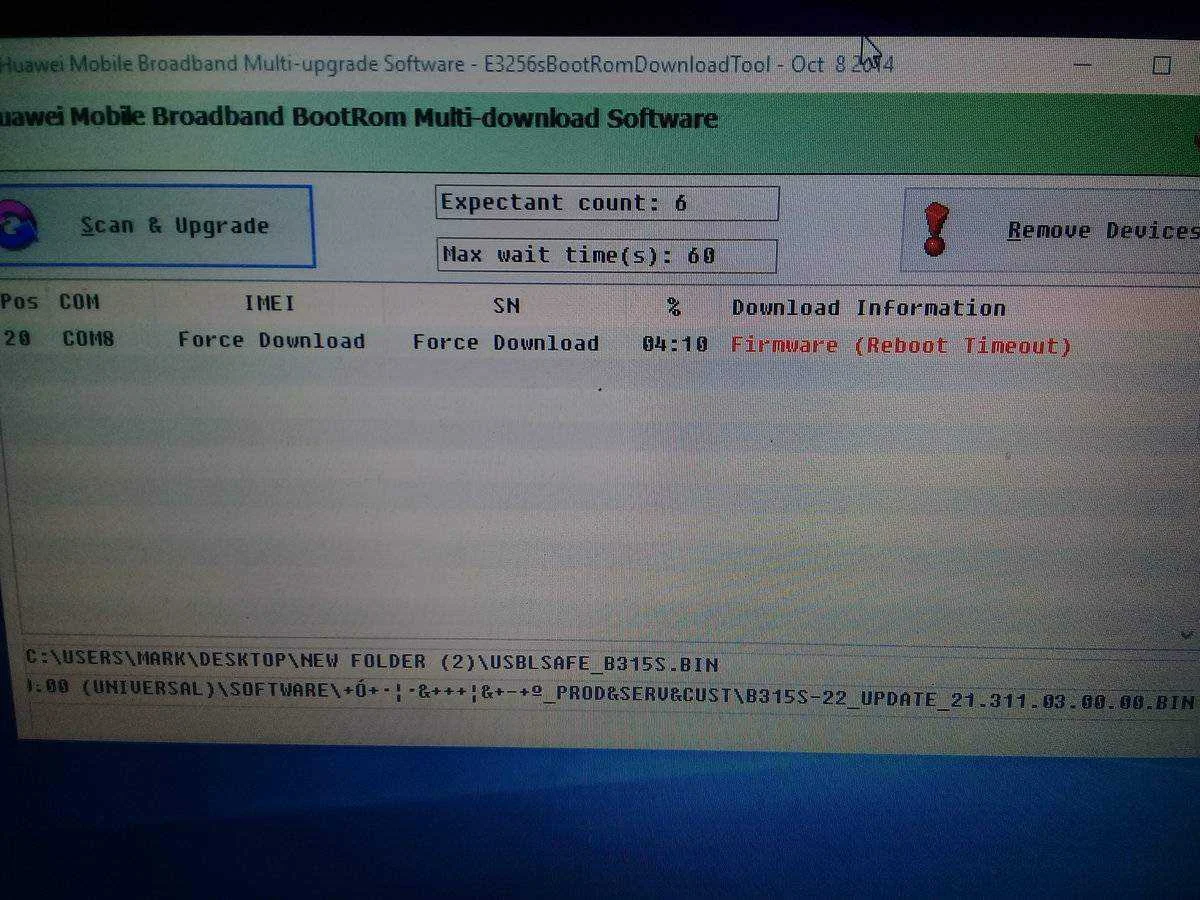

sir yan po nalabas pag katapos kay balong pa help naman po Sir dello

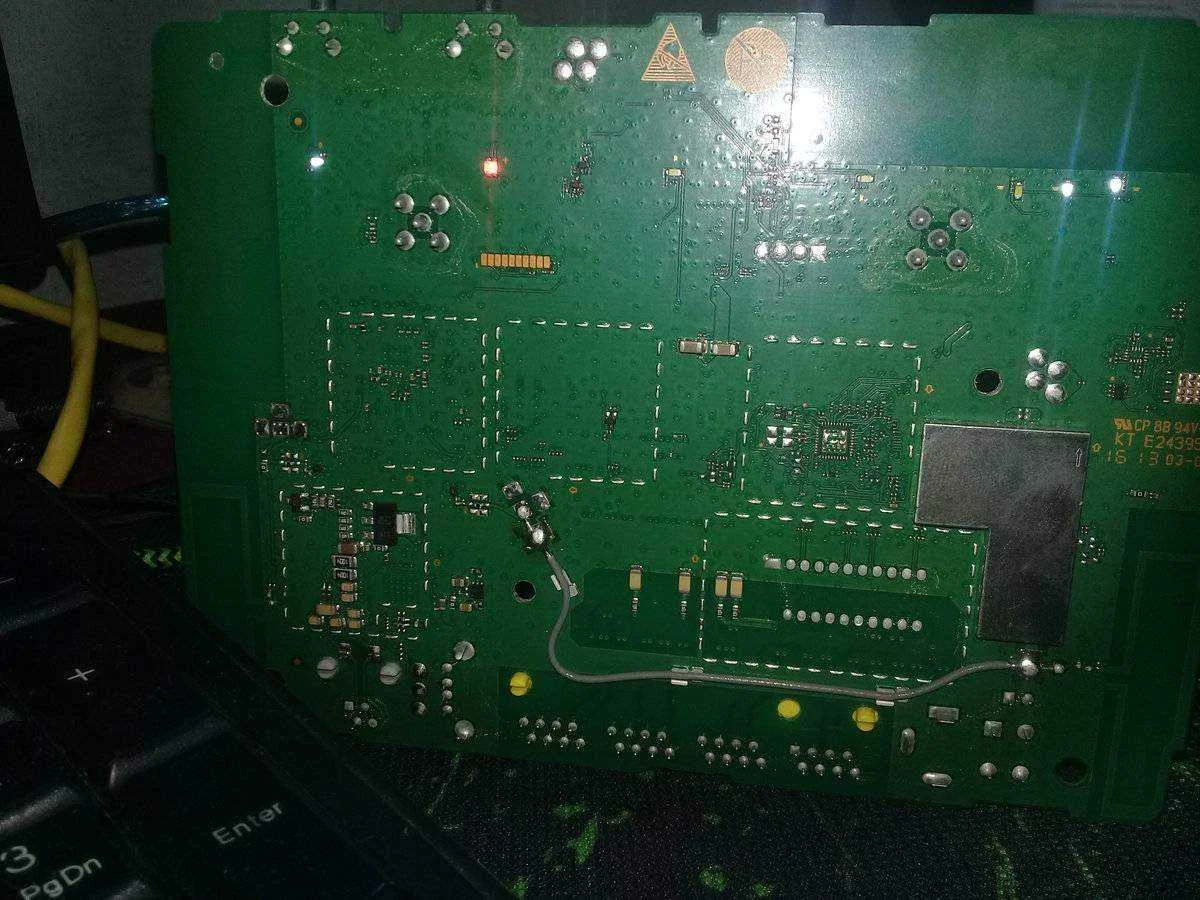

d po kc nailaw ung power led ang nailaw lng ung red tapos ung PC connection
TS.



[delloCM_]

sir yan po nalabas pag katapos kay balong pa help naman po Sir dello
d po kc nailaw ung power led ang nailaw lng ung red tapos ung PC connection
TS.

TresMarias boss pedik pakitulungan thanks



[TresMarias]

kindly visit this thread

https://phcorner.org/threads/936-no-service-issue-help.412104/#post-6287022
