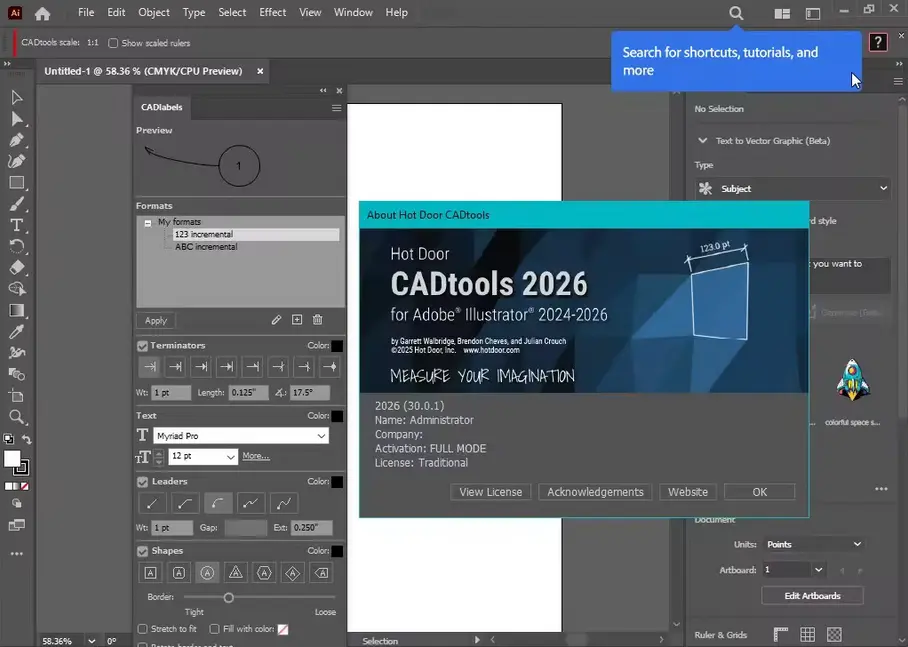

CADtools - Precision drawing and dimensioning power inside Adobe Illustrator. Click and drag dimensions or labels on every possible object, path, or point in space. Live dimensions follow and respond to artwork changes.
Draw, dimension & label
Click and drag dimensions or labels that follow and respond to artwork changes
Works just like Illustrator
Over 100 tools seamlessly integrated with no learning curve
Beautiful styles
Customize live dimensions and labels with control over terminators, text placement and much more
Paste with scale
Copy and paste at different scales without doing any math - It just works
Labels for any design task
Incremental, geometry, custom and structured labels in hundreds of styles
Move & measure with precision
Full control over points, paths and objects including length, perimeter and area
Zoom in on the details
Automatically generate close-up views in any scale
Unlimited scales
Select from a wide range of engineering and architectural or custom scales
Release Notes
Version 30.0.1 changes
Fixed translation issue for Japanese subscriptions
System Requirements
Adobe Illustrator 2024 (v28), 2025 (v29), 2026 (v30)
Languages: Multilingual
File Size: 284.51 MB
