👨‍🏫 Tutorial Openwrt 22 Fix REALTIMEGRAPHS/RATE

[sUFF3R]

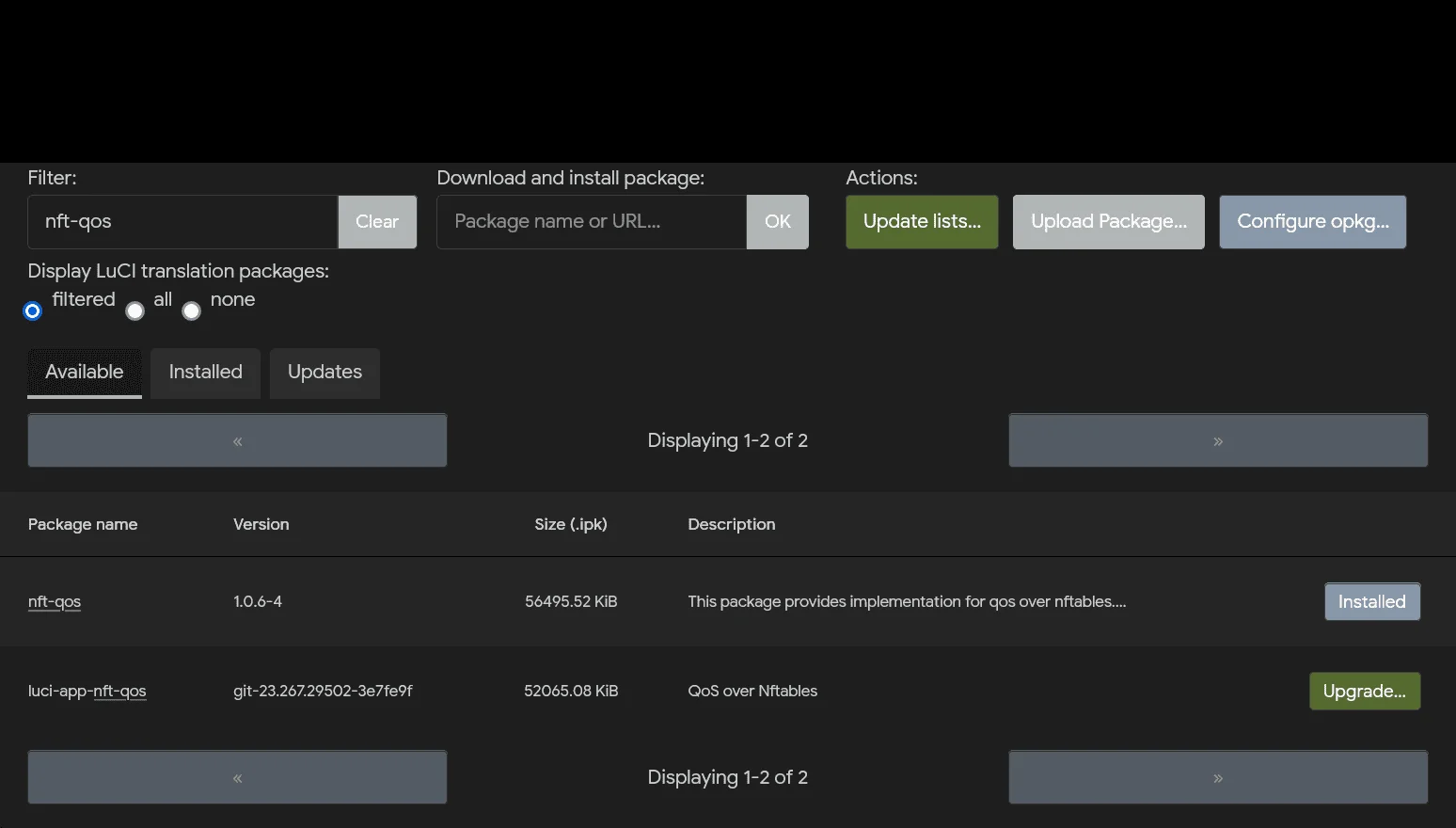

For luci-app-nft-qos​

​

View attachment 2876372


ssh root@192.168.1.1
root@OpenWrt:#opkg update
root@OpenWrt:# opkg install nano
root@OpenWrt:#cd /usr/lib/lua/luci/view/nft-qos

Backup old rate.htm
root@OpenWrt:/usr/lib/lua/luci/view/nft-qos# mv rate.htm rate.htm.backup
root@OpenWrt:/usr/lib/lua/luci/view/nft-qos# nano rate.htm

---

copy and paste CTTO

<%#
 Copyright 2018 Rosy Song <rosysong@rosinson.com>
 Licensed to the public under the Apache License 2.0.
-%>

<%+header%>

<script type="text/javascript">//<![CDATA[
    var RC = { };
    var em = 0;
    var ec = 1;

    var rate_table_dl;
    var rate_table_ul;

    function init_bytes(rl, ra) {
        var bytes_pre;
        var obj = { };
        obj.chain = rl.chain;
        obj.ipaddr = rl.expr[em].match.right;
        obj.bytes = rl.expr[ec].counter.bytes;
        obj.packets = rl.expr[ec].counter.packets;
        obj.rate = 0;

        if (RC[obj.chain] && RC[obj.chain][obj.ipaddr])
                bytes_pre = RC[obj.chain][obj.ipaddr];
        else
                bytes_pre = 0;

        obj.rate = (bytes_pre > 0) ? (obj.bytes - bytes_pre) / 3: 0;

        if (!RC[obj.chain])
                RC[obj.chain] = { };
        RC[obj.chain][obj.ipaddr] = obj.bytes;

        if (!ra[obj.chain])
                ra[obj.chain] = [ ];
        ra[obj.chain].push(obj);
    } /* function init_bytes(rl, ra) */

    function bytes_label(bytes) {
        var uby = '<%:kB%>';
        var kby = (bytes / 1024);

        if (kby > 1024) {
            uby = '<%:MB%>';
            kby = (kby / 1024);
        }

        return String.format("%f %s", kby.toFixed(2), uby);
    }

    function print_table(tbl, rs, ra) {
        ra.sort(function(a, b) { return b.rate - a.rate });
        for (var i = 0; i < ra.length; i++) {
            rs.push([
                ra[i].ipaddr,
                bytes_label(ra[i].rate) + '/s',
                bytes_label(ra[i].bytes),
                '%s Pkts.'.format(ra[i].packets),
            ]);
        }
        // cbi_update_table(tbl, rs, '<em><%:No information available%></em>');

        /* BEGIN: Workaround as "cbi_update_table" isn't working */
        rs.forEach((element, i) => {
            var r = document.createElement("TR");
            r.innerHTML = `
                <tr>
                    <td>${element[0]}</th>
                    <td>${element[1]}</td>
                    <td>${element[2]}</td>
                    <td>${element[3]}</td>
                </tr>
                    `;
            if (i%2){
                r.classList.add('tr', 'cbi-rowstyle-2');
            } else {
                r.classList.add('tr', 'cbi-rowstyle-1');
            }

            tbl.appendChild(r)
            /* END: Workaround as "cbi_update_table" isn't working */
        });
    } /* function print_table(tbl, ra) */

    /* wait for SVG */
    window.setTimeout(
        function() {
            if (!RC)
            {
                window.setTimeout(arguments.callee, 1000);
            }
            else
            {
                rate_table_dl     = document.getElementById('rate_table_dl');
                rate_table_ul     = document.getElementById('rate_table_ul');

                /* render datasets, start update interval */
                L.Request.poll.add(3, '<%=build_url("admin/status/realtime/rate_status")%>', null,
                    function(x, json)
                    {
                        var RA = {};
                        var rows_dl = [];
                        var rows_ul = [];

                        var rules = json.nftables;
                        for (var i = 0; i < rules.length; i++)
                        {
                            if (!rules[i].rule)
                                continue;
                            if (rules[i].rule.table != 'nft-qos-monitor')
                                continue;

                            var rl = rules[i].rule;
                            switch (rl.chain)
                            {
                                case 'download':
                                case 'upload': init_bytes(rl, RA); break;
                            }
                        } /* for (var i = 0; i < rules.length; i++) */

                        /* display the result */
                        if (RA.download) {
                            while (rate_table_dl.firstElementChild !== rate_table_dl.lastElementChild)
                                rate_table_dl.removeChild(rate_table_dl.lastElementChild);
                            print_table(rate_table_dl, rows_dl, RA.download);
                        }
                        if (RA.upload) {
                            while (rate_table_ul.firstElementChild !== rate_table_ul.lastElementChild)
                                rate_table_ul.removeChild(rate_table_ul.lastElementChild);
                            print_table(rate_table_ul, rows_ul, RA.upload);
                        }

                    } /* function(x, json) */
                );

                L.Request.poll.start();
            }
        }, 1000
    );
//]]></script>


<h2 name="content"><%:Realtime Rate%></h2>

<div class="cbi-map-descr"><%:This page gives an overview over currently download/upload rate.%></div>

<fieldset class="cbi-section" id="cbi-table-table">
    <legend><%:Realtime Download Rate%></legend>
    <div class="cbi-section-node">
        <div class="table" id="rate_table_dl">
            <div class="tr table-titles">
                <div class="th col-2 hide-xs"><%:IP Address%></div>
                <div class="th col-2"><%:Download Rate%></div>
                <div class="th col-7"><%:Bytes Total%></div>
                <div class="th col-7"><%:Packets Total%></div>
            </div>
        </div>
    </div>
</fieldset>

<fieldset class="cbi-section" id="cbi-table-table">
    <legend><%:Realtime Upload Rate%></legend>
    <div class="cbi-section-node">
        <div class="table" id="rate_table_ul">
            <div class="tr table-titles">
                <div class="th col-2 hide-xs"><%:IP Address%></div>
                <div class="th col-2"><%:Upload Rate%></div>
                <div class="th col-7"><%:Bytes Total%></div>
                <div class="th col-7"><%:Packets Total%></div>
            </div>
        </div>
    </div>
</fieldset>

<%+footer%>

CTRL+S to save

refresh ->You do not have permission to view the full content of this post. Log in or register now.

---
