👨‍🏫 Tutorial Built in DIY UPS for Modem

[qtEulah]

Made this setup because we have power issues. also its annoying when i get
disconnected from the internet while playing games.

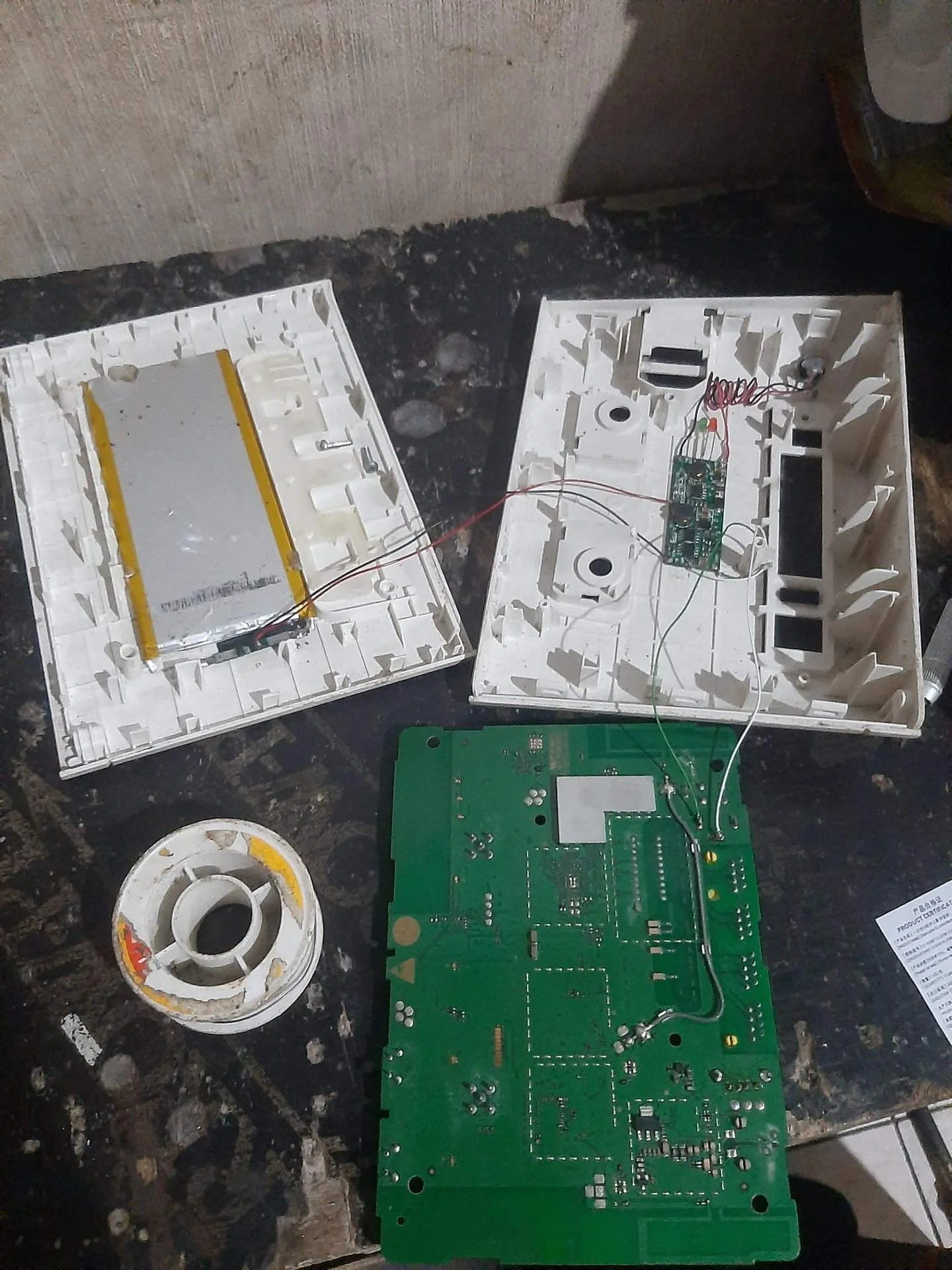

parts used:

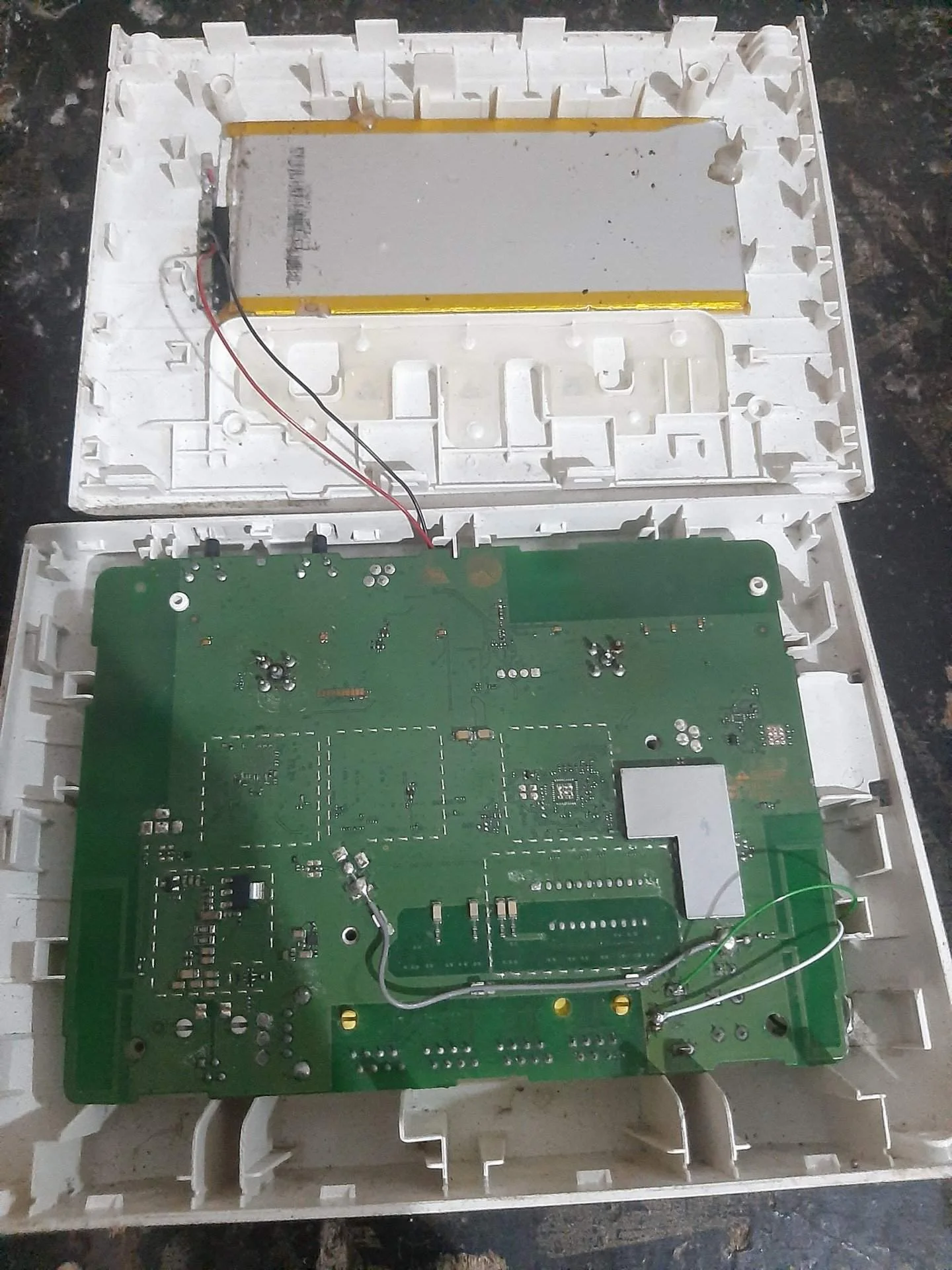

10000mah li-ion batt
You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.

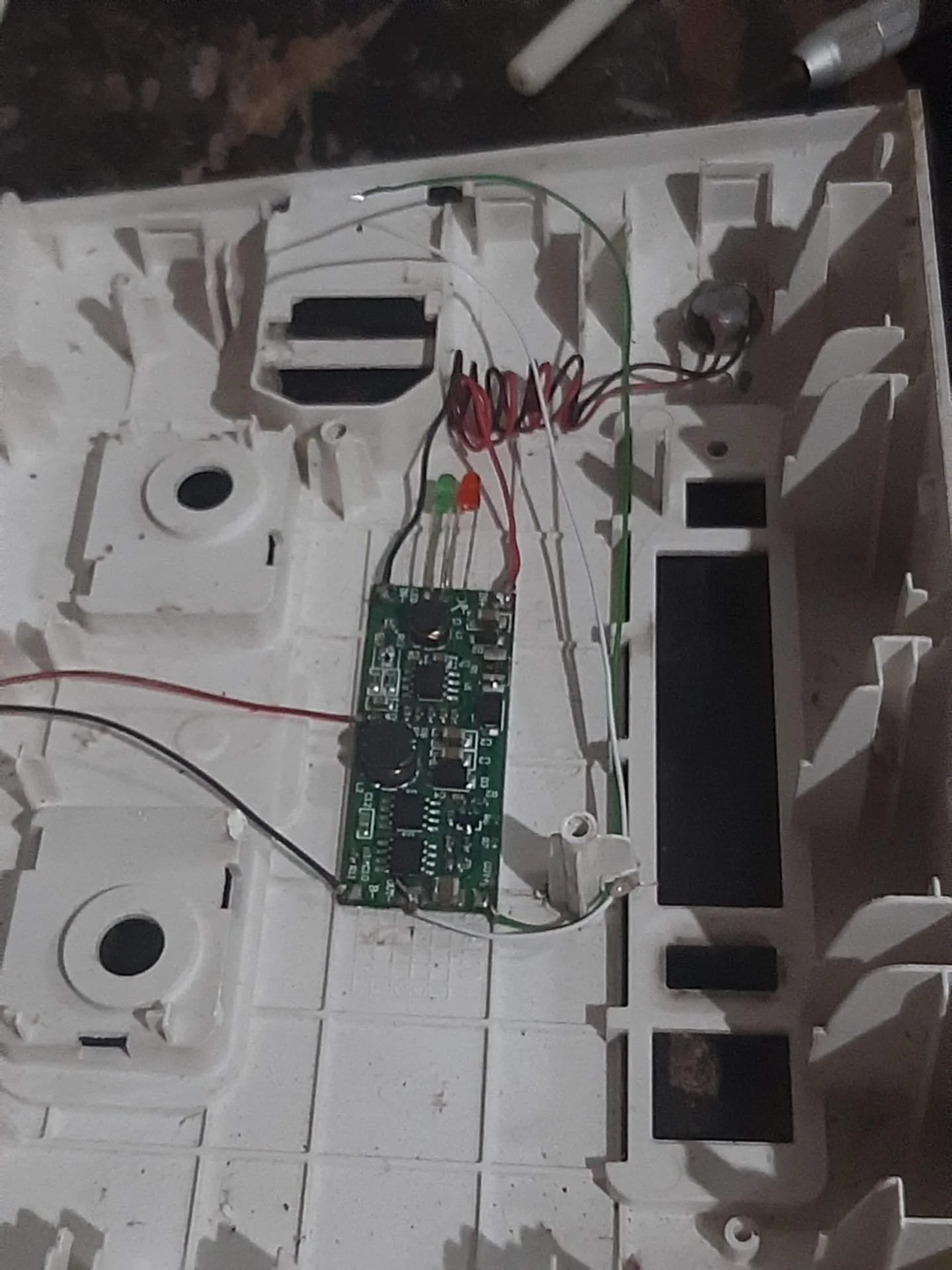

modem:
b315s-936

note:

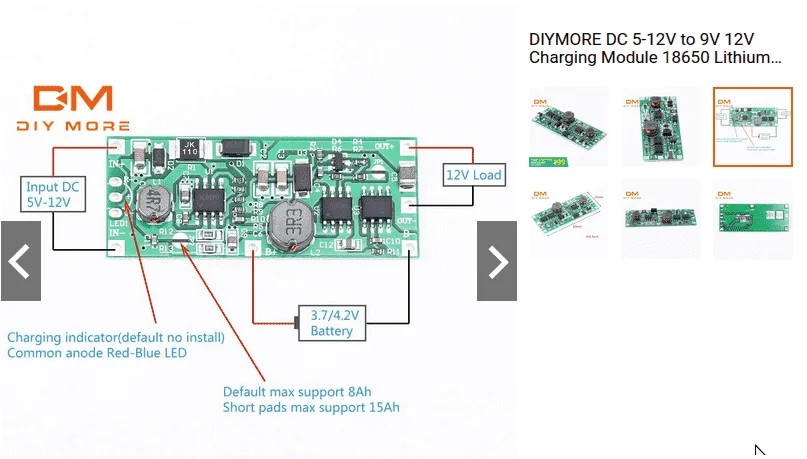

default max support is 8ah, since I used 10ah battery, I have to short jp2 pads.
if your modem only requires 9v, you can unshort jp1 pads next to the capacitor




note: make sure to cover BMS with masking tape to avoid short circuit


video samples:
You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.

i forgot to add battery switch, will update if i got some spare time.
