🔒 Closed Notion R051 OpenWrt CFW WIP (Discontinued)

[bjarnco32]

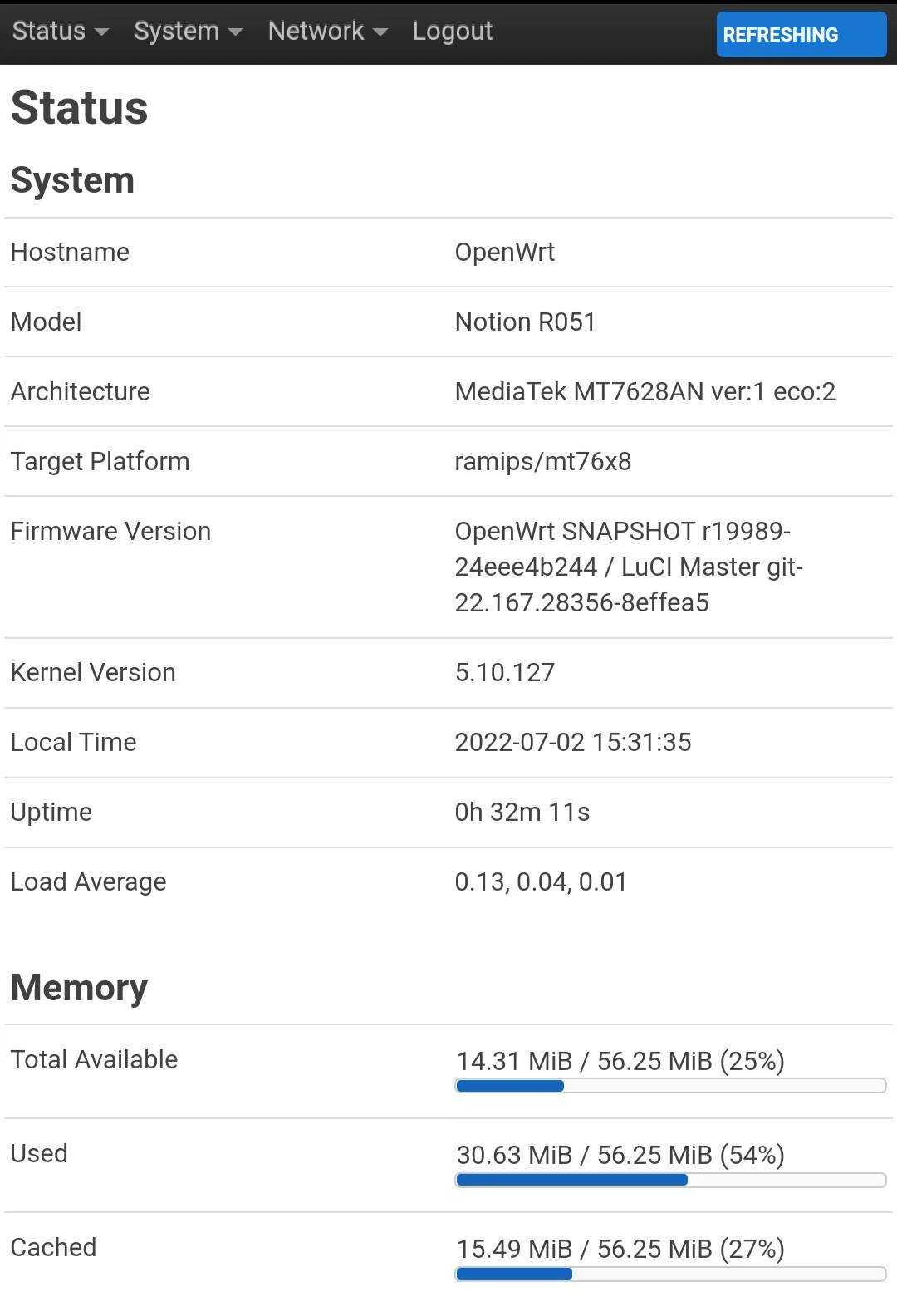

Here's a preview of a possible OpenWrt build for the Notion R051. The build still needs a lot of fixing and polishing to do, but the fundamental wired and wireless network function works normally.

If you wish to help to get this into production-ready state, and you know something of Linux and porting devices into OpenWrt, then perhaps you could contribute with the following needed information for this particular model:

* GPIO mappings for the LEDs and buttons

You do not have permission to view the full content of this post. Log in or register now.



[PHC_Gulai23]

Salute!



[Chibitzki]

Galing naman malapit na magka openwrt neto.



[Shannun]

Hintayin ko to pag full build na, sira pa din kasi yong akin hahaha



[bruhboi24]

Hintayin ko to pag full build na, sira pa din kasi yong akin hahaha

i hope it can install via the micro usb port in the R051



[Shannun]

i hope it can install via the micro usb port in the R051

Yong sayo ba kamusta hahaha



[bruhboi24]

Yong sayo ba kamusta hahaha

no success the blf format from Marvell is proprietary soo i cant convert it



[PHC-Shin]

up support



[bjarnco32]

Please note that the installation of this firmware will be like MF286RA. Even though based on OpenWrt devices like R051 and R281, the flash layout is different, so you can't simply scp the image to the router and sysupgrade there.

You need to load the initramfs kernel via tftp then sysupgrade from there. This means you need to interrupt the boot sequence from u-boot, which means mandatory serial access via USB to TTL. I recommend CP2102 based USB-TTL serial converters.



[Shannun]

Please note that the installation of this firmware will be like MF286RA. Even though based on OpenWrt devices like R051 and R281, the flash layout is different, so you can't simply scp the image to the router and sysupgrade there.

You need to load the initramfs kernel via tftp then sysupgrade from there. This means you need to interrupt the boot sequence from u-boot, which means mandatory serial access via USB to TTL. I recommend CP2102 based USB-TTL serial converters.

Pag USB-TTL pwede na din mafix yong bricked device no?



[bjarnco32]

Pag USB-TTL pwede na din mafix yong bricked device no?

Depends on how bricked it is. If the bootloader lives, then there's a chance for recovery.



[BL4CKZ0UL]

Pa wards, really needs this para pang bypass sa 299 promo.



[Mjola04]

Meron po ba cell id locking sa firmware na yan?
