🔒 Closed Internet of Things with Arduino

Status
Not open for further replies.

H20_Waterr

Honorary Poster

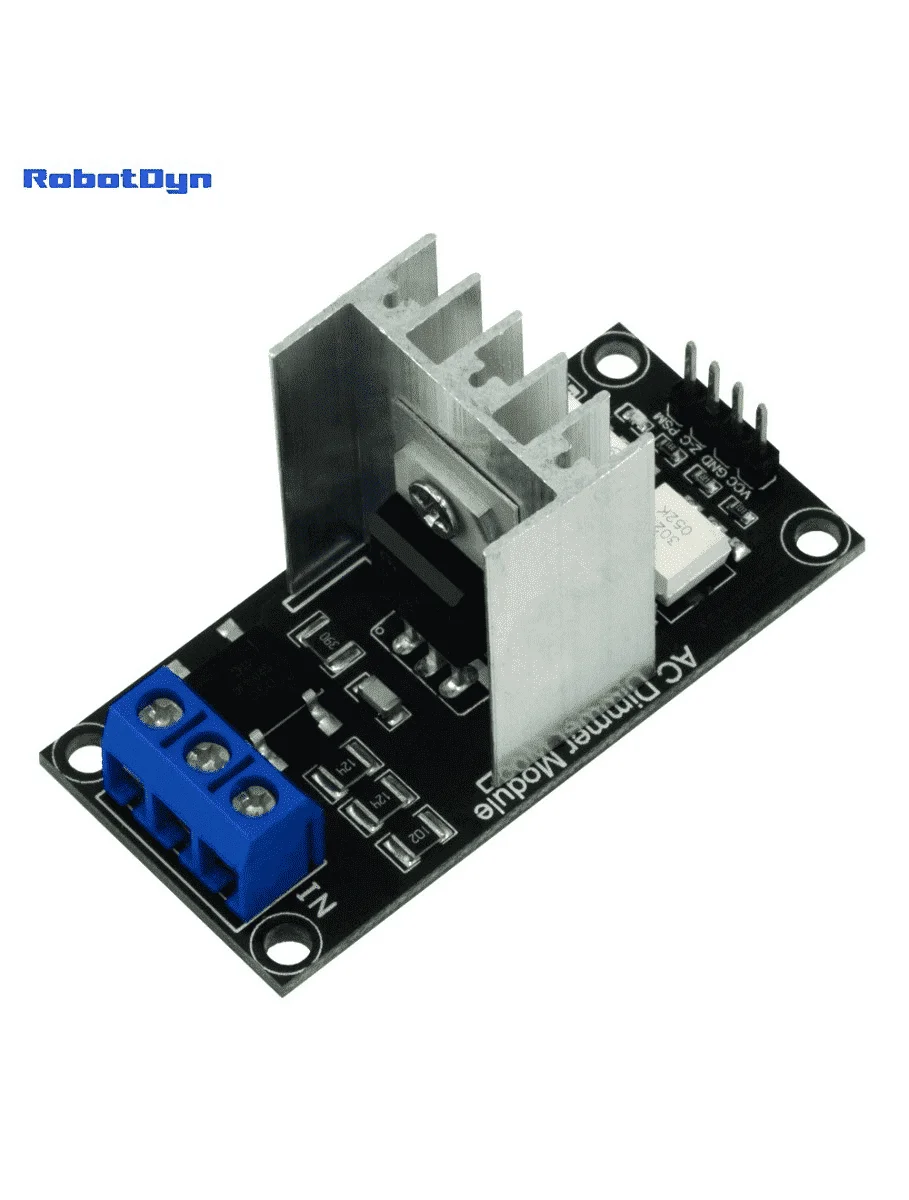

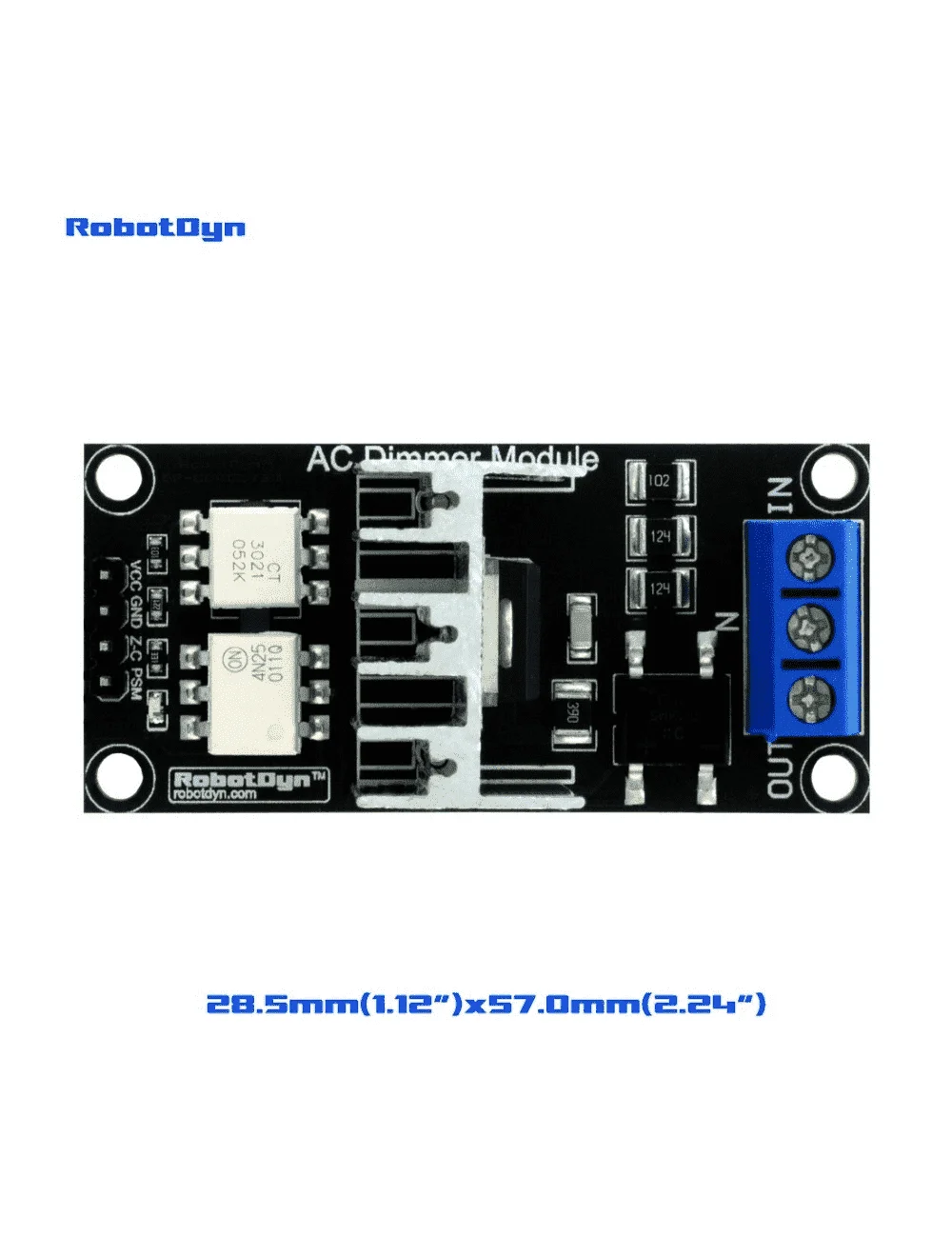

Meron pobang nakakaalam kung paano ito gamitin? Kailangan ko po kasin ng Voltage Regulator sa project ko para ma control ko kung ilang Percent lang ng power ang ibibigay ko sa device, lamp for example. Pero hindi ko alam paano ang circuit design nito.

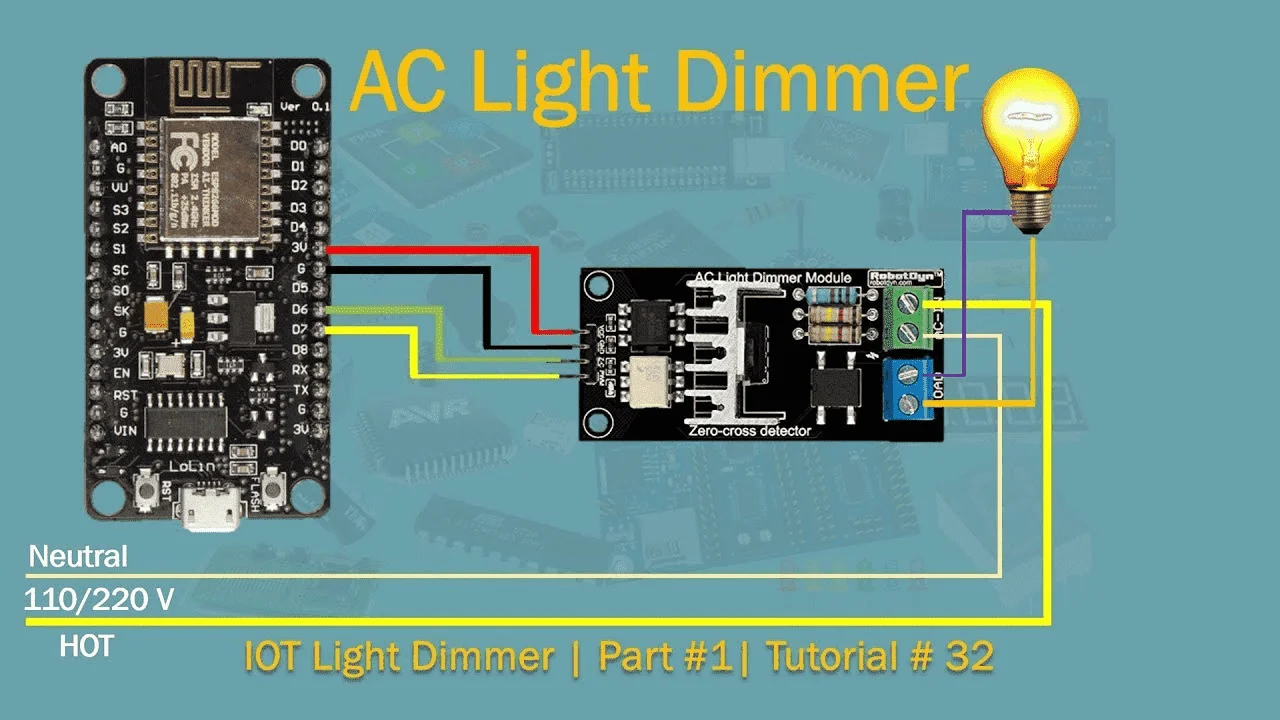

anong klaseng lamp gagamitin mo? ac o dc? kapag dc alam ko may parang mosfet na kaya para sa dc bulb kung ac naman pwede ka gumamit ng ganito yung green yung in yung blue yun out tapos sa pin ng microcontroller yung male jumpwire1664210142251.webp
