🔒 Closed ASUS VivoBook Max X541UA NO DISPLAY due to Corrupted BIOS

[fredator]

Issue : Upon Receiving Unit/Device NO DISPLAY

Action Taken : Tried to Reseat Memory issue still persist!

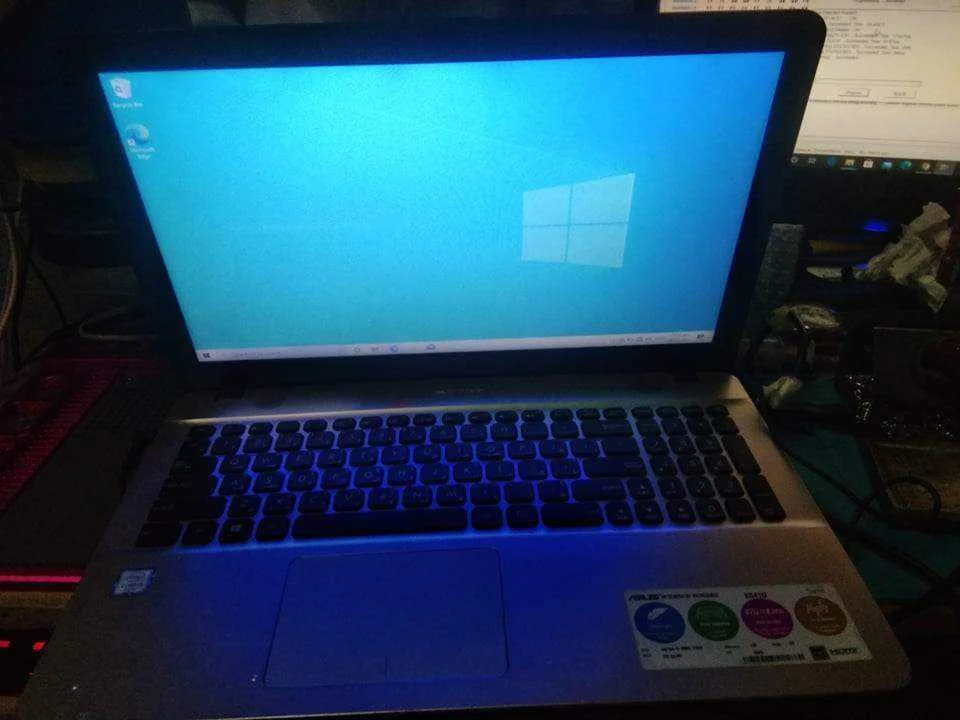

Next Move : Tried to reflash BIOS Firmware SUCCESS

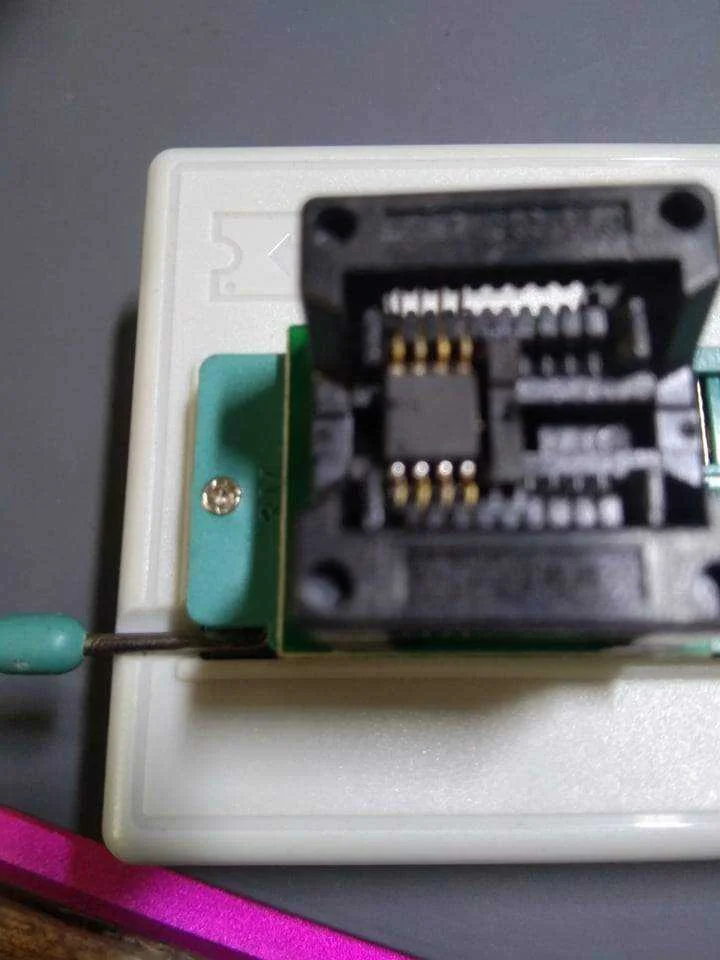

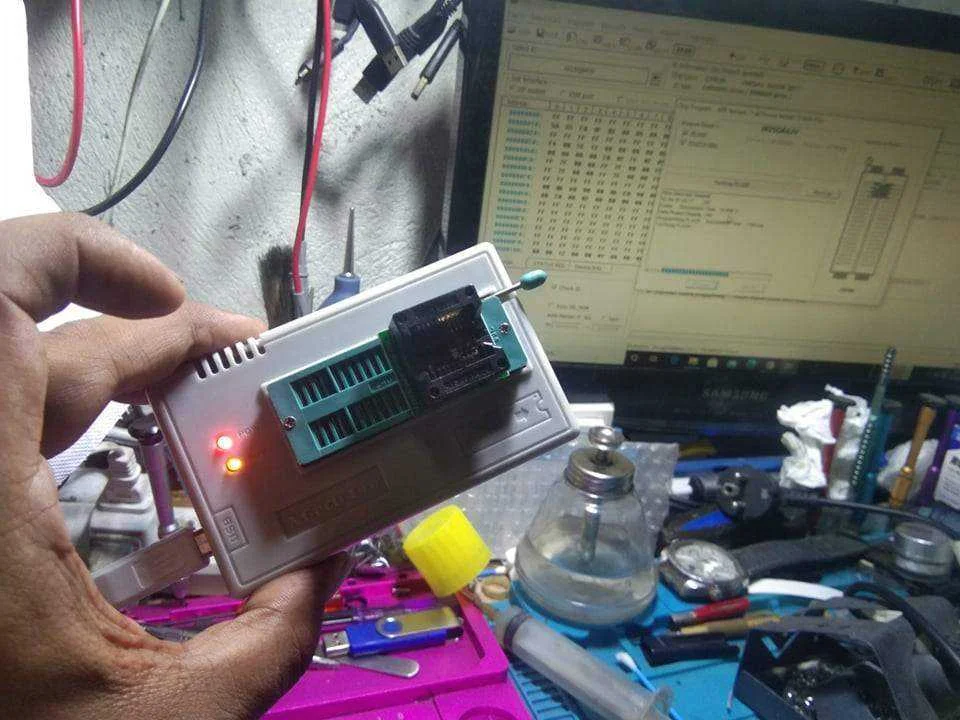

BIOS Programmer Tools : TL866-11 PLUS
Firmware Link :





-READ CHIP
-SAVE AND BACKUP CHIP FOR SECURITY PURPOSES
-LOAD DOWNLOADED FIRMWARE

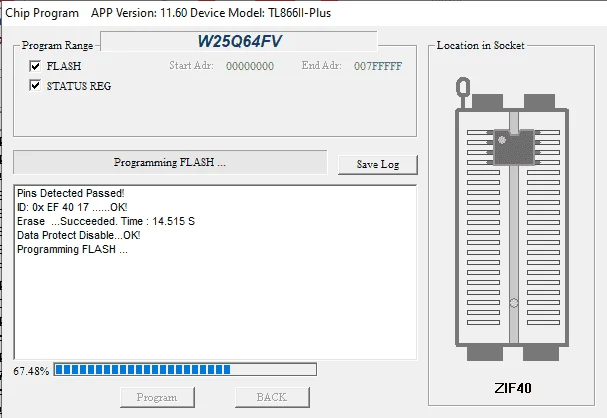

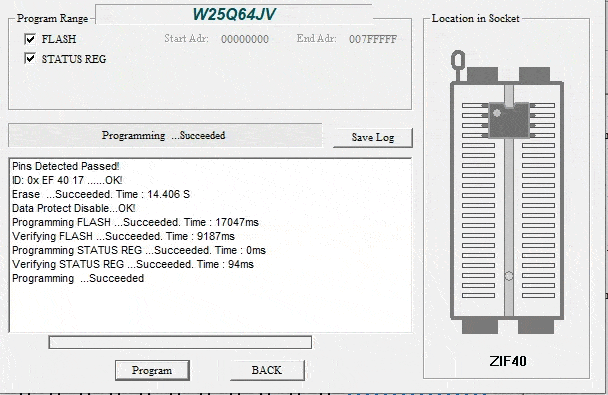

-PROGRAM FIRMWARE THEN WAIT....








Locate and desolder BIOS CHIP



[salesdgreat]

Nice but my question is How did you come up with your solution? With all the board components, how did you know that the bios chip is the problem?



[fredator]

Nice but my question is How did you come up with your solution? With all the board components, how did you know that the bios chip is the problem?

very good question!! well actually the simple answer is "Luck" I guess...that's the least that I can do before I go hardware...



[phdenxxsampang]

pwede ba yung mura lang na programer gamitin dyan sir yung ch314a po?
