Bypass MTK Authorization

[leonardo_1994]

How to install:

1. Download the attached file:

You do not have permission to view the full content of this post. Log in or register now.


2. Extract the file and open the folder.

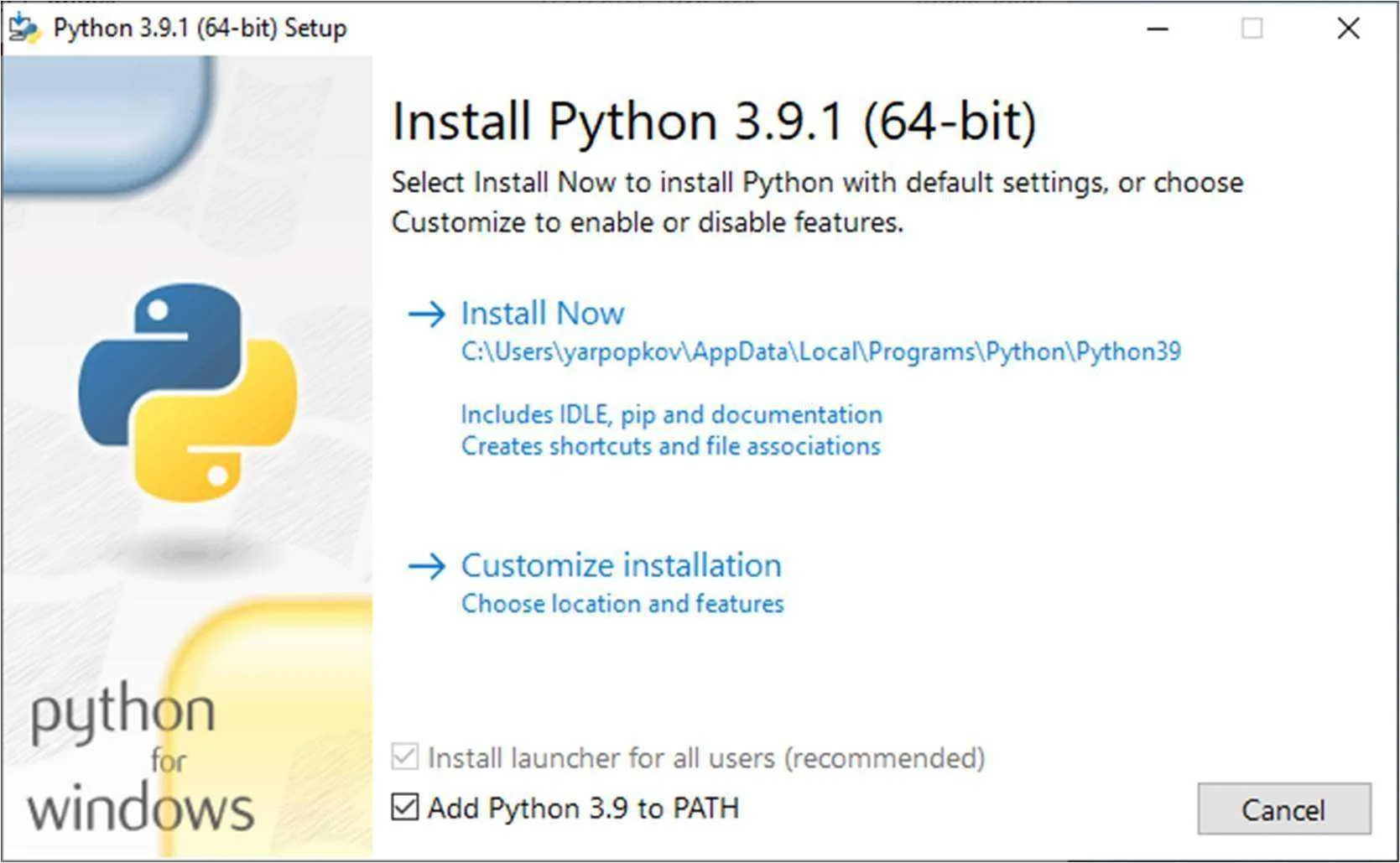

3. Run and install python: python-3.9.1-amd64.exe.

Keep attention: You need to select "Add Python to PATH" before starting the installation.






4. Open cmd or powershell and execute this command:

pip install pyusb pyserial json5

5. Go to the Driver folder and right-click on the cdc-acm.inf file, then click Install and then, close window.



6. Run and install filter wizard: libusb-win32-devel-filter-1.2.6.0.exe.

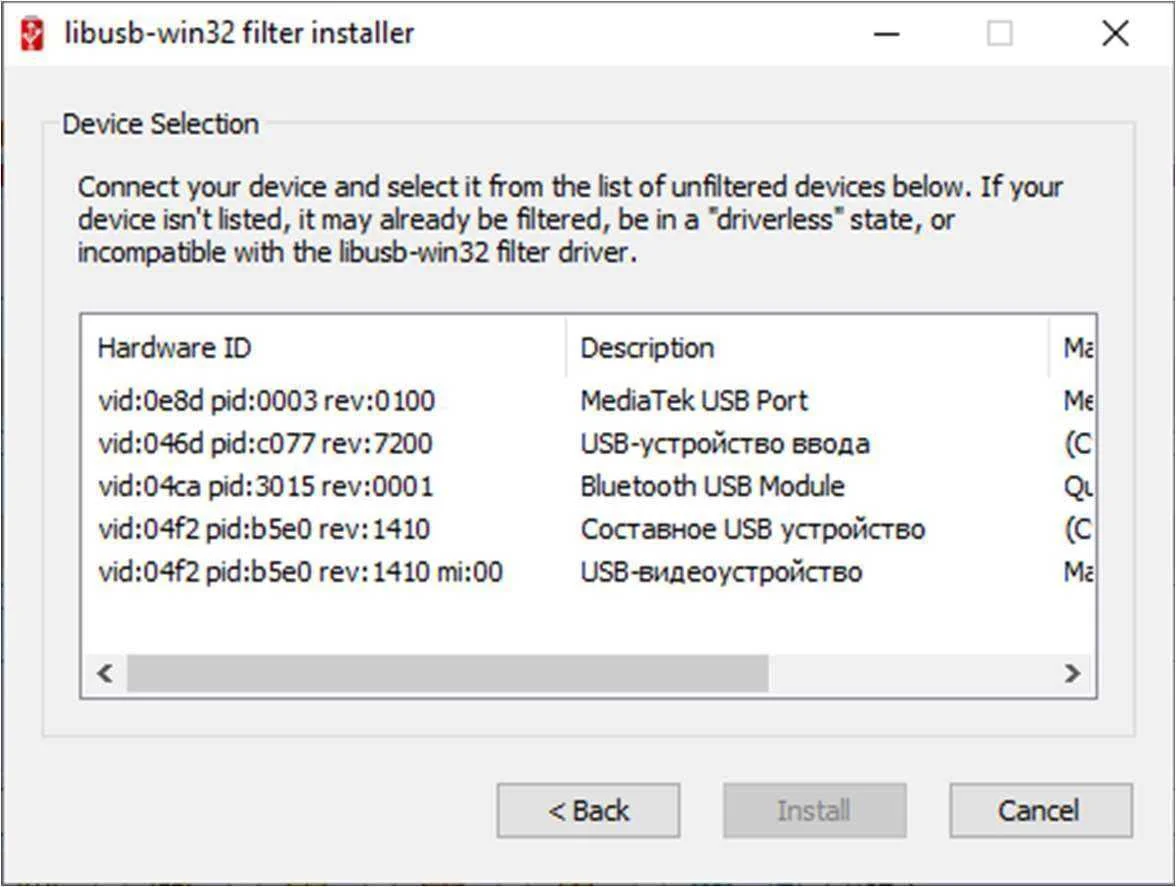

7. Launch filter wizard.



8. Select Install a device filter and click Next.



9. Connect powered off phone with volume- button to boot in EDL mode.



10. Once you see new MediaTek USB Port in the list, select it and click Install.








Now, you are ready for bypassing EDL !



How to bypass:

1. Go to the Bypass folder. Run the script: bypass.bat.



2. Connect powered off phone with volume- button to boot in EDL mode.

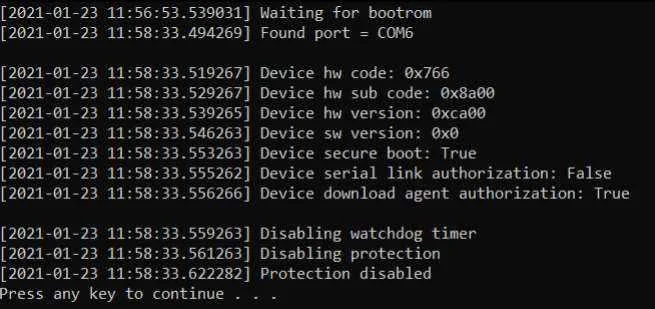

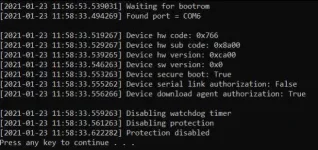

3. Once you get "Protection disabled" at the end, without disconnecting phone and usb, run SP Flash Tool

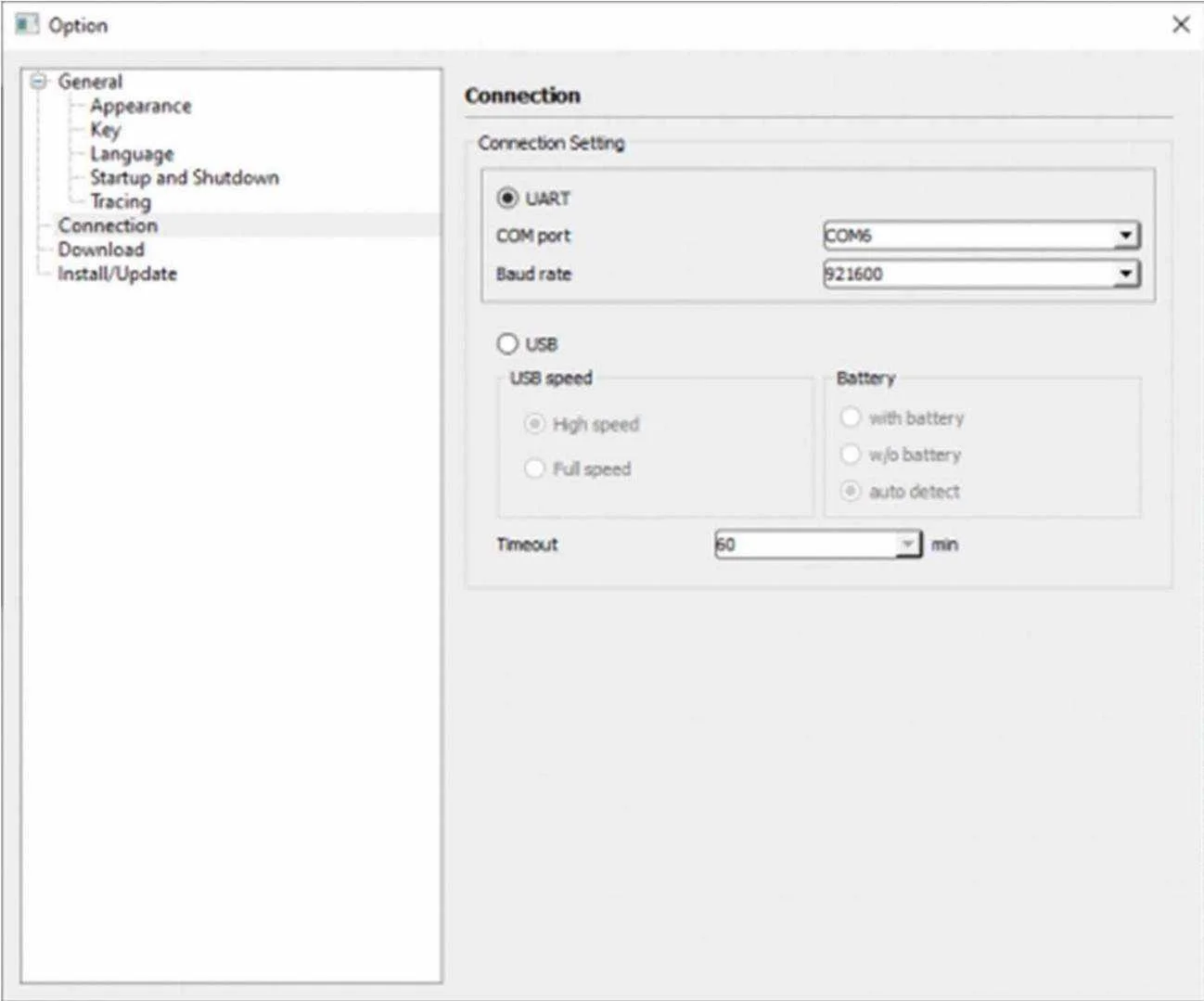

4. Once the SP Flash Tool opens, click Options > Options > Connection.



5. Select UART mode and select Baud rate to 921600.




Now, you are ready for flashing.



How to update:

1. Download latest release of the tool: You do not have permission to view the full content of this post. Log in or register now.



2. Download latest release of payloads: You do not have permission to view the full content of this post. Log in or register now.



3. Extract the content of both files to the Bypass folder.


Credits to the owner.
Source: You do not have permission to view the full content of this post. Log in or register now.



[johnmayers]

salamat dito...big help



[jhayzelle]

salamat lods



[ewanizer13]

nice thread



[Ph_Bunker]

TS pa update naman yung nasa drive folder wala kasing nalabas loading lang tas yung bypass.bat narin po.



[Jevs1320]

Hello po, sorry ibang content tong concern ko, about po dito https://phcorner.org/threads/free-unlimited-google-drive-account-storage.870202/page-6#post-15419870
Isa po ako sa nag request po ng shared drives. then today po nawala an ung shared drives. pede pong patulong nandun po kasi ung mga important files ko po. neeed ko po lang irecover.
help po pls.



[sam_1208]

Ty ts



[Sakura Lee]

Bookmark muna ts hehe



[madhay]

deadlink boss



[-Bannerism]

pa up po ng link.ty



[PHC - Alimar23]

bighelp sa mga mag bypass. salamuch ts keep sharing
