👨‍🏫 Tutorial How to unlock&debrand / Openline Huawei B593-931 LTE CPE

J

jbl_libra

Elite
NEED:
FIRMWARE FILE
MULTICAST UPGRADE TOOL:
CONFIG FILE
UNLUCK & DEBRAND
see link Attached File below :)

UNLOCK B593s-931

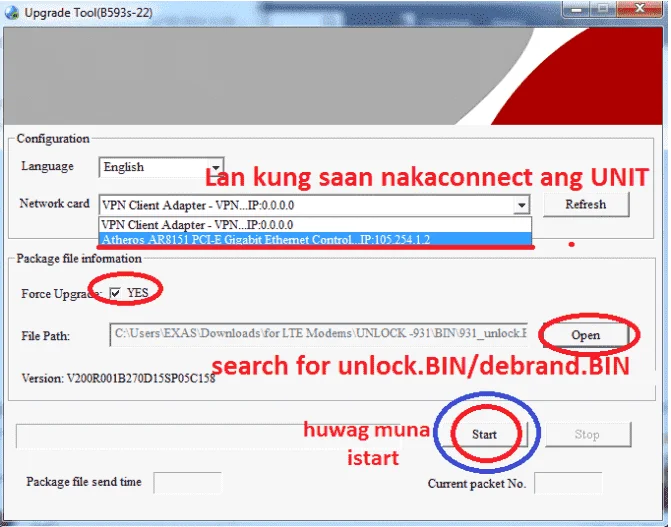

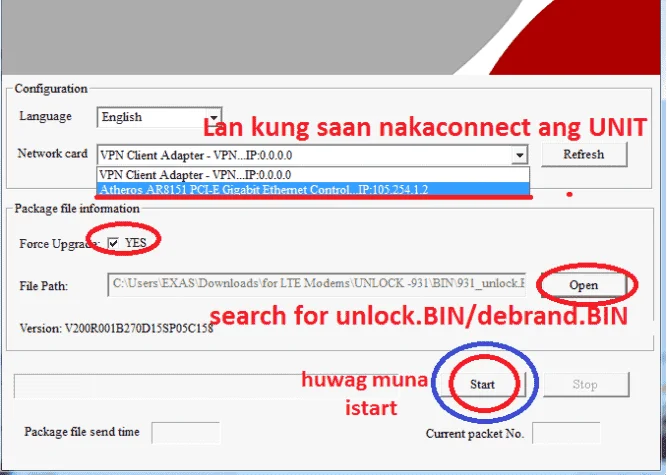

Step 1: Plug in your B593s-931 and Run s22 Multicast Upgrade Tool >select LAN kung saan nakakabit ang UNIT
>icheck ang YES ang Force Upgrade
>Open file 931_FOR_unlock.BIN

>huwag muna iistart

STEP 2: Begin the unlocking
>iPower OFF ang modem
>click START the Multicast Upgrade Tool
>iPower ON ang modem
>iobserve ang SIGNAL BAR hanggang mag FULL BAR o mag 5 BAR >click STOP the Multicast Upgrade Tool and iCLOSE
>RESTART YOUR MODEM
Step 3: Uploading of Configuration Login to your device Dashboard
1. Login as USER in You do not have permission to view the full content of this post. Log in or register now.
username: user
password: @l03e1t3

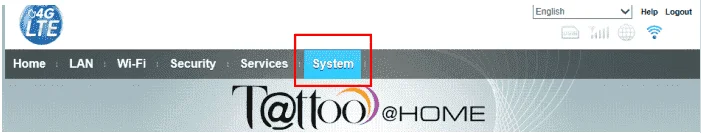

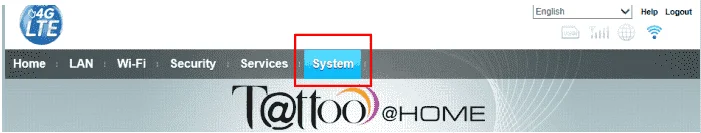

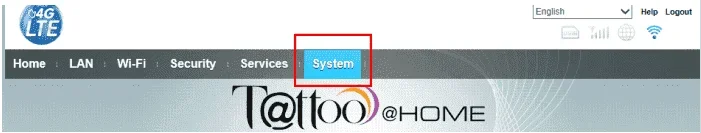

2. Click System

3. Go to Upload Configuration File
4. Browse your file > jhosherxx.conf
5. Click Submit

UNLOCK na MODEM mo!! (y)

DEBRAND B593s-931
Step 1: Plug in your B593s-931 and Run s22 Multicast Upgrade Tool >select LAN kung saan nakakabit ang UNIT
>icheck ang YES ang Force Upgrade
>Open file 931_FOR_Debrand.BIN

>huwag muna iistart

STEP 2: Begin the unlocking
>iPower OFF ang modem
>click START the Multicast Upgrade Tool
>iPower ON ang modem
>iobserve ang SIGNAL BAR hanggang mag FULL BAR o mag 5 BAR >click STOP the Multicast Upgrade Tool and iCLOSE
>RESTART YOUR MODEM
NEW GUI: You do not have permission to view the full content of this post. Log in or register now.
username: admin
password: password123

DEBRAND na MODEM mo!! (y)

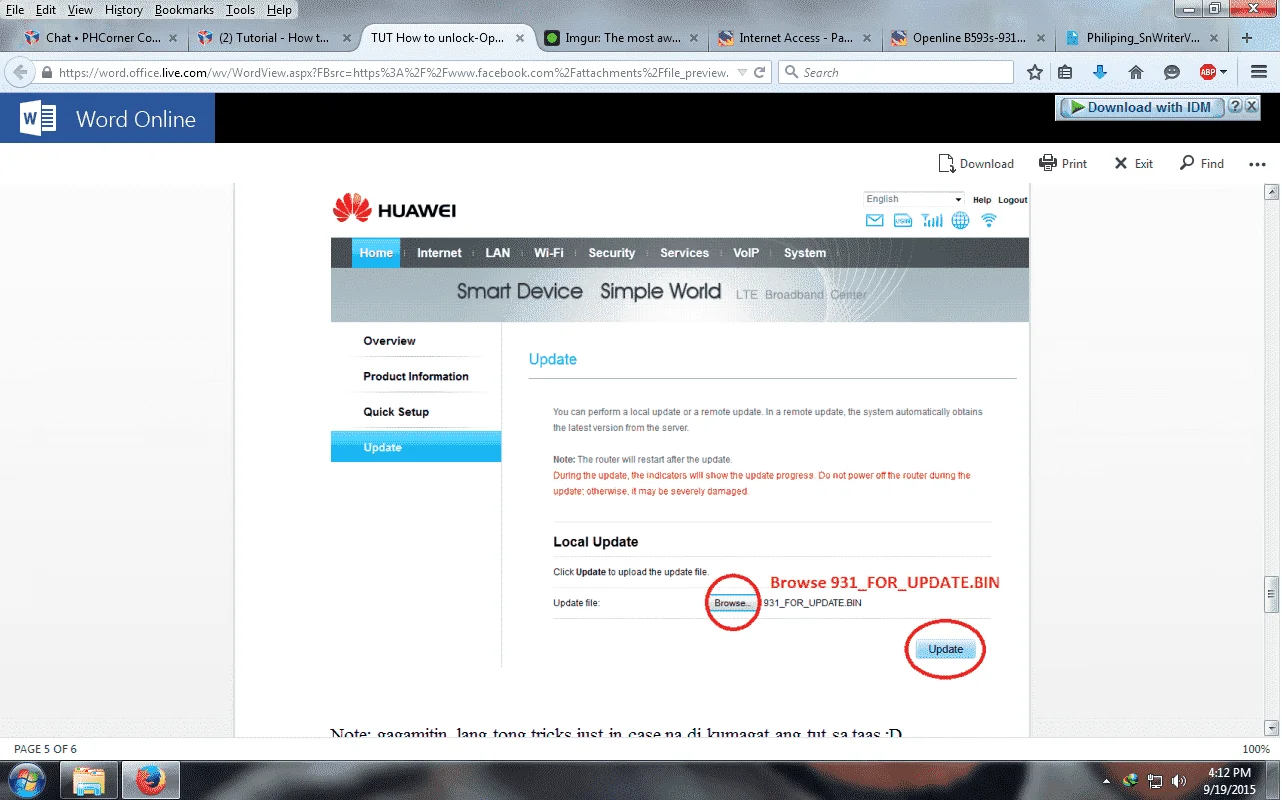

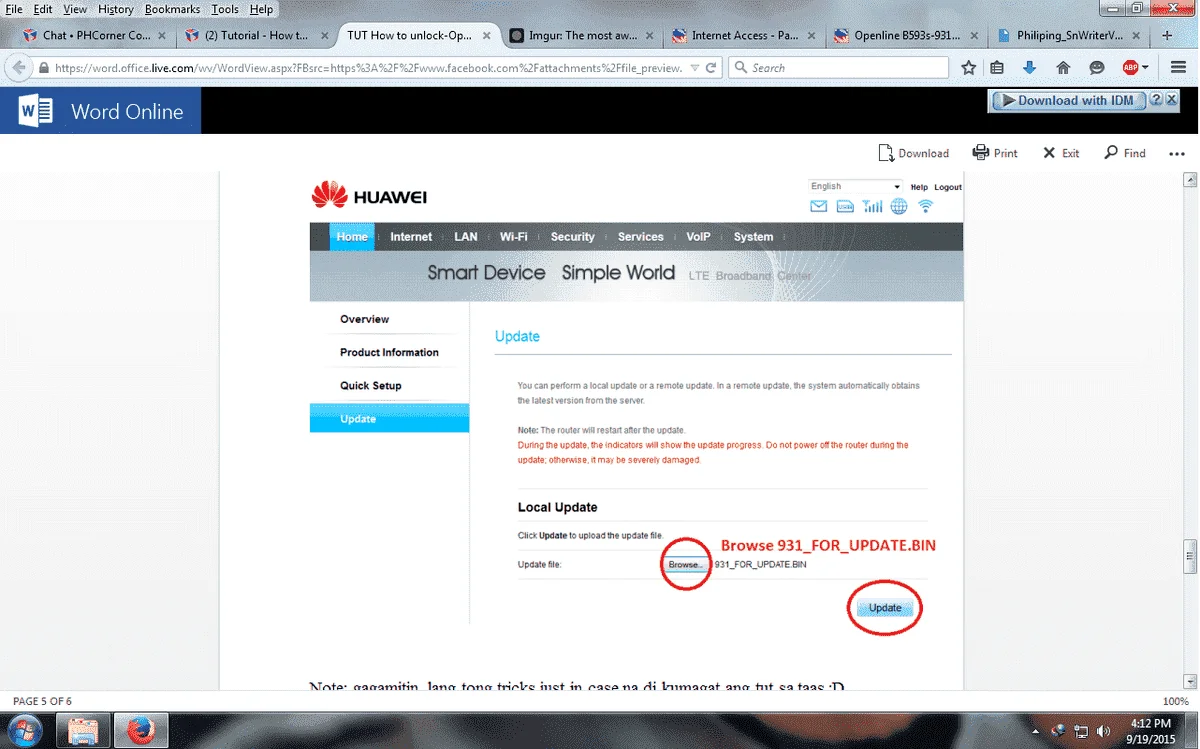

UPDATE B593s-931
1. Login as USER in You do not have permission to view the full content of this post. Log in or register now.
username: admin
password: password123

>Home
>Update
>In Local Update Browse 931_FOR_UPDATE.BIN

Note: gagamitin lang tong tricks just in case na di kumagat ang tut sa taas :D

Tricks:
start multicast w/ loaded 931 firmware ==> Hold 2 buttons ==> hold lang yung dalawang buttons hanggang mapuno yung bars... (mapapansin nyo na hndi n sya

mag bblink sa 2 bars at magtutuloy tuloy n sya hanggang mag full bars.) NOTE: wag bibitawan yung buttons hanggang hndi siya nag fufull bars

CREDITS SA GUMAWA NITO (y)
Hit like naman dyan mga pogi at maganda :D
Enjoy.. (y)


Attachments

xingkit said:
:newbie: bakit po kailangan pa idebrand?para saan po ba ang debrand?
Click to expand...
Debranding used to removing the network logos, sounds and menus that are often on mobile phone handsets / modem provided by networks carrier company, e.g vodafone or t-mobile usually customise handsets with these and these would be removed by debranding process.
copy paste ko pa yan para sayo :hilarious:

edzkee said:
NEED:
FIRMWARE FILE
MULTICAST UPGRADE TOOL:
CONFIG FILE
UNLUCK & DEBRAND
see link Attached File below :)

UNLOCK B593s-931
Step 1: Plug in your B593s-931 and Run s22 Multicast Upgrade Tool >select LAN kung saan nakakabit ang UNIT
>icheck ang YES ang Force Upgrade
>Open file 931_FOR_unlock.BIN

>huwag muna iistart

STEP 2: Begin the unlocking
>iPower OFF ang modem
>click START the Multicast Upgrade Tool
>iPower ON ang modem
>iobserve ang SIGNAL BAR hanggang mag FULL BAR o mag 5 BAR >click STOP the Multicast Upgrade Tool and iCLOSE
>RESTART YOUR MODEM
Step 3: Uploading of Configuration Login to your device Dashboard
1. Login as USER in You do not have permission to view the full content of this post. Log in or register now.
username: user
password: @l03e1t3

2. Click System

3. Go to Upload Configuration File
4. Browse your file > jhosherxx.conf
5. Click Submit

UNLOCK na MODEM mo!! (y)

DEBRAND B593s-931
Step 1: Plug in your B593s-931 and Run s22 Multicast Upgrade Tool >select LAN kung saan nakakabit ang UNIT
>icheck ang YES ang Force Upgrade
>Open file 931_FOR_Debrand.BIN

>huwag muna iistart

STEP 2: Begin the unlocking
>iPower OFF ang modem
>click START the Multicast Upgrade Tool
>iPower ON ang modem
>iobserve ang SIGNAL BAR hanggang mag FULL BAR o mag 5 BAR >click STOP the Multicast Upgrade Tool and iCLOSE
>RESTART YOUR MODEM
NEW GUI: You do not have permission to view the full content of this post. Log in or register now.
username: admin
password: password123

DEBRAND na MODEM mo!! (y)

UPDATE B593s-931
1. Login as USER in You do not have permission to view the full content of this post. Log in or register now.
username: admin
password: password123

>Home
>Update
>In Local Update Browse 931_FOR_UPDATE.BIN

Note: gagamitin lang tong tricks just in case na di kumagat ang tut sa taas :D

Tricks:
start multicast w/ loaded 931 firmware ==> Hold 2 buttons ==> hold lang yung dalawang buttons hanggang mapuno yung bars... (mapapansin nyo na hndi n sya

mag bblink sa 2 bars at magtutuloy tuloy n sya hanggang mag full bars.) NOTE: wag bibitawan yung buttons hanggang hndi siya nag fufull bars


CREDITS SA GUMAWA NITO (y)
Hit like naman dyan mga pogi at maganda :D
Enjoy.. (y)
Click to expand...
sir pwede po bang magtanong? kung magkapareho lang ba ang lte cpe b593 at ang lte cpe b593s - 931????
