🎓 Academic Circuits 1

Status
Not open for further replies.

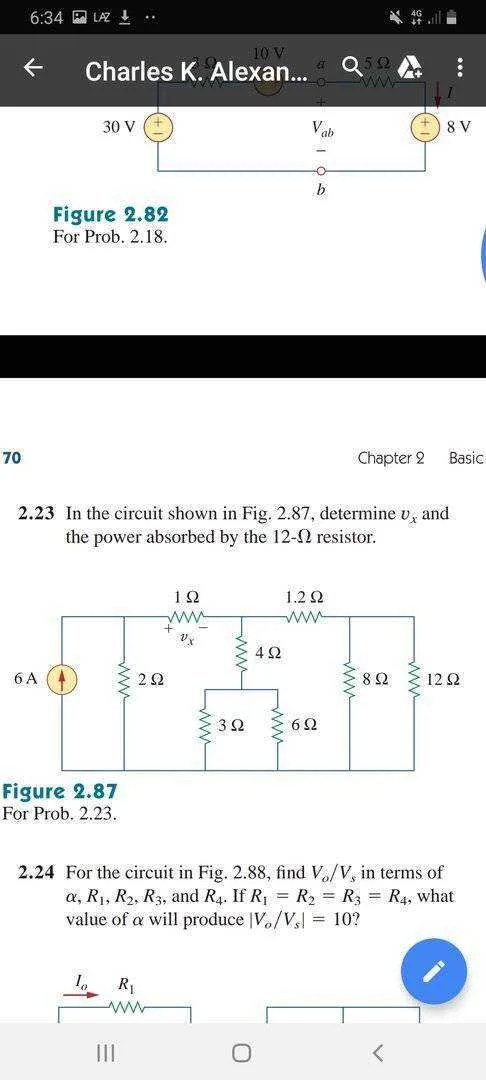

Sir, maraming methods ang pwedeng gamitin para masolve yung v_x and power sa 12 ohms resistor.

Depende sir kung gaano kalalim yung understanding mo sa circuits.

Maganda na alamin mo muna yung basics ng parallel tsaka series tas yung ibat ibang combinations.

Tas papasok na dyan ang kircchoff's current law (KCL) at kircchoff's voltage law (KVL). Yan yung dalawang kailangan mo para maintindihan yung iba pang circuits theorem like Nodal, Thevenin, Norton, Maxwell's mesh analysis.

V_x = 2V
P of 12 ohms = 19.2 milliwatt

Sir try mo rin alamin kung ano pinagkaiba ng node, branch, loop, junction at path.

Makakatulong yan sa paganalize mo ng circuits.

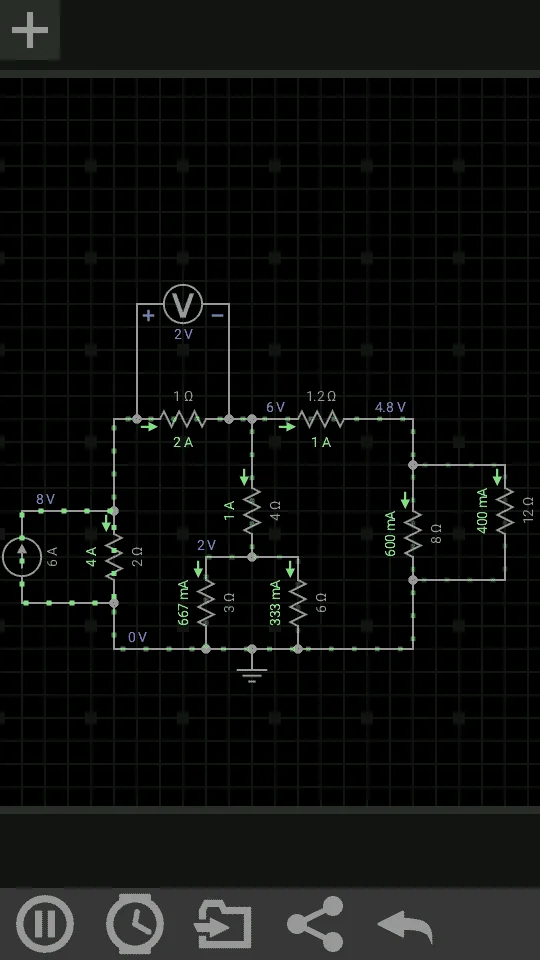

Pwede ka rin gumamit ng simulator kung nahihirapan ka.

Sa youtube din pwede ka magtingin ng tutorials. Recommended ko yung Electrical is Easy na Channel. Hanapin mo dun yung Circuit analysis. Medyo pangit yung quality ng sound ng mga videos pero napakaganda ng content at easy to understand.
