🔒 Closed IP Addressing Guide + Tweak Computation

[Blank0000]

Ginawa ko etong Thread n ito para makatulong sa mga newbie n katulad ko sa IP Addressing. Sinamahan ko na din ng mga Simpleng Computation ng IP Address. yung mga Master jn hehe wak n kau react para lng to sa mga Newbie sa networking katulad ko
__________________________________________________ _
IP ADDRESSING GUIDE
__________________________________________________ _
Class A First Octet Range 1-127 [Network 127 is Reserved for LoopBack and Internal Testing]
Class B First Octet Range 128-191
Class C First Octet Range 192-223
__________________________________________________ _

Class A License N.H.H.H

__________________________________________________ _

Class B License N.N.H.H

__________________________________________________ _

Class C License N.N.N.H


Note:You must borrow at least 2 bits and you must leave at least 2 bits.

dagdag ko lng

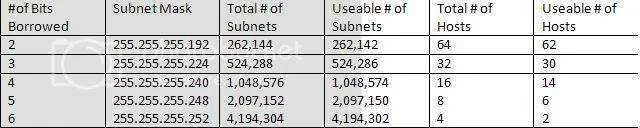

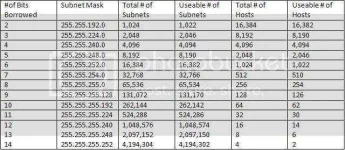

Prefix Table



[jmarprinz]

Thanks for sharing
