Blank Wan solved Thanks Kay racky

[globeopendroid]

dagdag kaalaman pala ang blankwan! date programming lang ngayon electronic naman!
haha! ok na ulit modem ko! Guys hindi nyo na kailangang bumayad pa dahil 200 pesos lang
ok na! mag eenjoy kapa!

Resistor = 4x100ohms 1/2watts or ¼

Resistor = 1x150ohms 1/2watts or ¼

Resistor = 1x200ohms 1/2watts or ¼

LED = 1x color red 3volts

Capacitor = 1x 10uF 16 volts

Capacitor = 1x 0.1uF

LM317T = 1x 3voltage regulator

Socket IC = 1x 8pins SOIC / Socket IC

LPT Cable = 1x

Switch = 1x push switch 1x slide switch0.3mm diameter

USB Cable

PCV

0.3mm diameter

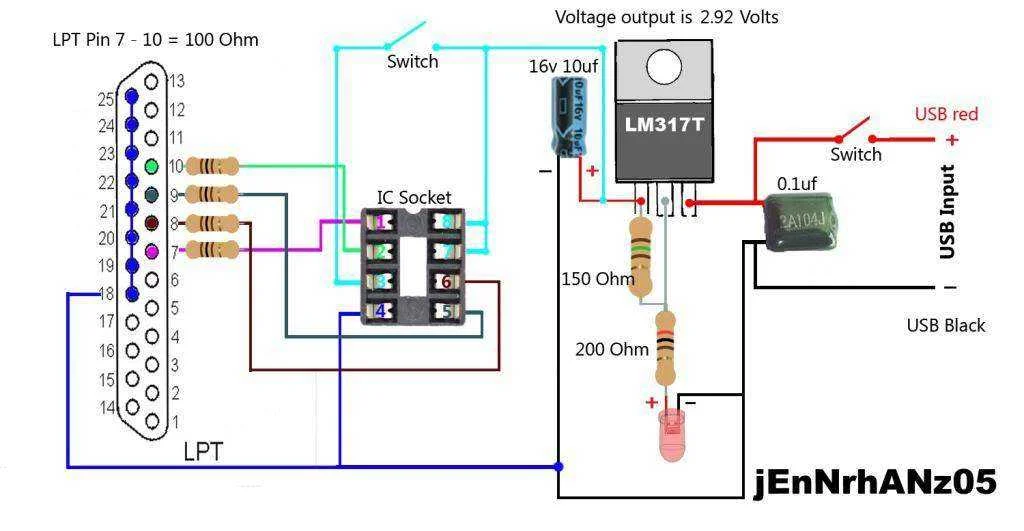

You do not have permission to view the full content of this post. Log in or register now. <-------------ito yung diagram!



[globeopendroid]

pang flash po ng ic yan! hanapin nyo si racky pra sa dagdag kaalaman!



[ITE-[Anonymous]]

Nice one

kasamaHan ko un si Racky
