🔒 Closed Help! how to config openline 936 modem

[Phc Mzhian22]

Openline na po c 936 ko.
Anu po next step mga master.
Pa tut nmn po sa my nkakalam or naka open line na 936 jn. Kubg ano mga tips and tricks sa openline na 936.
Sana mapansin. Slamat po sa sasagot.



[delloCM_]

para sa mga nagtatanung kung pano mag openline
ng globe modem B315s-936 OLD and BLue Label.
Una sa lahat dapat buksan ang iyong isipan basahin mabuti ang
You do not have permission to view the full content of this post. Log in or register now.
una kelangan mo ng ganito

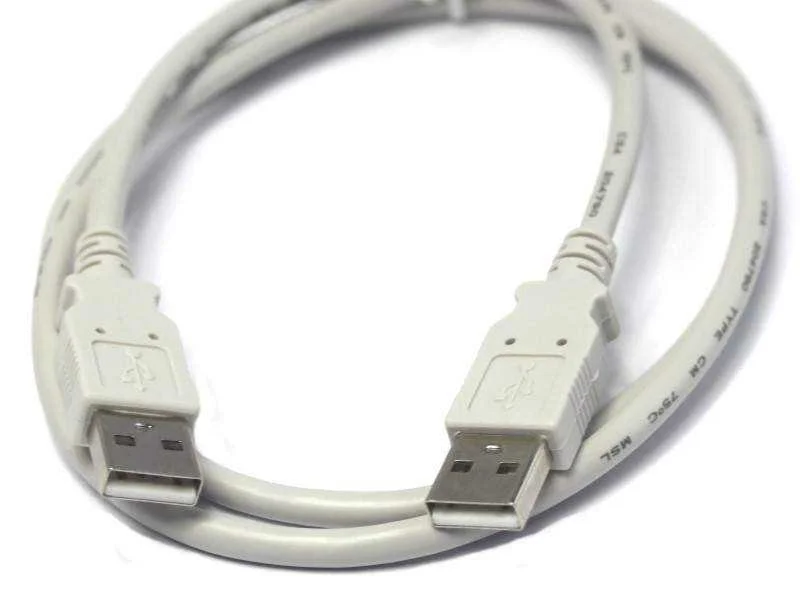

usb data cable male - male

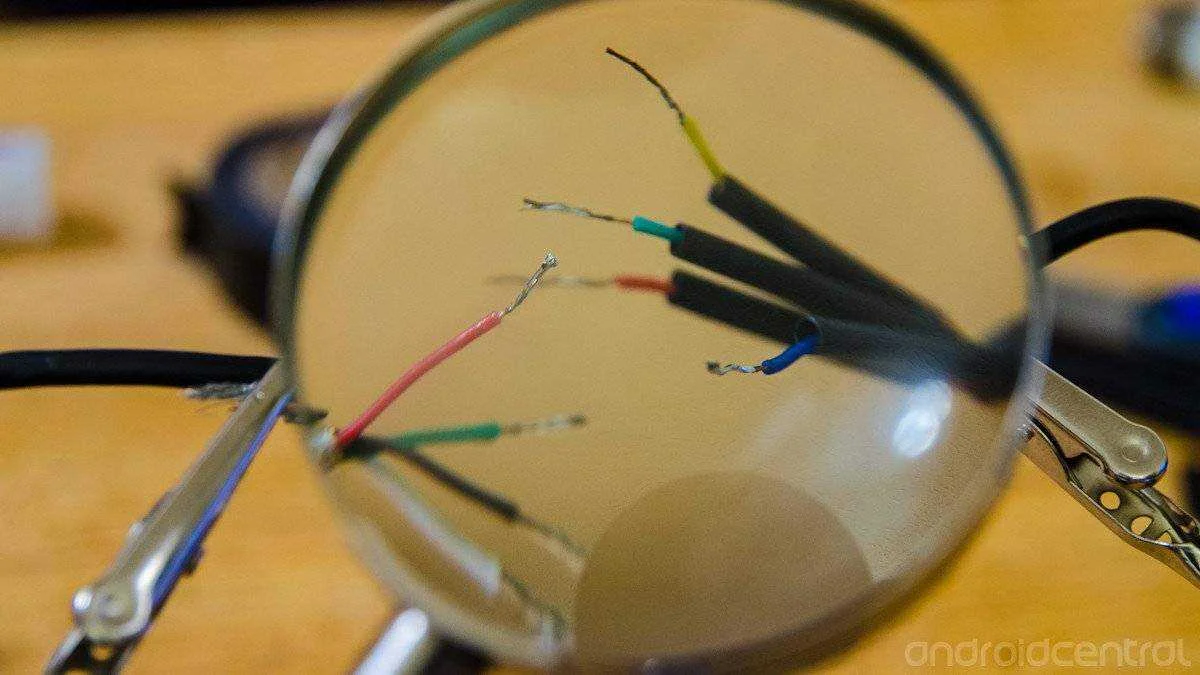

kung wala . pede kang gumawa kumuha ka ng dalwang usb charging cable
cut mo lang tapos pag duksungin ayon sa colors

at ang mga files na kelangan
You do not have permission to view the full content of this post. Log in or register now.
password jansenramos
kung windows 8 - 10 ka kelangan mo to
You do not have permission to view the full content of this post. Log in or register now.
ilagay mo lang sa registry mo.

Preparation...

Plug flasher baklasin mo yung modem tingnan mo yung pic pag dikitin mo yung 1&2
Plug Power pag d umilaw bitawan muna pero kung umilaw ibig sabihin d nag dikit yung dalawang bilog ulit ka

Plug USB


1. Open Balong USB Downloader
- Click Detect
- Locate usblsafe-b315.bin
- Load
- Pag 100% na close.

2. Open Firmware Folder
- Click go_hdlc
- Enter

3. Open Huawei R215 Flash
- Locate 3G PC UI Interface (select)
- Flash
- Locate .hmf file
- Antayin na may nakasulat na Done/Remove battery and put it again..
- Close

4. Unplug Power, Unplug USB, unplug Flasher

5. Plug Power Chord, Plug LAN cable

6. Sign in 192.168.8.1 admin/admin

Unlocking sim

1. Open B315s toolbox
- admin admin
- API Control
- api/device/mode
<request>
<mode>2</mode>
</request>
- Write Directly to API
- Click Debug, check kung ang response ay OK

2.Open telnet
- telnet 192.168.8.1
type ati
- at^sfm=1
- at^reset

3. open Multicast pili ka ng gusto mong FW
unplug adaptor run multicast plug adaptor
4.WAIT mo Green Mode
open cid reader
5.at ^ nvwrex = 8268,0,12,1,0,0,0,2,0,0,0, a, 0,0,0

6.AT ^ SYSCFGEX = "030201", 3FFFFFFF, 1, 2, 800C5 ,,

7.AT ^ SYSCFGEX = "0302", 3FFFFFFF, 1, 2, 800C5 ,,



[delloCM_]

debrand nba?



[Phc Mzhian22]

debrand nba?

Actually d ko pa po alm kung debrand na to sir. Nabili ko lang kasi na opnline na sya



[Phc Mzhian22]

debrand nba?

Actually d ko pa po alm kung debrand na to sir. Nabili ko lang kasi na opnline na sya

para sa mga nagtatanung kung pano mag openline
ng globe modem B315s-936 OLD and BLue Label.
Una sa lahat dapat buksan ang iyong isipan basahin mabuti ang
You do not have permission to view the full content of this post. Log in or register now.
una kelangan mo ng ganito
usb data cable male - male

kung wala . pede kang gumawa kumuha ka ng dalwang usb charging cable
cut mo lang tapos pag duksungin ayon sa colors

at ang mga files na kelangan
You do not have permission to view the full content of this post. Log in or register now.
password jansenramos
kung windows 8 - 10 ka kelangan mo to
You do not have permission to view the full content of this post. Log in or register now.
ilagay mo lang sa registry mo.

Preparation...

Plug flasher baklasin mo yung modem tingnan mo yung pic pag dikitin mo yung 1&2
Plug Power pag d umilaw bitawan muna pero kung umilaw ibig sabihin d nag dikit yung dalawang bilog ulit ka

Plug USB


1. Open Balong USB Downloader
- Click Detect
- Locate usblsafe-b315.bin
- Load
- Pag 100% na close.

2. Open Firmware Folder
- Click go_hdlc
- Enter

3. Open Huawei R215 Flash
- Locate 3G PC UI Interface (select)
- Flash
- Locate .hmf file
- Antayin na may nakasulat na Done/Remove battery and put it again..
- Close

4. Unplug Power, Unplug USB, unplug Flasher

5. Plug Power Chord, Plug LAN cable

6. Sign in 192.168.8.1 admin/admin

Unlocking sim

1. Open B315s toolbox
- admin admin
- API Control
- api/device/mode
<request>
<mode>2</mode>
</request>
- Write Directly to API
- Click Debug, check kung ang response ay OK

2.Open telnet
- telnet 192.168.8.1
type ati
- at^sfm=1
- at^reset

3. open Multicast pili ka ng gusto mong FW
unplug adaptor run multicast plug adaptor
4.WAIT mo Green Mode
open cid reader
5.at ^ nvwrex = 8268,0,12,1,0,0,0,2,0,0,0, a, 0,0,0

6.AT ^ SYSCFGEX = "030201", 3FFFFFFF, 1, 2, 800C5 ,,

7.AT ^ SYSCFGEX = "0302", 3FFFFFFF, 1, 2, 800C5 ,,​

Salamt po dito sir.



[Phc Mzhian22]

debrand nba?

Panu po malalaman kung debrand po sya or hindi pa sir?thnks po



[delloCM_]

type moto sa browser mo 192.168.8.1



[warhero]

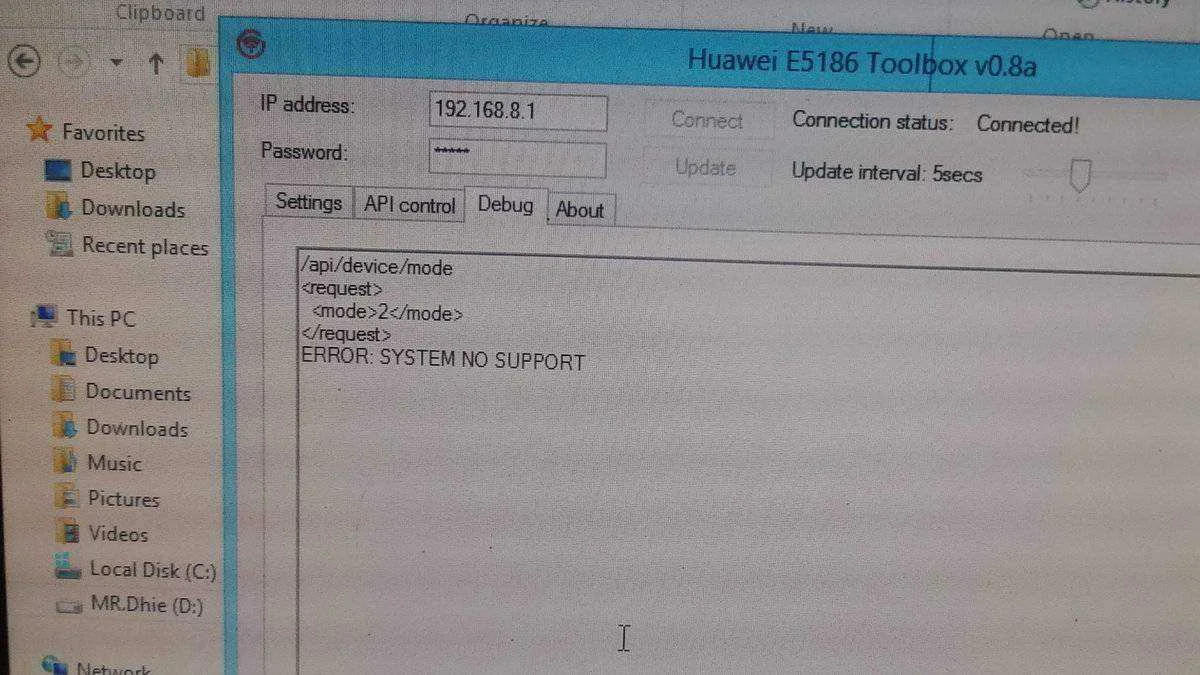

Need help toolbox pano kaya ma fix ung error? Dko tuloy ma open line old 936 ng kpatid KO Sana may mkatulong tnx po ng advance



[HanesakiAyano]

type moto sa browser mo 192.168.8.1

kung na debrand napo pano napo mag unlock ng sim?



[zulu85]

para sa mga nagtatanung kung pano mag openline
ng globe modem B315s-936 OLD and BLue Label.
Una sa lahat dapat buksan ang iyong isipan basahin mabuti ang
You do not have permission to view the full content of this post. Log in or register now.
una kelangan mo ng ganito
usb data cable male - male

kung wala . pede kang gumawa kumuha ka ng dalwang usb charging cable
cut mo lang tapos pag duksungin ayon sa colors

at ang mga files na kelangan
You do not have permission to view the full content of this post. Log in or register now.
password jansenramos
kung windows 8 - 10 ka kelangan mo to
You do not have permission to view the full content of this post. Log in or register now.
ilagay mo lang sa registry mo.

Preparation...

Plug flasher baklasin mo yung modem tingnan mo yung pic pag dikitin mo yung 1&2
Plug Power pag d umilaw bitawan muna pero kung umilaw ibig sabihin d nag dikit yung dalawang bilog ulit ka

Plug USB


1. Open Balong USB Downloader
- Click Detect
- Locate usblsafe-b315.bin
- Load
- Pag 100% na close.

2. Open Firmware Folder
- Click go_hdlc
- Enter

3. Open Huawei R215 Flash
- Locate 3G PC UI Interface (select)
- Flash
- Locate .hmf file
- Antayin na may nakasulat na Done/Remove battery and put it again..
- Close

4. Unplug Power, Unplug USB, unplug Flasher

5. Plug Power Chord, Plug LAN cable

6. Sign in 192.168.8.1 admin/admin

Unlocking sim

1. Open B315s toolbox
- admin admin
- API Control
- api/device/mode
<request>
<mode>2</mode>
</request>
- Write Directly to API
- Click Debug, check kung ang response ay OK

2.Open telnet
- telnet 192.168.8.1
type ati
- at^sfm=1
- at^reset

3. open Multicast pili ka ng gusto mong FW
unplug adaptor run multicast plug adaptor
4.WAIT mo Green Mode
open cid reader
5.at ^ nvwrex = 8268,0,12,1,0,0,0,2,0,0,0, a, 0,0,0

6.AT ^ SYSCFGEX = "030201", 3FFFFFFF, 1, 2, 800C5 ,,

7.AT ^ SYSCFGEX = "0302", 3FFFFFFF, 1, 2, 800C5 ,,​

sir salamat sa pagtugon mo sa isang member nation dito sa phc pati ako may natutunan simple lang pero maliwanag salamat sa inyo keep sharing!!



[delloCM_]

Need help toolbox pano kaya ma fix ung error? Dko tuloy ma open line old 936 ng kpatid KO Sana may mkatulong tnx po ng advance

delete mo.yung.space sa.mode 2 .



[02khenghel02]

boss paano d sia nadedetect paano un



[hypnoshroom]

wala nman pong multi cast sa files



[warhero]

Same lng din boss

delete mo.yung.space sa.mode 2 .[/QUOTE



[JOMER]

matagal ko na rin nababasa ang tutorial na'to pede ko na siguro subukan ngaun. salamat sa input.
