❓ Help Penge ako MIKROTIK CONFIGURATIONS

[jaworzkie23]

hello po, manghihinge sana ako sample MIKROTIK CONFIGURATIONS niyo since nasira po yung old ko tapos di naka saved kasi nalimot ko na papano baka sakaling meron kayo dyan magamit ko and ma review ko. Salamat.



[GR33NR4T]

Okay po pag uwi ko po ng bahay nasa labas lang po nag kakape lang



[GR33NR4T]

Ano pong config gusto nyo po?



[jaworzkie23]

Okay po pag uwi ko po ng bahay nasa labas lang po nag kakape lang

hello po sir yung pang PC alng po sana ether1 for ISP ether 2,3 and 4 is LANS lang. Limot ko na kasi yung dating ginawa ko para mag work yun. Hinge ako sir if free ka na.



[jaworzkie23]

Ano pong config gusto nyo po?

email ko po pala sir is papethcasili@gmail.com.



[jaworzkie23]

Okay po pag uwi ko po ng bahay nasa labas lang po nag kakape lang

btw sir HAPLITE po itong gamit ko.



[GR33NR4T]

hehe pag po ganun , default config will do na po. just reset your mikrotik router po then first reboot nya accept nyo lang po ung default configuration provided by mikrotik



[jaworzkie23]

hehe pag po ganun , default config will do na po. just reset your mikrotik router po then first reboot nya accept nyo lang po ung default configuration provided by mikrotik

ayaw nyang gumana tapos na reset na kasi sya like walang natira.Penge makahinge sample config mo?



[jaworzkie23]

hehe pag po ganun , default config will do na po. just reset your mikrotik router po then first reboot nya accept nyo lang po ung default configuration provided by mikrotik

hinge po ako sample



[GR33NR4T]

ayaw nyang gumana tapos na reset na kasi sya like walang natira.Penge makahinge sample config mo?

Ahmm gagana po yan pag ni reset nyo po kasi babalik po standard default configuration po yan

para po ma reset : hugot muna power adapter then hold nyo po ung reset button wag nyo po bibitawan then saksak mo ang power supply wag nyo po bibitawan ang reset until mag blink/beeb na kayo marinig po.



[GR33NR4T]

hinge po ako sample

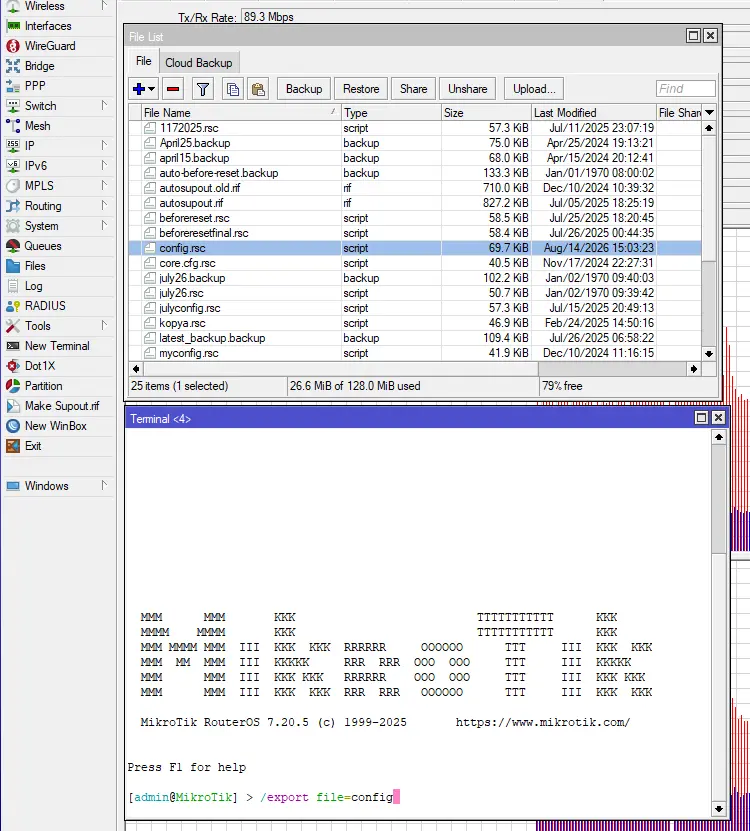

ung sample po nasa mikrotik nyo na din po mismo after ma reset you can extract the config po using command sa terminal

/export file=config



[GR33NR4T]



[GR33NR4T]

NORMAL CONFIG PO

/interface bridge
add name=bridge

/interface bridge port
add bridge=bridge interface=ether2
add bridge=bridge interface=ether3
add bridge=bridge interface=ether4

/ip address
add address=192.168.88.1/24 interface=bridge

/ip pool
add name=LAN_POOL ranges=192.168.88.10-192.168.88.254

/ip dhcp-server
add name=LAN_DHCP interface=bridge address-pool=LAN_POOL disabled=no

/ip dhcp-server network
add address=192.168.88.0/24 gateway=192.168.88.1 dns-server=192.168.88.1

/ip dhcp-client
add interface=ether1 disabled=no

/ip firewall nat
add chain=srcnat out-interface=ether1 action=masquerade



[GR33NR4T]

hinge po ako sample

jaworzkie23 Here po DUAL WAN CONFIG WITH DETAILS

You do not have permission to view the full content of this post. Log in or register now.



[jaworzkie23]

jaworzkie23 Here po DUAL WAN CONFIG WITH DETAILS


[Hidden content]

salamat po sir..



[jaworzkie23]

sir nag direct message po ako sayo.
