❓ Help Is my UPS now damaged? Palit UPS na ba?

ceejaybassist

Forum Veteran

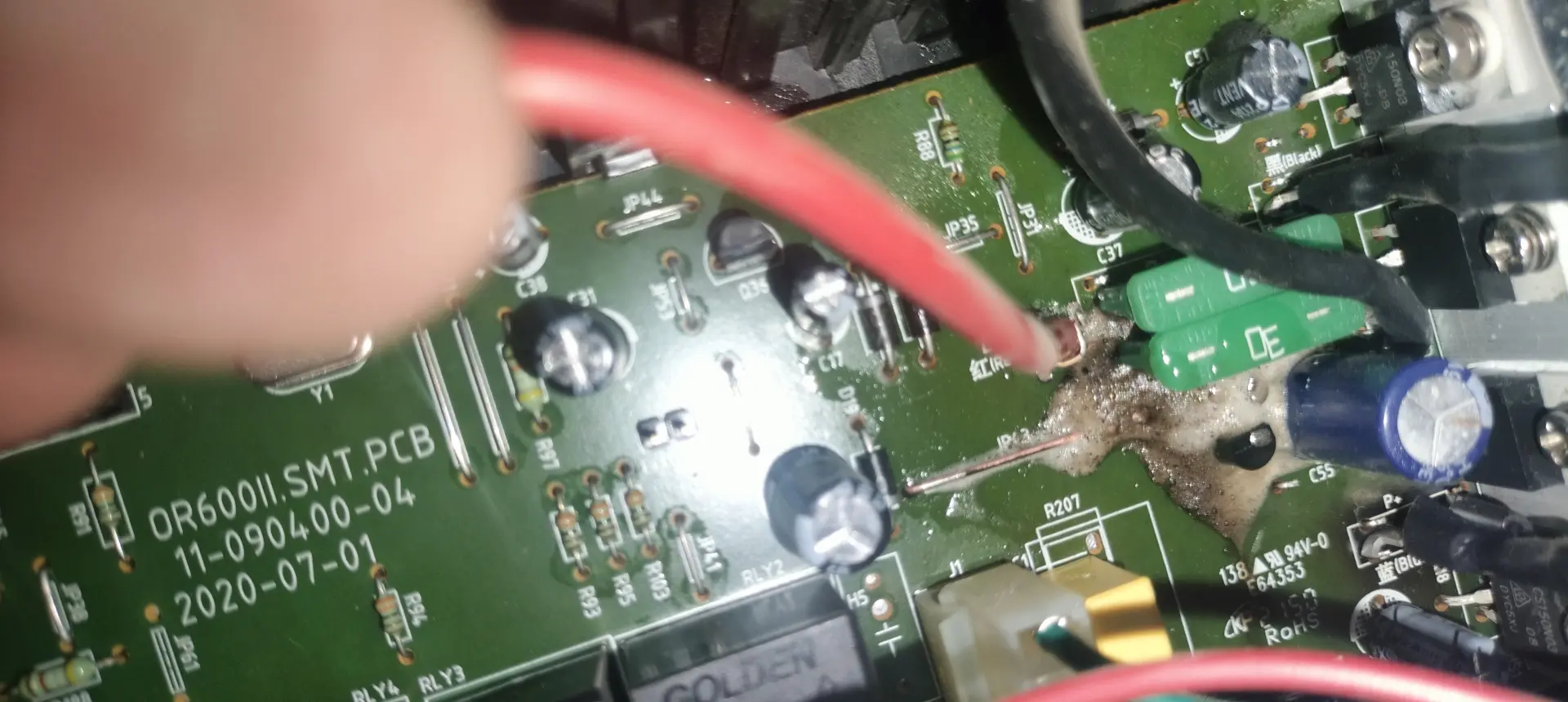

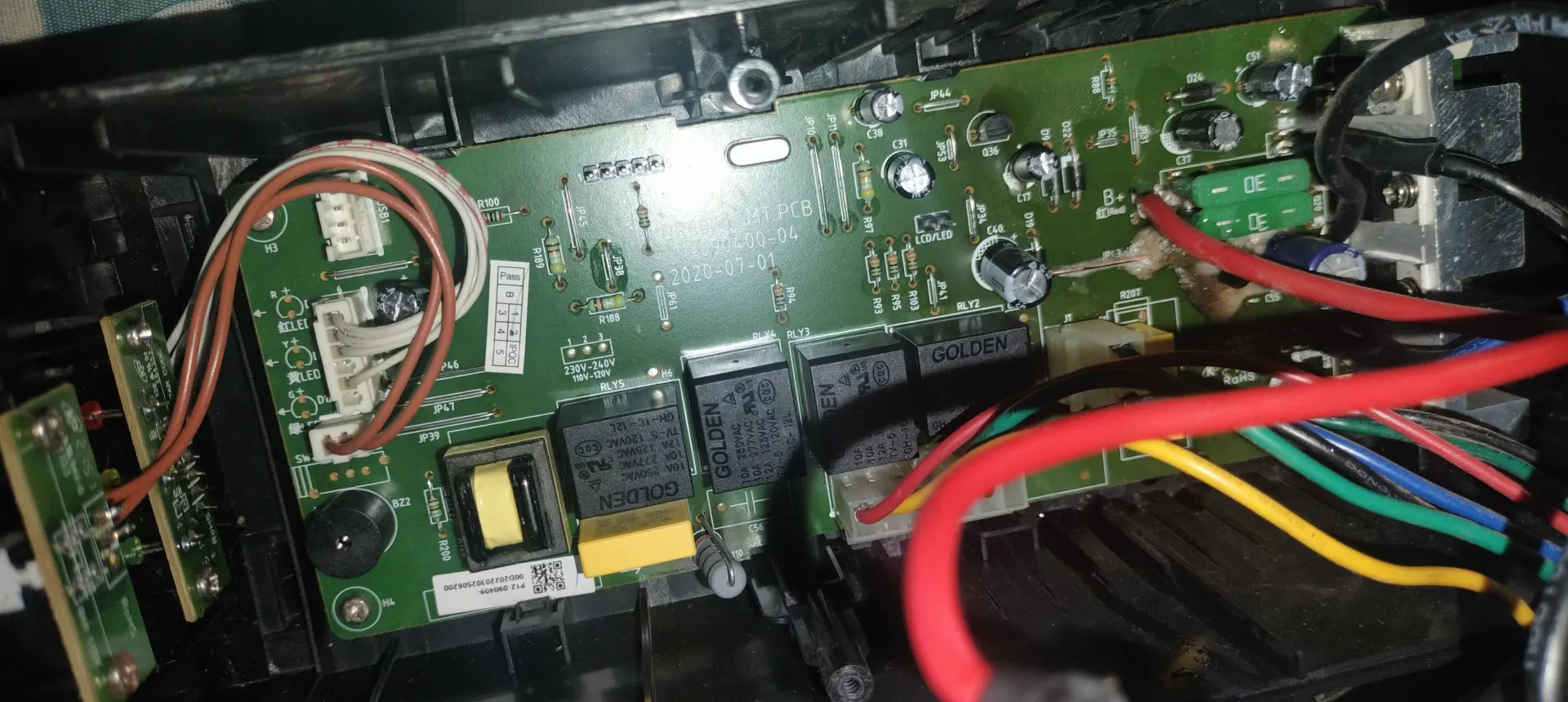

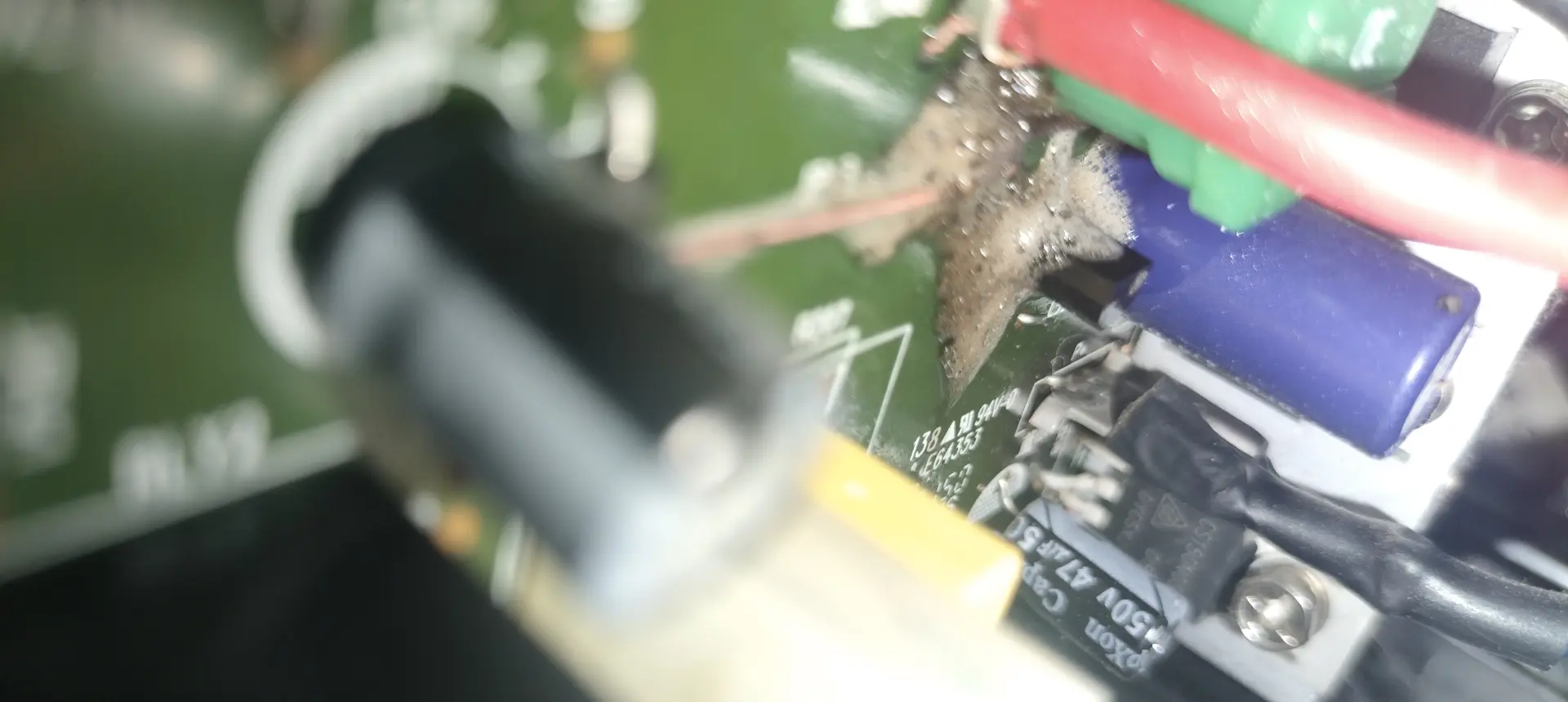

What is this liquid sa board ng UPS ko?
Is it from the "blown" caps?
Di ko alam kung blown nga since it's still intact (from the ***** eye).
Nung una akala ko is glue siya. But when i tried touching it via the tip ng screw driver ko, it's really liquid.
The battery (13 month old) is hindi naman siya lumobo or what.
I tested the battery and 12.2v-12.25v pa rin siya.
This UPS is 5 years old now, if I remember it correctly.

The symptoms are:
  • Initital symptom: Bigla na lang tumunog na para bang palobat na kahit naka-plug naman (probably no to minimum load since nakapatay naman PC ko, just waiting for it to WOL). Tinry ko i-off (na hindi hinuhugot sa saksakan), the alam is still there. Tinry ko hugutin sa saksakan. Nawala yung alarm. Sinaksak ko ulit, after 1 minute, nag-alarm na naman.

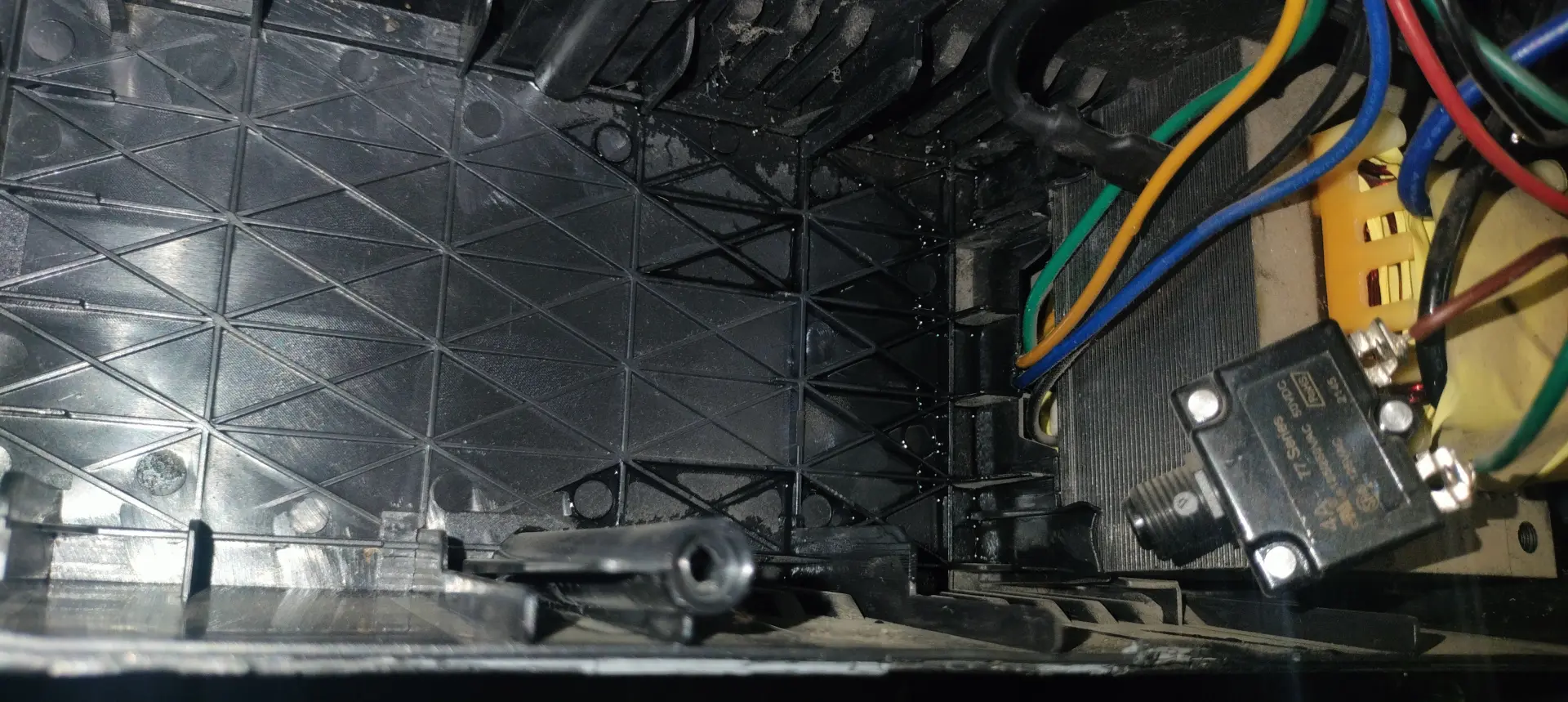

  • I opened it, and during opening it (siyempre upsidedown siya since nasa ilalim yung screw niya), a few liquid (na di ko napansin) was slowly coming out of the case.
  • After opening, tried removing the red/black connectors to test the battery, and 12.2-12.25v pa rin naman siya.
  • After ko ibalik conenctors, charging light (blinking orange) is there even if hindi naman naka-plug at hindi rin naka-on yung UPS.

So palit UPS na ba 'to since intact naman (physically and voltage-wise) yung battery na 13 months old pa lang.
