USB Camera Pro (v12.0.9 Build 719)
USB Camera enables Android devices to interface with USB WebCams or video capture cards via USB-OTG. The application functions as a local recorder/snapper or a wireless IP Camera using integrated RTSP and HTTP Servers, supporting bi-directional audio and browser-based monitoring.Technical Specifications
| Category | Specification / Details |
|---|---|
| Version | 12.0.9 build 719 [Patched/Premium] |
| Android OS | 5.0+ (HEVC), 9.0+ (Camera Permission required), 10.0+ (AV1) |
| Architecture | arm64-v8a, armeabi-v7a, x86, x86_64 |
| Driver Type | Userspace driver (limited to app-specific use) |
| Protocol Support | RTSP, HTTP, RTMP/RTMPS, SRT |
| Video Codecs | H.264, H.265/HEVC, AV1, MJPG, YUY2, P010, NV12 |
| Audio Features | Bi-directional audio, USB Audio mixing, Bluetooth/Headset support |
Key Functionality
- Streaming & Broadcasting: Pushes media to multiple RTMP/SRT servers simultaneously. Supports YouTube Live via HEVC/AV1 over RTMP.
- IP Camera Integration: Built-in RTSP and HTTP servers for remote security monitoring.
- Advanced Overlays: Supports Picture-in-Picture (PiP), GPS data, timestamps, speedometers, and animated watermarks (GIF/WebP).
- Motion Detection: Automated recording triggered by motion with FTP upload and email notification capabilities.
- Loop Recording: Auto-segmentation and auto-deletion of old archives for Dash Cam utility.
- FPV Support: Side-by-Side (SBS) view compatible with FPV goggles and VR headsets.
- Background Operation: Seamlessly switches between foreground and background without interrupting recording.
Hardware Compatibility
| Device Type | Specific Chipsets / Requirements |
|---|---|

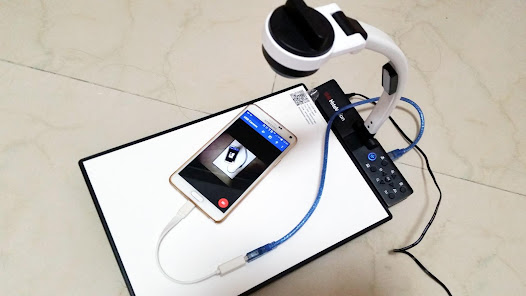

| UVC WebCams | Standard UVC with internal or external audio input |

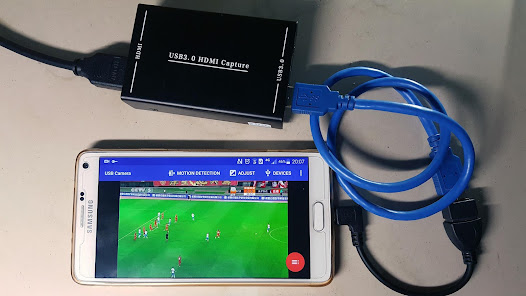

| Video Grabbers | HDMI capture cards (up to 4K), UVC video grabbers (Progressive/Interlaced) |
| EasyCap | UTV007, HTV600, HTV800, STK1160, EM2860, SMI2021 |
| Specialized | Windows Hello/IR Cameras, USB Endoscopes (non-UVC Geek szitman) |
Version 12.0.9 Changelog
- Implemented animation for long text overlays.
- Added customizable background colors for text overlays.
- Added support for animated image watermarks (GIF/WebP).
- Integrated location metadata into video file headers.
- Enabled simultaneous overlay of system screen and internal camera onto USB video feed.
- Video Overlay visibility can now be toggled in Preview settings.
