COLORFUL Launches Flagship iGame X870E VULCAN OC Motherboard
Futuristic Design with Smart Display Integration

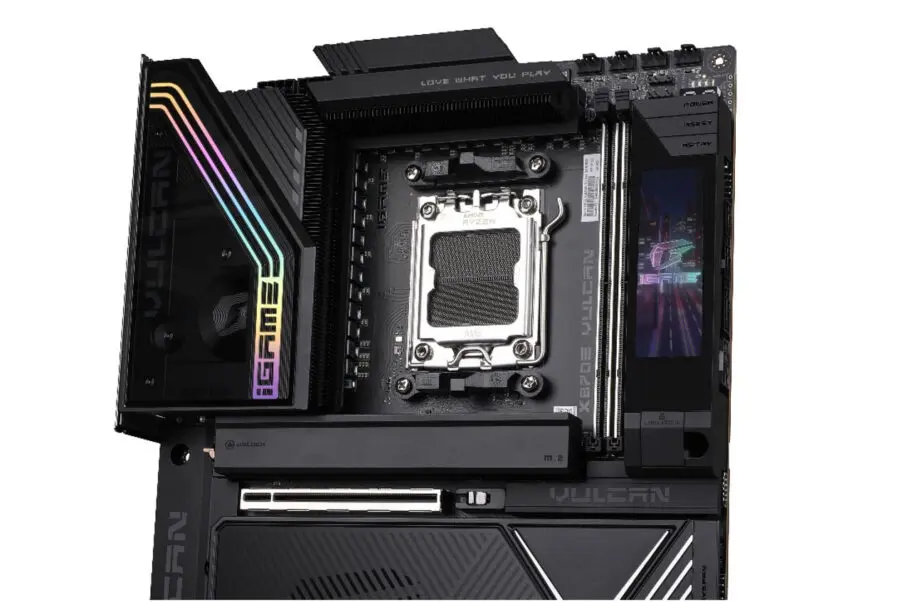

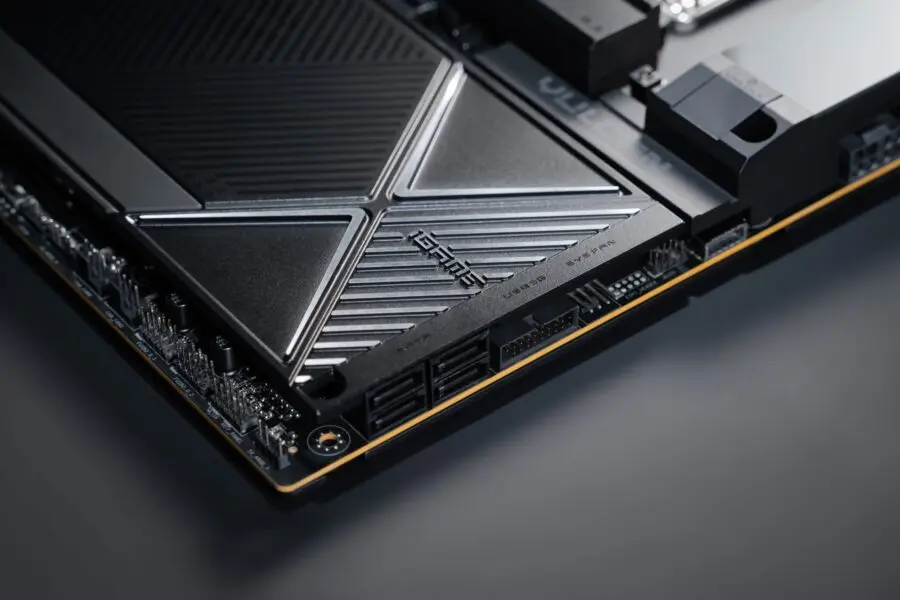

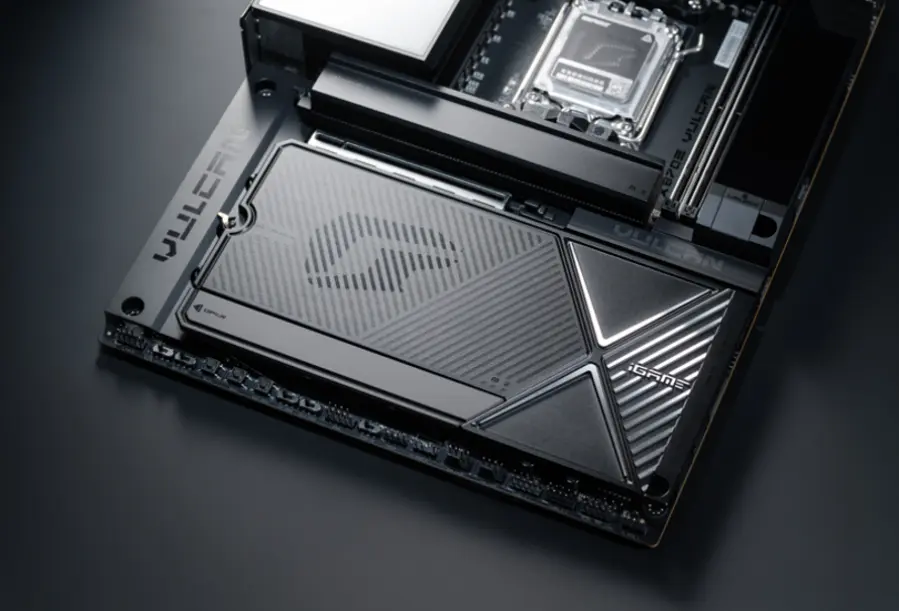

The iGame X870E VULCAN OC retains the Vulcan series’ signature futuristic aesthetics, finished in deep black with multi-layer metal heatsinks that deliver both visual impact and thermal efficiency. A fin-array cooling structure and integrated full-coverage backplate ensure long-term stability under sustained high loads.
- Customizable iGame Smart LCD screen positioned beside the VRM area
- 268×800-pixel display for system monitoring and visual customization
- Integrated iGame RGB lighting
These elements combine to give the motherboard a distinctly futuristic appearance while maintaining a focus on airflow and durability.
Built for high-current workloads, the iGame X870E VULCAN OC employs a robust power design tailored for overclocking and next-generation CPUs.
- 18 + 2 + 2 phase power design with 110A DrMOS stages
- Dual 8-pin CPU power connectors for sustained high-load operation
- Server-grade 10-layer PCB with electroless silvering process
- Dual-channel DDR5 memory support up to 10400MT/s
- Intel XMP and AMD EXPO support
This configuration delivers cleaner signal transmission and enhanced stability, particularly during extreme tuning scenarios.
The motherboard is equipped with a comprehensive set of physical controls and firmware tools designed to streamline manual tuning and competitive benchmarking.
- On-board shortcut buttons for rapid overclocking adjustments
- Debug LED display for real-time system diagnostics
- Dual BIOS support with hardware switching
- BLCK external frequency adjustment for fine-grained tuning
Expansion and connectivity options reflect the latest platform standards:
- 1 × PCIe 5.0 x16 slot
- 5 × M.2 slots, including 3 × PCIe 5.0 interfaces
- 5GbE wired LAN
- Integrated Wi-Fi 7 wireless module
To maximize performance from AMD’s X3D processors, COLORFUL has introduced the X3D AI Turbo, a specialized tuning feature exclusive to the flagship iGame X870E VULCAN OC motherboard.
- X3D AI Turbo tuning function for AMD Ryzen X3D processors
- Dedicated X3D One-Click Overclocking button on the rear I/O
- Instant performance uplift without entering the BIOS

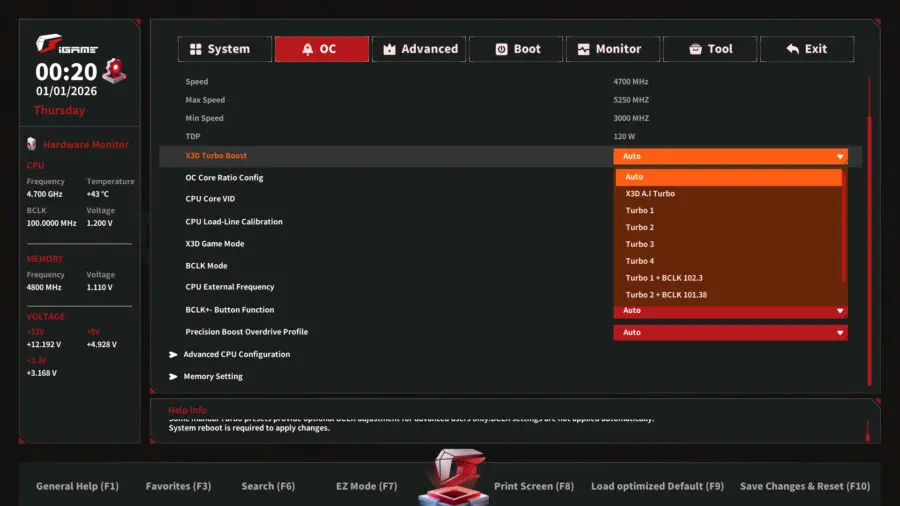

- X3D AI High Frame Rate Mode integrated into BIOS
- Automatic optimization of base clock and PBO parameters
- Multiple manual profiles to balance performance and stability
- These features allow gamers to unlock higher frame rates quickly while maintaining system reliability.
