❓ Help Openwrt add Vlan Configuration Without Switchin Menu

[sk_warlock]

Paano Mag Add Vlan sa Router na wala siyang Switch menu sa Network?



[nitro7]

VLANs happen at Layer 2 (Switch). kung walang L2 capability, either hardware of software ang device, you probably can't do this.



[ceejaybassist]

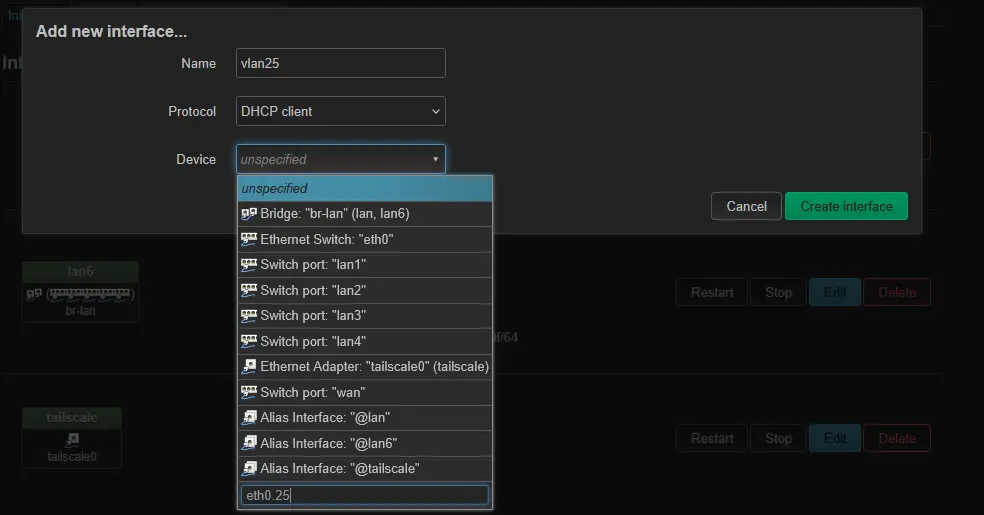

Gawa ka muna interface sa Network > Interfaces
Para mag-add ng Interface para sa VLAN, enter ka lang sa custom, let's say for vlan 25, then eth0.25...



Sa tagging/untagging naman..

Sa OpenWRT 21.x.x and above, nakatago na yung switch menu niya, unlike s OpenWRT 19.x.x and below.

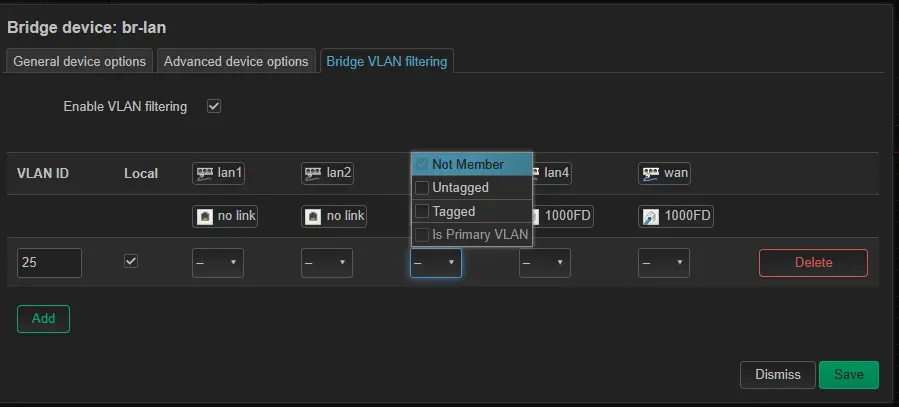

Network > Interfaces > Devices > Configure br-lan > Bridge VLAN filtering

diyan pwede ka na mag tag/untag vlans
