Help sa mga matindi dyan paano gumawa ng 3 bit adder using this materials:
2 pc Breadboard
4 pc LED (Cout - Red, S2 - Green, S1 - Yellow, S0 - Blue)
2 pcs 7486 (XOR GATE)
2 pc 7408 (AND GATE)
1 pc 7432 (OR GATE)
1 pc 6 pin Dip Swi

tch
4 1kohm Resistor
4 pc 330 ohm Resistor
Connecting Wires (Solid Wire or Jumper wires)

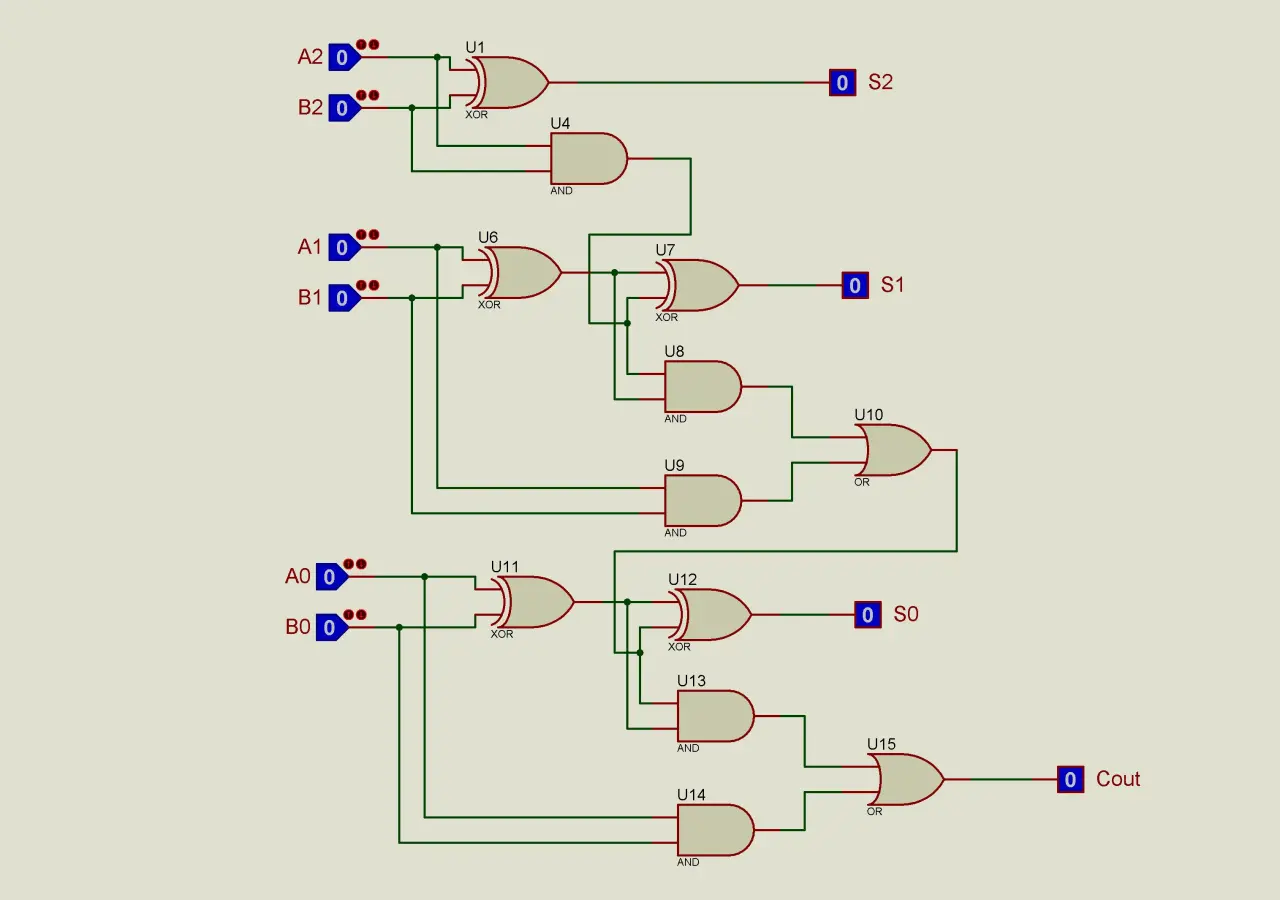

Nasa image po yung Circuit, mas mainam if naka video po...Thanks po in advance
•••
