help sa mga matindi dyan paano gumawa ng 3 bit adder using this materials:
2 pc Breadboard
4 pc LED (Cout - Red, S2 - Green, S1 - Yellow, S0 - Blue)
2 pcs 7486 (XOR GATE)
2 pc 7408 (AND GATE)
1 pc 7432 (OR GATE)
1 pc 6 pin Dip Switch
4 1kohm Resistor
4 pc 330 ohm Resistor
Connecting Wires (Solid Wire or Jumper wires)

Mas mainam if naka video po...Thanks po in advance



[Solanova]

Sa YT may tuts dun.



[Rastafries420]

Sa YT may tuts dun.

wla dun 3 bit adder saka Isang breadboard lang gamit

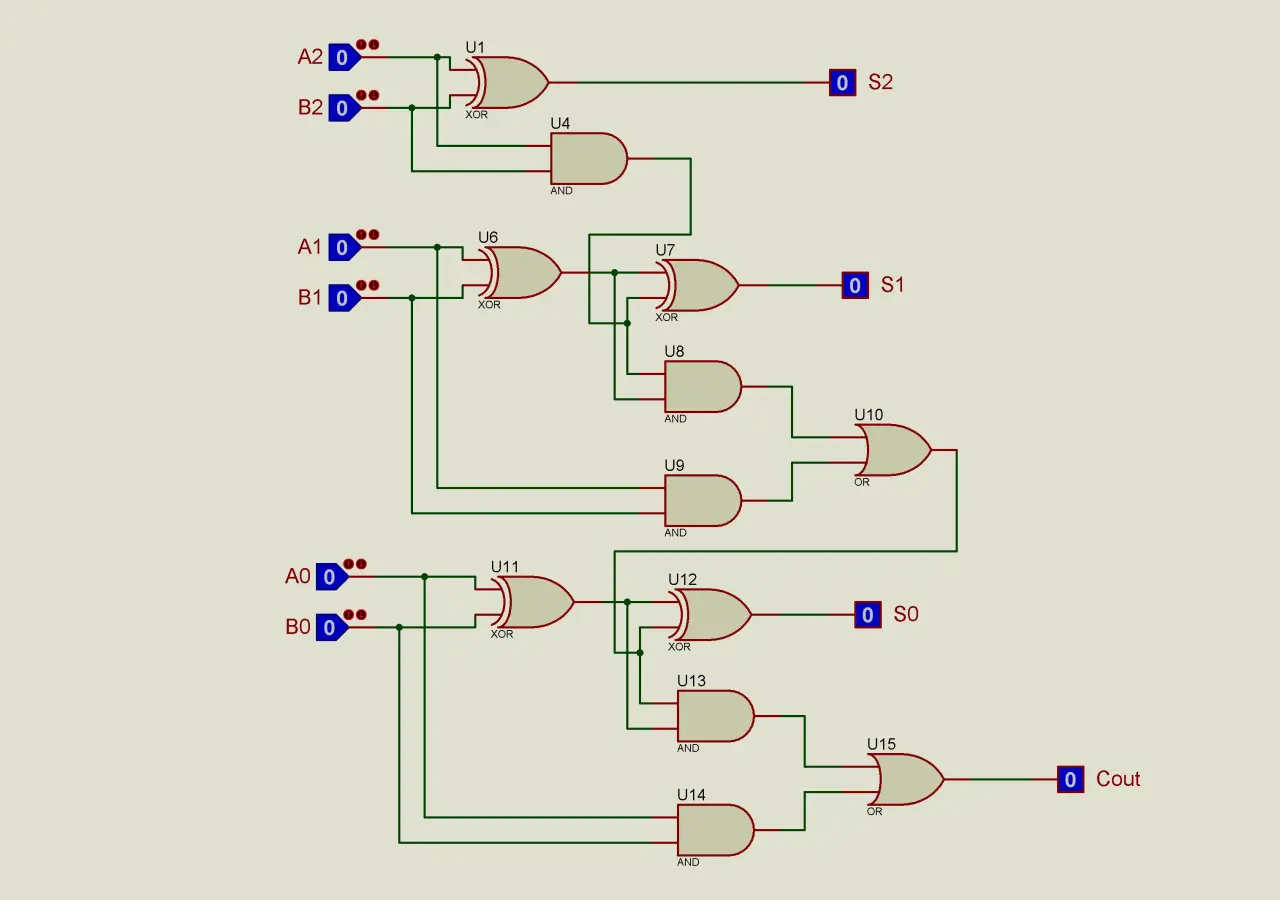

ito po yung circuit
