❓ Help How to BRIDGE PLDT to MIKROTIK via PPOE?

[D34DS3C]

Good day mga master
baka meron kayo tutorial how to bridge PLDT modem to mikrotik via PLDT PPOE account
as of now naka bridge na sya sa TPLINK gusto ko sana ilipat sa mikrotik para mas manage yung bandwith
Thank you!



[NGANIBAYA]

Super Easy lng yan TS.

Follow mo lang ito.

1. Login ka sa Mikrotik using Admin Access
2. Then select PPP Interface >> Interface >> Press "+" Button
3. Then select PPPoE Client >> General >> Interfaces >> Select mo kung saan nkasaksak ung uplink (PLDT Router)
4. Then select Dial Out >> Input mo ung PLDT PPPoE Username and Password mo >> Profile = default >> Keep Alive Timeout = 10 >> Check box mo ang "Add default Route" kung di ka nka static routing >> Default Distance = 1. The rest iwan mo na by default
5. Click Apply >> Ok

w8 mo lng may authenticate yan kay PLDT. Much better na ireboot mo ang PLDT modem pra ma refresh ung MAC Address n binded dun sa PPPoE Account.

Good Luck TS.



[D34DS3C]

Super Easy lng yan TS.

Follow mo lang ito.

1. Login ka sa Mikrotik using Admin Access
2. Then select PPP Interface >> Interface >> Press "+" Button
3. Then select PPPoE Client >> General >> Interfaces >> Select mo kung saan nkasaksak ung uplink (PLDT Router)
4. Then select Dial Out >> Input mo ung PLDT PPPoE Username and Password mo >> Profile = default >> Keep Alive Timeout = 10 >> Check box mo ang "Add default Route" kung di ka nka static routing >> Default Distance = 1. The rest iwan mo na by default
5. Click Apply >> Ok

w8 mo lng may authenticate yan kay PLDT. Much better na ireboot mo ang PLDT modem pra ma refresh ung MAC Address n binded dun sa PPPoE Account.

Good Luck TS.

thanks boss. nagawa ko na connected na PPOE account pero no internet bossing



[NGANIBAYA]

thanks boss. nagawa ko na connected na PPOE account pero no internet bossing

Sori I forgot.. Next

Firewall >> NAT >> Select "+"
Chain >> srcnat >> Out Interface >> "Select mo ung PLDT PPPoE out na ginawa mo" >> Action = Masquerade



[JokeUnavailbe]

Sori I forgot.. Next

Firewall >> NAT >> Select "+"
Chain >> srcnat >> Out Interface >> "Select mo ung PLDT PPPoE out na ginawa mo" >> Action = Masquerade

Boss, baka pwede patulong sa mikrotik haplife, gusto ko po sanang gawing voucher piso wifi. May aep110 na kasi ako na ap.



[D34DS3C]

Sori I forgot.. Next

Firewall >> NAT >> Select "+"
Chain >> srcnat >> Out Interface >> "Select mo ung PLDT PPPoE out na ginawa mo" >> Action = Masquerade

Nagawa ko na boss, no internet padin, yung status sa DHCP Client is "Searching" lang ayaw mag bound, pero may nakukuha na akong STATIC IP sa from PPOE account ni PLDT



[NGANIBAYA]

Nagawa ko na boss, no internet padin, yung status sa DHCP Client is "Searching" lang ayaw mag bound, pero may nakukuha na akong STATIC IP sa from PPOE account ni PLDT

Di na gagamitin yan DHCP Client. kc PPPoE authentication na and Static IP nman si PPPoE ni PLD, so need mo gumawa ng routing kay mikrotik to route all traffic papunta kay PLDT PPPoE



[D34DS3C]

Di na gagamitin yan DHCP Client. kc PPPoE authentication na and Static IP nman si PPPoE ni PLD, so need mo gumawa ng routing kay mikrotik to route all traffic papunta kay PLDT PPPoE

may sample ka bossing? tho may IP ng nakukuha ang mga pc sa eth2 ni MT, maglalagay ako new address list sa interface ni PPOE? thanks ulit sa reply



[NGANIBAYA]

may sample ka bossing? tho may IP ng nakukuha ang mga pc sa eth2 ni MT, maglalagay ako new address list sa interface ni PPOE? thanks ulit sa reply

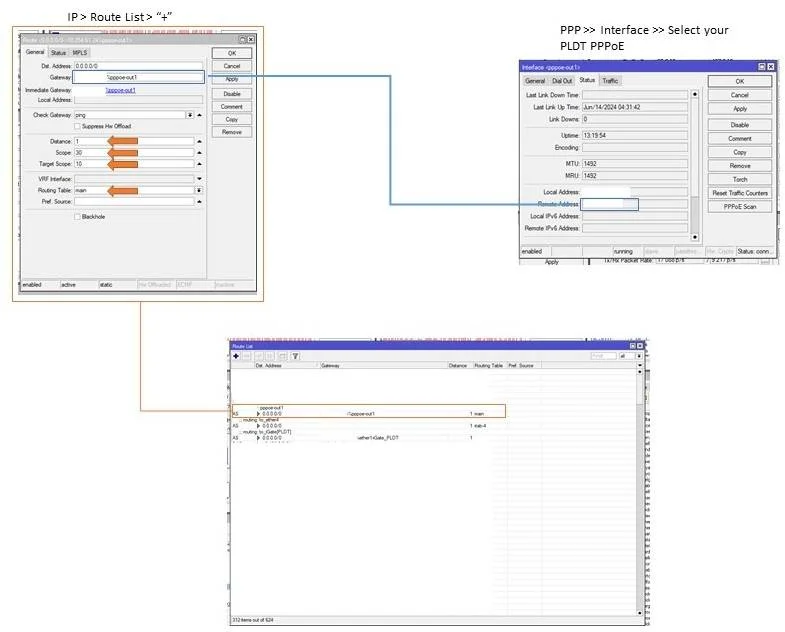

Ito sample sa routing. Mas pina simple ko pra mdali mo mkuha nka loadbalancing + failover kc ung dalawang SME Line ko, at ung iba static routing, hmm.. btw iba iba kc yan settings depende sa static IP mo n bigay ni PLDT, ung mga nka hide ko is kung mapapansin mo sa mikrotik mo may IP yan, un ilagay mo sa new route n gagawin mo, see sample below. then kung may exisiting routing table ka s main disable mo muna pra pumasok dyan s gagawin mo ung traffic.
