🎓 Academic Cisco Packet Tracer

[Koykoy200078]

Pwde to pa patulong >_< hindi papo kasi ako naka try mag networking gamit cisco packet tracer at limited lang po kasi alam ko usually basic networking lang maliban po dito sa binigay nang prof nami. maliban din po sa manual calculation ng subnets, sapag config lang yung unfamiliar saakin




Configure the network as follows:
1) You have been allocated subnet 192.168.1.0/24.
Subnet this into four subnets as follows
2) Subnet 1 for site 1
3) Subnet 2 for the link between R1 and the Internet Router
4) Subnet 3 for site 2
5) Subnet 4 for the link between R2 and the Internet Router

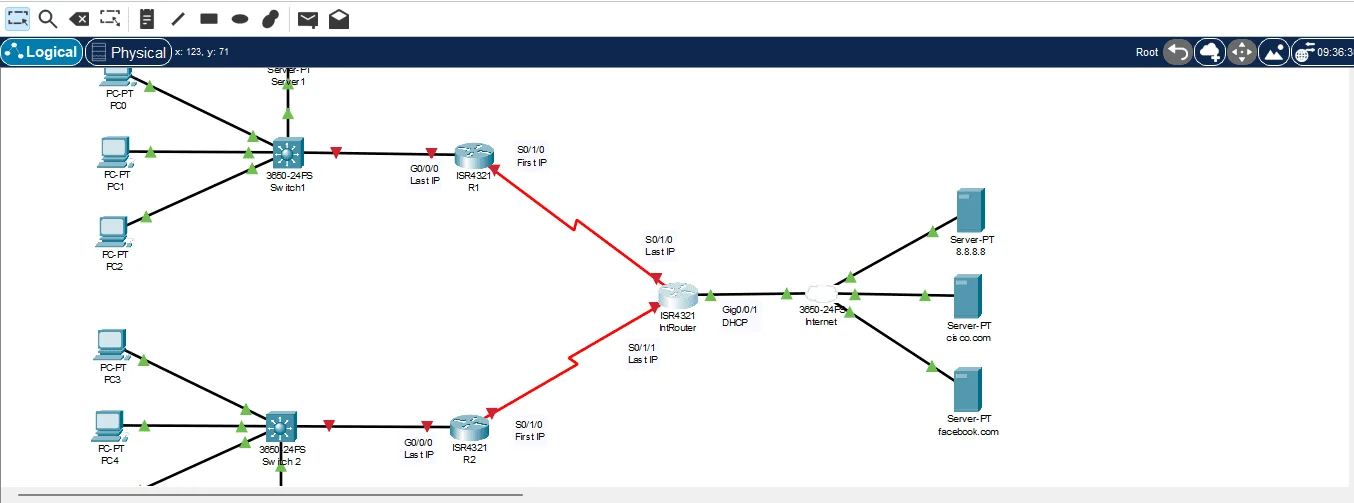

6) Configure the routers per the instructions in the diagram.
7) Verify that PCs can access cisco.com and facebook.com using their browsers

NOTE:
The DHCP servers and switches have already been pre-configured, so you can omit those steps.



[sirlloyd]

pa bm lods, need to know din hahahah



[Josemari_10]

lakas bossing
