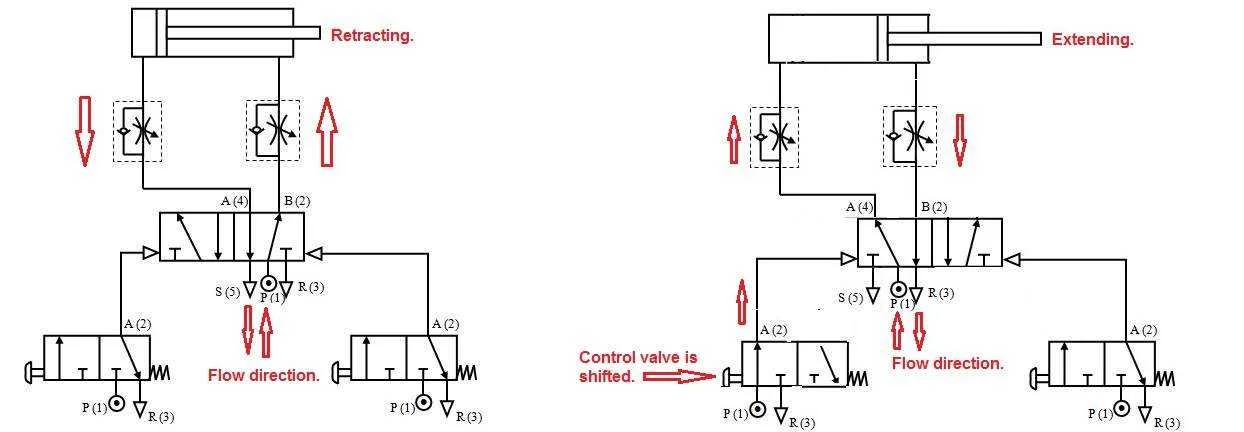

TS, P(1) yung line na may constant high pressure, iyan yung line na galing sa source ng pressure, like Air tank. Sa drawing mo, under pressure yung right side ng piston (kaya hinila niya papasok sa cylinder yung rod), ngayon kung i-press mo yung control valve sa bottom left side, magsi-shift yung daloy ng hangin sa left side ng piston at itutulak niya palabas ng cylinder yung rod.
