🎓 Academic Pagelp po SRB problem

[Itachi03]

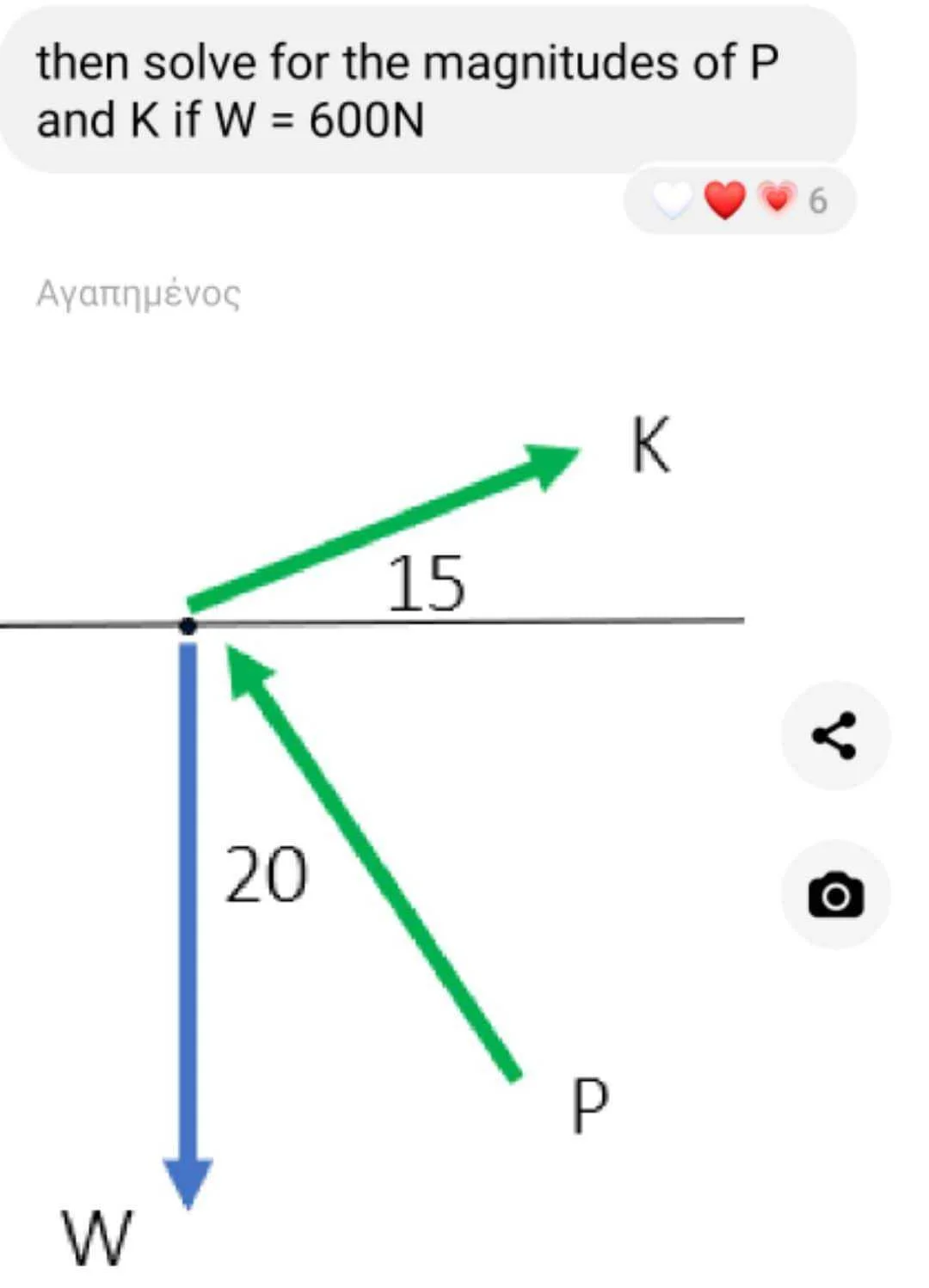

mga boss baka po may engg student dyan pahelp naman po sa problem na to. salamat po



[PanicMortgage22]

paki-double check na lang if tama hahaha
plug-in mo na lang yung value ng W

assumption ko pala is positive X ung to the right tapos positive Y ung upwards
You do not have permission to view the full content of this post. Log in or register now.



[Itachi03]

paki-double check na lang if tama hahaha
plug-in mo na lang yung value ng W

assumption ko pala is positive X ung to the right tapos positive Y ung upwards
You do not have permission to view the full content of this post. Log in or register now.

ok po salamat po

paki-double check na lang if tama hahaha
plug-in mo na lang yung value ng W

assumption ko pala is positive X ung to the right tapos positive Y ung upwards
You do not have permission to view the full content of this post. Log in or register now.

need pa po ba ilagay sa quadrant 2 si force P?



[PanicMortgage22]

si force P?

Si force P kasi, based dun sa free body diagram na binigay mo, ang direction is upwards na leaning to the left. So bali yung X-component niya ay negative kasi to the left. Tapos yung y-component niya ay positive kasi upwards
