🎓 Academic Logic Gates to Ladder Diagram conversion

Status
Not open for further replies.

DrRyouske

Enthusiast

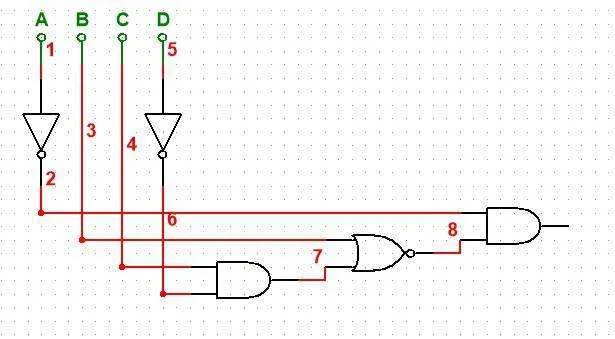

Pahelp naman po sa may idea about sa plc ladder diagram in logic gates, naka ilang try na po kasi ako ng pagconvert nito pero di parin po tugma sa output nya yung gawa ko maghapon na po kong nagtatry :(
ladder diagram.webp

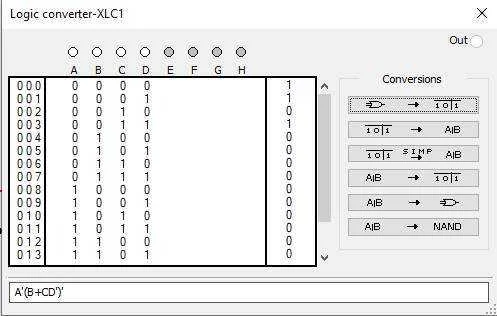

ito po yung supposedly truth table nya, and as you can see po tatlo lang po yung dapat maging true or on.

truth table.webp

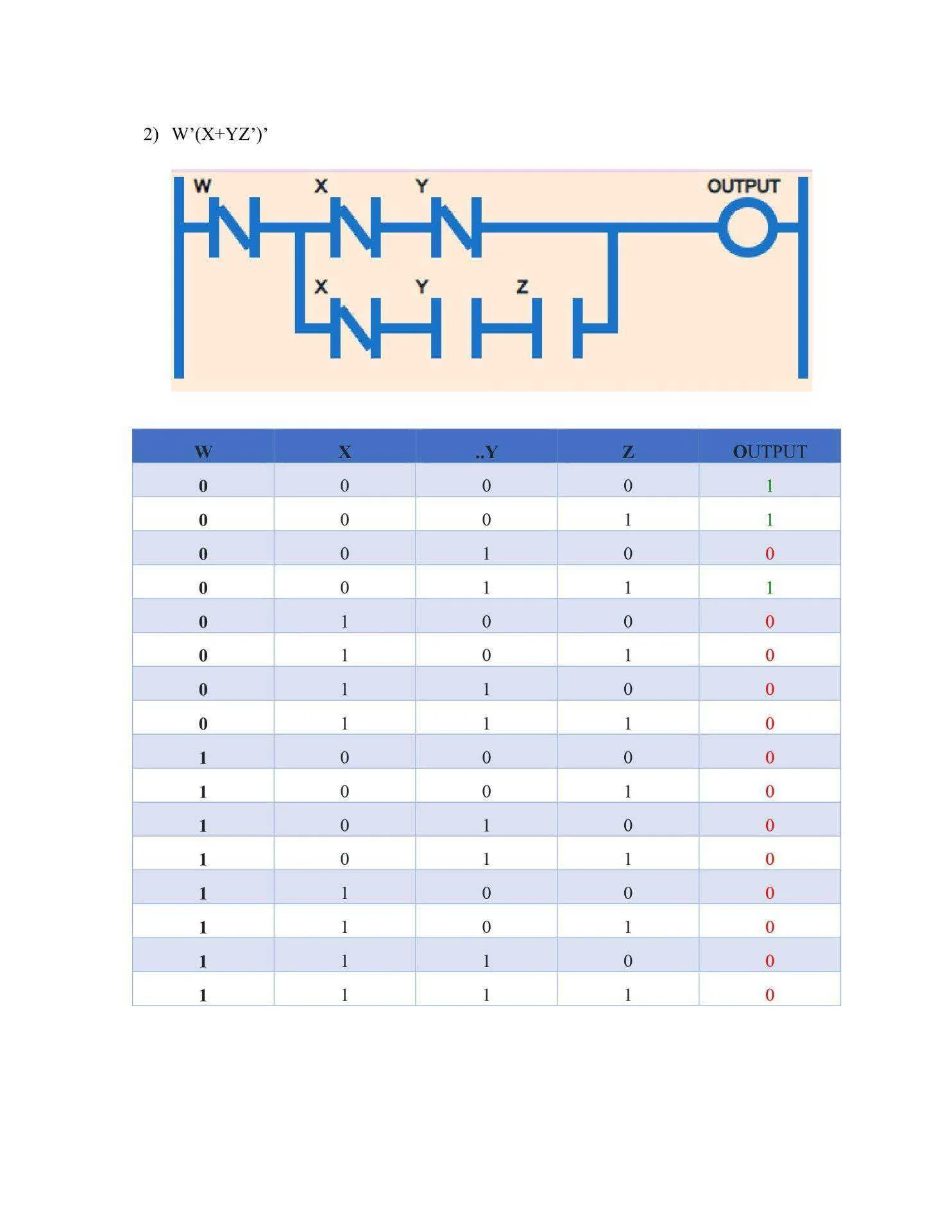

nakuha ko na po yung ladder diagram through trial and error.
sana magkatulong sa ibang ece student kagaya ko dito.
