🎓 Academic Sa nga marurunong sa Math, Civil Engineer, Structural Engineer. Patulong naman po...

[yukihara]

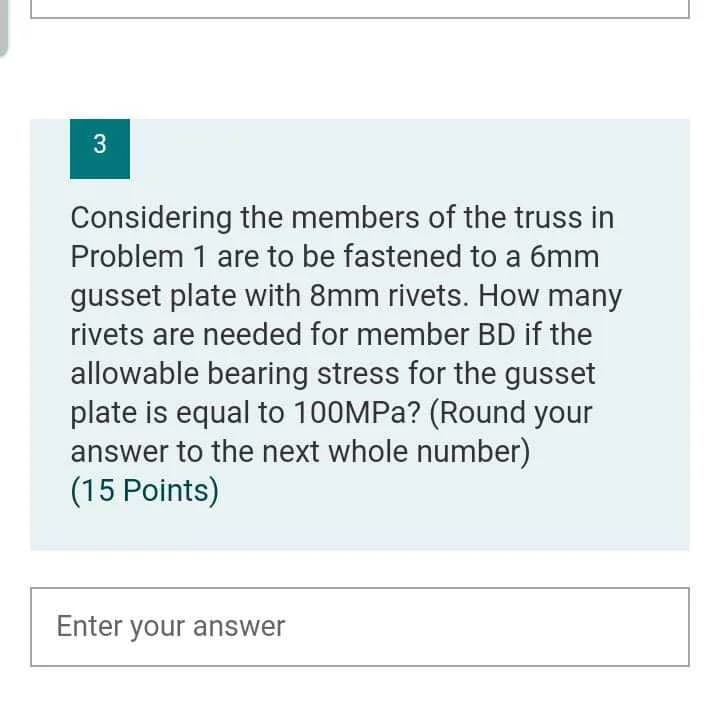

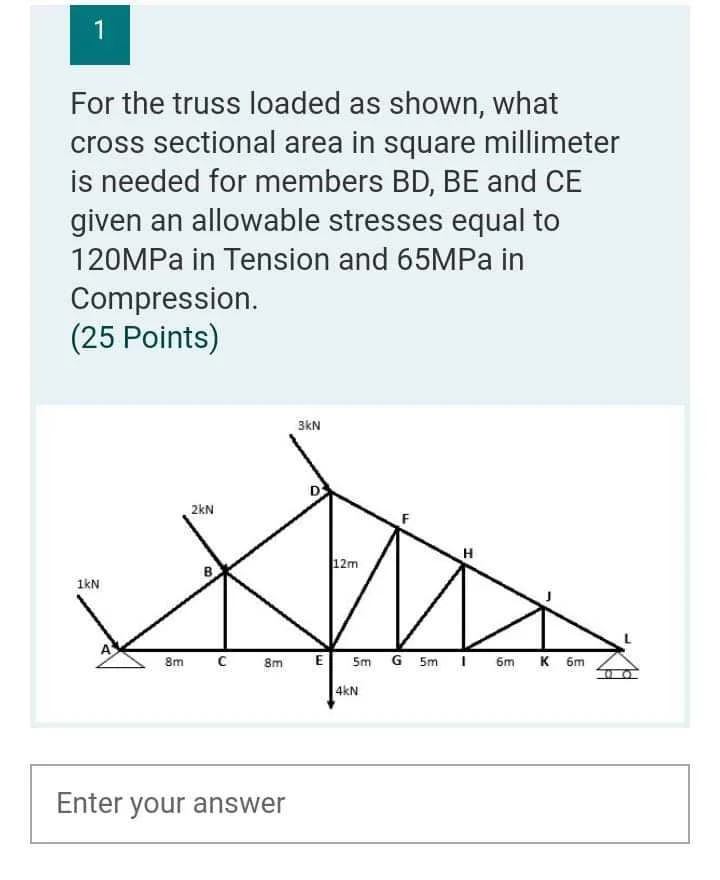

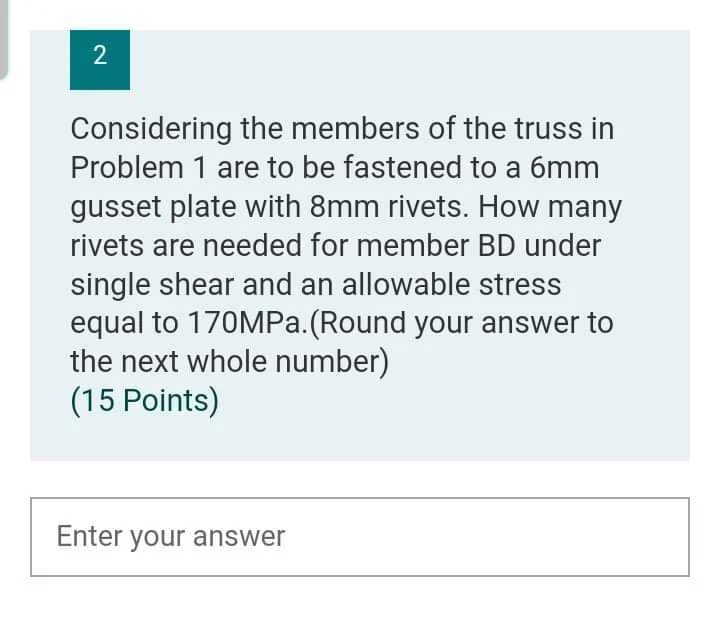

Pa help naman po sa problem na to, I'm an archi student and my friend at engineering department need help. Diko pa naman alam to hehe.. salamat po sa sasagot.

Send help!!!



[PHC-kuyhaa_ratiborus]

Kunin mo muna Forces at those required segments (BD,BE,CE) by method of sections kung masipag ka pwde rin method of joints, syempre kailangan mo muna kunin ang reactions for hinge & roller supports. After getting the Forces at BD,BE,CE equate mo sya sa Stress=Force/Area may given knang stress at MPa (N/mm²) nka Tension & Compression, malalaman mo kung nasa tension/compression ang member pag ikaw mismo nagsolve pero may mga shortcuts naman just keep practicing & reading.
Godbless!



[yukihara]

Kunin mo muna Forces at those required segments (BD,BE,CE) by method of sections kung masipag ka pwde rin method of joints, syempre kailangan mo muna kunin ang reactions for hinge & roller supports. After getting the Forces at BD,BE,CE equate mo sya sa Stress=Force/Area may given knang stress at MPa (N/mm²) nka Tension & Compression, malalaman mo kung nasa tension/compression ang member pag ikaw mismo nagsolve pero may mga shortcuts naman just keep practicing & reading.
Godbless!

Salamat boss, next year ko pa matetake to kaya advance na rin siguro ako



[PHC-kuyhaa_ratiborus]

Salamat boss, next year ko pa matetake to kaya advance na rin siguro ako

Chill ka lang muna, focus ka muna sa mga lessons for this year. Wag masyadong atat at advance, kasi baka mawalan kna ng gana during actual discussion kc yung utak mo naka set na sa "ah alam ko na yan". Maganda ang advance study but wag masyadong advance paps



[yukihara]

Chill ka lang muna, focus ka muna sa mga lessons for this year. Wag masyadong atat at advance, kasi baka mawalan kna ng gana during actual discussion kc yung utak mo naka set na sa "ah alam ko na yan". Maganda ang advance study but wag masyadong advance paps

Haha wag kang mag alala boss, di ko din tutupadin



[PHC-kuyhaa_ratiborus]

Haha wag kang mag alala boss, di ko din tutupadin

Ok Godbless on your endeavors ..



[Hesi]

kaya mo yan boss



[el_jay16]

Una mong gawin ay magmethod of joints o di kaya'y method of section para makuha ang force in KN sa BD, BE, at CE.
