🔒 Closed Transformer

[Korosensei09]

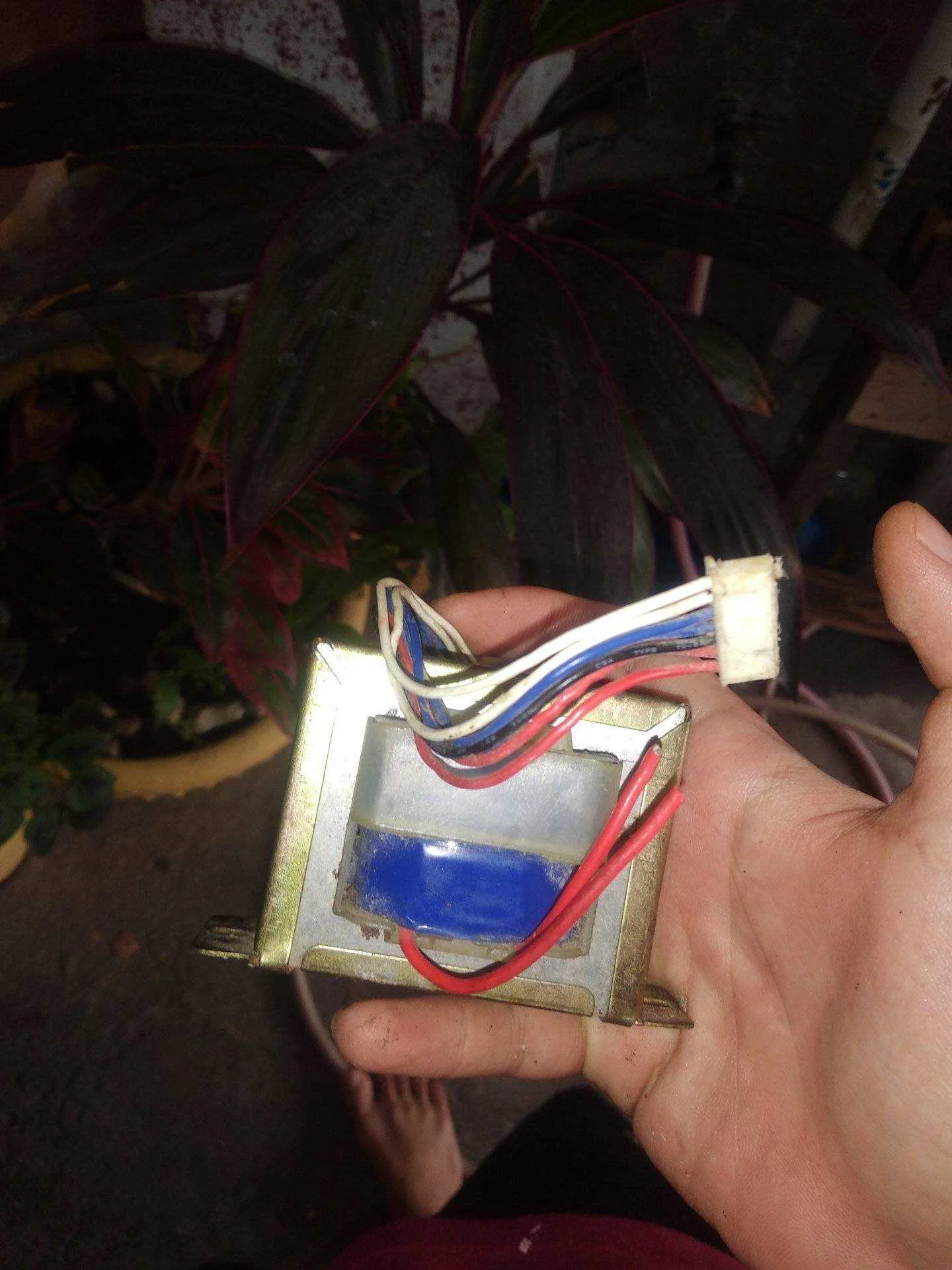

Ano pong klaseng tranformer yan bakit madaming wires?



[1neWay]

Conversion ng voltage from AC to Ac/DC, sa bawat wire may static voltage depends sa color.



[Korosensei09]

Conversion ng voltage from AC to Ac/DC, sa bawat wire may static voltage depends sa color.

Kung itetest ko po yung output voltage nya san kopo ilalagay sa AC or sa DC? Salamat po.



[1neWay]

Kung itetest ko po yung output voltage nya san kopo ilalagay sa AC or sa DC? Salamat po.

Sa pagamit ng Multitester: take your digital multimeter and set it in the DC mode and connect both the terminals of the multimeter with the output wire.. If your output is DC then it will show you some output whether positive or negative.

But if your output is Ac then you will not get any output in the multimeter. So next step is to switch your multimeter in the AC mode. (this step is required only if there is no output in DC mode of multimeter). Now connect your multimeter with the output and surely you will get an output in the display if your output is AC.



[Korosensei09]

Sa pagamit ng Multitester: take your digital multimeter and set it in the DC mode and connect both the terminals of the multimeter with the output wire.. If your output is DC then it will show you some output whether positive or negative.

But if your output is Ac then you will not get any output in the multimeter. So next step is to switch your multimeter in the AC mode. (this step is required only if there is no output in DC mode of multimeter). Now connect your multimeter with the output and surely you will get an output in the display if your output is AC.

Thanks. Student palang kasi ako analog multitester palang meron ako ganun din naman po procedure diba?



[julmay]

Test mo sa ac ng tester mo
Blue-blue
White-white
Red-black-red



[k1ckfl1p_92]

yung dalawang red malamang ang primary nyan..yung madaming wire ang secondary. Iba iba ang voltage nyan kaya marami. kung wala ka pa rectifier sa secondary ilagay mo sa ac voltage yung multitester mo kung gusto mo malaman ang output nyan.

mag ingat sa AC voltage na galing sa outlet.



[Korosensei09]

Salamat sa mga sumagot nagagamit ko na 12 v lahat tapos yung red black red 12 0 12



[Korosensei09]

Mga idol pano naman malaman kung ilang ampere meron sya?



[Korosensei09]

Test mo sa ac ng tester mo
Blue-blue
White-white
Red-black-red

Pano po malaman ilang ampere?



[NilagangBaboy]

Pano po malaman ilang ampere?

lagay mo sa current na setting yung selector knob mo tapos measure nyo, digital multitester para mas madaling makita kung saan ung current.



[darknebula]

Pano po malaman ilang ampere?

Ingat lang po sa pag set o double check ng mabuti puputok Yan iba Yung na set
