Question

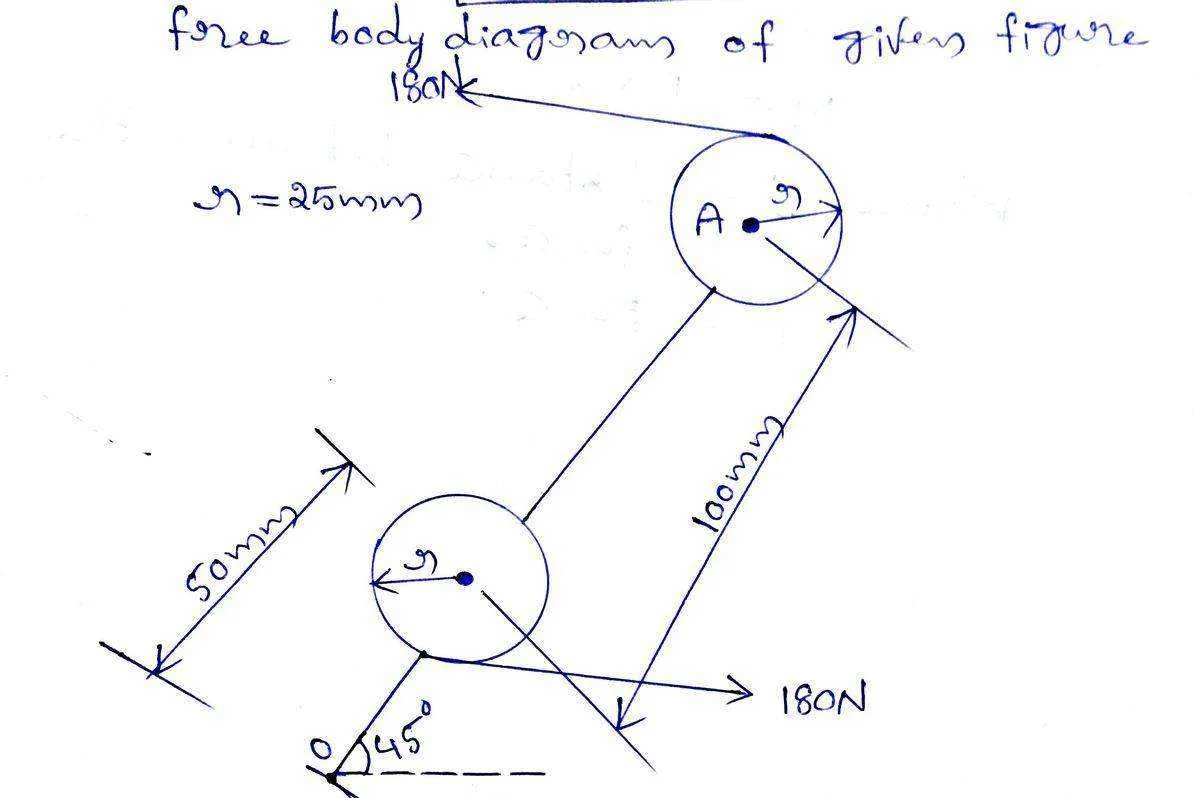

[IMG alt="The system consisting of the bar OA, two identical
pulleys, and a section of thin tape is subjected to the
two 180-N tensile forces shown in the figure. Deter-
mine the equivalent force-couple system at point O.
180 N
A
r = 25 mm
100 mm
180 N
45°
50 mm
个
"]You do not have permission to view the full content of this post. Log in or register now.

Expert Answer​

Step 1

Step 2

Step 3



[-A-]

Question

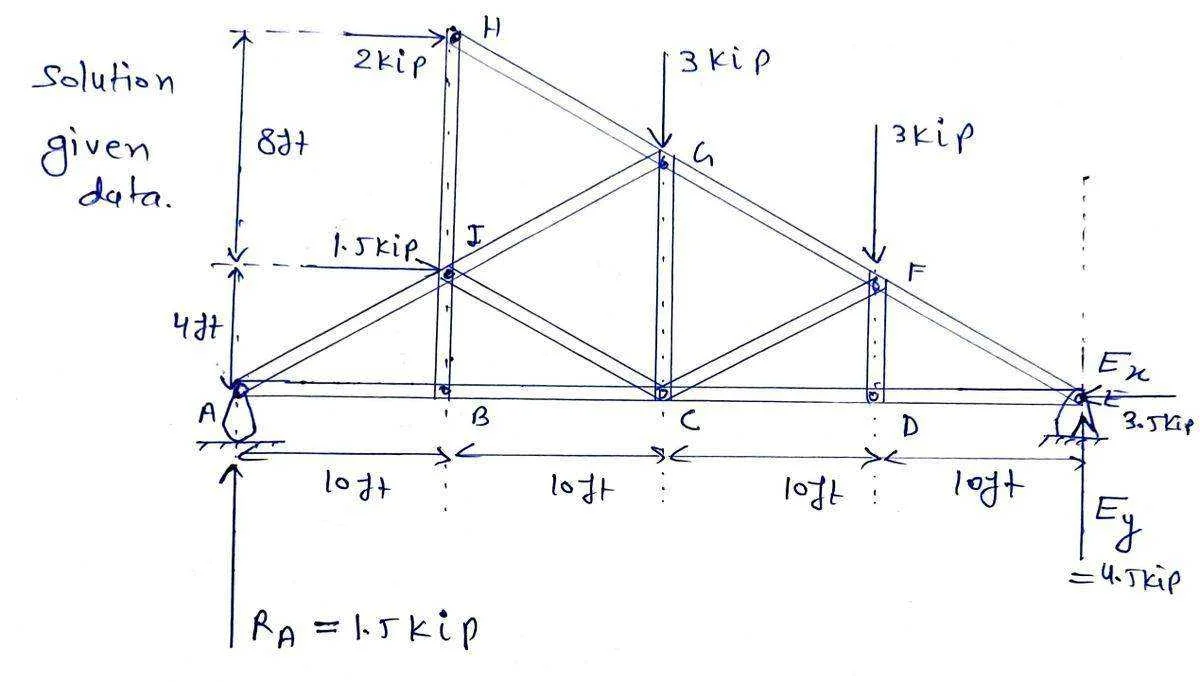

[IMG alt="Determine the equivalent force-couple system at the pin (point E) and roller support (point
A). Also, compute the x-intercept of the line of action of the system resultant treated as a
single force R of the three forces acting on the truss at the pin and roller support.
"]You do not have permission to view the full content of this post. Log in or register now.
Step 1

Step 2

Step 3



[EaZY_1600]

Question
[IMG alt="Determine the equivalent force-couple system at the pin (point E) and roller support (point
A). Also, compute the x-intercept of the line of action of the system resultant treated as a
single force R of the three forces acting on the truss at the pin and roller support.
"]You do not have permission to view the full content of this post. Log in or register now.
Step 1
View attachment 1629611
Step 2
View attachment 1629612
Step 3
View attachment 1629613
