🎁 Giveaways Free Çℎḙḡḡ Unlock (Open to all)

[BABARILION]

https://www.Çℎḙḡḡ.com/homework-help...-containing-water-gage-pressure-0f--q11074323

Pa help po ulit sir tyy



[OrangeMoon]

https://www.Çℎḙḡḡ.com/homework-help...s-55-mpa-outside-diameter-125-times-q63523103

Pahelp po master thank you

p1: You do not have permission to view the full content of this post. Log in or register now.
p2: You do not have permission to view the full content of this post. Log in or register now.



[OrangeMoon]

https://www.Çℎḙḡḡ.com/homework-help...-containing-water-gage-pressure-0f--q11074323

Pa help po ulit sir tyy

You do not have permission to view the full content of this post. Log in or register now.



[PHC-Meow]

pa unlock po ako uliii
https://www.Çℎḙḡḡ.com/homework-help...pter-2-problem-2rq-solution-9781285528564-exc



[OrangeMoon]

pa unlock po ako uliii

https://www.Çℎḙḡḡ.com/homework-help...pter-2-problem-2rq-solution-9781285528564-exc

You do not have permission to view the full content of this post. Log in or register now.



[Phc_Sync]

p1: You do not have permission to view the full content of this post. Log in or register now.
p2: You do not have permission to view the full content of this post. Log in or register now.

Thank you



[nice c ko]

pa unlock po
https://www.Çℎḙḡḡ.com/homework-help...-balanced-3-phase-load-40-kva-v-v-b-q84727916

daghang salamat



[BABARILION]

You do not have permission to view the full content of this post. Log in or register now.

Tyy sir



[OrangeMoon]

pa unlock po
https://www.Çℎḙḡḡ.com/homework-help...-balanced-3-phase-load-40-kva-v-v-b-q84727916

daghang salamat

Capacity of two transformers connected in open Delta(V V connection) is =√3VL*IL =√3×kVA rating of one transformer

=20√3 kVA=34.641kVA

Actual load on transformers=40kVA

%Overloading=(Actual load -Actual Capacity)*100 /Actual Capacity

=(40-34.641)*100/34.641=15.47%



[CataliaA]

boss pa unlock po quiz po namin

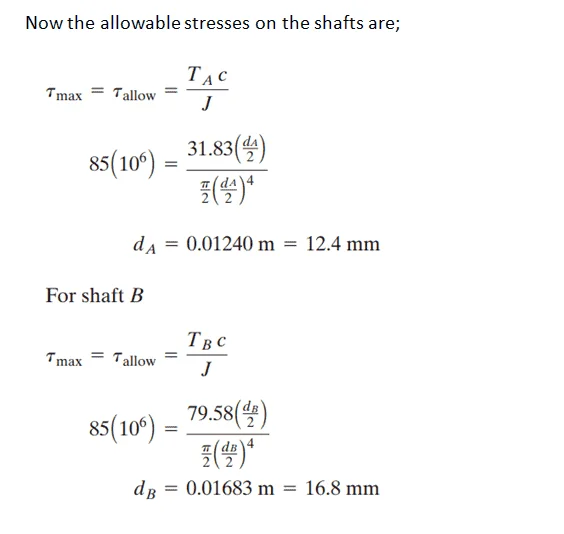

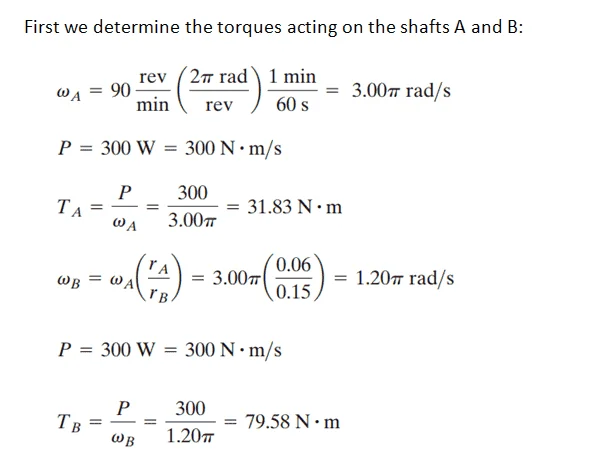

https://www.Çℎḙḡḡ.com/homework-help...v-min-determine-required-diameters--q23439879
thank you po



[OrangeMoon]

boss pa unlock po quiz po namin
https://www.Çℎḙḡḡ.com/homework-help...v-min-determine-required-diameters--q23439879
thank you po

You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.



[CataliaA]

You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.

View attachment 1675883

View attachment 1675884

thank you po sir <3



[Martin Mystery]

Master pa unlock po huhu

https://www.Çℎḙḡḡ.com/homework-help...system-pump-pump-b-deliver-water-ad-q46711060



[OrangeMoon]

Master pa unlock po huhu

https://www.Çℎḙḡḡ.com/homework-help...system-pump-pump-b-deliver-water-ad-q46711060

Question 1

Annual worth analysis is being used to select the alternative.

Pump A -

Initial cost = 200,000

Operating cost = 30,000

Salvage value = 10,000

Life time = 12 years

Interest rate = 9%

Calculate the annual worth of Alternative A -

AWA = - initial cost (A/P, i, n) - operating cost + salvage value (A/F, i, n)

AWA = -200,000(A/P, 9%, 12) - 30,000 + 10,000(A/F, 9%, 12)

AWA = [-200,000 * 0.13965] - 30,000 + [10,000 * 0.04965]

AWA = -27,930 - 30,000 + 496.5

AWA = -57,433.50

The annual worth of Pump A is $-57,433.50

Pump B -

Initial cost = 300,000

Operating cost = 23,000

Salvage value = 60,000

Life time = 16 years

Interest rate = 9%

Calculate the annual worth of Alternative B -

AWB = - initial cost (A/P, i, n) - operating cost + salvage value (A/F, i, n)

AWB = -300,000(A/P, 9%, 16) - 23,000 + 60,000(A/F, 9%, 16)

AWB = [-300,000 * 0.12030] - 23,000 + [60,000 * 0.03030]

AWB = -36,090 - 23,000 + 1,818

AWB = -57,272

The annual worth of Pump B is $-57,272

The annual worth of Pump B is numerically higher.

So,

Pump B is better.



[Martin Mystery]

Question 1

Annual worth analysis is being used to select the alternative.

Pump A -

Initial cost = 200,000

Operating cost = 30,000

Salvage value = 10,000

Life time = 12 years

Interest rate = 9%

Calculate the annual worth of Alternative A -

AWA = - initial cost (A/P, i, n) - operating cost + salvage value (A/F, i, n)

AWA = -200,000(A/P, 9%, 12) - 30,000 + 10,000(A/F, 9%, 12)

AWA = [-200,000 * 0.13965] - 30,000 + [10,000 * 0.04965]

AWA = -27,930 - 30,000 + 496.5

AWA = -57,433.50

The annual worth of Pump A is $-57,433.50

Pump B -

Initial cost = 300,000

Operating cost = 23,000

Salvage value = 60,000

Life time = 16 years

Interest rate = 9%

Calculate the annual worth of Alternative B -

AWB = - initial cost (A/P, i, n) - operating cost + salvage value (A/F, i, n)

AWB = -300,000(A/P, 9%, 16) - 23,000 + 60,000(A/F, 9%, 16)

AWB = [-300,000 * 0.12030] - 23,000 + [60,000 * 0.03030]

AWB = -36,090 - 23,000 + 1,818

AWB = -57,272

The annual worth of Pump B is $-57,272

The annual worth of Pump B is numerically higher.

So,

Pump B is better.

tysm po hehe lifesaver sa quiz



[CataliaA]

https://www.Çℎḙḡḡ.com/homework-help...5_MXHz7BqUp90r89DY6D16HG0qwz3jEzp02AmHWIG2CS4

pa unlock po hehe salamt ulit ng marami sir <3



[Nhoj010]

https://www.Çℎḙḡḡ.com/homework-help...onds-16-lb-object-attached-end-spri-q86190123



[jamesed0625]

https://www.Çℎḙḡḡ.com/homework-help...yoMJBG7VKvMQ0WfTup_lio0TU5mWAsJ-yWKAovK0eeeO4

Thank you po in advance



[Lelouch Uzumaki]

pa unlock master

https://www.Çℎḙḡḡ.com/homework-help...ies-post-assessment-analyze-solve-f-q59167207



[OrangeMoon]

https://www.Çℎḙḡḡ.com/homework-help...5_MXHz7BqUp90r89DY6D16HG0qwz3jEzp02AmHWIG2CS4

pa unlock po hehe salamt ulit ng marami sir <3

You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.
