Paunlock nga po, kaylangan na kaylangan po kasi
https://www.Çℎḙḡḡ.com/homework-help...erature-ta-low-temperature-tb-reser-q23110067
https://www.Çℎḙḡḡ.com/homework-help...ndenser-pressure-12-kpa-net-power-o-q71342817
Thanks in advance po

1.

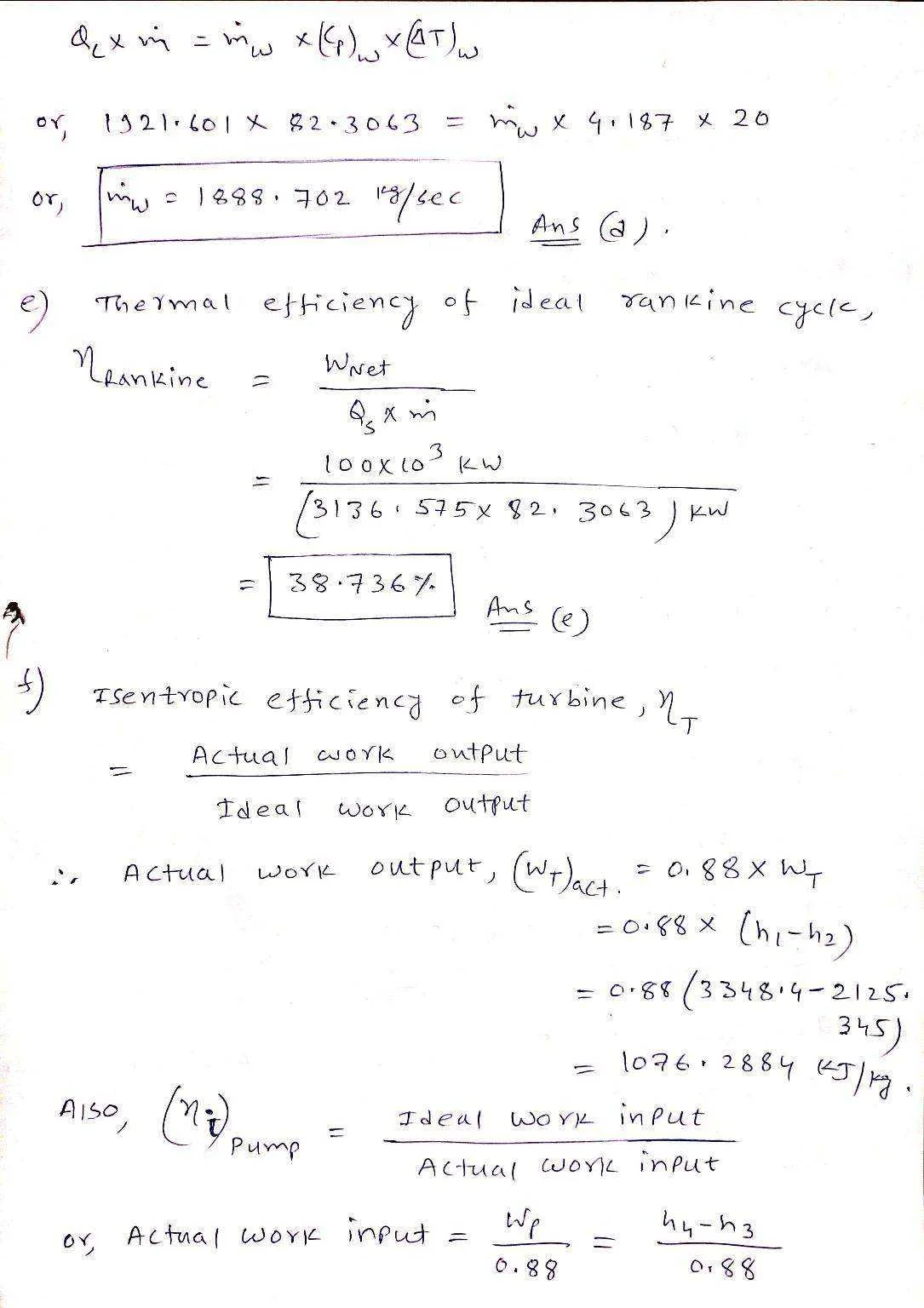

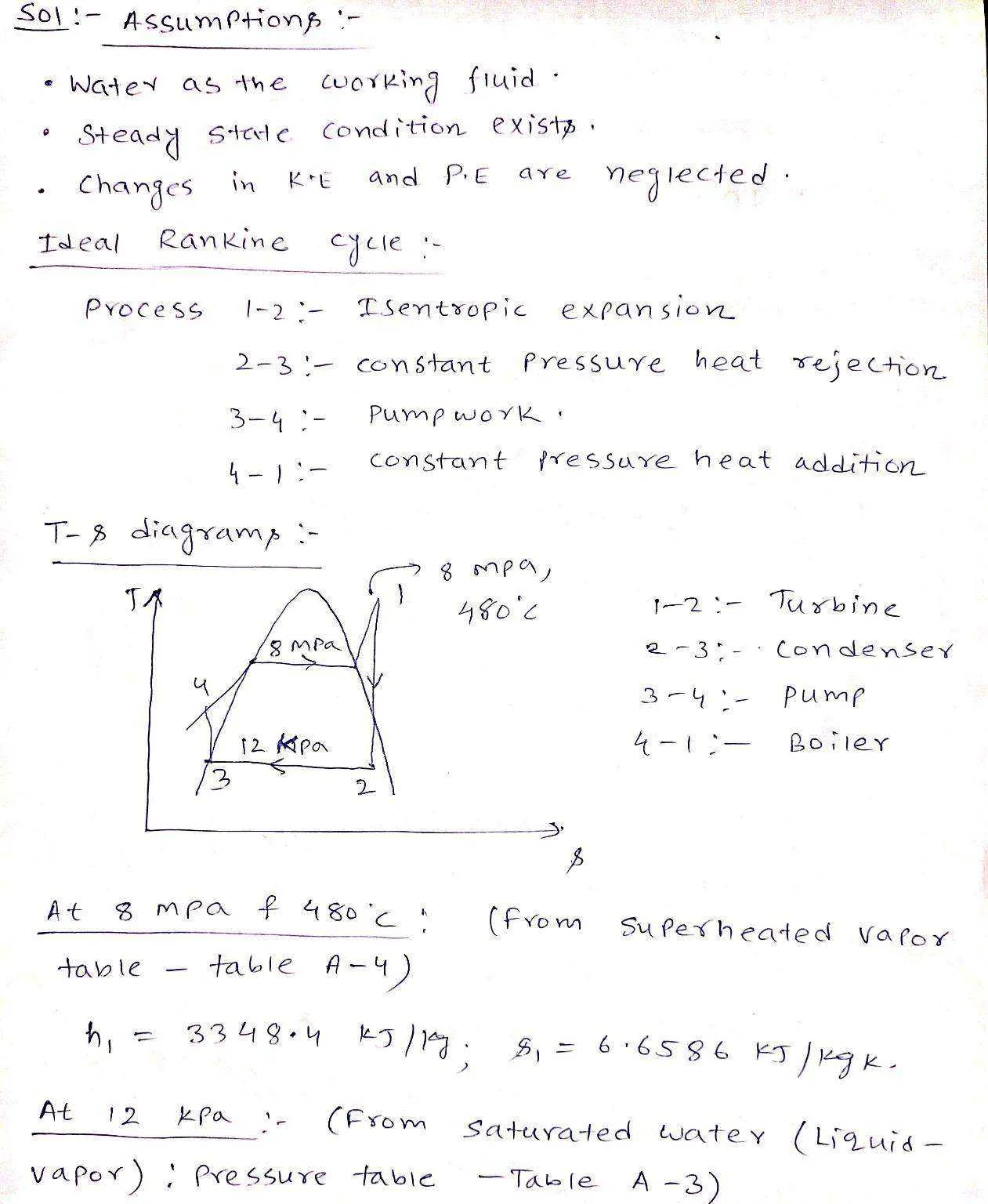

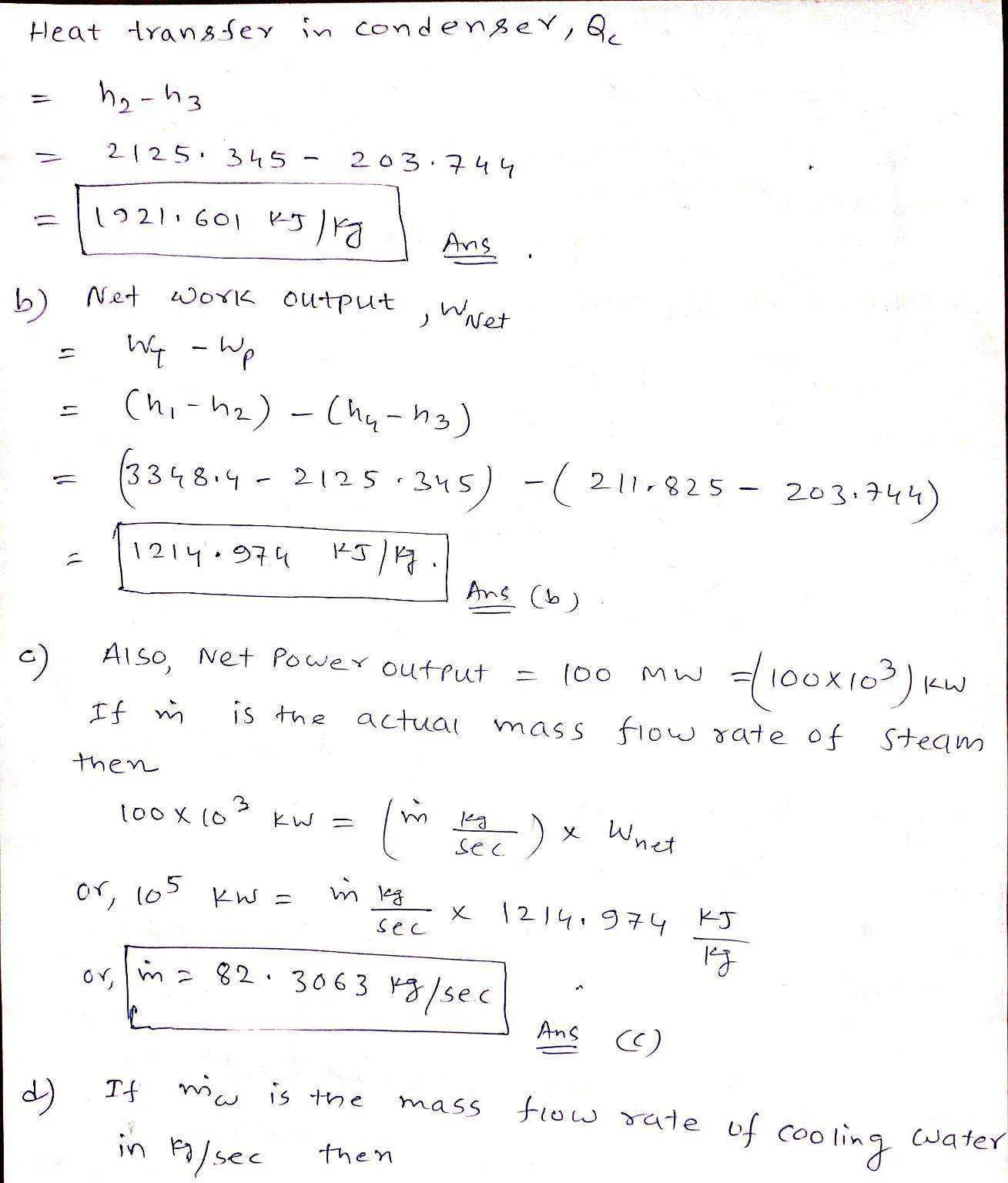

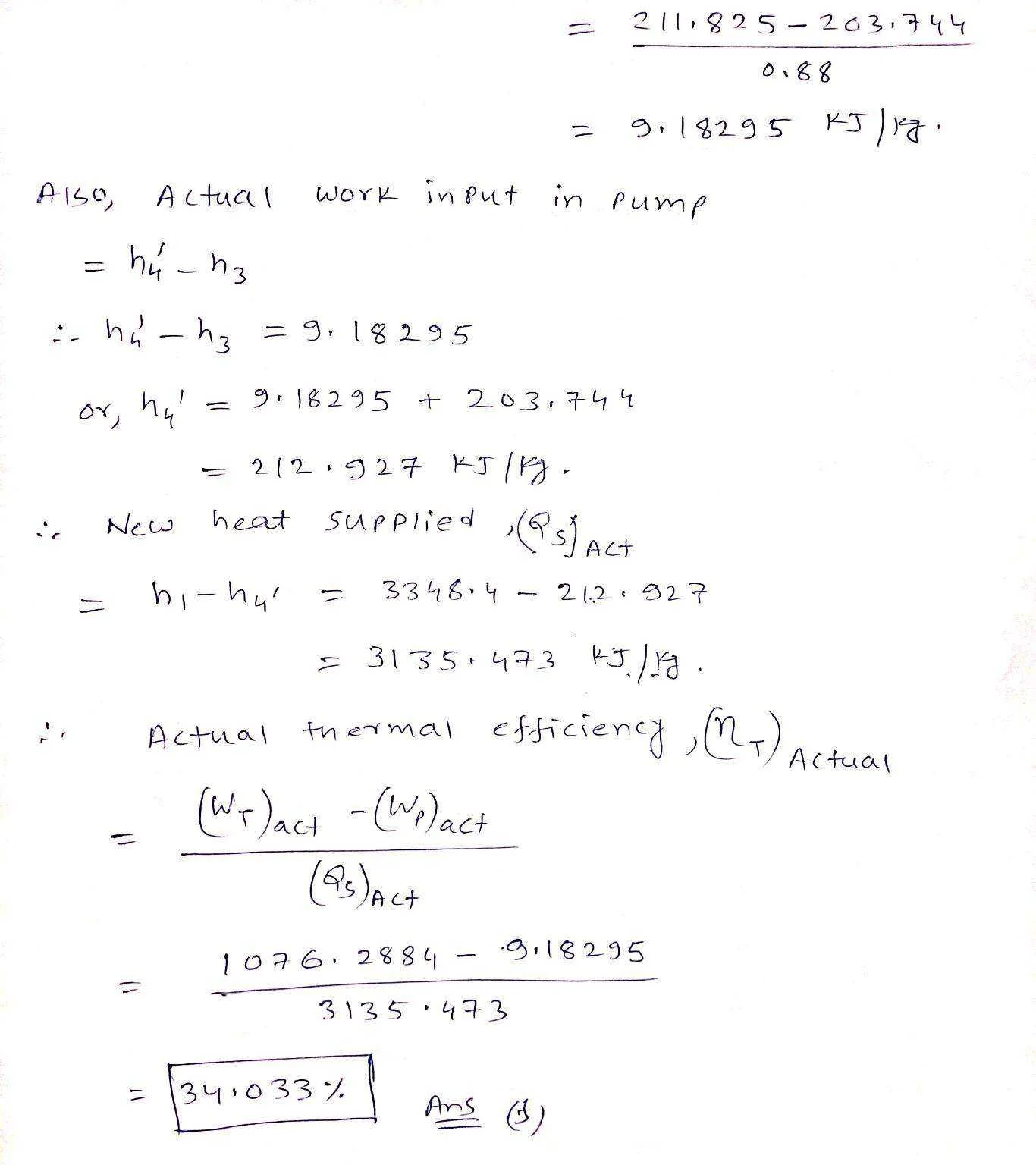

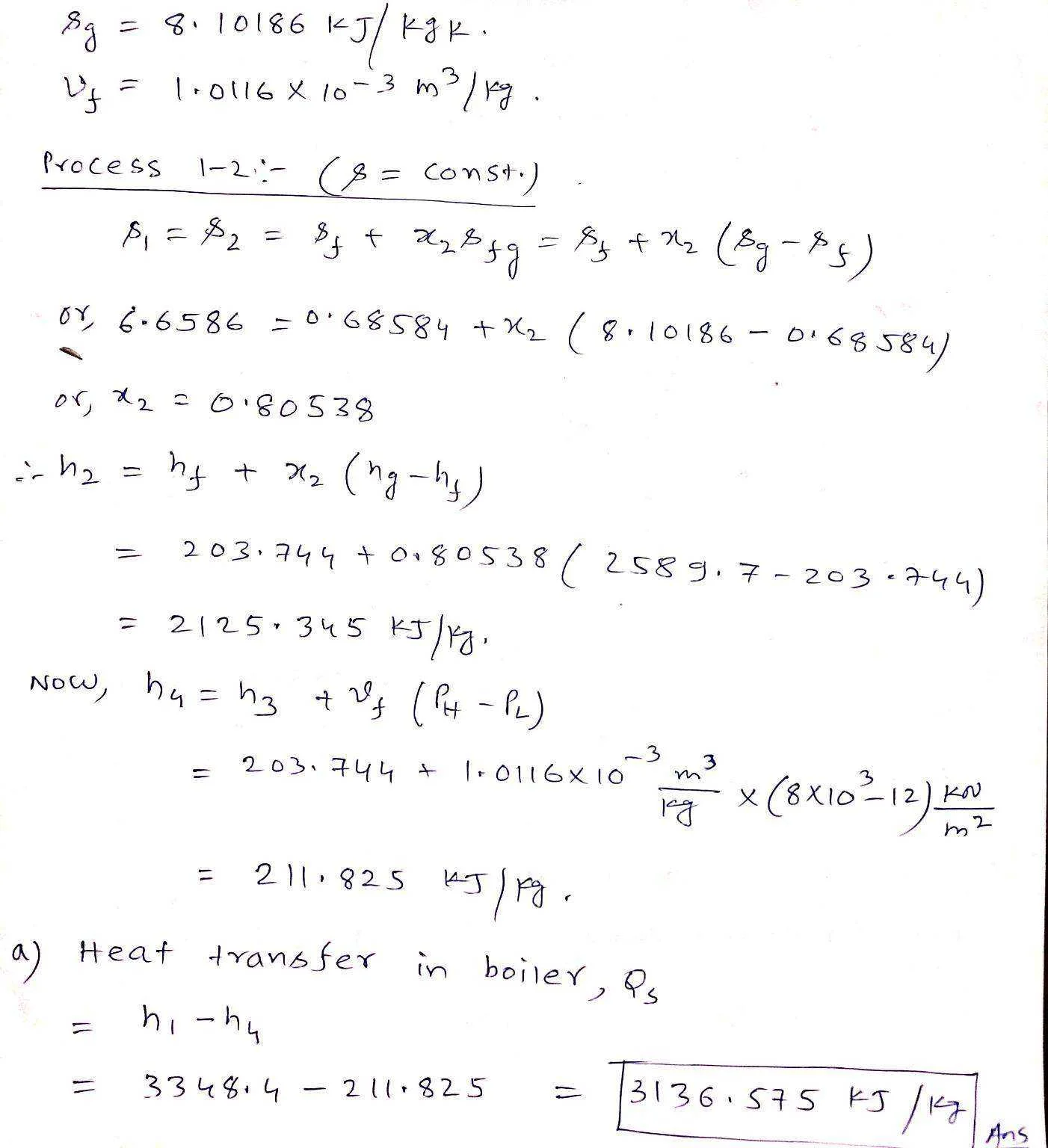

2.Using Superheated vapour and Saturated water Pressure table we can solve this question as below
