🎓 Academic Paunlock po (Çℎḙḡḡ). Thanks in advance!

[chu44]

https://www.Çℎḙḡḡ.com/homework-help...ally-along-tips-flange-length-12-in-q30933895



[Cutthroat]



[chu44]

Hoshiumi maraming salamat po!!!



[chu44]

Sir Hoshiumi pwede rin pong ito rin?
https://www.Çℎḙḡḡ.com/homework-help...ile-strength-asd-wt7x41-tension-mem-q40142565



[chu44]

https://www.Çℎḙḡḡ.com/homework-help...ht-7--bolts-spacing-s-3--placed-two-q44744531



[Cutthroat]

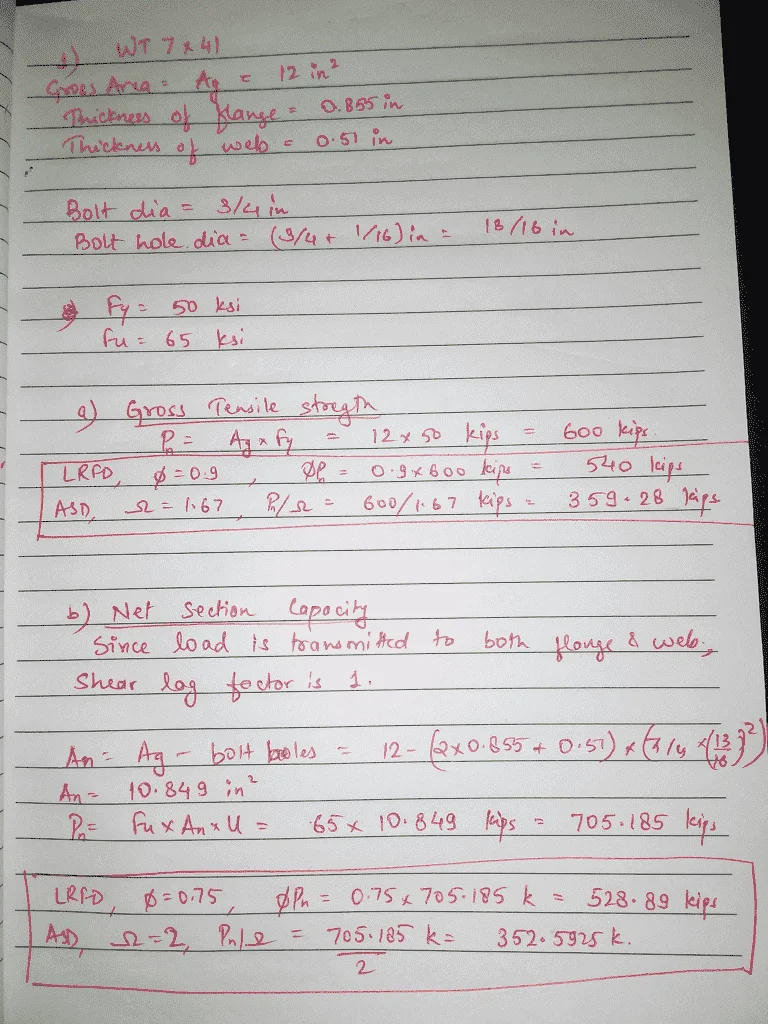

1. Capacity of WT is controlled by net tensile capacity.

LRFD Strength = 528.89 kips

ASD strength = 352.5925 kips



[Cutthroat]



[chu44]

Thank you po!



[chu44]

Thank you po!!
