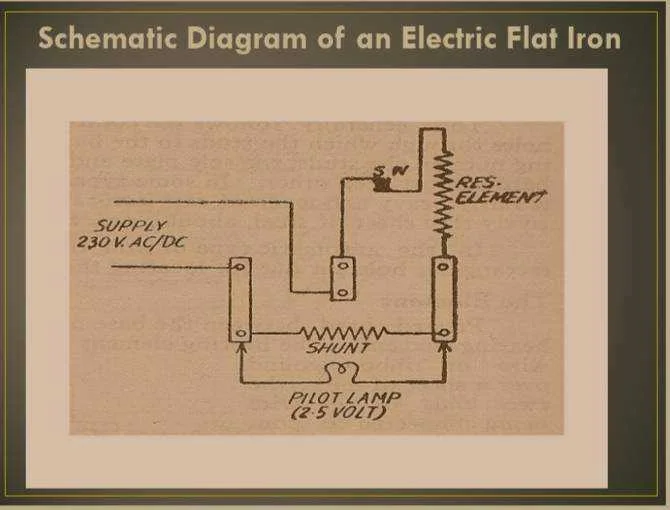

🎓 Academic Paano magbasa ng schematic diagram like ito....

[ronilo2nd]



[nicy12]

Ano pong specific na gusto mo malaman sa diagram na yan?



[Calamansi_07]

Syempre alamin mo muna kung ano ang pinapahiwatig ng kada symbol jan. Then, ung wires ay connected silang lahat, sundin mo lang ang pagkaka connected ng bawat components sa isa't isa,



[giboht]

ts search mo elctric symbols..makikita mo na mga diagram na yan,,malalaman mo na din mga functions



[ronilo2nd]

explanation po



[ronilo2nd]

explanation po



[nicy12]

ronilo2nd starting from one line pf 220V supply, takbo ang current papuntang terminal bar na kung saan naka connect sa Switch (SW). Once na mag close ang Switch, takbo naman ang current into Resistive Element (Res. Element). Yan ang rason kung bakit mainit ang plantsa. From the other end of that resistive element, connected sa terminal bar then connect sa Shunt Resistor (Shunt). Ang purpose nyan ay to limit just enough current para sa naka parallel na Pilot Lamp. Try to replace that resistor by a smaller value at maba-busted ang pilot lamp mo. End of that pilot lamp and shunt resistor is connected to another terminal bar in which the other line of 220V supply is connected. Thus, completing the circuit.


Kung may question ka pa, don't hesitate to ask.

Keep Learning! ​



[PHC-Mentalblock]

[XX='nicy12, c: 1113346, m: 358927'][/XX] Hello ano course mo???



[lawofsine]

ronilo2nd starting from one line pf 220V supply, takbo ang current papuntang terminal bar na kung saan naka connect sa Switch (SW). Once na mag close ang Switch, takbo naman ang current into Resistive Element (Res. Element). Yan ang rason kung bakit mainit ang plantsa. From the other end of that resistive element, connected sa terminal bar then connect sa Shunt Resistor (Shunt). Ang purpose nyan ay to limit just enough current para sa naka parallel na Pilot Lamp. Try to replace that resistor by a smaller value at maba-busted ang pilot lamp mo. End of that pilot lamp and shunt resistor is connected to another terminal bar in which the other line of 220V supply is connected. Thus, completing the circuit.


Kung may question ka pa, don't hesitate to ask.

Keep Learning! ​

I think mas masisira yung lamp pag binaba mo ang resistance(shunt) since liliit ang current na dadaloy sa shunt at pupunta lahat sa lamp.



[nicy12]

Try to replace that resistor by a smaller value at maba-busted ang pilot lamp mo.

Precisely. As per my comment above
