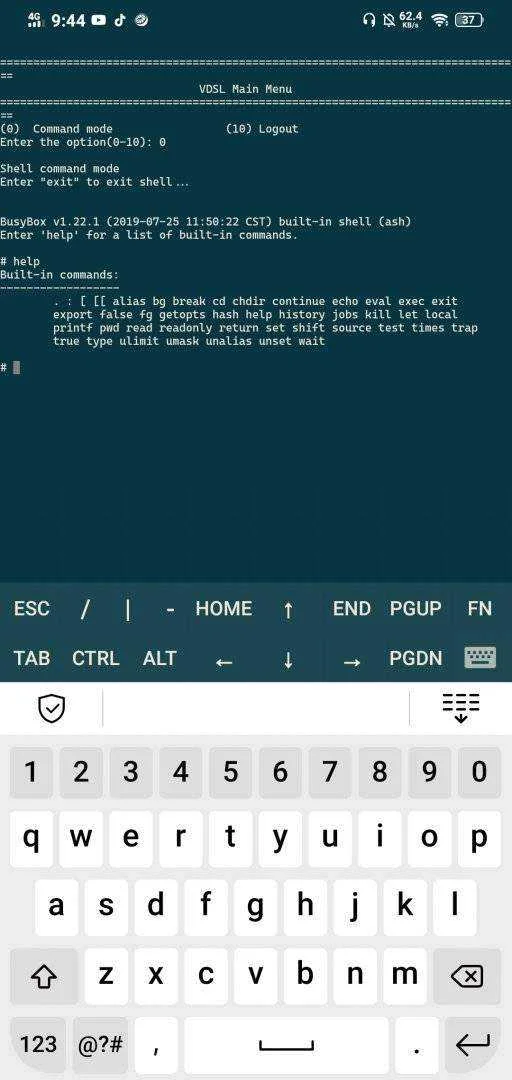

❓ Help Prolink PRS1841 V2 TELNET COMMANDS

[IanTheExplorer]

Ano ano ibig sa bihin ng mga commands na yan



[torque56]

May linux man page po yung mga commands na yan.

Also thank you po, nahanap ko po hinahanap ko

CPU: RTL8685SB / MIPS interAptiv (multi) V2.0 @ 666Mhz
WLAN Chipset: rtl819x
Flash Mem: MX25L128 / 16MB
RAM: 64MB

# /tmp/busybox-mips.bin dmesg
eth0.4 added. vid=9 Member port 0x4...
eth0.5 added. vid=9 Member port 0x8...
ptm0 added. vid=8 Member port 0x20...
xhci-hcd xhci-hcd: xHCI Host Controller
xhci-hcd xhci-hcd: new USB bus registered, assigned bus number 1
xhci-hcd xhci-hcd: irq 27, io mem 0x18040000
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
xhci-hcd xhci-hcd: xHCI Host Controller
xhci-hcd xhci-hcd: new USB bus registered, assigned bus number 2
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 1 port detected
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
ehci_rtl86xx_driver_probe
2 ehci_rtl86xx_driver_probe
rtl86xx-ehci rtl86xx-ehci: Realtek rtl819x On-Chip EHCI Host Controller
rtl86xx-ehci rtl86xx-ehci: new USB bus registered, assigned bus number 3
rtl86xx-ehci rtl86xx-ehci: irq 30, io mem 0x18021000
rtl86xx-ehci rtl86xx-ehci: USB 2.0 started, EHCI 1.00
hub 3-0:1.0: USB hub found
hub 3-0:1.0: 1 port detected
ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
rtl86xx-ohci rtl86xx-ohci: Realtek rtl819x built-in OHCI controller
rtl86xx-ohci rtl86xx-ohci: new USB bus registered, assigned bus number 4
rtl86xx-ohci rtl86xx-ohci: irq 30, io mem 0x18020000
hub 4-0:1.0: USB hub found
hub 4-0:1.0: 1 port detected
usbcore: registered new interface driver usb-storage
usbcore: registered new interface driver usbserial
usbcore: registered new interface driver option
usbserial: USB Serial support registered for GSM modem (1-port)
cpuidle-cps: limited to non-coherent wait
usbcore: registered new interface driver usbhid
usbhid: USB HID core driver
netlog: listening on port 4660
Realtek SD2-FastPath v1.00beta_2.4.26-uc0
/proc/FastPath created
/proc/FastPath_heavy_traffic_thres created
Realtek SD5-FastPath Realtek Ipv6FastPath-betaV0.01
/proc/Ip6FastPath created
Realtek IPv6 MCast FastPath
/proc/ip6mc_FastPath created
SPI Flash Driver for RTK SoC, Version 1.0.000
SFCR: 7fc01244  SFCR2: 03e00000
MX25L128 (16384 Kbytes) using 3B command set.
7 cmdlinepart partitions found on MTD device rtkspi
Creating 7 MTD partitions on "rtkspi":
0x000000000000-0x000000020000 : "boot"
0x000000020000-0x000000040000 : "HW"
0x000000040000-0x000000060000 : "CS"
0x000000060000-0x000000080000 : "tr-069"
0x000000080000-0x000000100000 : "cs-bak"
0x000000100000-0x000000800000 : "rootfs"
0x000000800000-0x000001000000 : "fs-bak"
ATM OAM F5 initialized.
ATM OAM F4 initialized.
Enable 8671G 1 function
Enable 8671 0 function
Enable 8672 function
ratm: RTL8670 SAR v0.0.2 (Jun 17, 2003)
/proc/AUTO_PVC_SEARCH created
PTM: rtl8685_ptm_init entry
PTM: disable => enable IP, f07ffffb
ptm: create device successed
ptm_timer_init
Mirror/redirect action on
u32 classifier
    Actions configured
nf_conntrack version 0.5.0 (977 buckets, 3908 max)
nf_conntrack_rtsp v0.6.21 loading
ip_tables: (C) 2000-2006 Netfilter Core Team
TCP: cubic registered
NET: Registered protocol family 10
ip6_tables: (C) 2000-2006 Netfilter Core Team
sit: IPv6 over IPv4 tunneling driver
NET: Registered protocol family 17
rtl_igmpsnoop_init-2351: init multicast snooping igmpInitFlag:0
rtl_mldsnoop_init-733:: mldSnoopEnabled:0
bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
Bridge firewalling registered
Ebtables v2.0 registered
l2tp_core: L2TP core driver, V2.0
VFS: Mounted root (squashfs filesystem) readonly on device 31:6.
Freeing unused kernel memory: 200K (808ae000 - 808e0000)
random: init urandom read with 26 bits of entropy available
random: nonblocking pool is initialized
device eth0.2 entered promiscuous mode
device eth0.3 entered promiscuous mode
device eth0.4 entered promiscuous mode
device eth0.5 entered promiscuous mode
IPv6: ADDRCONF(NETDEV_UP): br0: link is not ready
IPv6: ADDRCONF(NETDEV_UP): atm0: link is not ready
Set PTM as non-bonding mode
ptm_timer_exit
set qmap 7 44444444
New_swNic_init(342)
New_swNic_init(362):ring0=a6300000,2048
New_swNic_init(362):ring5=a62fa000,64
New_swNic_init(464)
re865x_open 4102, ptm0
IPv6: ADDRCONF(NETDEV_UP): ptm0: link is not ready
clean rtk fast bridge table
write success !
br0: port 2(eth0.3) entered forwarding state
br0: port 2(eth0.3) entered forwarding state
IPv6: ADDRCONF(NETDEV_CHANGE): br0: link becomes ready
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 4(eth0.5) entered forwarding state
br0: port 4(eth0.5) entered forwarding state
gRegistry_printf = 0
ChipId: 0x00006518 0x10654321

==> SachemBase = 0xb8a80000, Int = 29
create mcs task OK , pid=346.
#### start Adsl ####



g8681revision = K, sachem_ver_reg =0x2d000005, sub_ver_reg = 0x10654321
Disable LatchTest
gRegistry_ATTN_Gain_offset = 3
WEB sets gAFEtype=00000004
WEB sets gSupportedMode=0x100001, gSupportedModeByWeb=0x100001,  0x100001, 0x100001
WEB sets gAFEtype=00000004
WEB sets gSupportedMode=0x100001, gSupportedModeByWeb=0x100001,  0x100001, 0x100001
WEB sets ProfileSupportedByWeb=000000ff (efusData=01808000)
WEB sets gVector_forced=00000003, sw input=00000003
IPv6: br0: IPv6 duplicate address fe80::1 detected!
br0: port 2(eth0.3) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 4(eth0.5) entered forwarding state
ctrlin readback(14):
page[1][0] = 0x 41a8
AFE_ver1=0x41a8, AFE_ver=0x0
it's 5v VLD 6360 case
6318B/C downbonad case
AFE_ver=0x41a8
Switch to 2.2MHz, CLKM=37.5MHz instread of 75M(2) D2, 0 done
device wlan0 entered promiscuous mode
WlanSupportAbility = 0x1
[hard_code_8822_mibs] +++
MAX_RX_BUF_LEN = 8800
[ODM_software_init][13225] BoardType = 0xd8 rfe_type=6
eric-8822 [ODM_software_init][13440]
clock 25MHz
InitPON OK!!!
InitMAC Page0
Init Download FW OK
halmac_init_mac_cfg OK
halmac_cfg_rx_aggregation OK
halmac_init_mac_cfg OK
[GetHwReg88XX][size PHY_REG_PG_8822Bmp_Type6]
[GetHwReg88XX][PHY_REG_PG_8822Bmp_Type6]
RL6302_MAC_PHY_Parameter_v018_20140708
[set_8822_trx_regs] +++
********************************
8822 efuse content 0x3D7 = 0xf2
8822 efuse content 0x3D8 = 0xf4
********************************
br0: port 5(wlan0) entered forwarding state
br0: port 5(wlan0) entered forwarding state
device wlan1 entered promiscuous mode
WlanSupportAbility = 0x1
[ODM_software_init][13225] BoardType = 0x0 rfe_type=0
eric-8822 [ODM_software_init][13440]
clock 25MHz


************* Initialize MAC/PHY parameter *************
[MAC_REG_8192Emp]
RTL8192E_MAC_PHY_Parameter_v016_MP_20130705
[PHY_REG_8192Emp]
RTL8192E_MAC_PHY_Parameter_v043_MP_20141229
[PHY_REG_PG_8192E_new]
br0: port 5(wlan0) entered forwarding state
RL6286_MAC_PHY_Parameter_v024_20130125
[AGC_TAB_8192Emp]
RTL8192E_MAC_PHY_Parameter_v043_MP_20141229
RadioA_8192Emp
RTL8192E_MAC_PHY_Parameter_v043_MP_20141229
[RadioB_8192Emp]
RTL8192E_MAC_PHY_Parameter_v043_MP_20141229
[PHY_ConfigTXPwrTrackingWithParaFile 4358]
[PHY_ConfigTXPwrTrackingWithParaFile 4420] read_bytes=2283
[TxPowerTrack_AP]
br0: port 6(wlan1) entered forwarding state
br0: port 6(wlan1) entered forwarding state
Waiting for input queue empty.  ==> currently used 54(21).
IPv6: ADDRCONF(NETDEV_UP): eth0.2: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp0: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp1: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp2: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp3: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp4: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp5: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp6: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp7: link is not ready
IPv6: ADDRCONF(NETDEV_UP): ppp8: link is not ready
br0: port 6(wlan1) entered forwarding state
Transmitter is enabled!
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
nf_conntrack: automatic helper assignment is deprecated and it will be removed soon. Use the iptables CT target to attach helpers instead.
clean rtk fast bridge table
write success !
disable ipqos!!!

[hwnat_qos_ioctl:5977]OUTPUTQ_BWCTL_CMD, total_bandwidth=0 bps
Total bandwidth set to default value!

[hwnat_qos_ioctl:5977]OUTPUTQ_BWCTL_CMD, total_bandwidth=0 bps
Total bandwidth set to default value!
Warning: 12910 not multiple of erase size 4096. Will pad to erase size
4. Swiching channel to 116! BW 80M mode
Transmitter is enabled!
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered disabled state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
br0: port 3(eth0.4) entered forwarding state
4. Swiching channel to 132! BW 80M mode
