🎓 Academic Coursehero unlock

[ZetrocRob]

You do not have permission to view the full content of this post. Log in or register now.



[MikaeLOVE]

Akala ko tutorial master, patut nmn po hehehe



[blazingcoop]

You do not have permission to view the full content of this post. Log in or register now.
salamat ts



[ZetrocRob]

Ito na po
You do not have permission to view the full content of this post. Log in or register now.



[sawada anonymous]

You do not have permission to view the full content of this post. Log in or register now.



[ZetrocRob]

Ito po
You do not have permission to view the full content of this post. Log in or register now.



[kento-sama]

You do not have permission to view the full content of this post. Log in or register now.



[SliiickNick]

Good day po. Pa-unlock po. Thank you.

You do not have permission to view the full content of this post. Log in or register now.



[ZetrocRob]

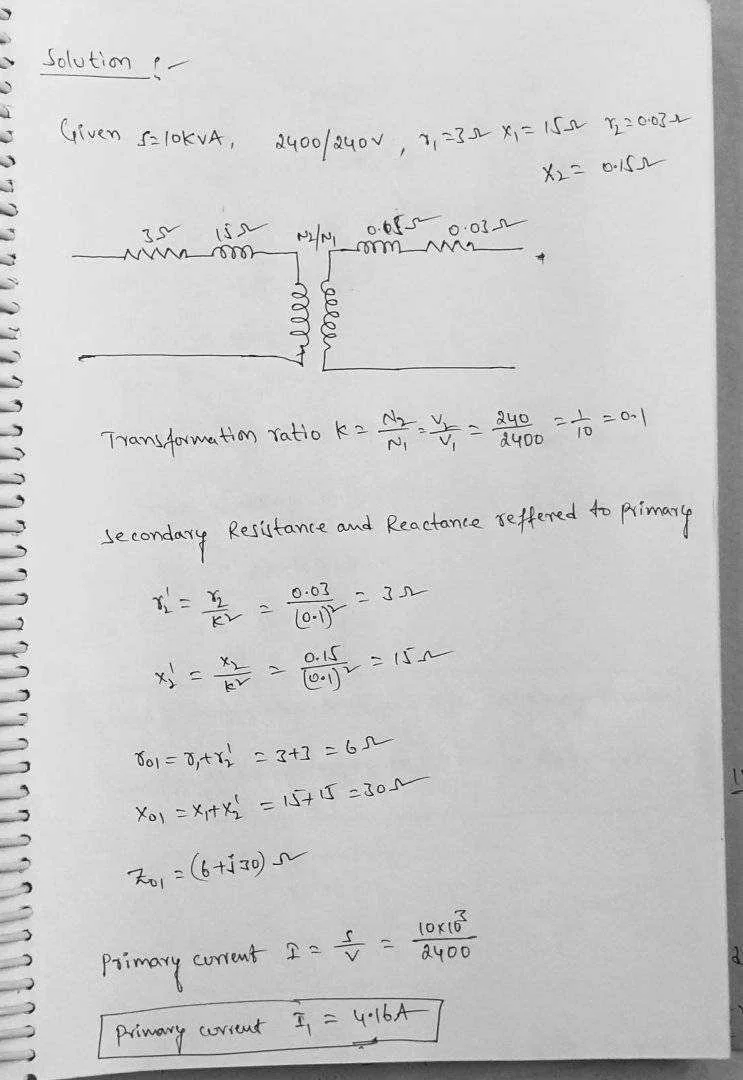

Transformation ratio k=N2/N1=V2/V1=240/2400=0.1
Secondary resistance referred to primary =r2/k^2=0.03/0.01=3ohm
Secondary reactance referred to primary =0.15/0.01=15ohm
Equivalent primary resistance =3+3=6ohm
Equivalent primary reactance =15+15=30ohm.
Primary impedance=6+j30 ohm
Primary current=10000/2400=4.16A

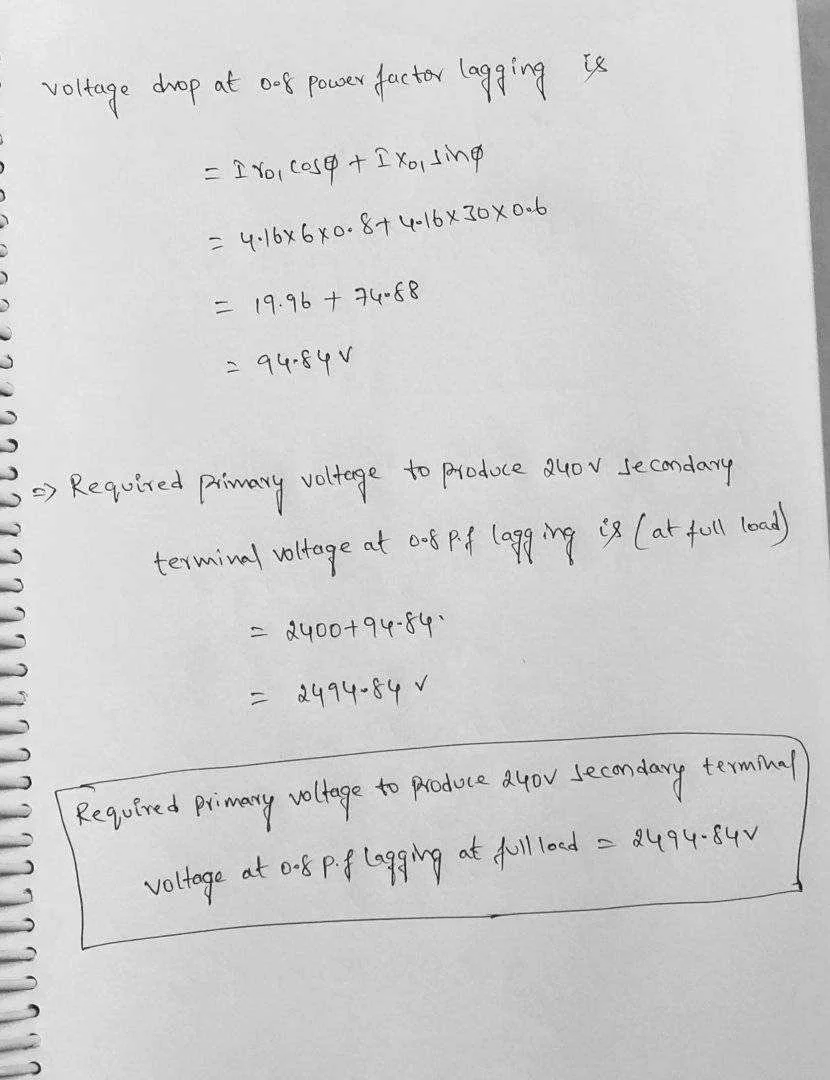

Voltage drop at 0.8p.f lagging =ir01cosphi+ix01sinphi=4.16×6×0.8+4.16×30×0.6=94.84V
Required primary voltage to produce 240V secondary terminal voltage at 0.8p.f full load is =2400+94.84=2494.84V.



[kento-sama]

[XX='ZetrocRob, c: 740807, m: 754273'][/XX] maraming salamat po boss



[ZetrocRob]

Ito na po



[blazingcoop]

salamat po ulit



[sawada anonymous]

Thank you ts



[blazingcoop]

You do not have permission to view the full content of this post. Log in or register now.
You do not have permission to view the full content of this post. Log in or register now.
salamat sir in advance po ulit



[clo_ud]

sayang di na kaabut haha
