🔒 Closed B450 Ds3h isa lang Sys_Fan slot?

[AsphyXia--]

Pasensya na nga boss newbie lang haha triny ko lang mag assemble ng sariling pc.

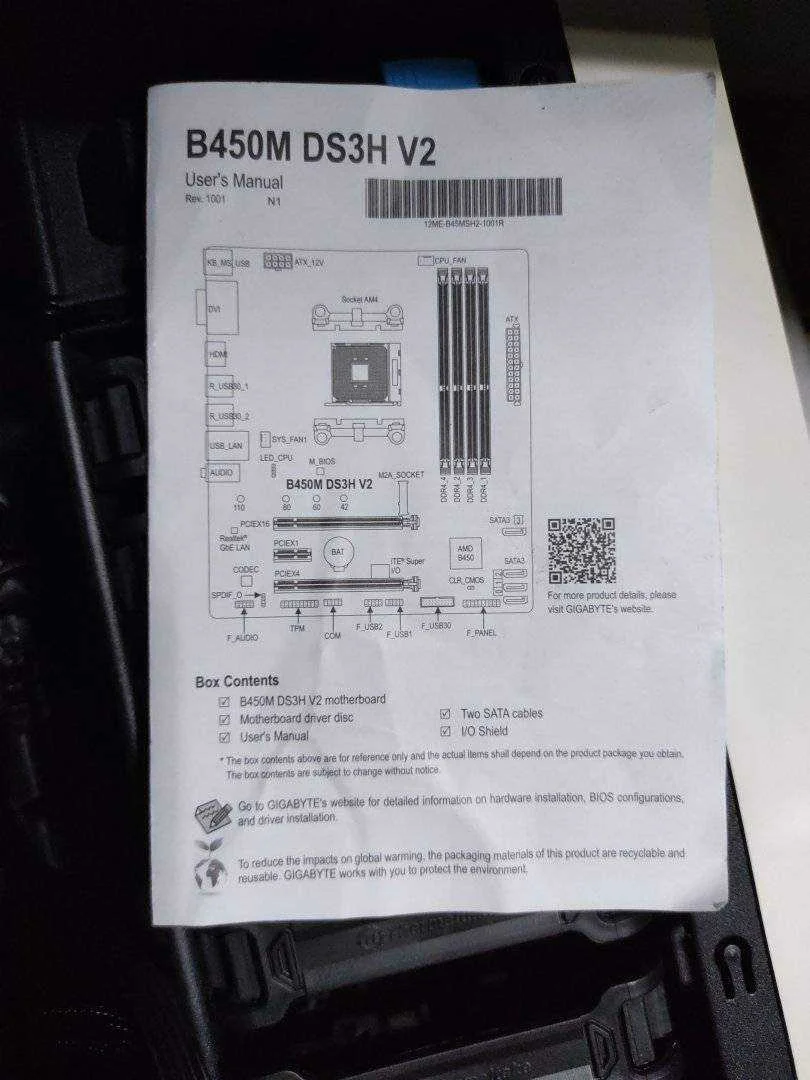

Isa lang ba talaga sys_fan slot neto? Yung sa likod lang kasi nakabit ko. Wala na saksakan ng ganto sa motherboard na gigabyte ds3h v2

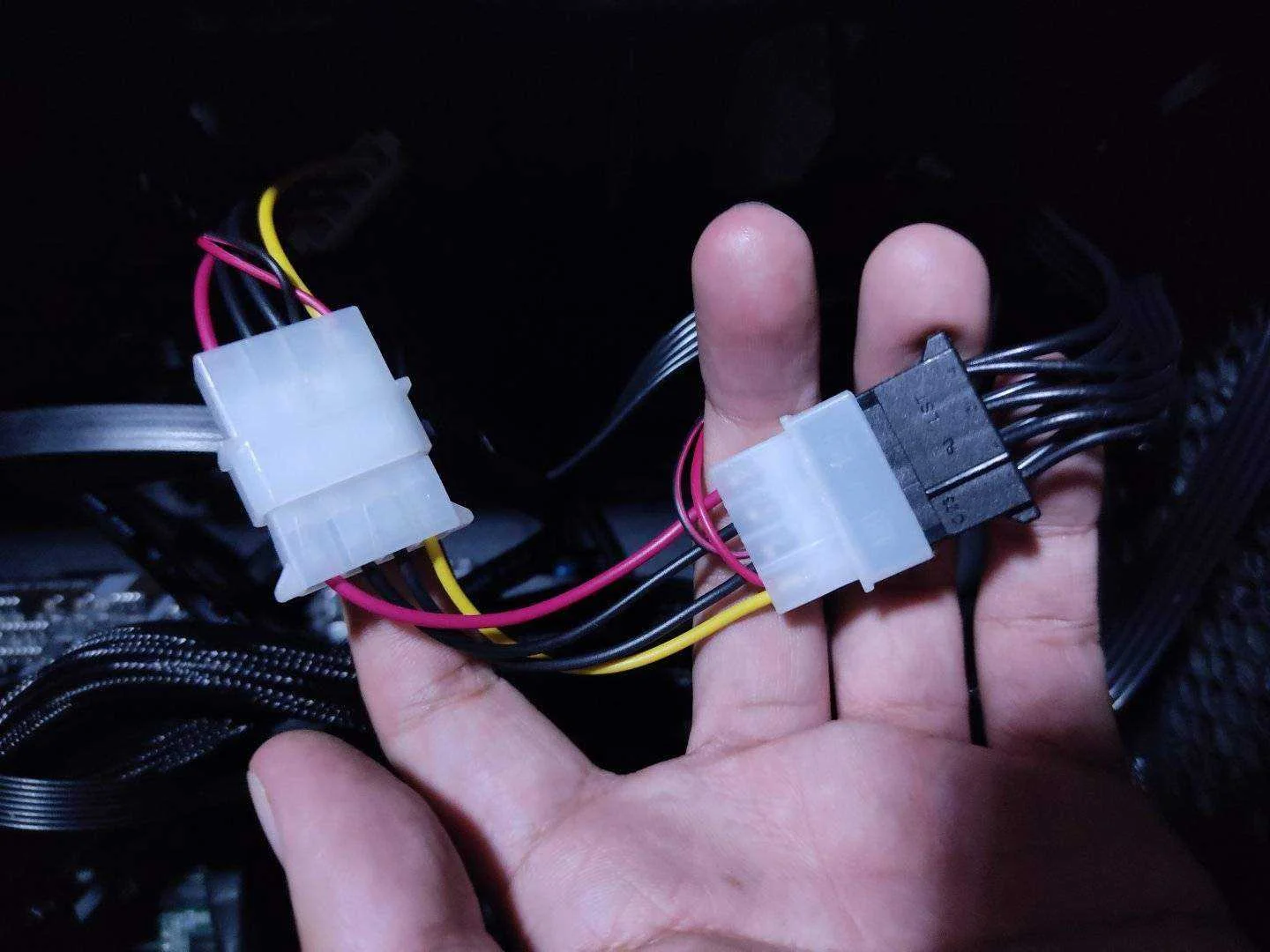

Bali yung extra fan lang nakabit ko diretso sa PSU . Eto:



[WemBUMyama]



[AsphyXia--]

Salamat paps haha



[WemBUMyama]

Bili ka fan splitter kung gusto mo more than one fan



[gabotron]

Walang problema yan. Bili ka lang fan hub. Check mo ito sa Lazada:

4-slot fan hub:

https://www.lazada.com.ph/products/deepcool-fan-hub-controls-up-to-4-pwm-fan-speed-i219207703-s286871137.html

10-slot fan hub (additional power connection via SATA PSU cable)

https://www.lazada.com.ph/products/deepcool-fh-10-10-port-fan-hub-dp-f10pwm-hub-i1009486521-s3361404653.html

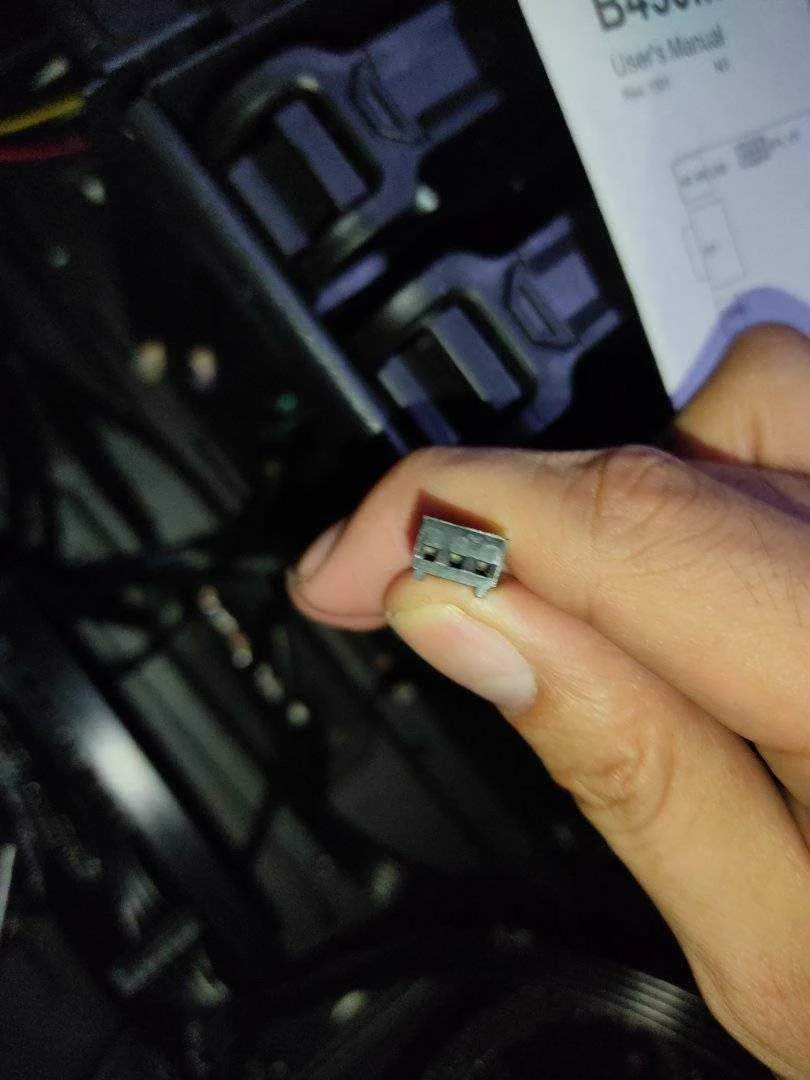

Kaya lang 3-PIN yung nasa photo mo na fan connector. Compatible pa rin naman, pero walang fan speed control ang 3-PIN fans kapag i-connect mo sa 4-PIN header ng mobo o hub. Bale tatakbo siya palagi @ full speed, tulad ng ginawa mo na rekta sa PSU. Mas maganda yung 4-pin fans kasi PWM. Pwede mong i-adjust ang fan speed sa BIOS/UEFI based on system temperature, which reduces noise and power consumption.



[AsphyXia--]

Maraming salamat paps
